1997 freightliner classic dies

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by earnies2, May 11, 2023.

Page 3 of 5
  1. May 12, 2023 #21
    earnies2

    earnies2 Medium Load Member

    691
    281
    May 17, 2012
    Dedham, MA.
    0
    Not sure what that is?

    earnies2, May 12, 2023
    earnies2, May 12, 2023
    #21
    Rideandrepair Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. May 12, 2023 #22
    Rideandrepair

    Rideandrepair Road Train Member

    17,264
    56,030
    Aug 8, 2015
    0

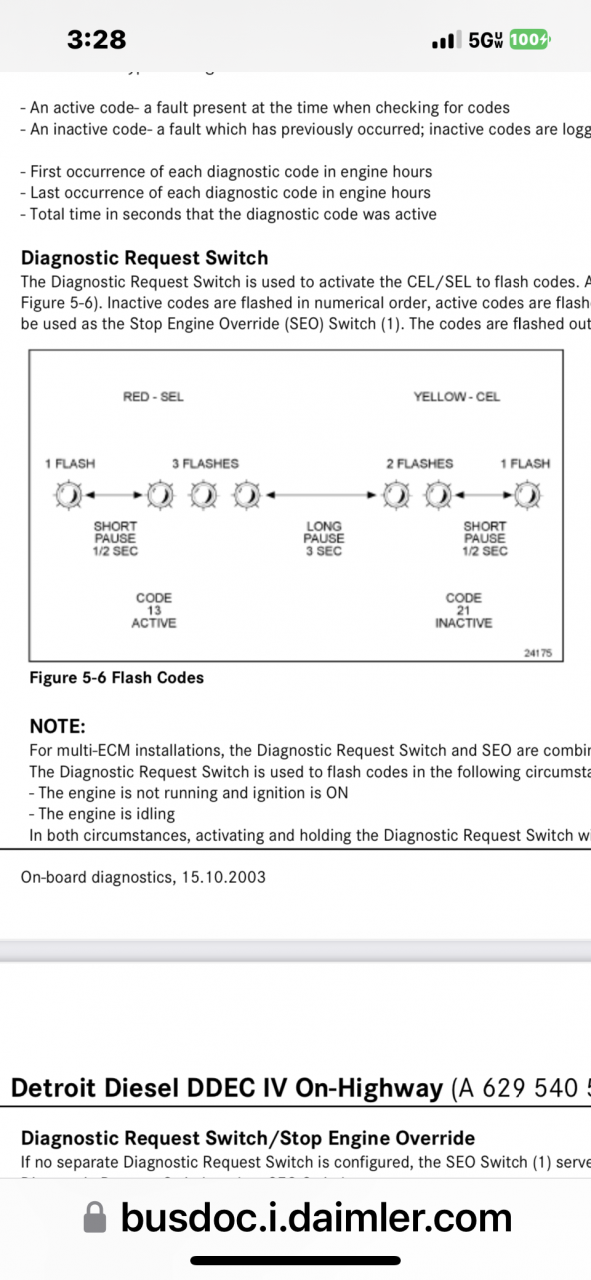

    Turn key on, push and hold override/chk button. Located next to the starter button. Count the flashes. 2 digit #. So 4 blinks, 1 second delay and 4 more blinks = code # 44

    Rideandrepair, May 12, 2023
    Rideandrepair, May 12, 2023
    #22
    earnies2 Thanks this.
  4. May 12, 2023 #23
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,909
    31,565
    May 2, 2021
    0
    What do you have pin to pin. Any battery or starter work lately?

    Big Road Skateboard, May 12, 2023
    Big Road Skateboard, May 12, 2023
    #23
    earnies2 and Rideandrepair Thank this.
  5. May 12, 2023 #24
    earnies2

    earnies2 Medium Load Member

    691
    281
    May 17, 2012
    Dedham, MA.
    0
    I tested the continuity between the temp control valve and the ecm and there good. Does any know where the wires from the wires go from the low water sensor to I can't find where it terminates

    earnies2, May 12, 2023
    earnies2, May 12, 2023
    #24
    Rideandrepair Thanks this.
  7. May 12, 2023 #25
    earnies2

    earnies2 Medium Load Member

    691
    281
    May 17, 2012
    Dedham, MA.
    0
    No battery or starter work
    Can you explain pin to pin?

    earnies2, May 12, 2023
    earnies2, May 12, 2023
    #25
    Rideandrepair Thanks this.
  8. May 12, 2023 #26
    earnies2

    earnies2 Medium Load Member

    691
    281
    May 17, 2012
    Dedham, MA.
    0
    I will do that now

    earnies2, May 12, 2023
    earnies2, May 12, 2023
    #26
    Rideandrepair Thanks this.
  9. May 12, 2023 #27
    Rideandrepair

    Rideandrepair Road Train Member

    17,264
    56,030
    Aug 8, 2015
    0

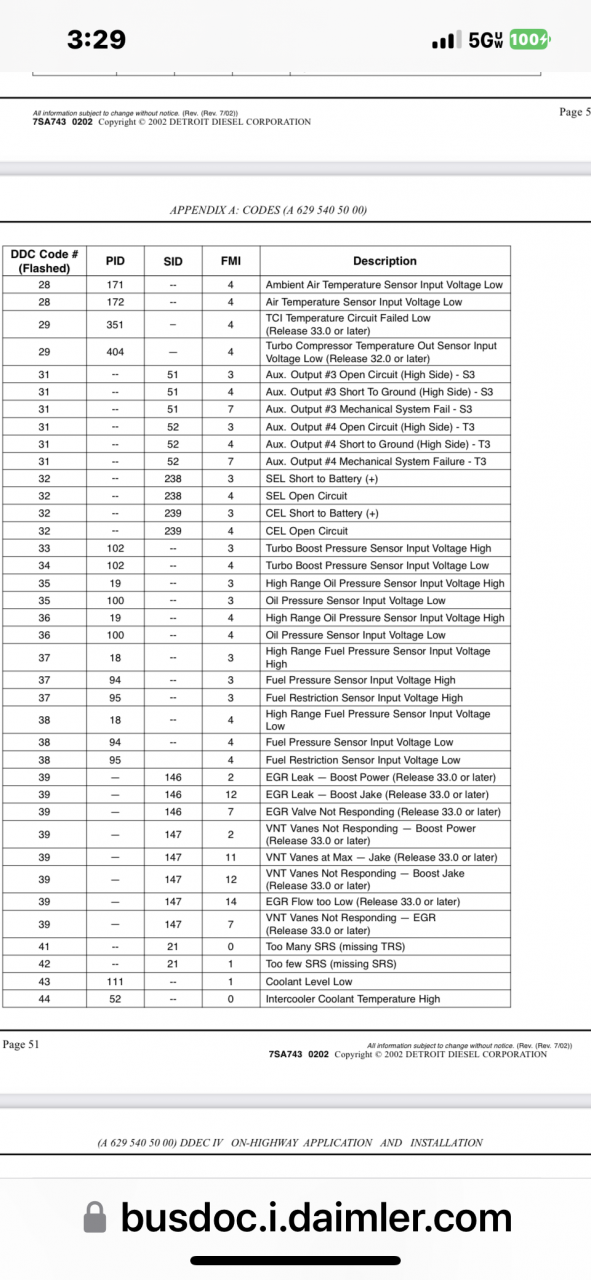

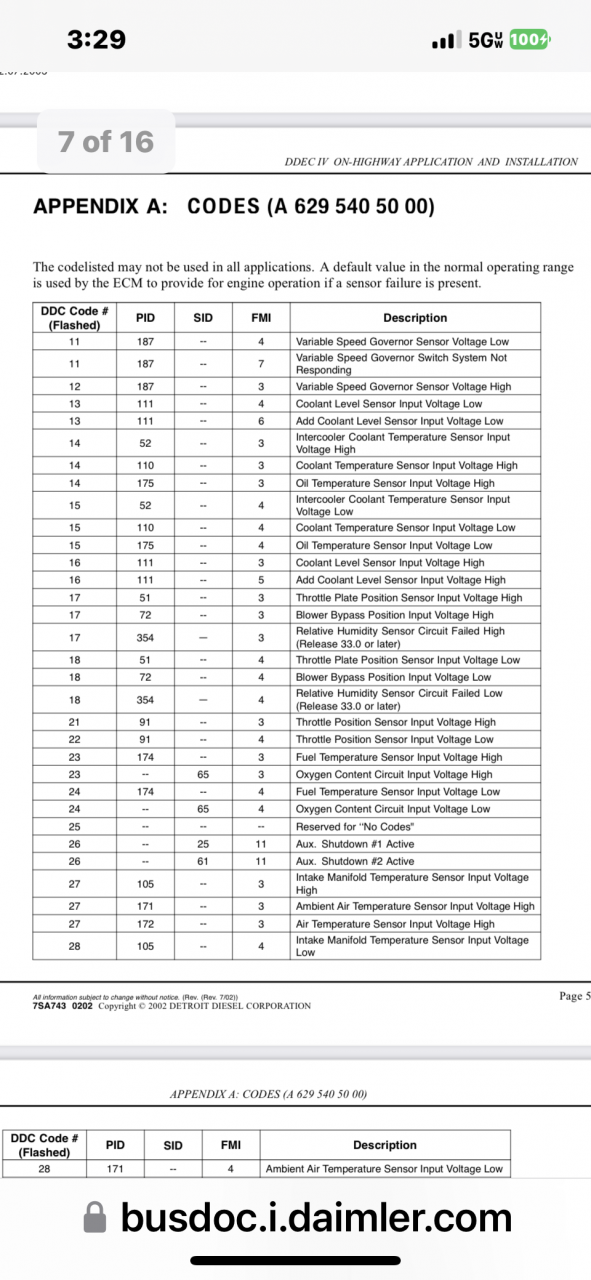

    FFB0CC9C-0D02-411B-88C1-4B2230C2B226.png F2443390-E7C0-4FF0-A968-1DEAB9DE5D0D.png 3CD736AC-6D52-44B9-9EBB-DB73066A3E12.png 3B5C645F-0289-47AE-ADD8-7ADB9C34E28E.png Partial list of codes.

    Rideandrepair, May 12, 2023
    Rideandrepair, May 12, 2023
    #27
  10. May 12, 2023 #28
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,909
    31,565
    May 2, 2021
    0
    5V+ signal to the return. Both wires in the plug

    Big Road Skateboard, May 12, 2023
    Big Road Skateboard, May 12, 2023
    #28
    Rideandrepair and earnies2 Thank this.
  11. May 12, 2023 #29
    MRMTRANS

    MRMTRANS Medium Load Member

    357
    388
    Apr 28, 2015
    0
    Low coolant sensor terminates on the Vehicle Interface Harness connector on the right hand lower side of the ECM. Pictures I sent earlier displays that. Other picture lists which spot: Cavity H-3, Wire # 115. Wire #s are printed on wires. They often fade to the point you cannot see.

    MRMTRANS, May 12, 2023
    MRMTRANS, May 12, 2023
    #29
    Rideandrepair Thanks this.
  12. May 12, 2023 #30
    earnies2

    earnies2 Medium Load Member

    691
    281
    May 17, 2012
    Dedham, MA.
    0
    Red=1-6
    Yellow=3-6
    1-4
    7-7
    1-5
    2-8
    2-2
    4-4. ×2
    4-5
    5-6
    2-1
    2-4
    3-4
    3-1
    The sensor for the low water was unplugged when I did this.

    earnies2, May 12, 2023
    earnies2, May 12, 2023
    #30
    Rideandrepair Thanks this.
