1998 FLD120 Jake brake wire numbers

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by JoeyJunk, Oct 14, 2022.

Page 2 of 3
  1. Oct 16, 2022 #11
    jamespmack

    jamespmack Road Train Member

    19,998
    215,908
    Mar 25, 2014
    OH
    0
    I'm jumping around. But the 30 pin your schematic is showing is on the ecm.

    Stand looking at the ecm, engine wiring is in the left. OEM cab is on your right, or towards cab. Big connection is 30pin.

    jamespmack, Oct 16, 2022
    jamespmack, Oct 16, 2022
    #11
    singlescrewshaker and Rideandrepair Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Oct 16, 2022 #12
    JoeyJunk

    JoeyJunk Road Train Member

    8,763
    68,032
    Dec 31, 2010
    Washington, PA
    0
    It is turned on in the ECM and were functioned at the rebuild shop. Just need to figure out in cab wiring. Two plugs are present but were just hanging in dash. O had to get a panel with switches from the junk yard. The plugs aren’t the typical jake plugs. Thats why I need numbers to verify what I got. It’s annoying lol.

    JoeyJunk, Oct 16, 2022
    JoeyJunk, Oct 16, 2022
    #12
  4. Oct 16, 2022 #13
    jamespmack

    jamespmack Road Train Member

    19,998
    215,908
    Mar 25, 2014
    OH
    0
    I do not have actual diagrams. Do you have the diagram on the back of the wire distribution panel?

    If not I could pop dash out and get a numbers late today or tomorrow.

    jamespmack, Oct 16, 2022
    jamespmack, Oct 16, 2022
    #13
  5. Oct 16, 2022 #14
    JoeyJunk

    JoeyJunk Road Train Member

    8,763
    68,032
    Dec 31, 2010
    Washington, PA
    0
    I do, but it has nothing for the jakes. I assumed because the truck didn’t come with them. Just my guess.

    JoeyJunk, Oct 16, 2022
    JoeyJunk, Oct 16, 2022
    #14
    jamespmack Thanks this.
  7. Oct 16, 2022 #15
    Rideandrepair

    Rideandrepair Road Train Member

    17,355
    56,303
    Aug 8, 2015
    0

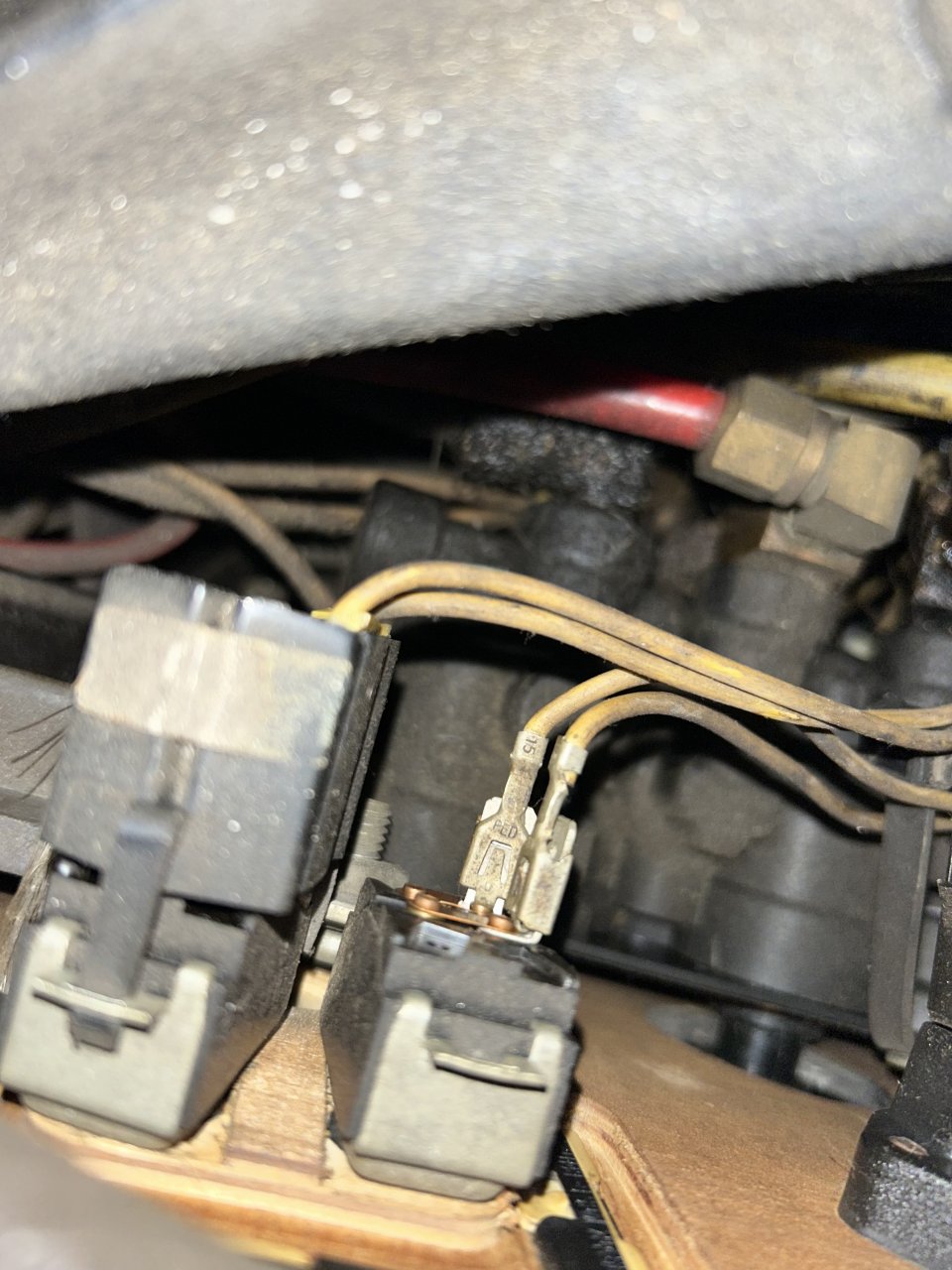

    I can’t see any numbers on the wires. Here’s a picture of the switches/plugs. Only 2 terminals on the switch. Sockets missing up on my 4 cyl plug. If you’ve got everything, and plugs look the same, plug them in. One is for 2 cyl. Others for 4 cyl. Both on together for all six. Makes it a 3 stage.

    Rideandrepair, Oct 16, 2022
    Rideandrepair, Oct 16, 2022
    #15
  8. Oct 16, 2022 #16
    JoeyJunk

    JoeyJunk Road Train Member

    8,763
    68,032
    Dec 31, 2010
    Washington, PA
    0
    No picture came through.

    JoeyJunk, Oct 16, 2022
    JoeyJunk, Oct 16, 2022
    #16
    Rideandrepair Thanks this.
  9. Oct 17, 2022 #17
    Rideandrepair

    Rideandrepair Road Train Member

    17,355
    56,303
    Aug 8, 2015
    0
    Oops

    Rideandrepair, Oct 17, 2022
    Rideandrepair, Oct 17, 2022
    #17
  10. Oct 17, 2022 #18
    JoeyJunk

    JoeyJunk Road Train Member

    8,763
    68,032
    Dec 31, 2010
    Washington, PA
    0
    This is what I have. One has 3 terminals other has 2. I bought what you have @Rideandrepair to hook up to the switches in dash. Was hoping the other ends would be plugs as well but they are not.


    Attached Files:

    JoeyJunk, Oct 17, 2022
    JoeyJunk, Oct 17, 2022
    #18
    Rideandrepair Thanks this.
  11. Oct 17, 2022 #19
    JoeyJunk

    JoeyJunk Road Train Member

    8,763
    68,032
    Dec 31, 2010
    Washington, PA
    0

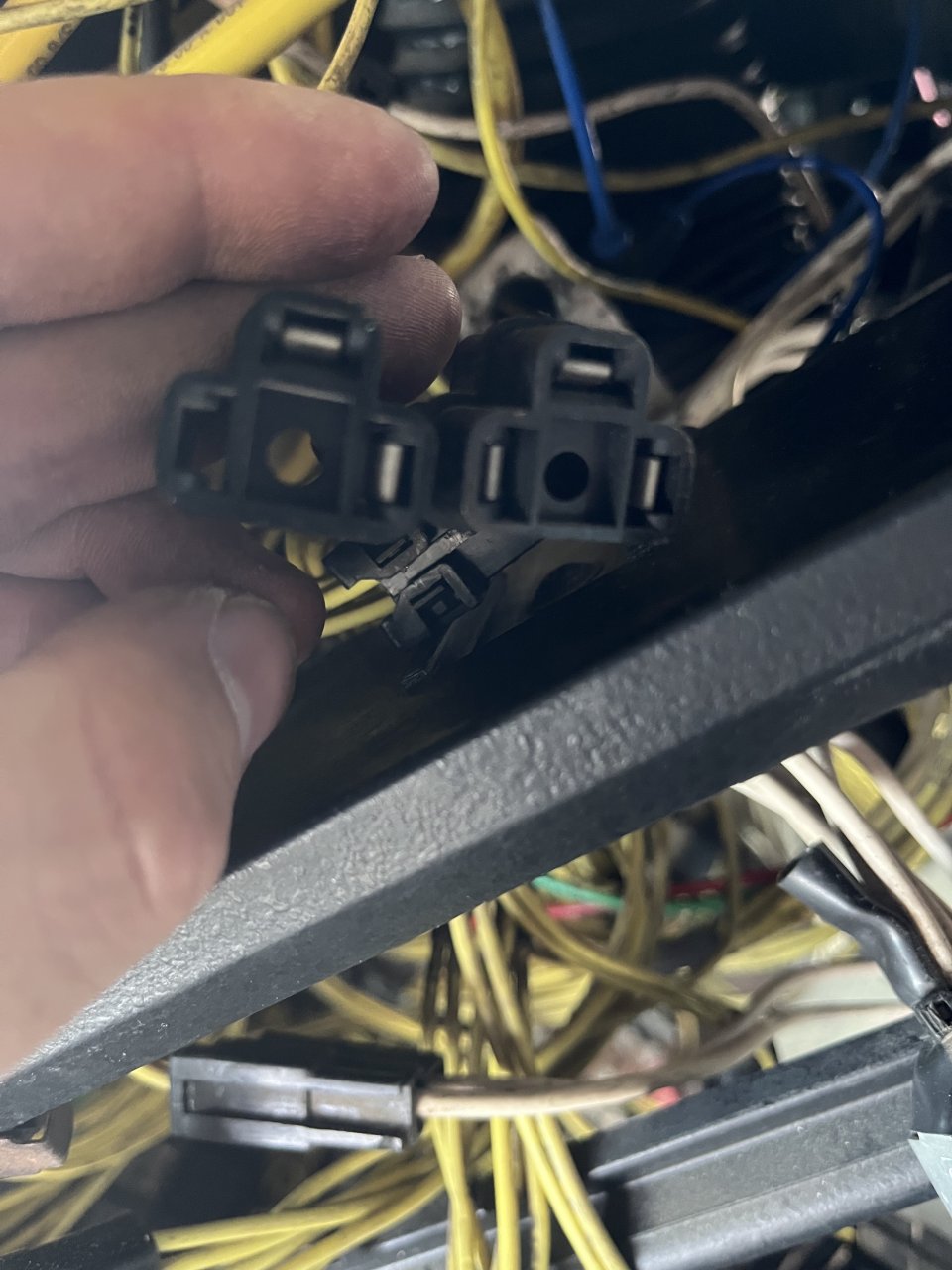

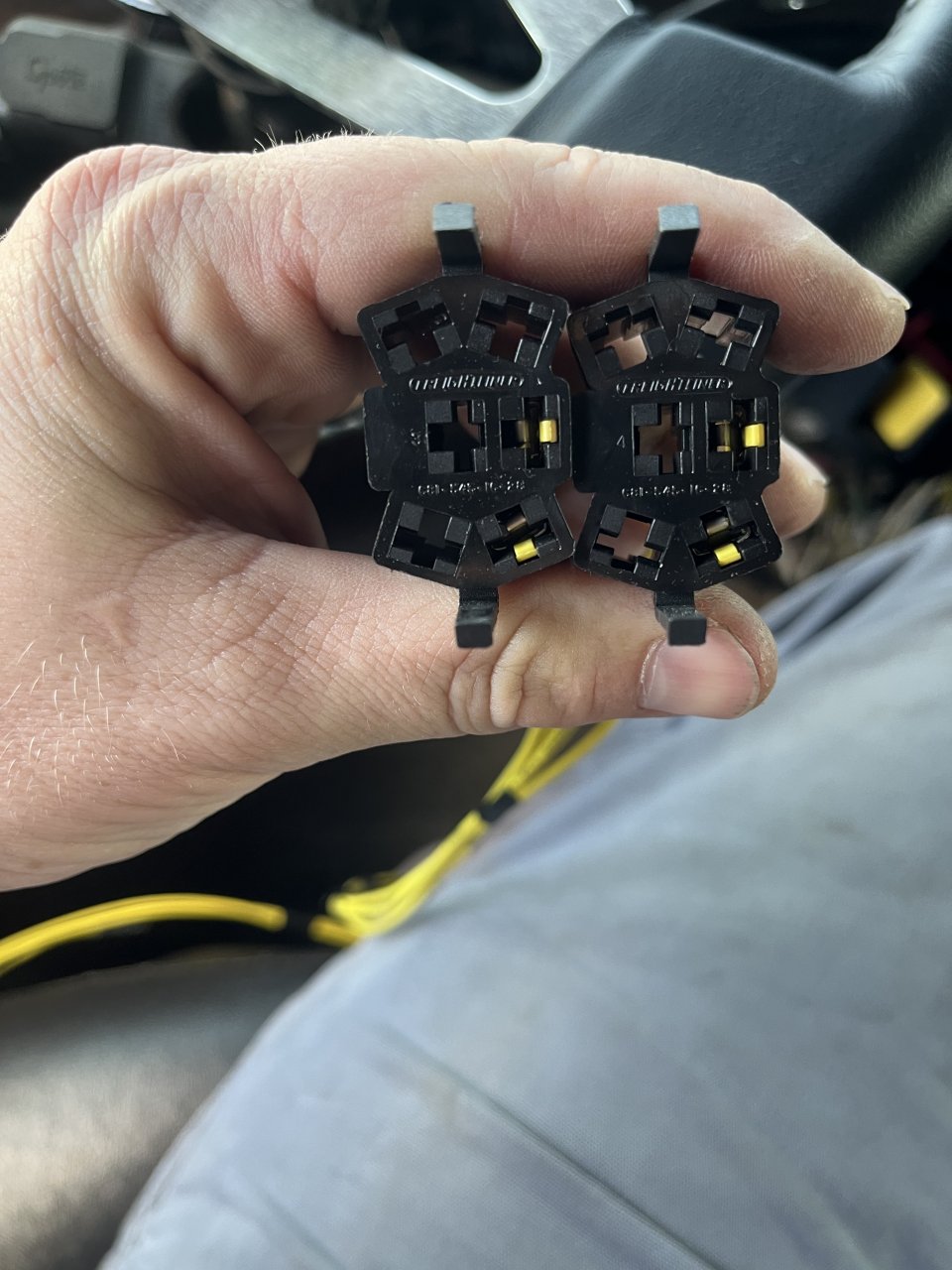

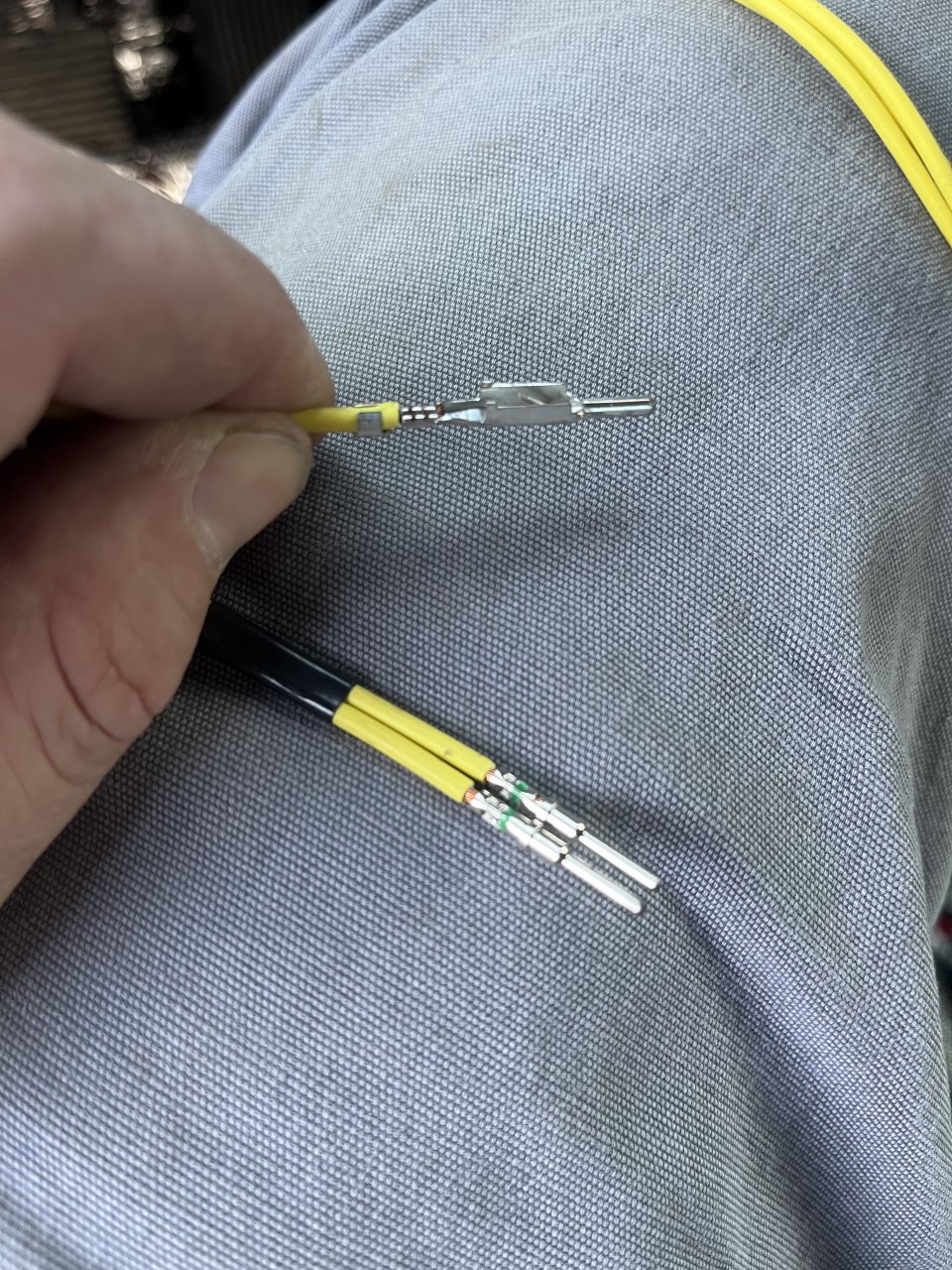

    First pic is what I have which I still don’t know what they are for. Second and third is the new harness that I hope to use. Just need to know where it goes. May break down and have the guy do it.

    2794E282-9E70-4626-B064-D81CE50B5C1D.jpeg C727B1DC-6E98-40B7-94EF-BD80AF3C356A.jpeg 8995DE07-51F4-4017-AC36-3F8ECE752280.jpeg

    JoeyJunk, Oct 17, 2022
    JoeyJunk, Oct 17, 2022
    #19
    Rideandrepair Thanks this.
  12. Oct 17, 2022 #20
    JoeyJunk

    JoeyJunk Road Train Member

    8,763
    68,032
    Dec 31, 2010
    Washington, PA
    0
    If anyone wants to post a pic of the wiring diagram that @jamespmack is referring to I can check the wires that I found and maybe identify them.

    JoeyJunk, Oct 17, 2022
    JoeyJunk, Oct 17, 2022
    #20
    Rideandrepair Thanks this.
