1998 Mack RD Roll Door Panel

Discussion in 'Trucks [ Eighteen Wheelers ]' started by articledon, Sep 13, 2016.

  1. articledon

    articledon Bobtail Member

    1
    0
    Sep 12, 2016
    0
    New too forum, thanks for reading my post.

    New to trucks. Just bought a 1998 Mack RD. I am trying to remove the interior door panel so that I can change the locks. I removed the 4 screws at the top and popped out the clips of the door panel. However the panel is still held in place by the window crank and door latch. It seems as if I should just be able to pull the panel over it but I dont want to damage the panel. Anyone with luck removing the panel?

    For my F250 I can find hundreds of youtube videos explaining how to do stuff. None for the Mack.


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. BoxCarKidd

    BoxCarKidd Road Train Member

    4,421
    6,441
    Aug 26, 2014
    0
    If you look in the door jam behind the lock is there possibly a metal strip about an inch tall, bent in a 90 degree angle, that can be pulled out? It releases the lock and a new one can be slid in.
    Getting that assembly out is lots of fun. Been a long time and don't remember well enough to give instructions. Maybe tied into the front window track and vent window assembly, have to be loose for clearance?

  4. baha

    baha Road Train Member

    4,137
    2,835
    Jul 25, 2013
    ga
    0
    If you push on door panel you can look for the clip or pin that release the handles, a auto parts store sells the tool that push back panel an pop handle off in one tool.

    BoxCarKidd Thanks this.
  5. GrapeApe

    GrapeApe Road Train Member

    2,215
    2,211
    Jan 7, 2013
    0
    Try the rag method, I bought the tool, but since I learned this, I haven't used it. I'm pretty sure that you have a similar clip set up on your Mack.

    spsauerland Thanks this.
  6. MartyEddie

    MartyEddie Bobtail Member

    2
    0
    May 27, 2019
    0

  7. MartyEddie

    MartyEddie Bobtail Member

    2
    0
    May 27, 2019
    0

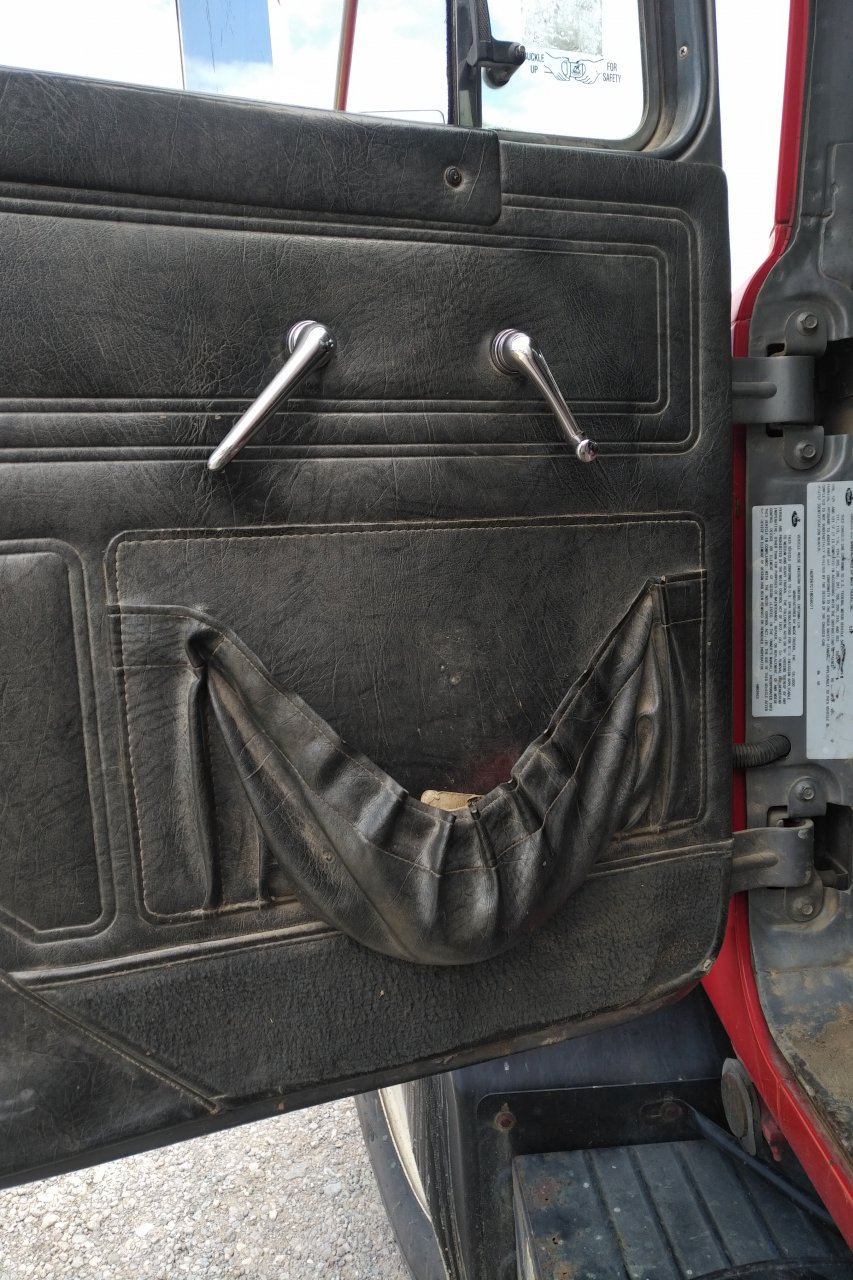

    Part of the handle is spring loaded. Push the part that is flush to the panel towards the door. There is a pin that holds the knob onto the crank. Push the pin through with a small nail or sturdy wire. The knob will slide right off.

  8. Pedigreed Bulldog

    Pedigreed Bulldog Road Train Member

    7,737
    14,421
    May 7, 2011
    0
    Those Mack RD's sure are happy trucks!
