2000 379 Pete no brake lights, so where is the brake light switch?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by greaseburner, Mar 14, 2018.

Page 1 of 2
  1. Mar 14, 2018 #1
    greaseburner

    greaseburner Light Load Member

    155
    45
    Sep 13, 2013
    0
    Ok, I give up, where is this turd located.....

    Also, does the brake lights come on via the turns?

    Have turns, but no brake lights.

    Thanks

    greaseburner, Mar 14, 2018
    greaseburner, Mar 14, 2018
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Mar 14, 2018 #2
    JoeV80

    JoeV80 Bobtail Member

    5
    1
    Mar 14, 2018
    0
    I have a 387. The switch is located under the cab on the frame.

    JoeV80, Mar 14, 2018
    JoeV80, Mar 14, 2018
    #2
  4. Mar 14, 2018 #3
    mslashbar

    mslashbar Medium Load Member

    594
    797
    Jul 22, 2009
    elizabeth,co
    0
    On a 379 the switch is in the air manifold, inside the cab on the floor behind the panel by the steering column.

    mslashbar, Mar 14, 2018
    mslashbar, Mar 14, 2018
    #3
    Oxbow and Roger McG Thank this.
  5. Mar 14, 2018 #4
    greaseburner

    greaseburner Light Load Member

    155
    45
    Sep 13, 2013
    0
    right or left side?

    Thanks

    greaseburner, Mar 14, 2018
    greaseburner, Mar 14, 2018
    #4
    Oxbow Thanks this.
  7. Mar 15, 2018 #5
    pushbroom

    pushbroom Road Train Member

    1,769
    7,205
    Sep 1, 2012
    0
    Rh side of steer column on the floor

    pushbroom, Mar 15, 2018
    pushbroom, Mar 15, 2018
    #5
    Oxbow, spsauerland and greaseburner Thank this.
  8. Mar 15, 2018 #6
    Old Man

    Old Man Road Train Member

    4,597
    13,466
    Apr 3, 2009
    Oklahoma City, OK
    0
    There are also two low air buzzer switches under there too,make sure you get the right one.

    Last edited: Mar 15, 2018
    Old Man, Mar 15, 2018
    Old Man, Mar 15, 2018
    #6
    Oxbow and Roger McG Thank this.
  9. Mar 15, 2018 #7
    greaseburner

    greaseburner Light Load Member

    155
    45
    Sep 13, 2013
    0

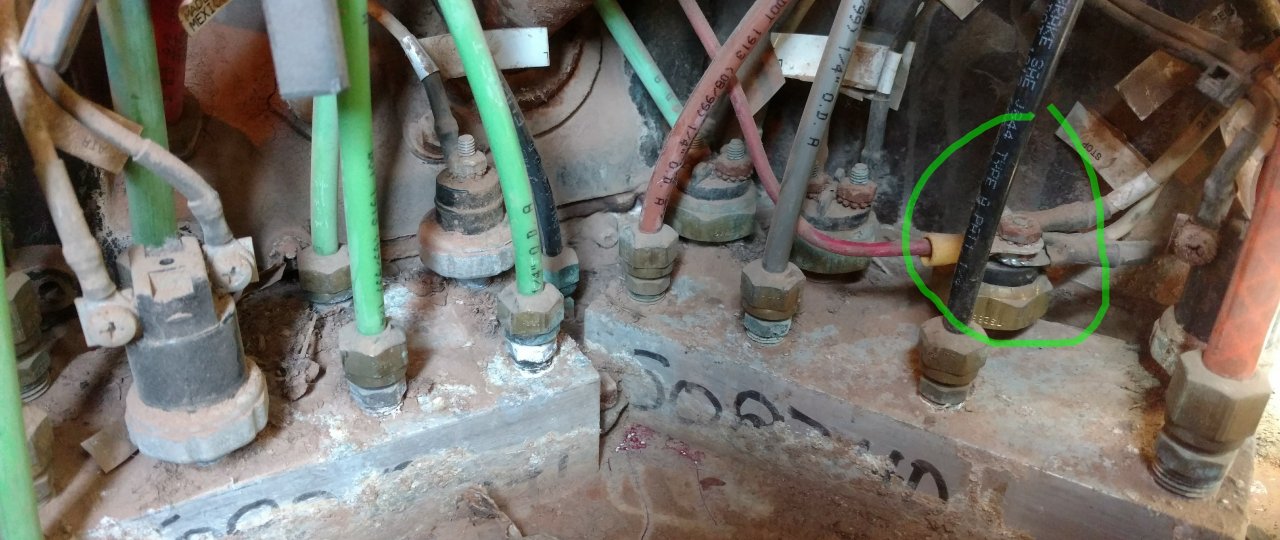

    brake light switch.jpg I'm assuming the guilty party is the shiniest brass one on the right circled in green.....

    If so, I don't know why the red lead is on it besides there was a possible past power loss on the original lead?

    Thanks

    greaseburner, Mar 15, 2018
    greaseburner, Mar 15, 2018
    #7
  10. Mar 16, 2018 #8
    Bean Jr.

    Bean Jr. Road Train Member

    5,338
    9,358
    Mar 30, 2014
    0
    You are checking with the ignition on?

    Bean Jr., Mar 16, 2018
    Bean Jr., Mar 16, 2018
    #8
  11. Mar 16, 2018 #9
    greaseburner

    greaseburner Light Load Member

    155
    45
    Sep 13, 2013
    0
    No, but that was the guilty party.

    Thanks everyone!

    greaseburner, Mar 16, 2018
    greaseburner, Mar 16, 2018
    #9
    blairandgretchen and Bean Jr. Thank this.
