2000 Freightliner century

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Trevizo32, Apr 19, 2023.

  1. Apr 19, 2023 #1
    Trevizo32

    Trevizo32 Bobtail Member

    5
    0
    May 14, 2018
    0

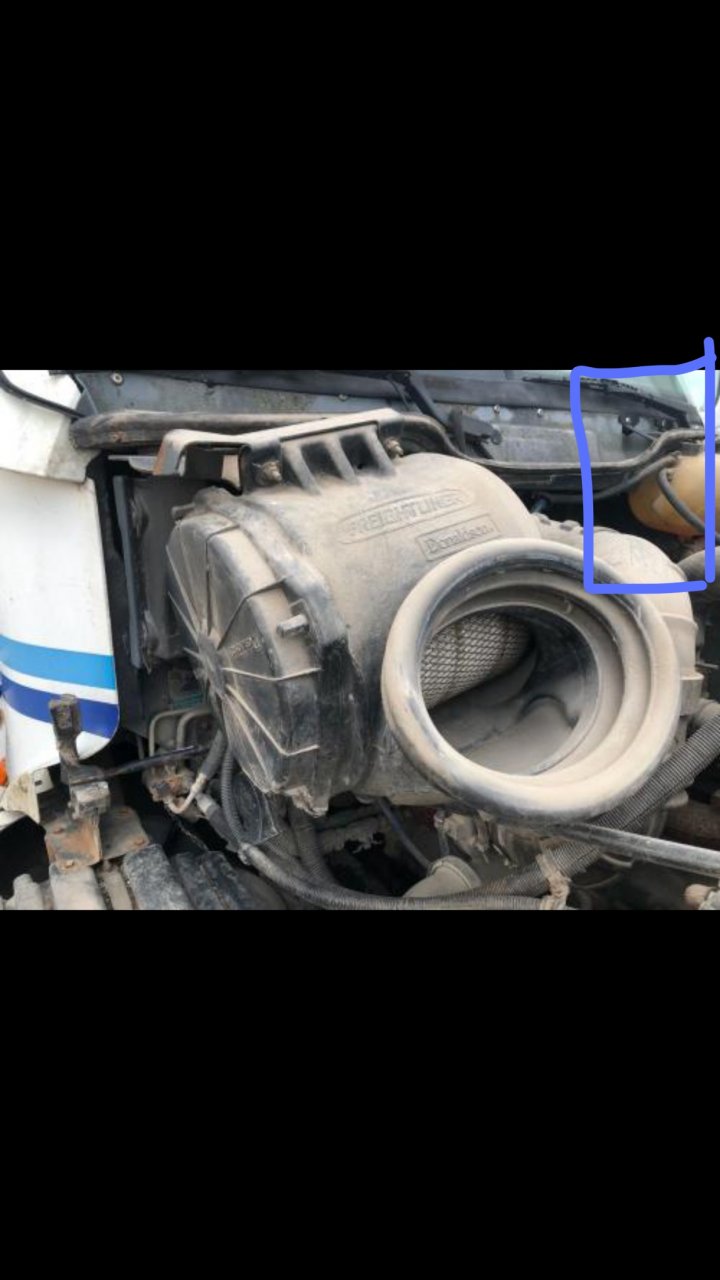

    have a 2000 Freightliner century Detroit 60 series yesterday I was replacing the hoses from left side of surge tank one runs to radiator other runs to passenger side I didn’t take picture before I removed them does any one know correct way they go the surge tank doesn’t have them side by side it has one high and one low I can’t find any photos online besides these and was wondering if it was correct ? This photo has bottom running to radiator and top going to passenger side


    Attached Files:

    Trevizo32, Apr 19, 2023
    Trevizo32, Apr 19, 2023
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Apr 19, 2023 #2
    MRMTRANS

    MRMTRANS Medium Load Member

    363
    390
    Apr 28, 2015
    0

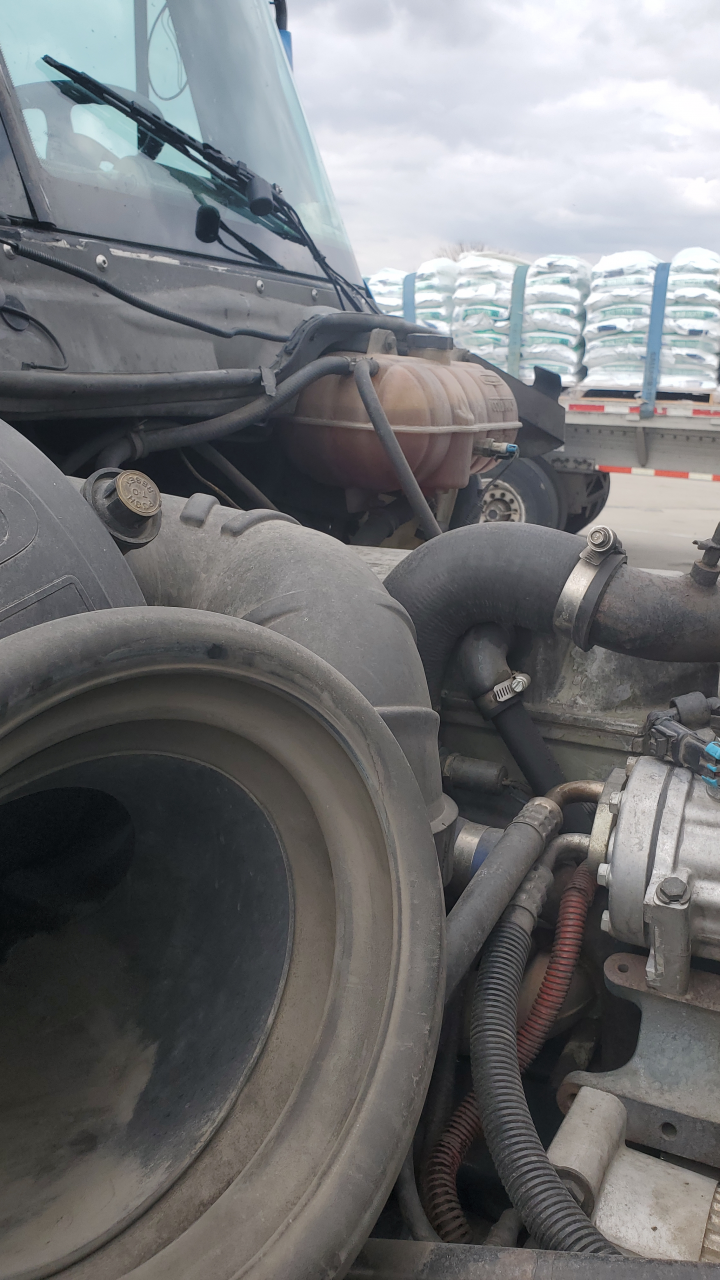

    From a 2002 Century.

    MRMTRANS, Apr 19, 2023
    MRMTRANS, Apr 19, 2023
    #2
    nikmirbre, Trevizo32 and gentleroger Thank this.
  4. Apr 19, 2023 #3
    Trevizo32

    Trevizo32 Bobtail Member

    5
    0
    May 14, 2018
    0
    Thank you but I believe the reservoir are different mine has them vertical so I was wondering which one is which or does it matter?

    Trevizo32, Apr 19, 2023
    Trevizo32, Apr 19, 2023
    #3
  5. Apr 19, 2023 #4
    MRMTRANS

    MRMTRANS Medium Load Member

    363
    390
    Apr 28, 2015
    0
    ? You can see in the pic you attached that the lower hose goes to the radiator and the upper to the thermostat housing. I don't know for sure if it matters anyhow, but I wouldn't think so.

    MRMTRANS, Apr 19, 2023
    MRMTRANS, Apr 19, 2023
    #4
  7. Apr 19, 2023 #5
    little cat 500

    little cat 500 Road Train Member

    2,053
    1,098
    Jan 17, 2010
    Abbottstown PA
    0
    i don't think it makes a difference witch one there on

    little cat 500, Apr 19, 2023
    little cat 500, Apr 19, 2023
    #5
  8. Apr 20, 2023 #6
    Rideandrepair

    Rideandrepair Road Train Member

    17,337
    56,255
    Aug 8, 2015
    0
    I think it matters because of the direction of flow. Into the top from the thermostat and out the bottom to the radiator. Same direction and locations,( top and bottom ) as the large hoses.

    Rideandrepair, Apr 20, 2023
    Rideandrepair, Apr 20, 2023
    #6
  9. Apr 20, 2023 #7
    little cat 500

    little cat 500 Road Train Member

    2,053
    1,098
    Jan 17, 2010
    Abbottstown PA
    0
    Mine are side by side like that and they both just dump in the expansion tank.

    little cat 500, Apr 20, 2023
    little cat 500, Apr 20, 2023
    #7
