2005 Freightliner Coronado Headlight Upgrade

Discussion in 'Freightliner Forum' started by petrel, Nov 11, 2017.

  1. artx

    artx Bobtail Member

    3
    0
    Nov 10, 2018
    0
    Thanks for the fast response. I am putting TruckLite driving lights in place of the factory fog lamps. It is taking some work, but should be better. I would like to match the Trucklite 27270C model to the driving lights as they are cheaper, but the Trucklite model has a more uniformly round back that might not fit the headlight bucket like you've shown.

    The running lamp housing are regular factory replacements? What exact bulbs are you using and are they strictly amber LED? I have seen some that are white for DRL and then turn amber when flashing. I think I have seen some kit for that conversion.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. petrel

    petrel Bobtail Member

    18
    3
    Mar 16, 2016
    0
    The shape of the back of the headlights should not matter, so long as they aren't too deep. Mine only made contact with the "customized" housing around the rim, just like a regular sealed bulb assembly would.

    The Leds are the JDM 3030 with 3157 in Switchbacks, White for DRL, Amber for Marker/turn. No kit necessary, just plug them in.

  4. Nick UA

    Nick UA Bobtail Member

    2
    0
    Feb 28, 2018
    0

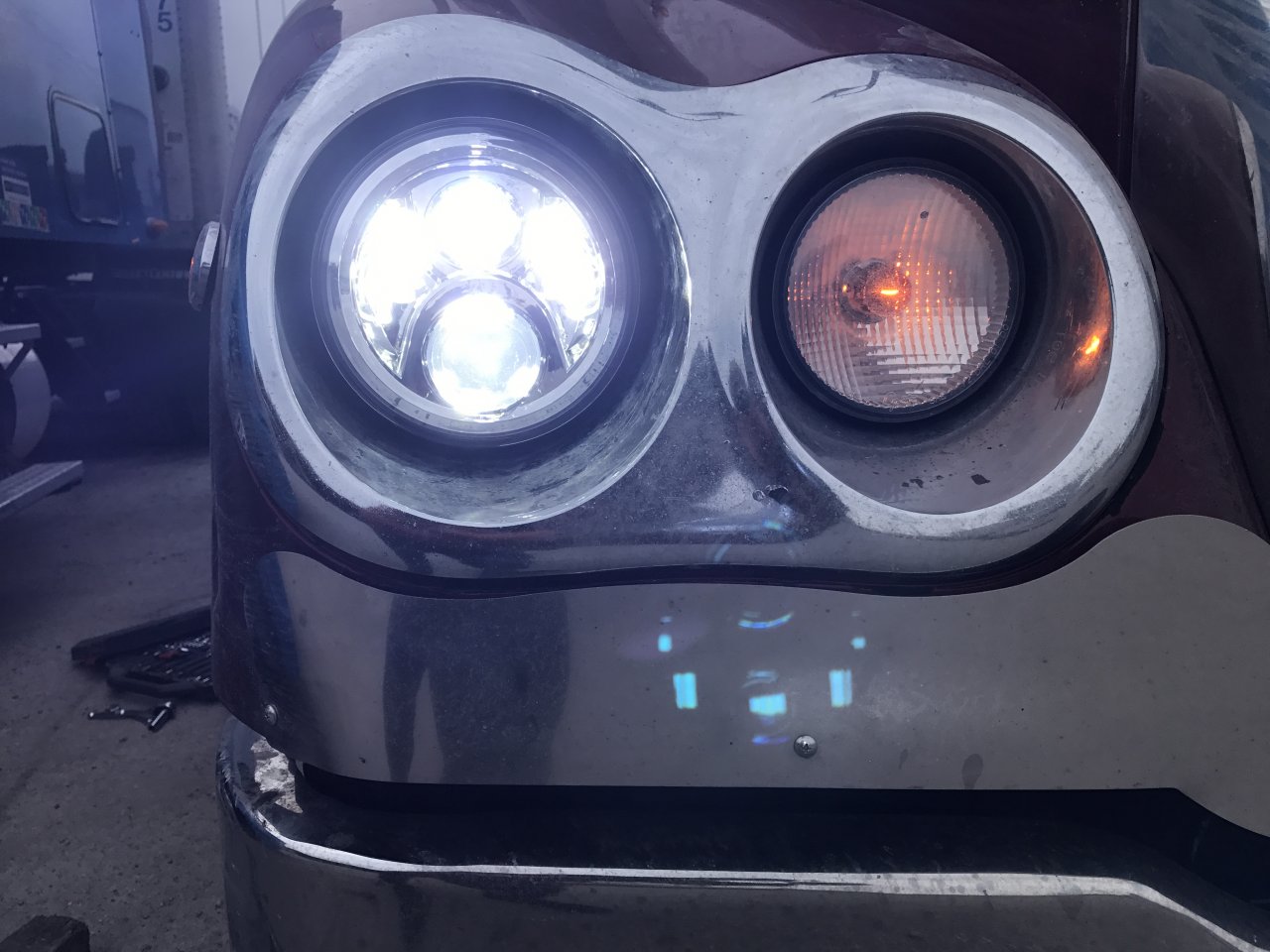

    Here is my work done. Also have a plan to do the same with DTRL/Turn signal lights, found some 5.75 inch size on EBay. A91890D9-CB10-4065-A6D3-4EB1F5AC2425.jpeg

  5. petrel

    petrel Bobtail Member

    18
    3
    Mar 16, 2016
    0
    Very nice! I've found some 5.75 DRL/Turn complete led fixtures that I'd prefer, but I don't have an installation plan yet. The rear, three stud installation that Grote/Freightliner uses on the fixture doesn't lend itself to many aftermarket options. Please post what you work out. Thanks

  6. uncleal13

    uncleal13 Road Train Member

    3,494
    5,477
    Apr 9, 2009
    Humboldt, Sk
    0
    I had a 2006 Century that I put in the 7" LED by Grote.
    I had the same fixtures as you.
    I use to have a1998 Century that used the traditional 7" round headlights. So I went to a wrecking yard and got the headlight assembly from an older truck, they just bolted right in.

  7. Peterbiltt

    Peterbiltt Light Load Member

    226
    84
    Aug 21, 2014
    Ontario Canada
    0
    Did you do the same thing as Petrel? i have a glider that needs new headlights freightliner wants $600 lol

  8. l1011

    l1011 Bobtail Member

    15
    5
    Apr 28, 2017
    0
    yes I'd like to know too my stock head lites are awful on my coronado 132 glider i was looking for the easiest way out of this

  9. THEONEANDONLYMADDOG

    THEONEANDONLYMADDOG Bobtail Member

    22
    27
    Dec 8, 2013
    0
    I just bought a 2018 132 Glider, I absolutely hate the #### headlight system.
    I'm looking into a cheaper, yet more custom looking as well as effective solution.

    I built custom cars for years and when I come to the day of my project I'll post pic's as well as part #'s and vendors..

  10. Peterbiltt

    Peterbiltt Light Load Member

    226
    84
    Aug 21, 2014
    Ontario Canada
    0
    im waiting for this one.. i have a 08

  11. Breakemoff504

    Breakemoff504 Bobtail Member

    9
    2
    Nov 23, 2019
    0

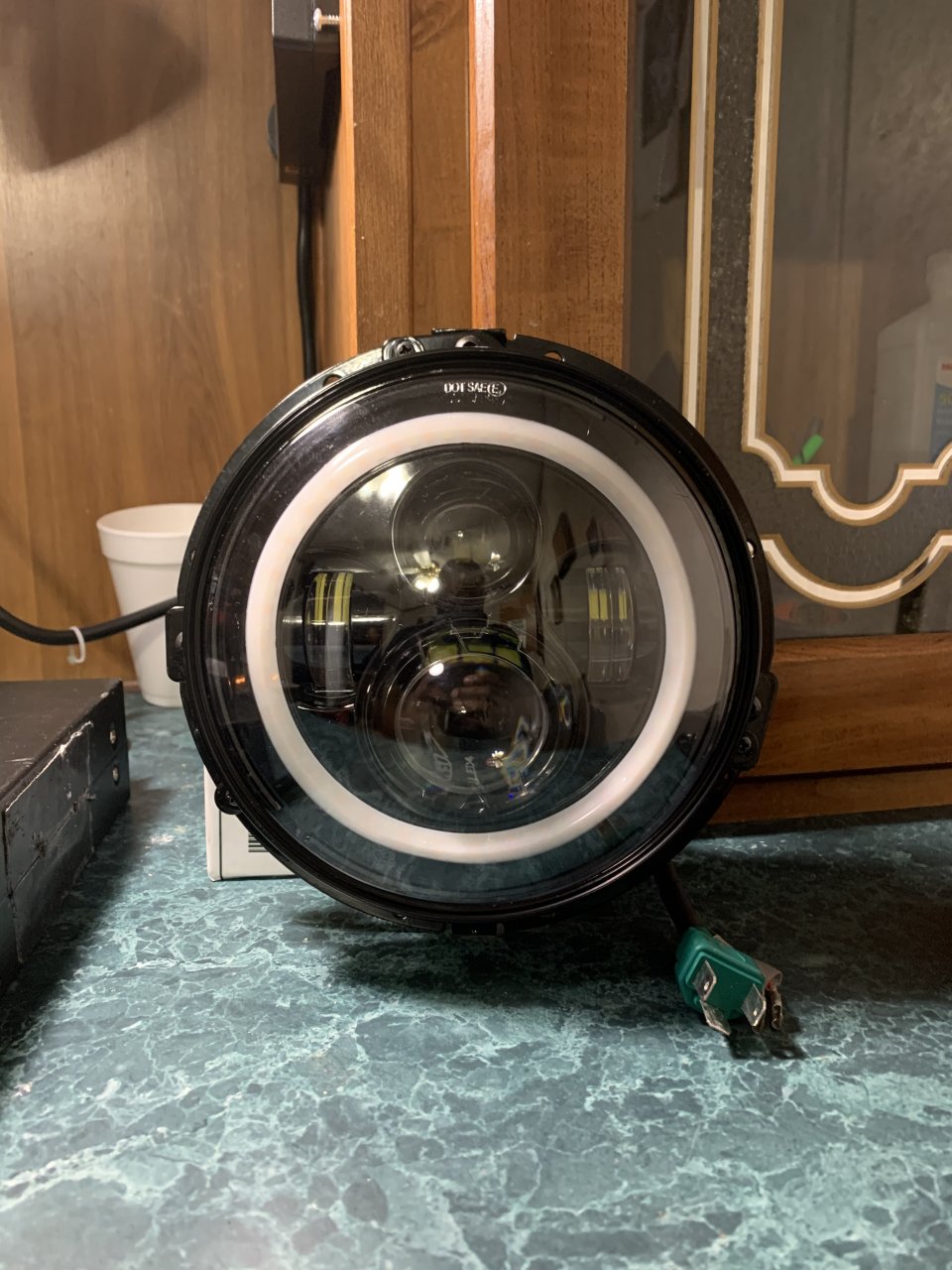

    I have a 2014 Coronado glider with the 9006 & 9005 7” headlights. I have purchased the 7” leds. I had to purchase the plug and play harness off of eBay for the 2 plugs and purchased the Harley Davidson/Jeep cj, wrangler, etc bracket. Will have to do some minor mods on the hood where the headlight goes but nothing major just drill out some holes for the bracket to fit properly.


    Attached Files:

    Peterbiltt Thanks this.
