2007 freightliner columbia leaking coolant underneath sleeper

Discussion in 'Trucks [ Eighteen Wheelers ]' started by Vintage, Jul 13, 2013.

  1. Vintage

    Vintage Light Load Member

    142
    117
    Mar 16, 2013
    Sea to Shining Sea
    0
    Hello, hope ya'll are having a good weekend so far. I have a small situation that i know you guys can help on.

    Its a freightliner Columbia, 2007 model, it has a coolant leak, location of leak is underneath the sleeper. I had the same problem last year while working as a company driver down south, and it turned out to be the sleeper heater core that time on the 2005 Columbia i was operating..so i went with that idea and bought a heater core and acouple o-rings from the dealership. The tech @ freightliner quoted 8 hours labor @ $97/h to install a 50$ part. I just don't have that kind of milk money to throw around so i said thanks but no thanks on the install..it took my mechanic in dallas 2 hours to install but i am nowhere near that area right now..The T/A says they wont do it..something about not working inside the cab of the truck..my question is 1. is this something a somewhat mechically inclined person can do with a few simple tools 2. is there a workshop manual available if so where can one find it online...i tried the freightliner website but nothing on installing a heater core...any advice is appreciated even if you tell me i am way over my head on this one...thanks in advance...

    Last edited: Jul 13, 2013
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Vintage

    Vintage Light Load Member

    142
    117
    Mar 16, 2013
    Sea to Shining Sea
    0
    1.JPG 2.JPG

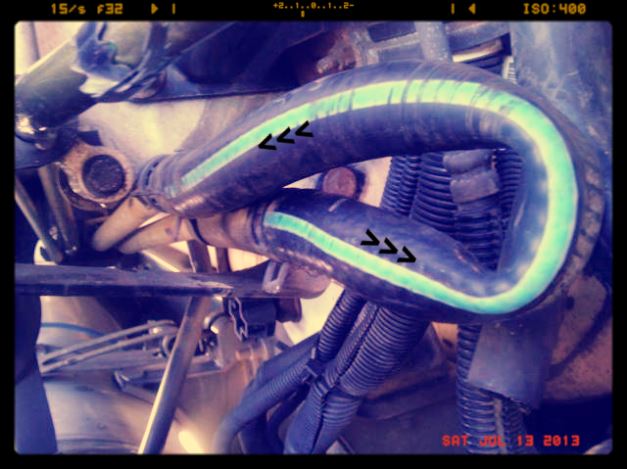

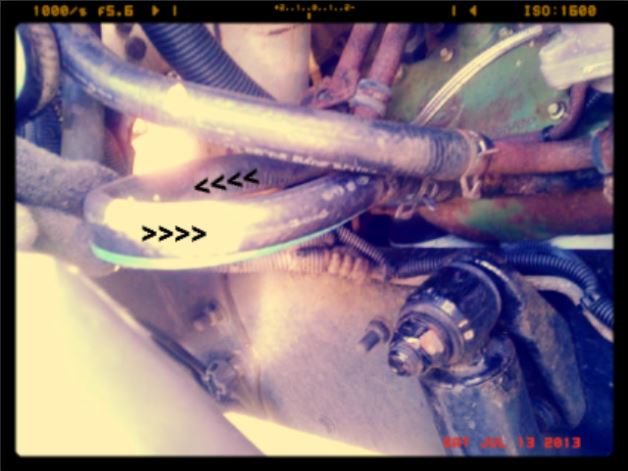

    temporarily stopped the leak...no shut off valves on this truck so I took off the hose that feeds coolant into the sleeper and fed it directly back into the engine..now there is no coolant going in or coming from the sleeper..

  4. texasmorrell

    texasmorrell Medium Load Member

    597
    625
    May 3, 2012
    Lone Star State
    0
    You may have a leak in the heater core itself. If so the core has to be removed and maybe it can be repaired, if not, replaced.

  5. MNdriver

    MNdriver Road Train Member

    7,985
    4,372
    Feb 24, 2012
    0
    you already proved you have a bit of mechanical aptitude with the current field fix, finish when you get home. It's summer, you have the time now to get home and wait this one out now.

    Vintage Thanks this.
  6. leftlanetruckin

    leftlanetruckin Road Train Member

    3,607
    3,161
    Mar 12, 2009
    Mo Via Blackpool,Lancs.
    0
    My heater valves are currently closed.
    I had the lines themselves go bad on a 2000 I had, replaced them with the flexible 3/4" copper line from Lowes.
    Heater cores are a DIY job for sure, so as already said, do it when you get home.

    Martin

  7. Trukfit813

    Trukfit813 Light Load Member

    196
    16
    Jan 1, 2014
    Florida
    0
    Were is that hose located exactly?

  8. Prostar cash

    Prostar cash Bobtail Member

    2
    0
    Mar 16, 2014
    0
    Those little elbow hoses are nitrous for leaking right under sleeper. Need to hook back up and pressure test. Could be metal line run a hole in it from lose clamp. Or if course heater core.

  9. haulin cars

    haulin cars Bobtail Member

    1
    0
    May 29, 2017
    0
    no one could answer vintage's question?
    I have the same problem on a 2004 Columbia
    and cant figure out how to replace bunk heater core.

  10. Hiradttx

    Hiradttx Bobtail Member

    27
    18
    Jul 16, 2014
    0
    Here is a parts diagram for a 2001 Columbia sleeper heater unit. My problem is #4 control valve will not open. I have the replacement part but have not yet installed.

    Has anyone changed this valve? Can you give any advice?


    Attached Files:
