Hello all,
I was wondering if anybody can tell me which is the fuse for the 12 volt "cigarette lighters" in the sleeper area for a 2011 international prostar? Or if anybody can post a picture of the diagram on the box so I can take a look? I was connecting a cooler/fridge to the 12 volt and suddenly it stop working. ..connected the fridge in the front outlet by the dash and the cooler works but 2 out of 3 outlets in the sleeper don't work and the diagram is pretty messed up and I can't read it...any help would be appreciated...thanks in advance!!
2011 international prostar sleeper fuse box
Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by odfraire92, Oct 17, 2018.
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-

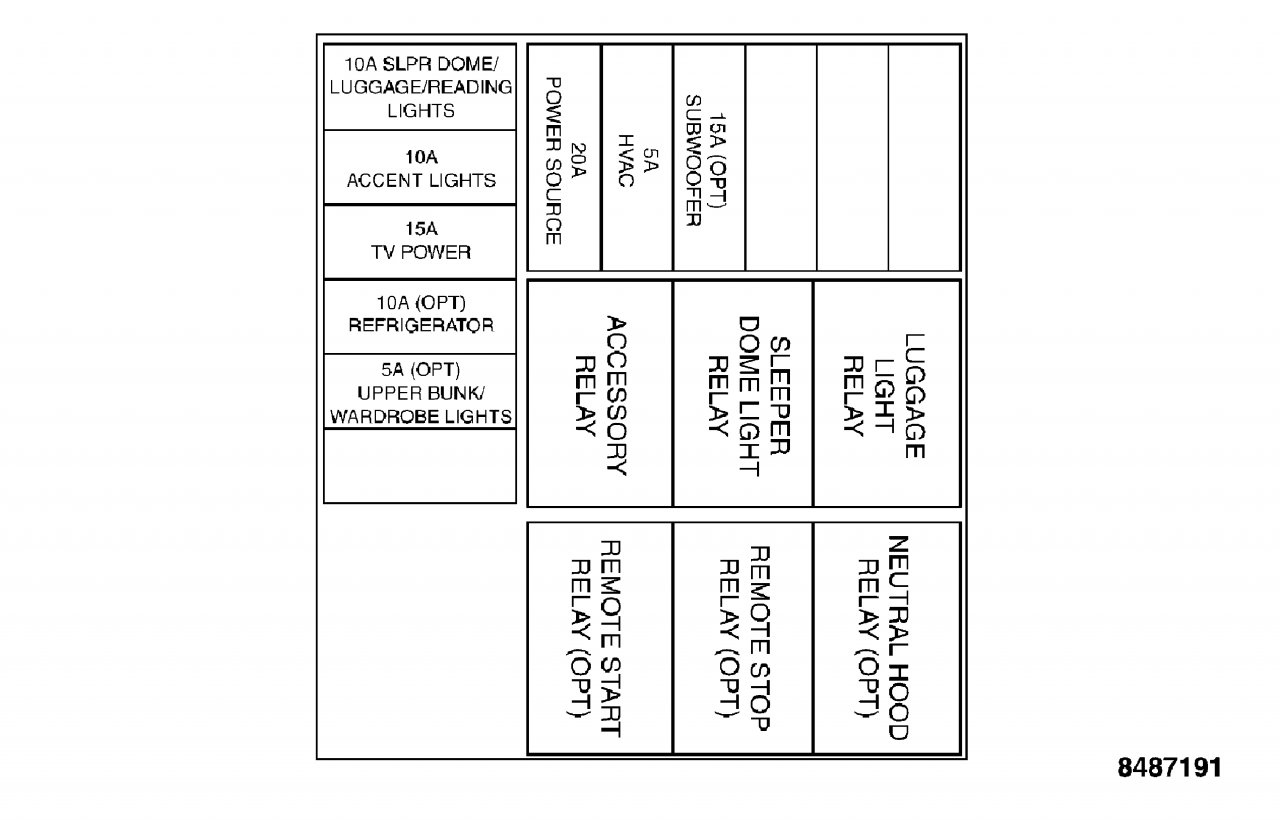

View attachment 250433
I didn't see any labeled specifically for 12 volt outlets. This is a standard layout, and some optional stuff may not be printed in the manual. Also, check the main breaker panel, there are two feed breakers there for the sleeper, both should be 30 amp.odfraire92 Thanks this. -
