2012 Cascadia dd13 spn 3246 fmi 0

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by rediron6, Jul 14, 2019.

  1. rediron6

    rediron6 Light Load Member

    50
    1
    Aug 10, 2011
    albany, ny
    0
    Can someone please tell me where the dpf
    Outlet temp sensor is. I have the one box diagram but it doesn’t show it. Thanks charlie

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. mhyn

    mhyn Road Train Member

    4,255
    4,513
    Dec 29, 2008
    Northridge, CA
    0

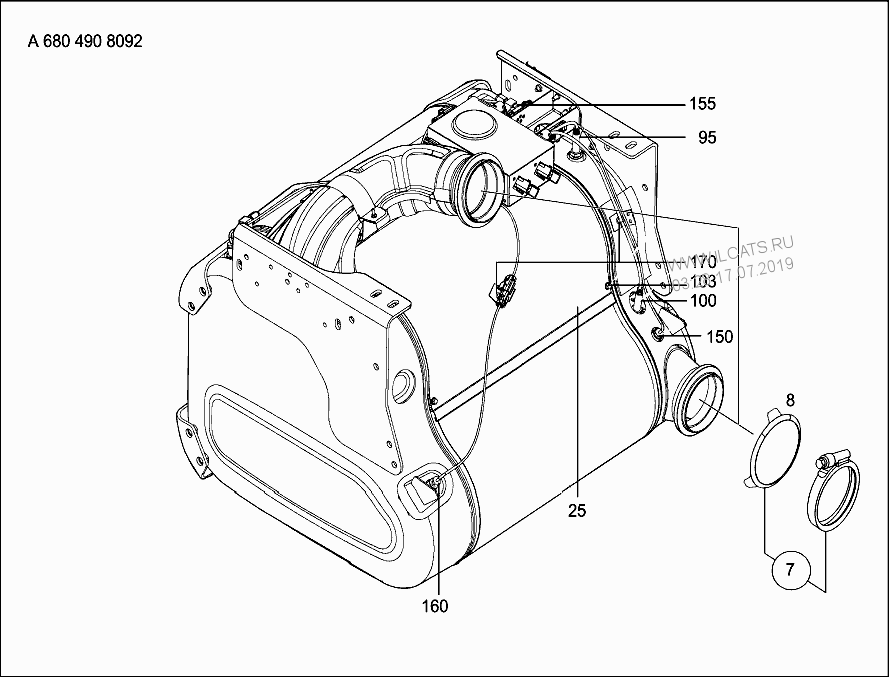

    #95 getImage.png

    spsauerland Thanks this.
  4. Antinomian

    Antinomian Road Train Member

    2,095
    3,283
    Feb 17, 2013
    0
    Do you have the DDDL software, or a ScanGuage so you can see the temp reading? If the DPF outlet temp is suddenly jumping from normal to crazy high values then it's your wiring harness shorting out. Been there.

    And I started getting this same code another time because one of my CAC boots was leaking. If I let off the accelerator while it was doing a regen it would pull in air and the oxygen would cause a heat bloom in the one box. I guessed what the problem was because I had just had my CAC pressure tested.

    mhyn Thanks this.
  5. mhyn

    mhyn Road Train Member

    4,255
    4,513
    Dec 29, 2008
    Northridge, CA
    0
    Do you have Scngauge in your truck? Do you monitor boost pressure?

  6. Antinomian

    Antinomian Road Train Member

    2,095
    3,283
    Feb 17, 2013
    0
    Yes. I can monitor boost, but I usually don't.

  7. mhyn

    mhyn Road Train Member

    4,255
    4,513
    Dec 29, 2008
    Northridge, CA
    0
    Do you remember what was the max boost value you have seen?

  8. Antinomian

    Antinomian Road Train Member

    2,095
    3,283
    Feb 17, 2013
    0
    I believe it was in the thirties.

  9. mhyn

    mhyn Road Train Member

    4,255
    4,513
    Dec 29, 2008
    Northridge, CA
    0
    I was thinking it must be high twenties. DL shows two pressures. Intake pressure and estimated boost pressure. Scangauge reads Estimated Boost pressure value. I have a truck that does not build more than 23psi. Checked everything and can't understand why it does not build more pressure.

  10. Antinomian

    Antinomian Road Train Member

    2,095
    3,283
    Feb 17, 2013
    0
    I will make a point to watch mine tomorrow.

    mhyn Thanks this.
  11. mhyn

    mhyn Road Train Member

    4,255
    4,513
    Dec 29, 2008
    Northridge, CA
    0
    thank you.
