2017 Peterbilt Top Frame Failure

Discussion in 'Trucks [ Eighteen Wheelers ]' started by tupperwolf, Aug 28, 2021.

  1. tupperwolf

    tupperwolf Bobtail Member

    4
    3
    Aug 28, 2021
    0

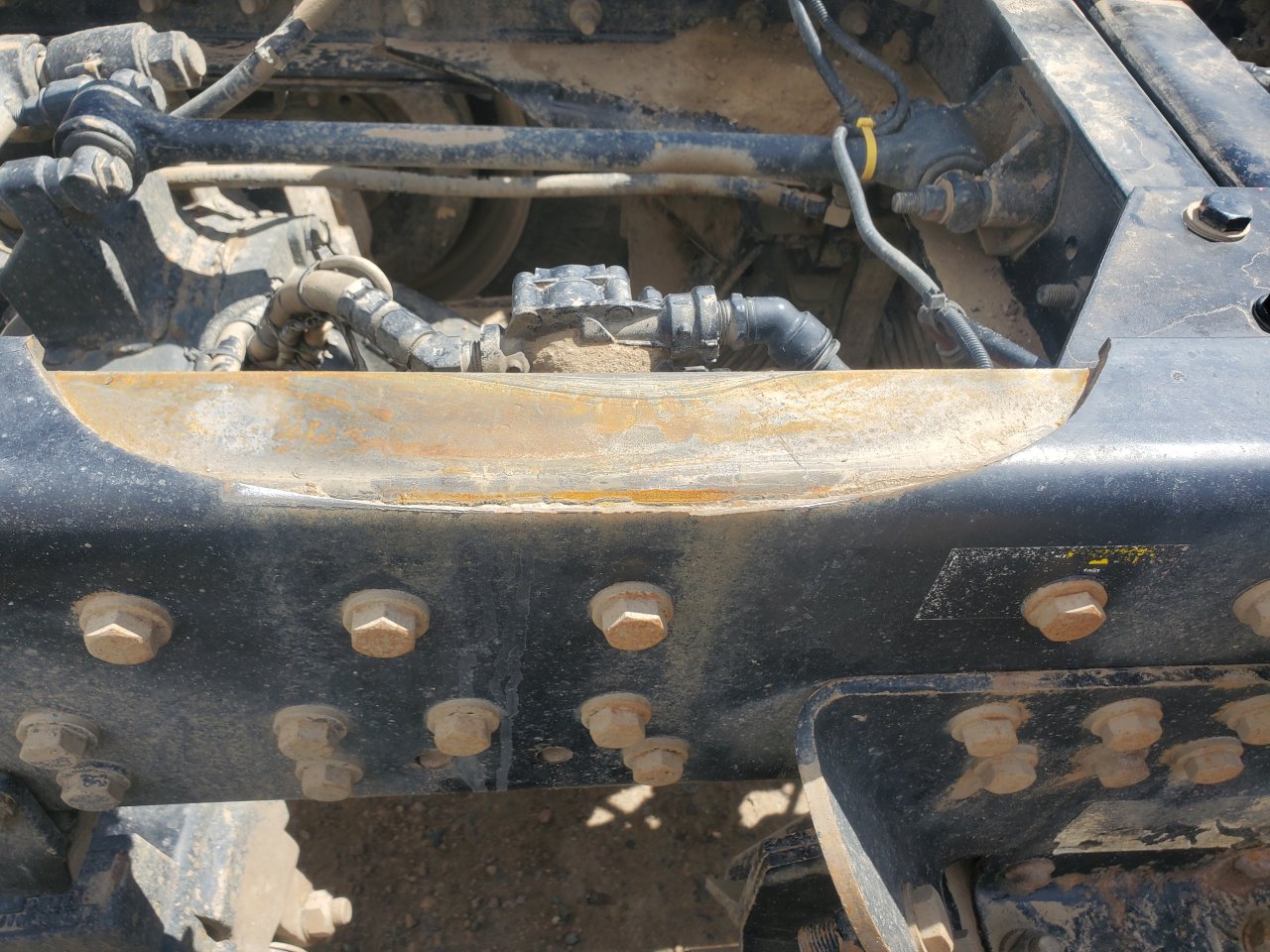

    Anybody ever seen a frame fail like this? 2017 peterbilt truck/pup tanker. Crack occurred where the tank sat on the rail. Separated by a 1 inch rubber pad


    Attached Files:

    cke and BigBob410 Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. skallagrime

    skallagrime Road Train Member

    2,294
    5,306
    Apr 10, 2012
    Indiana
    0
    Never seen that, havent seen much beyond twisted or sheared frames tbh, but armchair engineering me says rustjacking between sleeve and frame coupled with the tank pounding the frame a few times

  4. AModelCat

    AModelCat Road Train Member

    24,120
    120,195
    Jul 7, 2015
    Canuckistan
    0
    How was the tank supported? Down the entire length of the rail or just in a couple of spots? Almost looks like the weight was concentrated unevenly on 1 point where it failed.

    Can you post some more pictures? Particularly of the frame rails as they are, the broken piece of the rail (both sides plus the fractured surface) and of the fracture in the rail too. Even the tank/mounting if you could.

    BoxCarKidd and BigBob410 Thank this.
  5. BigBob410

    BigBob410 Road Train Member

    5,665
    74,078
    Feb 2, 2016
    Beirut on the Bay, MD.
    0
    I always wondered why there was no coating or some sort of decent bonding between double frames. I’m sure stuff needs to move and flex but metal to metal seems wrong. At least to this dumb trucker.

    simonsocm and tupperwolf Thank this.
  6. simonsocm

    simonsocm Light Load Member

    102
    53
    Aug 17, 2019
    0
    I've at least got an associates in mechanical engineering and I agree. Very wrong. Most of the flex will be taken up in the cross members so the frames should have at minimum some nickel plating or similar for corrosion and also be bolted together obviously.

    BigBob410 Thanks this.
  7. Goodysnap

    Goodysnap Road Train Member

    2,895
    6,728
    Jul 12, 2017
    0
    I Agree and also have never seen it before. I think some pertinent information is missing from this failure. Framerails themselves have an exceptional warranty above the base truck warranty. I am curious what Paccar has to say about this failure. I would say it would be rapidly shrugged off as a misinstalled body.

  8. tupperwolf

    tupperwolf Bobtail Member

    4
    3
    Aug 28, 2021
    0
    Sorry it took so long. Thank you everyone for your opinions. Attached is a photo showing how the tank was mounted


    Attached Files:

  9. Roberts450

    Roberts450 Road Train Member

    2,237
    3,610
    Feb 6, 2016
    0
    Nice crack in the tank saddle too.

    Goodysnap and AModelCat Thank this.
  10. AModelCat

    AModelCat Road Train Member

    24,120
    120,195
    Jul 7, 2015
    Canuckistan
    0
    Probably too much weight concentrated on a small footprint by the looks of it.

    Goodysnap Thanks this.
  11. Roberts450

    Roberts450 Road Train Member

    2,237
    3,610
    Feb 6, 2016
    0
    Guessing it may have been an oil field type tanker judging by the mud/clay in the picture so most likely loaded beyond rated weight coupled with off road use.

    Goodysnap and AModelCat Thank this.
