2020 t680 camshaft damaged

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Alexp2686, Apr 15, 2024.

  1. Alexp2686

    Alexp2686 Light Load Member

    68
    36
    Jun 10, 2020
    0
    I have my truck at kw and they just uploaded this and said they sent it to the engineers to get a repair plan put together. I have no idea what im looking at and the notes i can see are very vague.

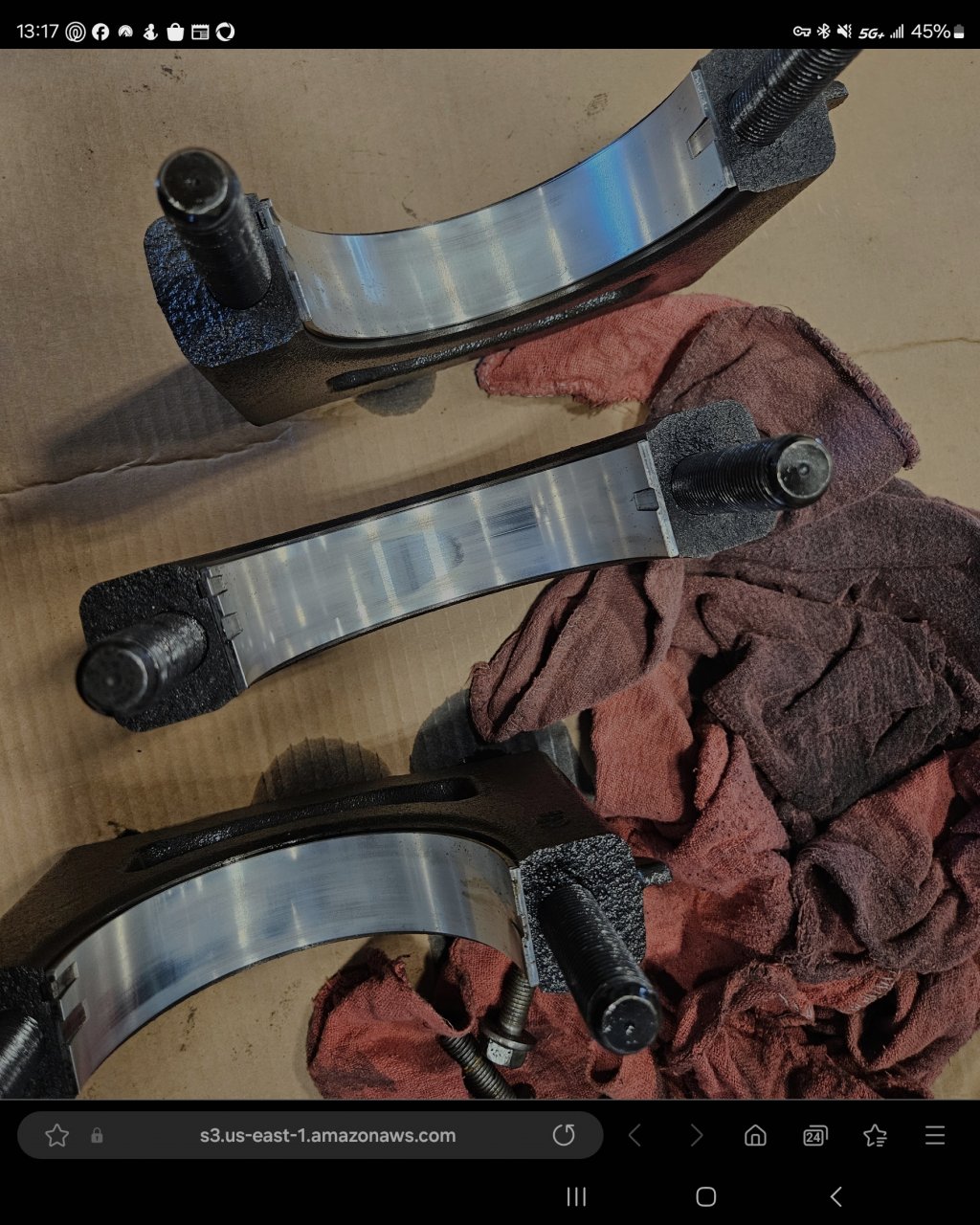

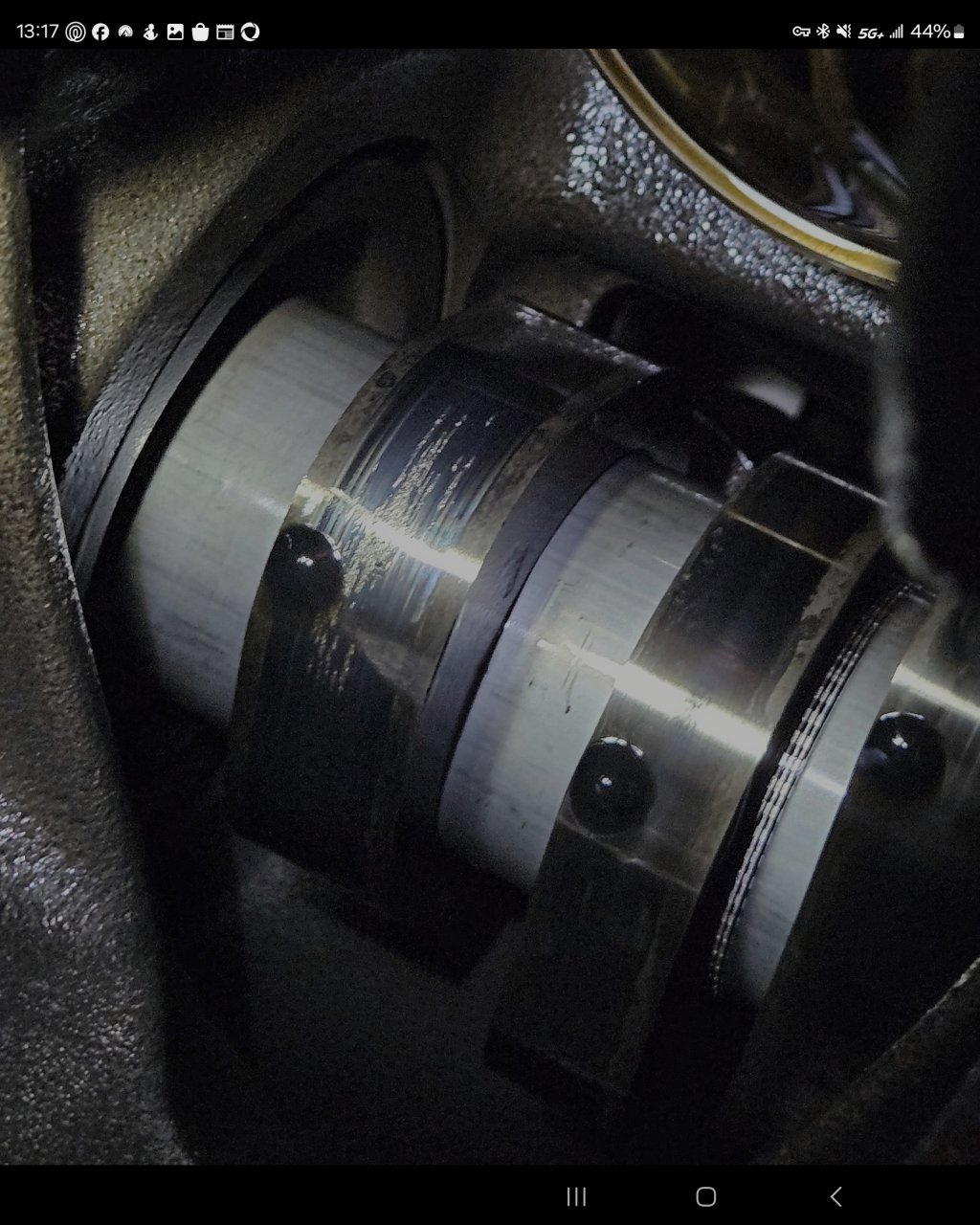

    Does anyone know from these images how bad it is? To me it just looks scratched. Screenshot_20240415_131743_Samsung Internet.jpg Screenshot_20240415_131723_Samsung Internet.jpg Screenshot_20240415_131735_Samsung Internet.jpg Screenshot_20240415_131751_Samsung Internet.jpg Screenshot_20240415_131708_Samsung Internet.jpg

    Last edited: Apr 15, 2024
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. AModelCat

    AModelCat Road Train Member

    27,954
    146,721
    Jul 7, 2015
    Canuckistan
    0
    Cam is toast.

    What sort of oil change interval are you running?

    Alexp2686 Thanks this.
  4. Alexp2686

    Alexp2686 Light Load Member

    68
    36
    Jun 10, 2020
    0
    I havent, I just bought that truck last month and its been at the shop since. It had an oil leak so the arrows prefered mechanic said it was a cracked oil pan and replaced it. I drove it for a week and it was still leaking so i took it to an experienced paccar mechanic who told me to take it to the dealer cause it was most likely a camshaft. Been at the dealer since april 3rd.
    Does that mean theyre replacing that cam or will it need a new motor?

  5. Goodysnap

    Goodysnap Road Train Member

    3,543
    8,504
    Jul 12, 2017
    0
    Will likely get a new cam and lifters. Main bearings look ok.

    Repairs should be covered under 7yr 700k

    Engine will have to come out and it will likely be down for a 3-4 weeks.

    Magoo1968, pushbroom and Alexp2686 Thank this.
  6. Alexp2686

    Alexp2686 Light Load Member

    68
    36
    Jun 10, 2020
    0
    Kw informed me 2 hrs ago the engineers are asking for information of how it was driven ecm etc... are they trying to say I caused this when I haven't even put 5k on this truck?
    They also said that the air compressor head needs to be replaced being its blowing coolant out the overflow for 4000 bucks and its not warrantied and apparantly arrow is denying the claim also.
    I should never have bought a paccar.

  7. Goodysnap

    Goodysnap Road Train Member

    3,543
    8,504
    Jul 12, 2017
    0
    Air compressor / head failure is not covered under major component coverage and only under base/ extended engine. The failure is common.

    If the engine is allready out for the camshaft. The air compressor should be an easy fix while out.

    Alexp2686 Thanks this.
