3406 high coolant temps

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by rank, May 4, 2018.

  1. rank

    rank Road Train Member

    9,918
    113,504
    Feb 11, 2010
    50 miles north of Rochester, NY
    0
    I'm fixing to take check this oil cooler out. Should I be ordering a gasket/O ring kit before I do? It's listed at $345 CDN from the local KW dealer.

    Oxbow Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. wore out

    wore out Numbered Classic

    16,042
    194,294
    Jun 5, 2013
    CHASIN THE DEVIL'S HERD
    0
    Yes sir I would

    SAR and Oxbow Thank this.
  4. W900AOwner

    W900AOwner Heavy Load Member

    714
    1,284
    Jul 2, 2014
    0
    Absolutely would.

    Oxbow and rank Thank this.
  5. rank

    rank Road Train Member

    9,918
    113,504
    Feb 11, 2010
    50 miles north of Rochester, NY
    0
    Oil cooler is off. I have to say I was hoping it would be plugged worse. Doesn’t seem too bad. I can see through 90% of the tubes after I cleaned that crud off the inlet side. So long as it’s off I bought some Nu-brite cleaner from the A/C supply store and well clean It anyway,

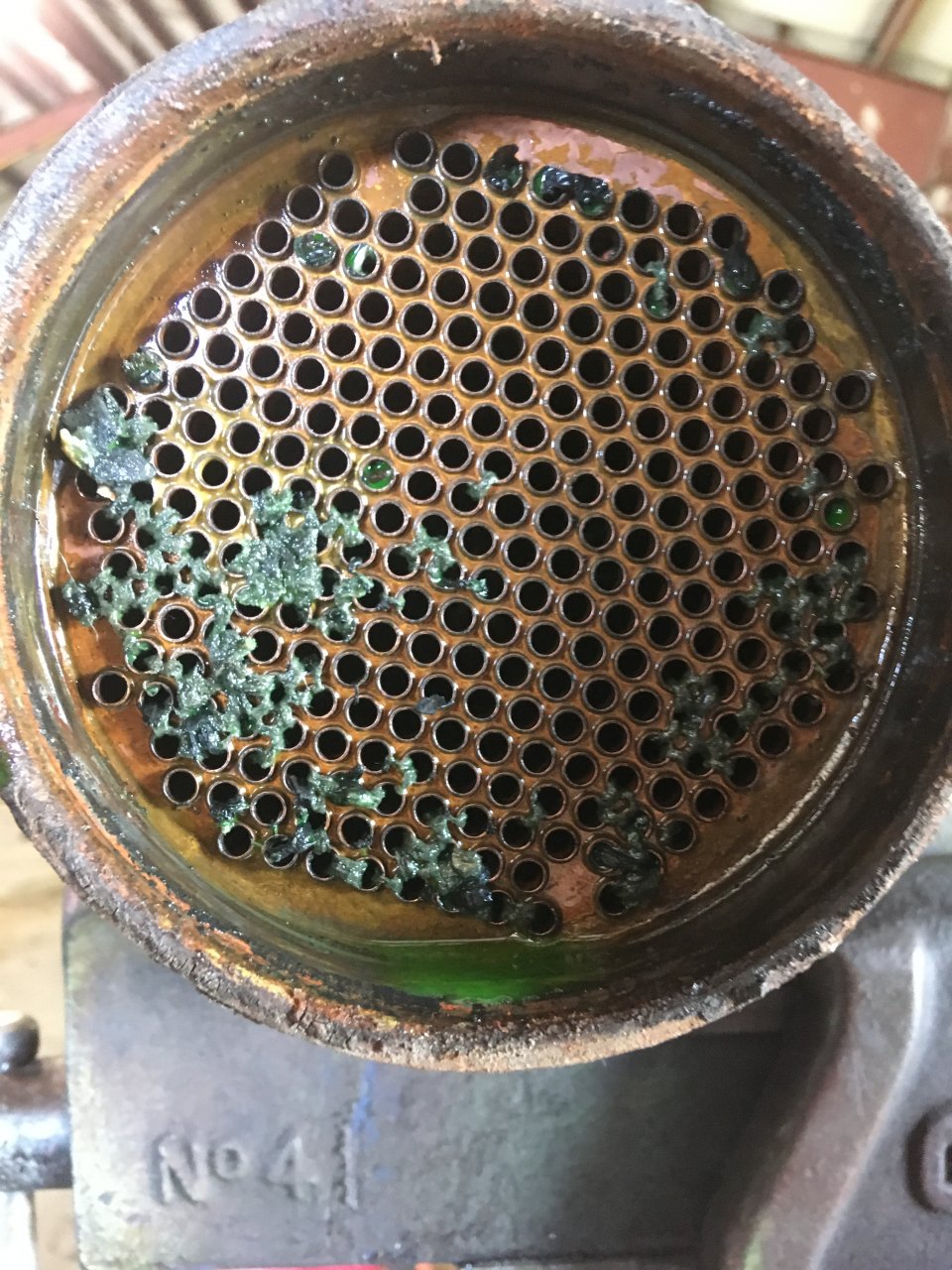

    Inlet (water pump side) side after removal. Most of this was silicone but there was also some metal. Most came off with compressed air

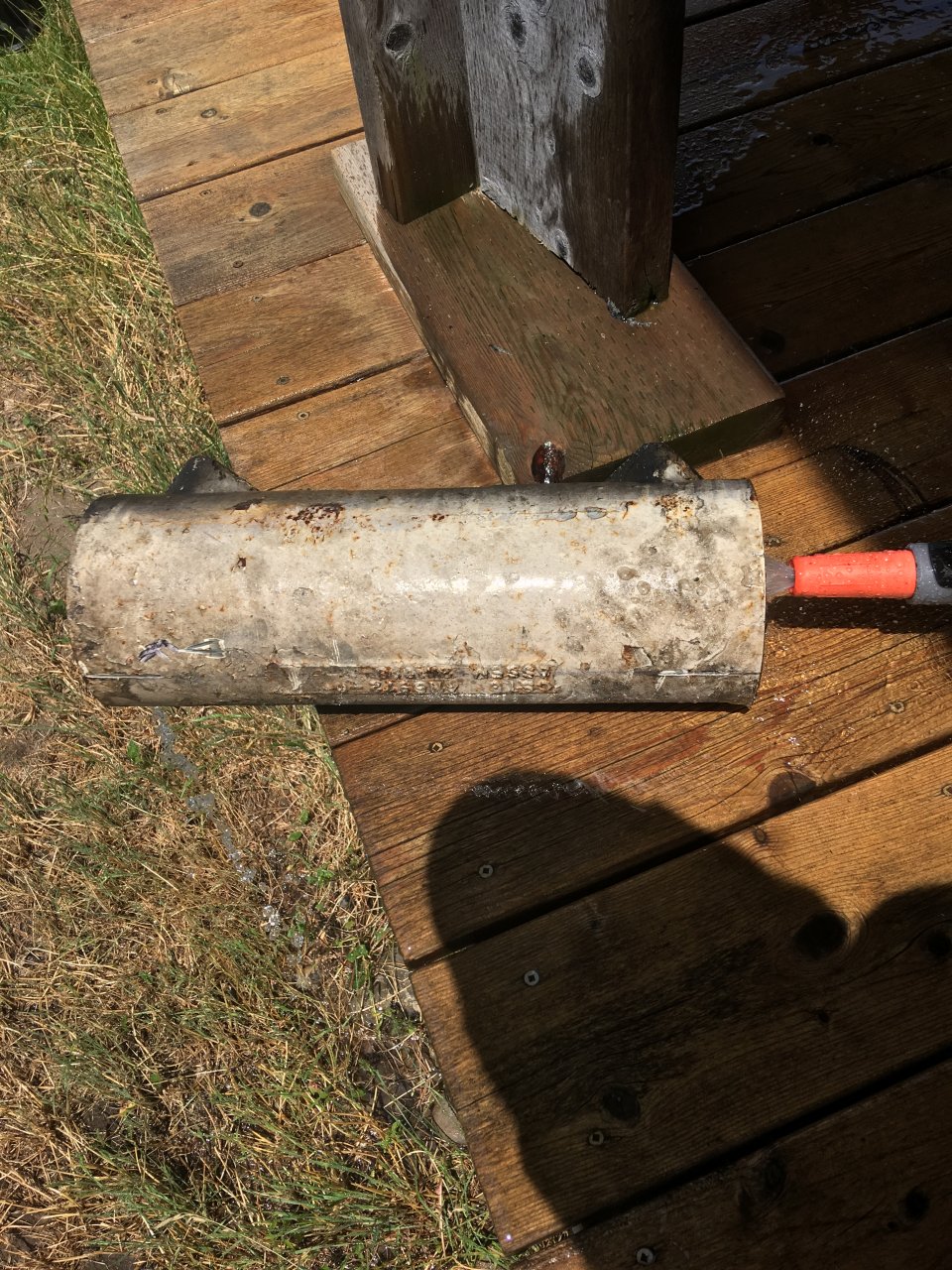

    Not a lot of water flow from the garden hose

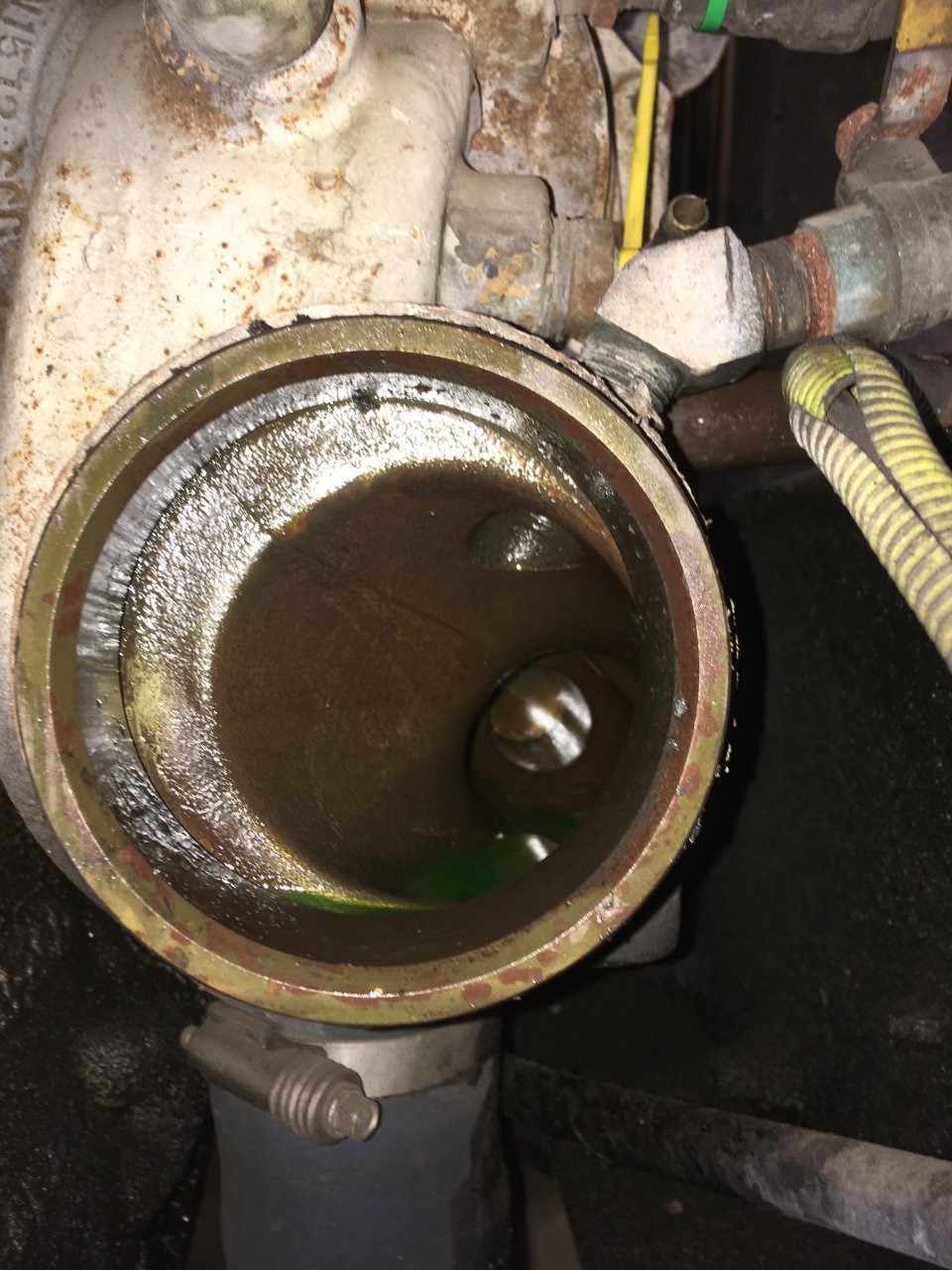

    Water pump outlet

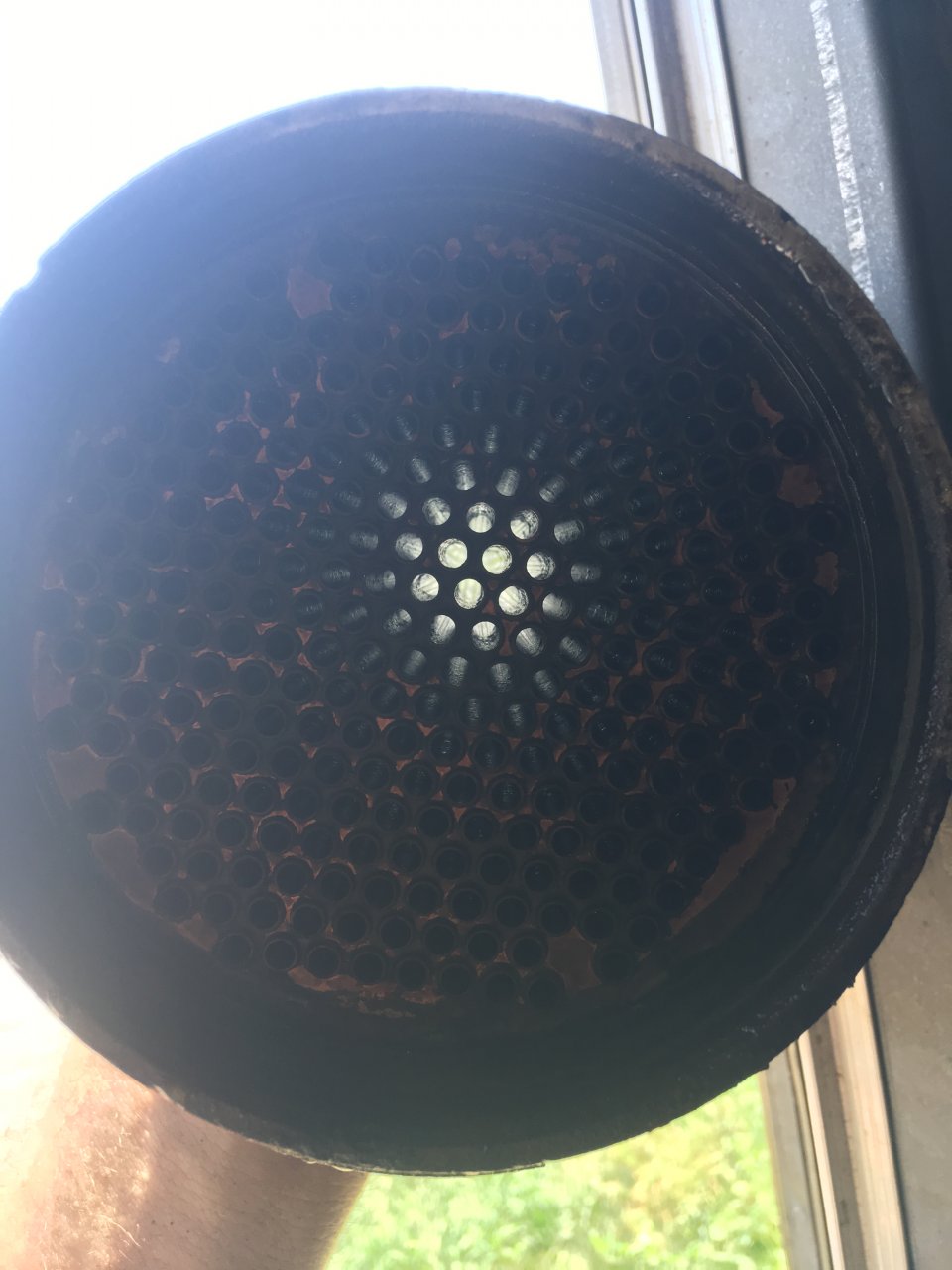

    Tubes Seem clean to me


    Attached Files:

    OLDSKOOLERnWV, Oxbow and Feedman Thank this.
  6. wore out

    wore out Numbered Classic

    16,042
    194,294
    Jun 5, 2013
    CHASIN THE DEVIL'S HERD
    0
    I won't say that ain't it, but I would sure felt it would take more than that to make the heat yiur describing.

    I will say I pulled a radiator off an old dresser dozer one time sent it to the shop radiator guy calls says no way this is your issue. This tractor would get hot quick. So I tell go ahead and dread putting it back on. Long story short it cured our issue.

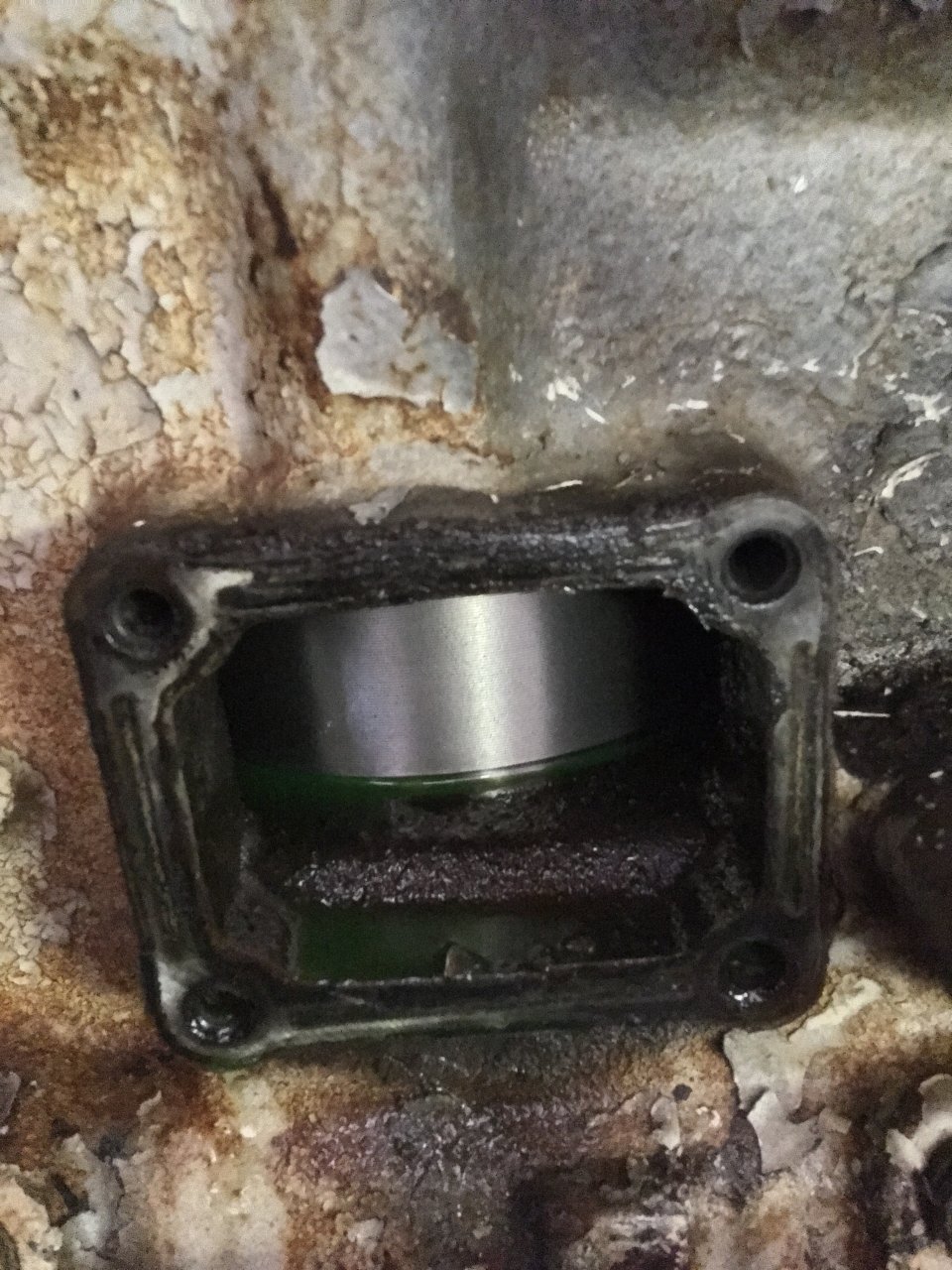

    I did see what looked like a real new liner that's a plus

    OLDSKOOLERnWV, SAR, Oxbow and 2 others Thank this.
  7. rank

    rank Road Train Member

    9,918
    113,504
    Feb 11, 2010
    50 miles north of Rochester, NY
    0
    Yep the previous owner said he did an in frame before he sold it to me maybe he was telling the truth

    OLDSKOOLERnWV, Oxbow and Feedman Thank this.
  8. AModelCat

    AModelCat Road Train Member

    29,241
    159,650
    Jul 7, 2015
    Canuckistan
    0
    This engine happen to have a Brakesaver?

    Oxbow Thanks this.
  9. rank

    rank Road Train Member

    9,918
    113,504
    Feb 11, 2010
    50 miles north of Rochester, NY
    0
    Don’t know what that is. You mean a jake? It does

  10. W900AOwner

    W900AOwner Heavy Load Member

    714
    1,284
    Jul 2, 2014
    0
    Mmmm, that doesn't appear to me to be bad enough inside to cause that much temp rise honestly. As wore out just said, sometimes the strangest things occur and by doing the one thing that you think isn't, it might just be...

    I just went through a 32 day, grueling engine replacement project on my 78 KW. Yesterday was my maiden voyage. I'm tickled with the difference from the PCTA to the B model Cat already. Those A models are good 'ol dependable hunks 'o iron, but in terms of torque rise and fuel consumption, they're definitely lacking the luster of the 3406B.

    I was going through the same exact heat issue you are. I flushed the radiator back a few months ago with the Cummins brand flush, and it seemed to be better for a short time. Then it just came back, couldn't keep it cool with the fan on no matter what. I pressured washed and blew the radiator core out repeatedly for weeks to try and get it to behave, but to no avail, and the result was a mini Chernobel meltdown.

    I had a guy recore the radiator and I paid strict attention to what I wanted him to look at, which was how bad or good the core looked. He said he expected it to look a lot worse based on my description of how it was behaving. But he never took the time to rod the tubes like they once did in the olden days to get the buildup out of the tubes...all he did was look at the top and bottom of the old core.

    I now have a perfectly good running engine, and yesterday I ran all day in close to 100*F humidity with the A/C cranking all day, pulling hills and mountains loaded, and I am glad to say it would go to 200*F and the fan would instantly take it back down to 195*F. On the flats, empty, it never came on at all. That to me is a properly working radiator. It's been unrealistically hot around here this month, and I'm happy with the way it's performing now compared to before.

    I'd have to lean on the radiator theory next. What you can't see CAN hurt you when it comes to the inside of a radiator core. There may be more of that black crud that you mentioned you discovered earlier on inside the tubes that has hardened up and causing low flow...

    Did you buy that truck from a guy over by Duanesburg by any chance rank?
