5th Wheel Pin kit for Running End Dump

Discussion in 'Tanker, Bulk and Dump Trucking Forum' started by OldRed98, Feb 1, 2022.

  1. Ruben01

    Ruben01 Bobtail Member

    20
    9
    Feb 1, 2022
    0
    How can u start a post on here im new to the forum so dont know how to post questions? Just know how to reply but cant find where to post

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. OldRed98

    OldRed98 Light Load Member

    247
    220
    Apr 18, 2017
    Colorado
    0
    Hi Ruben, Welcome to the forum

    If you go to the section/subject section you want to post in, you should be able to click "start new Post" for example up above you can click on Tanker, Bulk and Dump Trucking Forum. Then you should see a link for "start new post" I posted this thread under dump trucking since its related to dump trucking. Im not the best at explaining but hope that helps.

  4. Ruben01

    Ruben01 Bobtail Member

    20
    9
    Feb 1, 2022
    0
    Ok yea I kind of get u seen a couple that says that

  5. Ruben01

    Ruben01 Bobtail Member

    20
    9
    Feb 1, 2022
    0
    How do I go to the section/subject question I want to post or start a thread? Do I search it on the search bar????

  6. Slowpoke KW

    Slowpoke KW Road Train Member

    1,170
    12,816
    Dec 7, 2015
    OK
    0
    A lot of folks around here just use some scrap and build a u shaped block that gets held in by the bolt on the side. That bolts only purpose is to keep the pivot pin below it from backing out.

    I’ve seen some leave it tilted back and use two pieces of angle on the side of the ramps and bolt it in that position.

    Me personally with the Fontaine I had I used some scrap and raised the factory stops, then later bought a factory blocked wheel.

    OldRed98 Thanks this.
  7. ProfessionalNoticer

    ProfessionalNoticer Road Train Member

    2,942
    7,787
    Apr 25, 2021
    0

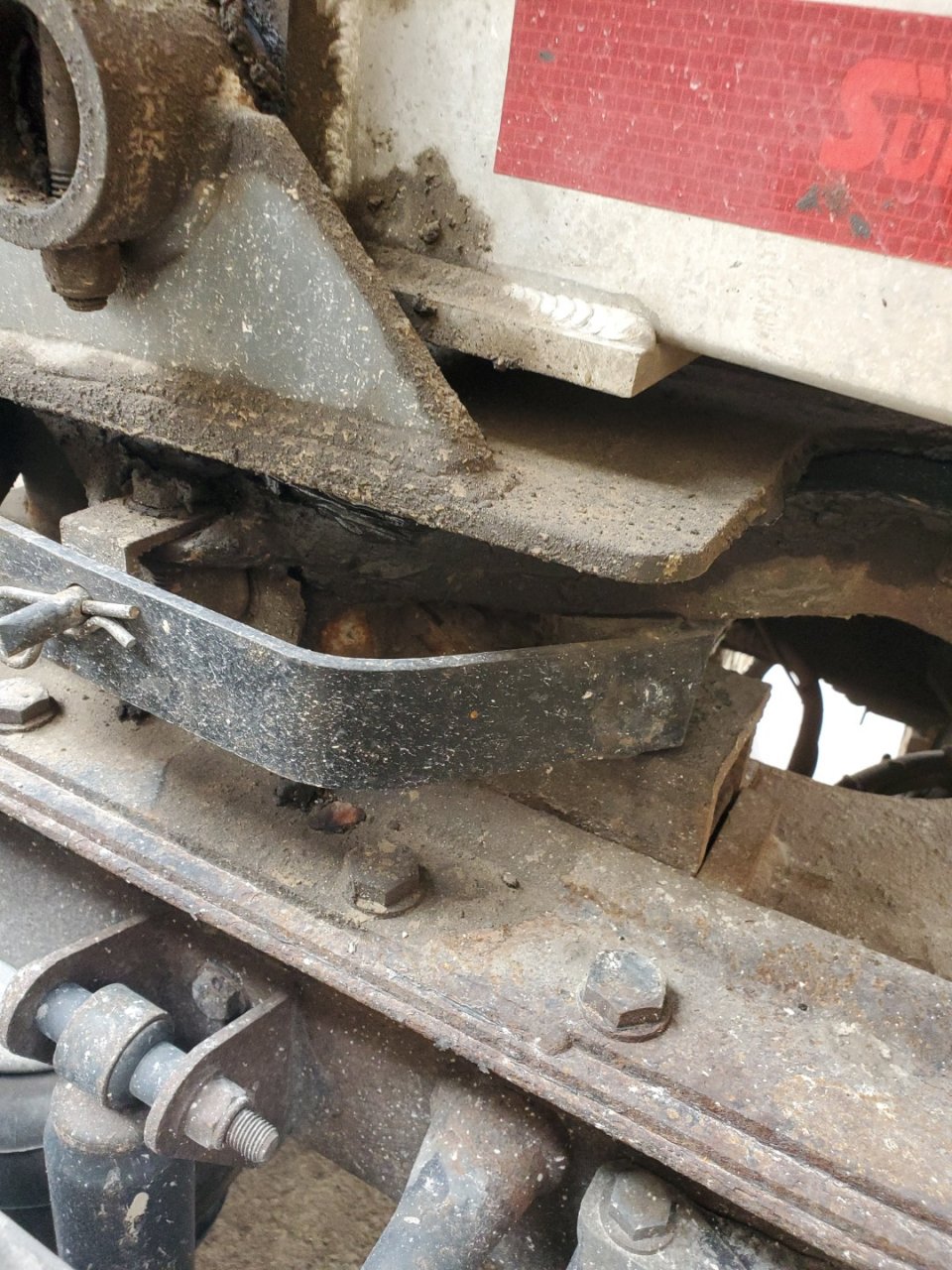

    I used a local welding/fab shop to do mine.

    x#1 and OldRed98 Thank this.
  8. bad-luck

    bad-luck Road Train Member

    2,527
    4,331
    Nov 16, 2013
    Baltimore, Maryland
    0

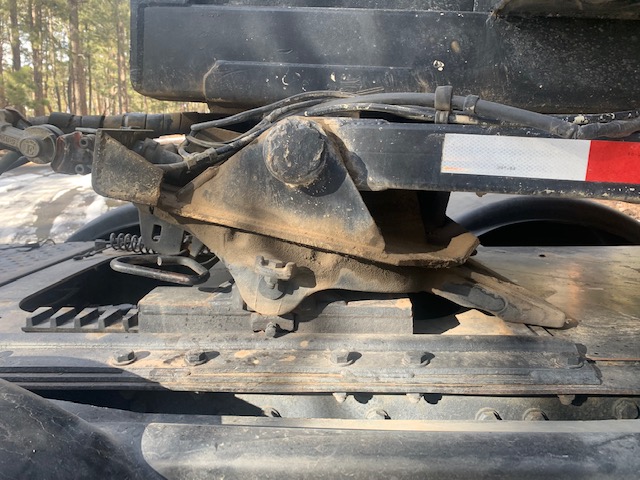

    Looks to me like you have a Jost. There should be a tag on there somewhere.

    OldRed98 Thanks this.
  9. SmallPackage

    SmallPackage Road Train Member

    3,604
    10,727
    Dec 20, 2019
    Marion Texas
    0
    The slide rail plate assembly bolted to the frame is Holland. The slider rail locks are Holland style. Holland usually has riveted tag on Lh side ear and they cast name on both top and underside of plate.

    OldRed98 Thanks this.
  10. OldRed98

    OldRed98 Light Load Member

    247
    220
    Apr 18, 2017
    Colorado
    0
    How important is it to protect the 5th wheel from forward movement? A bar in the rear of the 5th wheel will stop backward movement but not from forward movement.

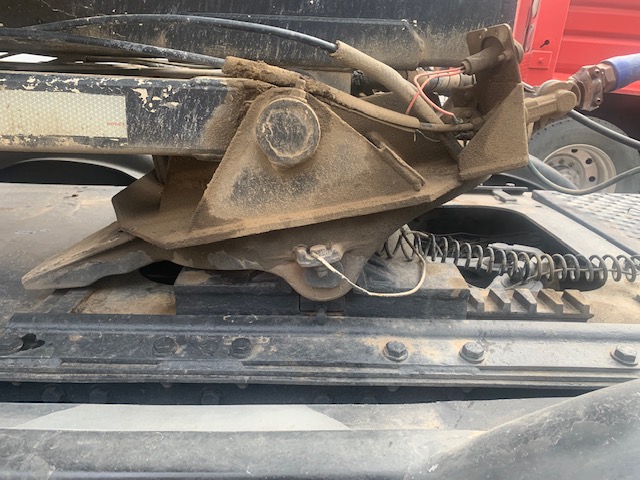

    this has me wondering if a set up like this picture is a better set up for my truck


    Attached Files:

  11. SmallPackage

    SmallPackage Road Train Member

    3,604
    10,727
    Dec 20, 2019
    Marion Texas
    0
    The thing you need to watch out for if the wheel can still rock forward is it will eventually wear a bad notch in the side edge of the plate from the up and down slamming movement on that rear bar destroying the plate. Round bars are a little more gentle with it.

    OldRed98 Thanks this.
