65k, 4 chains, good to go

Discussion in 'Heavy Haul Trucking Forum' started by Old Man, May 6, 2019.

  1. Landincoldfire

    Landincoldfire Heavy Load Member

    847
    4,427
    Sep 27, 2015
    New Holland, Pa
    0
    Hmm...if you are talking about using two ends of the chain and securing points. Then two binders as the other two points. This would count as two chains in my mind. Doubling a chain with one binder will count as one.

    ichudov Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Landincoldfire

    Landincoldfire Heavy Load Member

    847
    4,427
    Sep 27, 2015
    New Holland, Pa
    0
    A grey area? If it was my own personal machine. I'd do the above and call it a day.

  4. truckdad

    truckdad Road Train Member

    1,966
    16,082
    Dec 14, 2014
    Penn Valley, CA
    0
    I wouldn't think you would be required to remove the propane tank since it is the machines fuel supply. The extra tank, not sure how they would look at it, but it appears to be plumbed in with the other tank?

    Oxbow and Landincoldfire Thank this.
  5. johndeere4020

    johndeere4020 Road Train Member

    8,522
    119,289
    Jan 1, 2010
    Ohio
    0
    Most of the ones I’ve ever seen have the two steel straps that kinda snap Ober center to hold them in. I’ve hauled plenty of forklifts and man lifts that have propane tanks without a problem.

    That’s still considered a direct tiedown so you get 50% credit for the chain. 3/8” grade 70 like that is good for 3300 pounds.
    They do not make it divisible don’t worry about it. Just make sure they are secure.

  6. beastr123

    beastr123 Road Train Member

    2,623
    21,573
    Jan 2, 2014
    Moose Jaw SK CAN
    0
    the tanks properly secured (caged/locked down) are part of the load, if easily movable they are NOT part of the load.

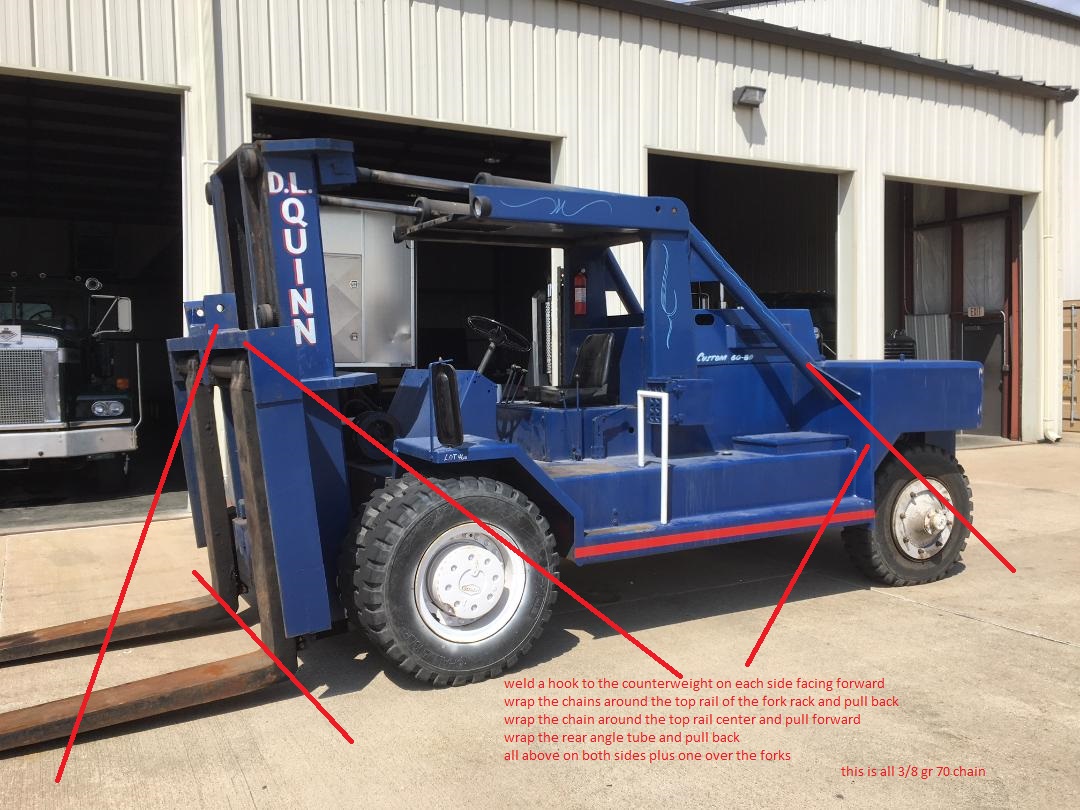

    the picture below will give you enough tie-downs with 3/8 gr70 to cover a 66000# load. 8 at 3300# and one at 6600# totaling 33000# (50% of 66000)

    ichudov Thanks this.
  7. johndeere4020

    johndeere4020 Road Train Member

    8,522
    119,289
    Jan 1, 2010
    Ohio
    0
    Anything that renders the machine incapable of performing its intended task makes it non divisible.

  8. old iron

    old iron Road Train Member

    1,125
    19,698
    Feb 19, 2011
    Northern Wi
    0
    Since you own it, Just weld D rings on it wherever they line up the best with the ones on your trailer.
    Cross chain front and back. And at least one on the side higher up, so that you got room to work.
    Make up some short 1/2" chains just the right length.
    Then paint em titty pink so they don't wander off...

    snowman_w900, cke, Razororange and 5 others Thank this.
  9. johndeere4020

    johndeere4020 Road Train Member

    8,522
    119,289
    Jan 1, 2010
    Ohio
    0
    This is probably the best answer you’ll get, just make your own securement points.

  10. MACK E-6

    MACK E-6 Moderator Staff Member

    45,837
    200,279
    Sep 19, 2005
    Baltimore, MD
    0
    Looks like a pretty good bit of ground clearance on that one though.

    I’d say the fork cage would give 4 points to chain to, with at least 2 on the counterweight end. Then you have where that tube meets the counterweight like in @beastr123 ’s picture.

    Easy peasy. :)

    ichudov Thanks this.
  11. Macneil

    Macneil Heavy Load Member

    711
    426
    Dec 15, 2010
    Sudbury, ON., Canada
    0
    Midship(where it articulates) is always a great spot to chain down. It’s also the law/good idea to lock the mid ship in place. Most articulating machinery will have a bar you can put a pin in.

    Tb0n3 Thanks this.
