76 k100 won't shut off

Discussion in 'Trucks [ Eighteen Wheelers ]' started by 76K100, Mar 27, 2023.

  1. 76K100

    76K100 Light Load Member

    55
    89
    Mar 13, 2023
    WISCONSIN BUT FROM NOR CAL
    0
    ok is there a specific cummins nt small cam shutoff solenoid type and brand I should be looking to buy? I see there are a few types 12v 24v etc

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Oxbow

    Oxbow Road Train Member

    11,996
    121,865
    Nov 24, 2015
    Idaho
    0
    Do you have a series/parallel switch?

    76K100 and OLDSKOOLERnWV Thank this.
  4. Last Call

    Last Call Road Train Member

    7,568
    45,889
    Mar 15, 2021
    0
    I would think it would be a 12v. Soleniod..
    In cause your not familiar with how it should work it takes power to activate the plunger to open to let fuel flow into the pump when you shut the Ignation key off that shuts power off at the soleniod shutting the plunger which in turn stops fuel flow to the pump shutting the engine down
    The reason @Oxbow asked of you have a parallel switch is because of the vintage of your truck at that time Pacar and some other manufacturers were using a 24/12 volt system which meant the starting circuit was on 24v but most everything else on the truck was on 12v.. chances are at this point in life it has been updated to just a 12v system.. reguardless I think that fuel solenoid was always 12v ..

  5. OLDSKOOLERnWV

    OLDSKOOLERnWV Captain Redbeard

    17,414
    262,403
    Nov 29, 2011
    West Virginia
    0

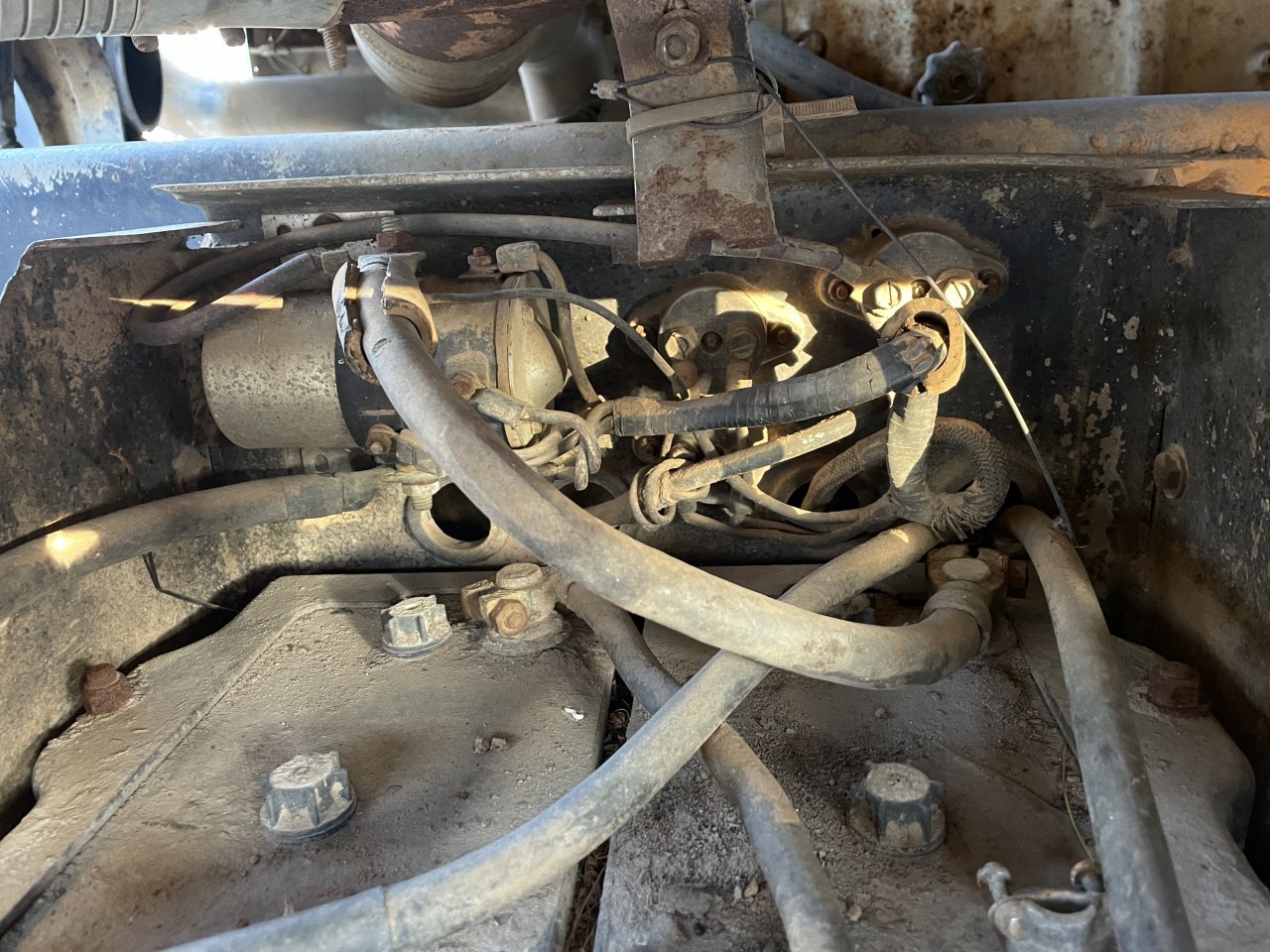

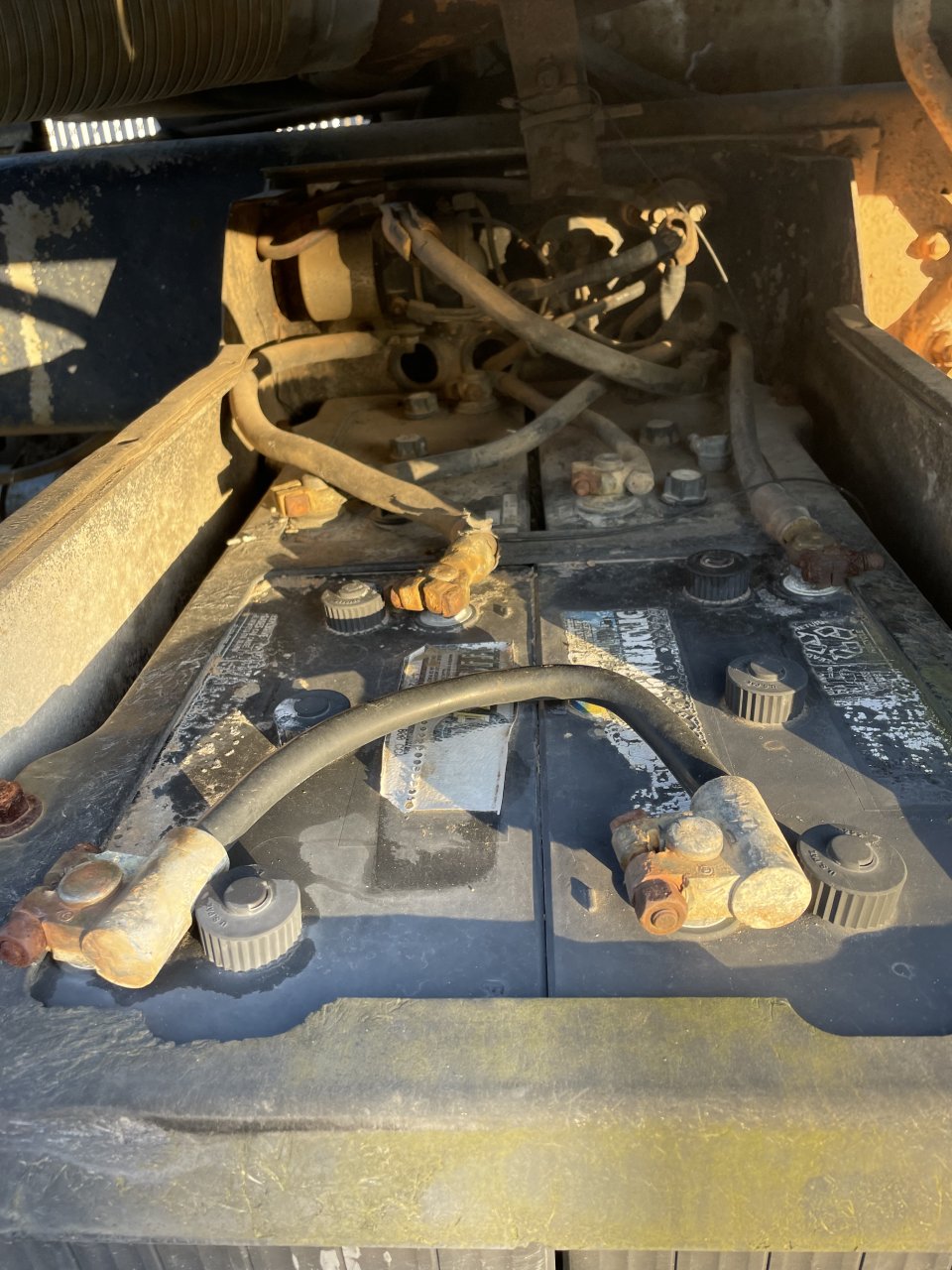

    Just to add to what @Oxbow is asking, your battery box look anything like this? This is my 83 K100C….

    B15EAFBB-CD21-446B-B9D9-740CCA0E4654.jpeg 6D61D226-5230-4DBB-8349-E92E2CB992FF.jpeg

  6. 76K100

    76K100 Light Load Member

    55
    89
    Mar 13, 2023
    WISCONSIN BUT FROM NOR CAL
    0
    nt 855 small cam

  7. 76K100

    76K100 Light Load Member

    55
    89
    Mar 13, 2023
    WISCONSIN BUT FROM NOR CAL
    0
    it is a 12/24v system and it does have a new Texas industrial 12v24v relay the starter is 24v but elec system is 12v

    Oxbow and Last Call Thank this.
  8. 76K100

    76K100 Light Load Member

    55
    89
    Mar 13, 2023
    WISCONSIN BUT FROM NOR CAL
    0
    yes series parallel switch

    Oxbow and Last Call Thank this.
  9. 76K100

    76K100 Light Load Member

    55
    89
    Mar 13, 2023
    WISCONSIN BUT FROM NOR CAL
    0
    Oxbow Thanks this.
  10. 76K100

    76K100 Light Load Member

    55
    89
    Mar 13, 2023
    WISCONSIN BUT FROM NOR CAL
    0
    so do I have to go cummins or any aftermarket 12v nt 855 shutoff switch will work

    Oxbow and Last Call Thank this.
  11. Last Call

    Last Call Road Train Member

    7,568
    45,889
    Mar 15, 2021
    0
    I try to distance myself from Cummins enough that I can't steer you in any certain direction
    I would surely think you could find a after market soleniod some where .. I would try my local NAPA 1st
    @OLDSKOOLERnWV is a wealth of Knowledge on Cummins and where to get the best parts

    Last edited by a moderator: Mar 27, 2023
    Oxbow and 76K100 Thank this.
