84 W900B air problems

Discussion in 'Trucks [ Eighteen Wheelers ]' started by herbiemin, Sep 22, 2016.

  1. Sep 22, 2016 #1
    herbiemin

    herbiemin Light Load Member

    94
    50
    Dec 20, 2014
    0
    I am in the process of getting our new to us truck ready for inspection. When doing an applied pressure brake test, I am getting air through the blue trailer line even with the trailer valve still pulled. Yellow knob is the only one pushed in. The trailer valve is a brand new valve because the old one was leaking. Is it possible we got the valve installed wrong or is something else wrong?

    herbiemin, Sep 22, 2016
    herbiemin, Sep 22, 2016
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Sep 22, 2016 #2
    baha

    baha Road Train Member

    4,137
    2,837
    Jul 25, 2013
    ga
    0
    The valve at far end of both em. an serv. brake lines under sleeper is bad, order protection valve

    baha, Sep 22, 2016
    baha, Sep 22, 2016
    #2
    BoxCarKidd Thanks this.
  4. Sep 22, 2016 #3
    AModelCat

    AModelCat Road Train Member

    29,427
    161,797
    Jul 7, 2015
    Canuckistan
    0
    ^^^ what he said.

    AModelCat, Sep 22, 2016
    AModelCat, Sep 22, 2016
    #3
  5. Sep 22, 2016 #4
    herbiemin

    herbiemin Light Load Member

    94
    50
    Dec 20, 2014
    0

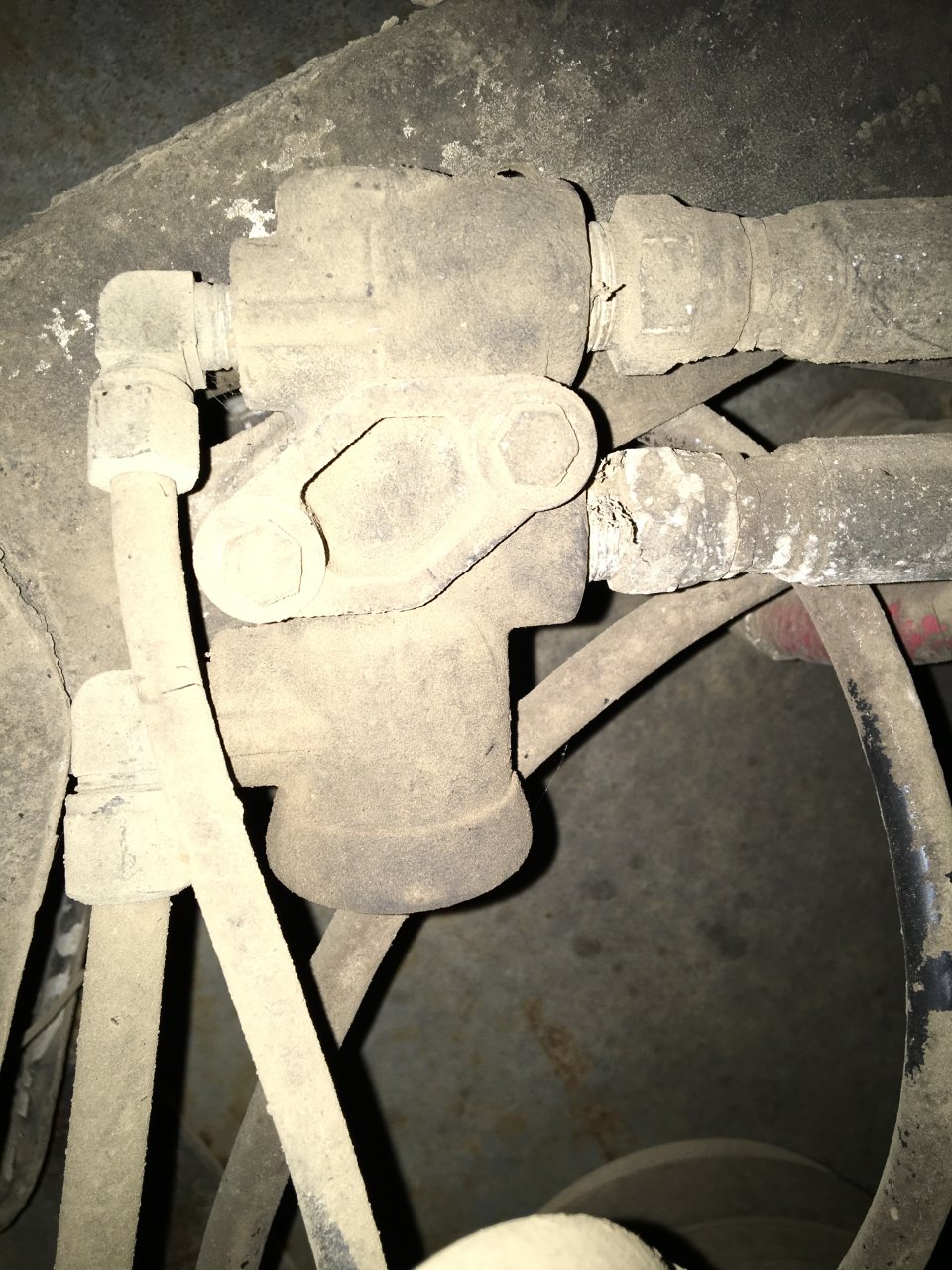

    Is this it? image.jpeg

    herbiemin, Sep 22, 2016
    herbiemin, Sep 22, 2016
    #4
  7. Sep 22, 2016 #5
    AModelCat

    AModelCat Road Train Member

    29,427
    161,797
    Jul 7, 2015
    Canuckistan
    0
    Looks like that's the valve.

    AModelCat, Sep 22, 2016
    AModelCat, Sep 22, 2016
    #5
    baha Thanks this.
  8. Sep 22, 2016 #6
    passingthru69

    passingthru69 Road Train Member

    8,740
    34,849
    Jul 12, 2009
    davenport,Ia / ratchaburi, thailand
    0
    Looks like fun taking off those lines

    passingthru69, Sep 22, 2016
    passingthru69, Sep 22, 2016
    #6
  9. Sep 23, 2016 #7
    herbiemin

    herbiemin Light Load Member

    94
    50
    Dec 20, 2014
    0
    Kenworth has it in stock. the parts guy said the exact same valve is used on most of their trucks even now. Must be a good design....

    herbiemin, Sep 23, 2016
    herbiemin, Sep 23, 2016
    #7
