ABS and TRAC lights ON - International 9200i

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by czego82, Aug 20, 2018.

  1. czego82

    czego82 Light Load Member

    Joined:
    Nov 15, 2014
    Messages:
    160
    Thanks Received:
    44
    0
    I have a 1998 International 9200i. Everything was fine till went to the dealer to pick up parts and for some stupid reason I asked the tech to see if he can hook up the computer to see if there are any stored codes. He did, and no codes stored. Left the shop and after short time both ABS and TRAC lights came on. Any ideas what could it be?
    I did have ABS light on before when I bought the truck, I did the magnetic reset of the ABS box and it worked. Light went away. Drove 300 miles, put on the front pads, drove another 1100 miles and that is when I stopped by the dealer shop and both lights came on...
    Any help greatly appreciated.

  2. Heavyd

    Heavyd Road Train Member

    Joined:
    Feb 4, 2009
    Messages:
    7,773
    Thanks Received:
    6,211
    0
    "Ever since ya..."

    drdesl and Goodysnap Thank this.
  3. Goodysnap

    Goodysnap Road Train Member

    Joined:
    Jul 12, 2017
    Messages:
    3,717
    Thanks Received:
    9,024
    0
    That darn dealer is hexed, I say dont go back......sounds like if you stay away the lights dont come on. So stay away, far far away. Lol

  4. czego82

    czego82 Light Load Member

    Joined:
    Nov 15, 2014
    Messages:
    160
    Thanks Received:
    44
    0
    yup very funny... ha ha ha...
    I never said they did anything wrong, actually they were very nice for hooking it up at no charge. I don't blame anyone here. Its an old rig and stuff comes up all the time. I am just looking for any pointers or direction where to look to fix it if anyone knows. Don't need ######## remarks.

  5. HopeOverMope

    HopeOverMope Road Train Member

    Joined:
    Feb 25, 2016
    Messages:
    1,801
    Thanks Received:
    3,210
    Location:
    I-20 LOUISIANA
    0
    Did you check for wheel seal leaks, and wheel end play? Whats the code? And if both are on, it sounds like a computer issue of some kind. Because the trac light should only be on if the wheel is spinning and go off. (Unless it’s the YAW sensor that set it off)

    Try finding the abs computer, unplugging the harness and cleaning with some good electrical cleaner and maybe some dielectric grease when putting it back it. If that don’t do it maybe check the harness for cut or chaffed wiring.

    Need to know the code though

  6. Goodysnap

    Goodysnap Road Train Member

    Joined:
    Jul 12, 2017
    Messages:
    3,717
    Thanks Received:
    9,024
    0
    Easy there. Just having a little fun. You sound like a smart feller. Smart enough to know we cant diagnose a truck over the internet with "hey guys the light came on the other day".

    Does your unit have the Bendix box on it with all the LEDs on the side? If so which are lit with the fault active? All service info for this system is free download on Bendix website.

    Good luck

    spsauerland Thanks this.
  7. Eldoradoexpress

    Eldoradoexpress Bobtail Member

    Joined:
    Mar 17, 2017
    Messages:
    8
    Thanks Received:
    0
    0

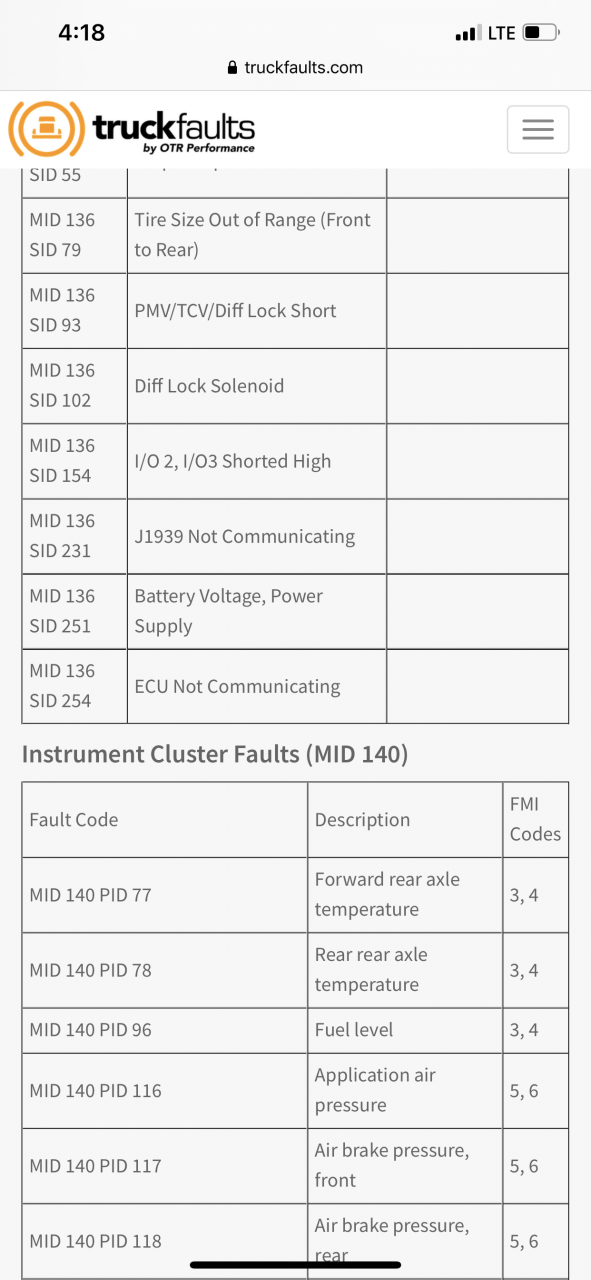

    Same just happened to mine while parked. I do have a code on my dash that i dunno if anyone could interpret. 136:F14 SID254_A

  8. HopeOverMope

    HopeOverMope Road Train Member

    Joined:
    Feb 25, 2016
    Messages:
    1,801
    Thanks Received:
    3,210
    Location:
    I-20 LOUISIANA
    0
    Eldoradoexpress Thanks this.
  9. czego82

    czego82 Light Load Member

    Joined:
    Nov 15, 2014
    Messages:
    160
    Thanks Received:
    44
    0
    Hey.
    I got mine fixed. Try free and easy fix first. Take a magnet and find the ABS computer. Mine is behind the cab on the right side frame rail. With ignition in ON position, Slide the magnet over the box and you should see a light flash on the box. That would reset the computer. If that does not work then you have to find someone that has a computer that can go inside and resolve the issue. Ours out of nowhere reprogrammed itself to think that the sensors were not installed. Went to TruckPro and they fixed it in 5min.

    Eldoradoexpress Thanks this.
