ABS valve leaking air

Discussion in 'Experienced Truckers' Advice' started by OldeSkool, Jan 17, 2020.

  1. OldeSkool

    OldeSkool Medium Load Member

    602
    1,140
    Jul 17, 2018
    Arkansas
    0
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. OldeSkool

    OldeSkool Medium Load Member

    602
    1,140
    Jul 17, 2018
    Arkansas
    0

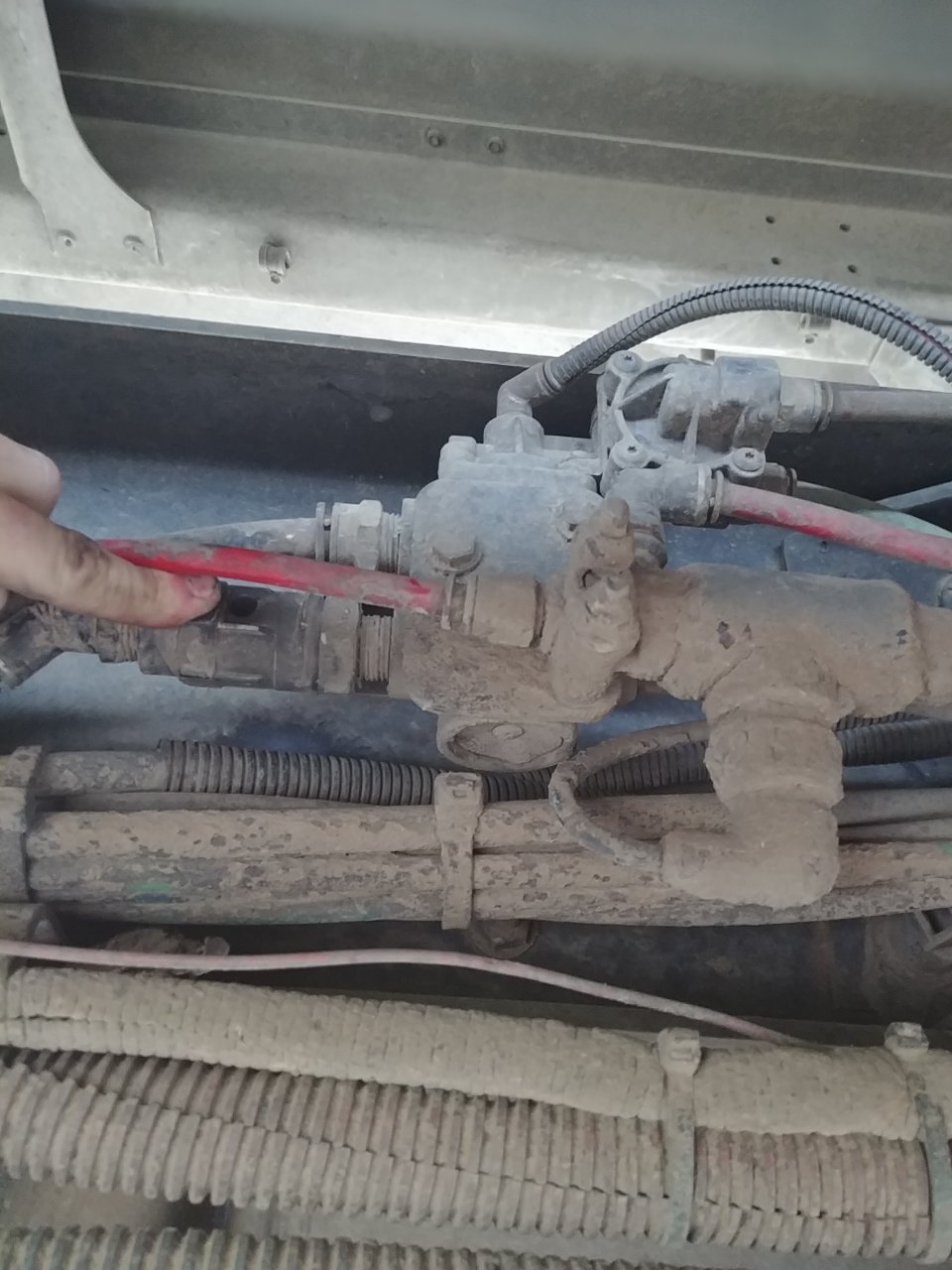

    So this valve, I assume the ABS valve, is leaking air out the exhaust hole (I'm pointing at) it only does it when the red trailer brake knob is pushed in.

    I have clamped all the brake pod air lines truck and trailer and made no difference. Would you replace this valve?

  4. xsetra

    xsetra Road Train Member

    3,843
    3,923
    Aug 21, 2011
    0
    Not enough information to reply properly. I have replaced my ABS valve on tractor that was leaking out of the exhaust port.

    First disconnect the trailer and check if that valve stops leaking.
    Where is that valve located. Tractor or trailer?

    OldeSkool Thanks this.
  5. flybynight12

    flybynight12 Medium Load Member

    613
    465
    Jan 10, 2015
    slc
    0
    Flex seal it

    OldeSkool Thanks this.
  6. kylefitzy

    kylefitzy Road Train Member

    1,616
    5,111
    Aug 12, 2007
    Kansas city,Mo
    0
    Pull the service line off the trailer and push in the red knob. I bet you will find air leaking out of the service gladhand. The hole your pointing at looks like a check valve, the exhaust for that valve is on the bottom. That looks like the tractor protection valve to me, not an ABS valve, there is not electrical wires going to it.

    Cabinover101, mhyn and OldeSkool Thank this.
  7. OldeSkool

    OldeSkool Medium Load Member

    602
    1,140
    Jul 17, 2018
    Arkansas
    0
    Its on the tractor on the left side frame rail about midway under the sleeper.

  8. OldeSkool

    OldeSkool Medium Load Member

    602
    1,140
    Jul 17, 2018
    Arkansas
    0
    Actually there is a black wire on the very bottom that made me think ABS, however you are right it is actually 2 separate valves there looks like. The one leaking has no wire going to it. Thanks all of you for the ideas!!!

    Cabinover101 Thanks this.
  9. mhyn

    mhyn Road Train Member

    4,255
    4,397
    Dec 29, 2008
    Northridge, CA
    0
    the name is protection valve not ABS. $250 value, 1 hour to change it....

    OldeSkool and Cabinover101 Thank this.
