With only a tandem axle tractor? Just curious what the would be on the drives. 336E L shows to be just over 67,000….
![]()
Anyone ever haul a 336E Cat….
Discussion in 'Heavy Haul Trucking Forum' started by OLDSKOOLERnWV, Dec 20, 2022.
Page 1 of 8
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-

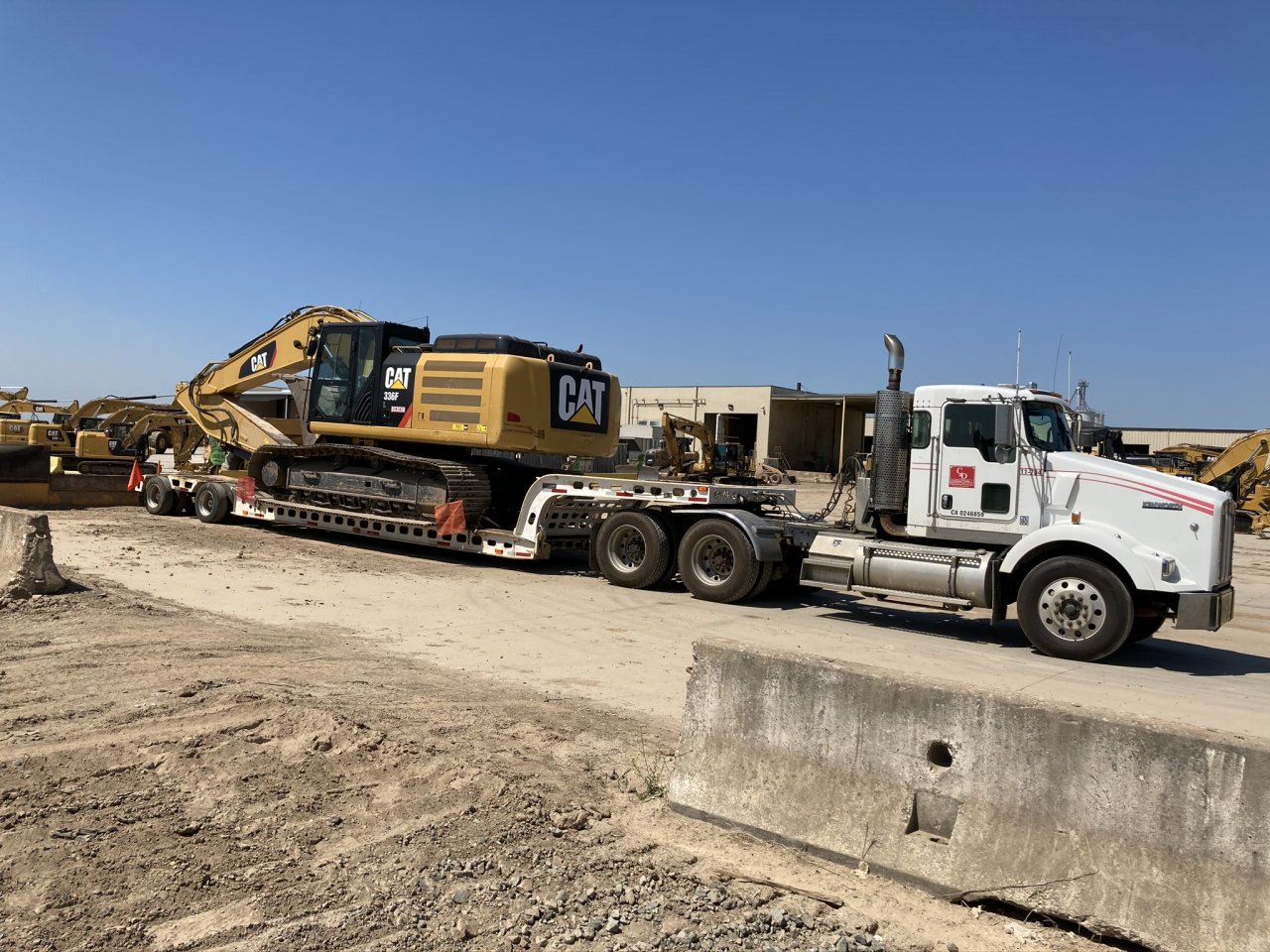

this is only a 200 but when I load a 290 the same way but slightly farther back it’s almost 48000 on the drives and roughly 130000 gross. This particular 290 has a mulching head and bigger counterweight with wide tracks and weighs roughly 87000 when I scaled it.
The trailer is 53’ with 9 foot swing clearance and the kingpin is about 4 inches in front of the front drive axle, truck is 248 wb

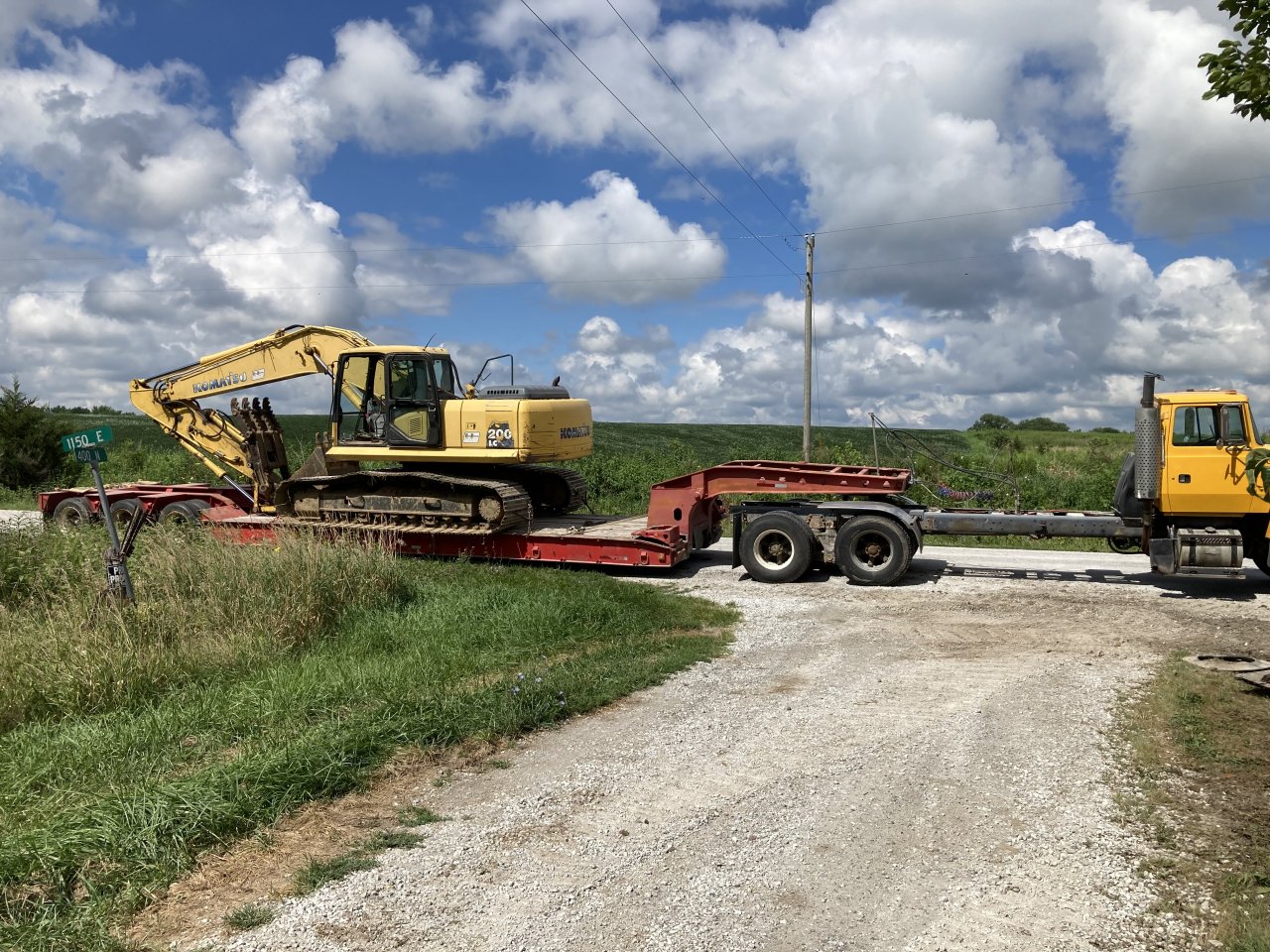

A 61000 pound deer 230 puts about 40k on the drives when loaded like the picture.
Hopefully that gives you an idea. -
cke, CAXPT, YardMule89 and 6 others Thank this.
-
Maybe you aren't using your trailer @OLDSKOOLERnWV ?
cke, CAXPT, YardMule89 and 3 others Thank this. -
cke, CAXPT, YardMule89 and 4 others Thank this.
-

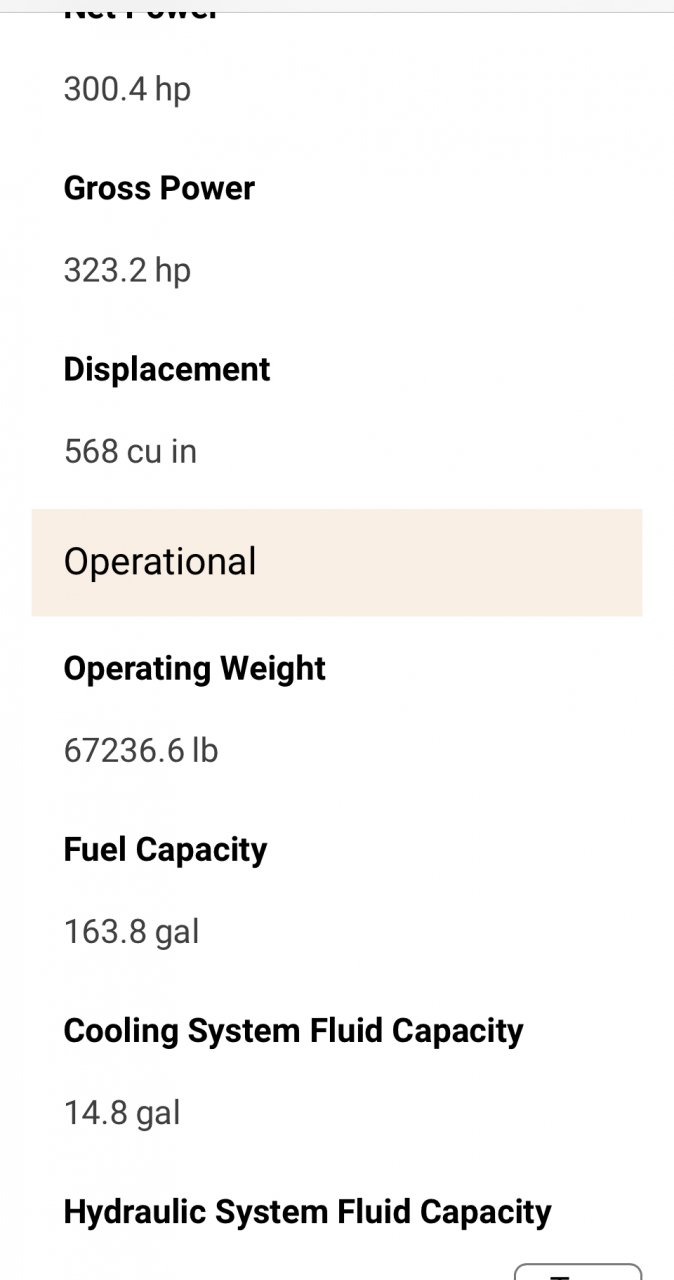

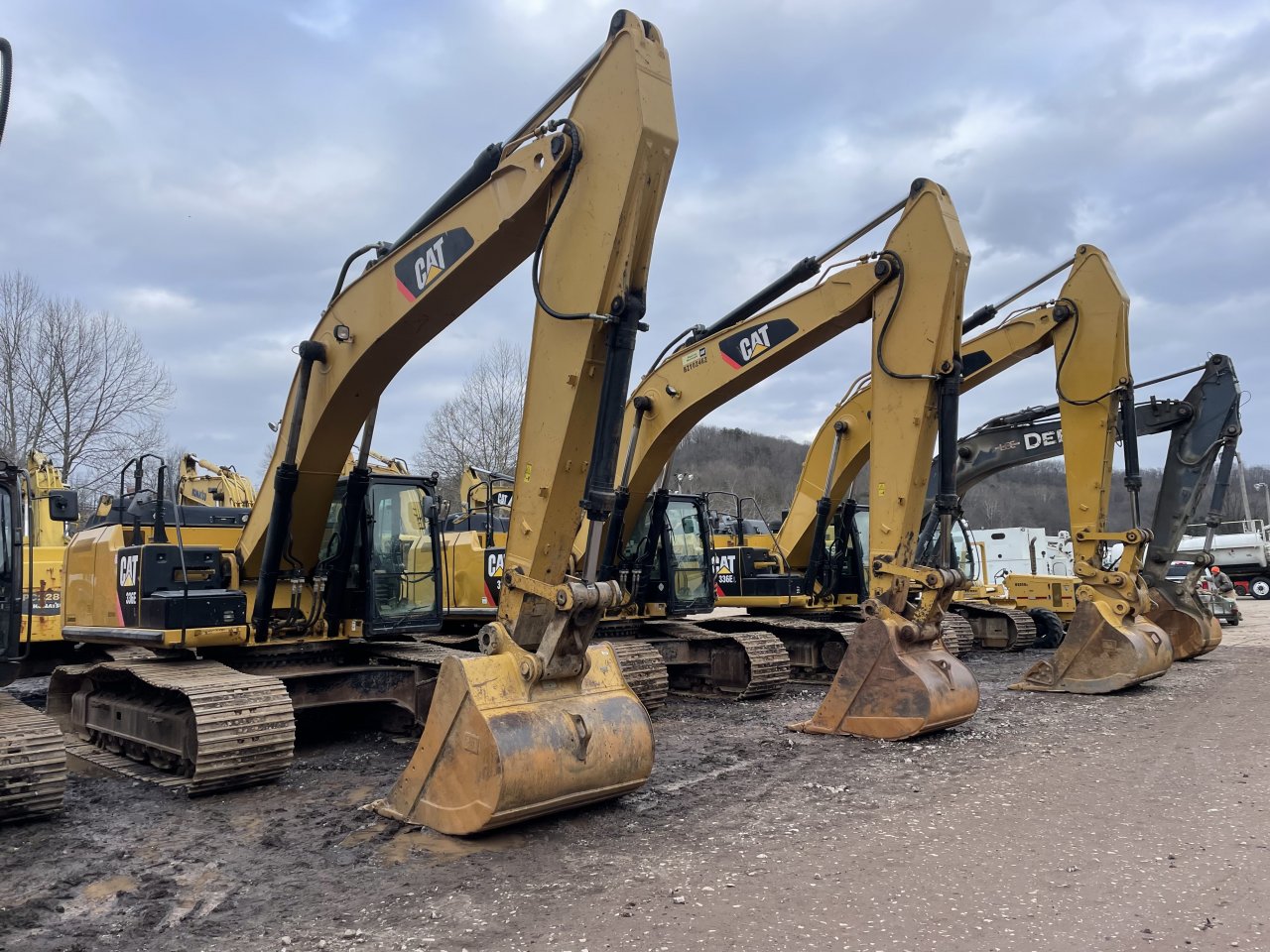

It shows 67,200 for a 336E L. All 3 have a 60” bucket, and 1 has a quick coupler.
I’m ok here in WV where they are, but in KY where they need to go I’m only allowed 48K on the drives.

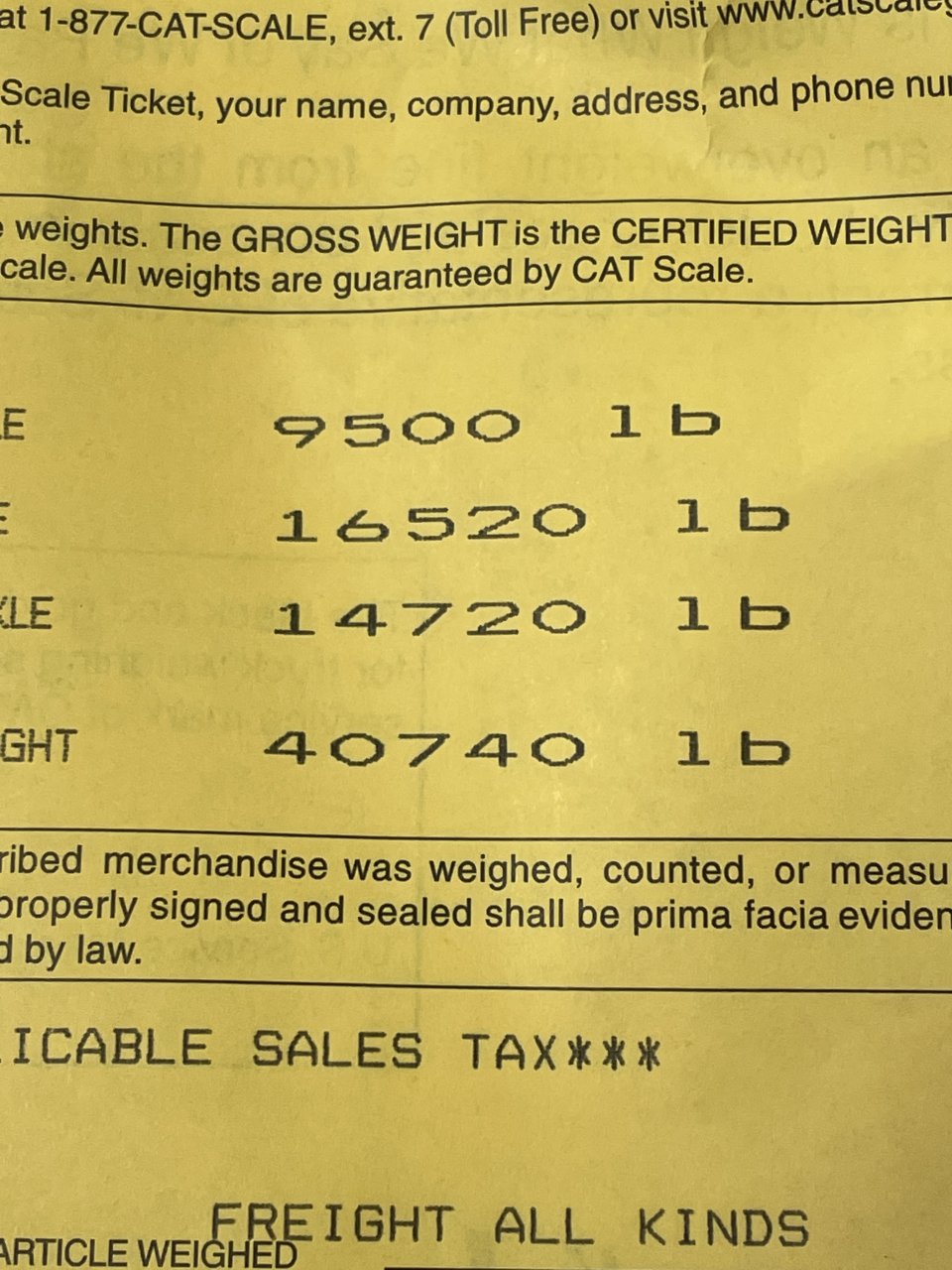

I can get them the 150 miles to my place ok, just the KY part so I’m gonna get one on and scale it, see where I’m at. May even have to turn the boom to the front and re weigh it just to see….
-
JolliRoger, cke, beastr123 and 6 others Thank this.
-
Yea that F model is showing around 80K, that’s definitely heavier. I should be ok on my gross weight, just that darn 48K on tandems in Kentucky….cke, CAXPT and singlescrewshaker Thank this.
