ASAP HELP, how to add a DUAL PLUG Connector to truck

Discussion in 'Ask An Owner Operator' started by Godcreatednu, Jun 16, 2022.

  1. Godcreatednu

    Godcreatednu Bobtail Member

    Joined:
    May 5, 2017
    Messages:
    9
    Thanks Received:
    3
    Location:
    Allentown, PA
    0
    i am looking for a way to install a connector or adaptor to be able to charge a liftgate trailer, my truck only have the regular 7 pin for electricity to trailer.
    if any one can help me out i will appreciate and please provide me name of parts that way will be easier to find them thanks so much
    god bless you all

    Flat Earth Trucker Thanks this.
  2. Keepforgettingmypassword

    Keepforgettingmypassword Heavy Load Member

    Joined:
    Jan 11, 2022
    Messages:
    738
    Thanks Received:
    937
    0
    Sounds like maybe a small generator. But I'm the worst person to ask.

  3. lester

    lester Midwest's #1 Feed Hauler

    Joined:
    Jan 2, 2012
    Messages:
    2,918
    Thanks Received:
    7,872
    Location:
    NW, Iowa
    0
    Get a 2 pin plug. One is ground and one is hot. And trailer or truck shop should have one. Same size plug as 7 way but just has 2 large pins. They use them for all kinds of things on trailers

  4. lester

    lester Midwest's #1 Feed Hauler

    Joined:
    Jan 2, 2012
    Messages:
    2,918
    Thanks Received:
    7,872
    Location:
    NW, Iowa
    0
    Just go to a trailer/truck shop and tell em what you want to do

    Godcreatednu and Vampire Thank this.
  5. bad-luck

    bad-luck Road Train Member

    Joined:
    Nov 16, 2013
    Messages:
    3,264
    Thanks Received:
    5,983
    Location:
    Baltimore, Maryland
    0

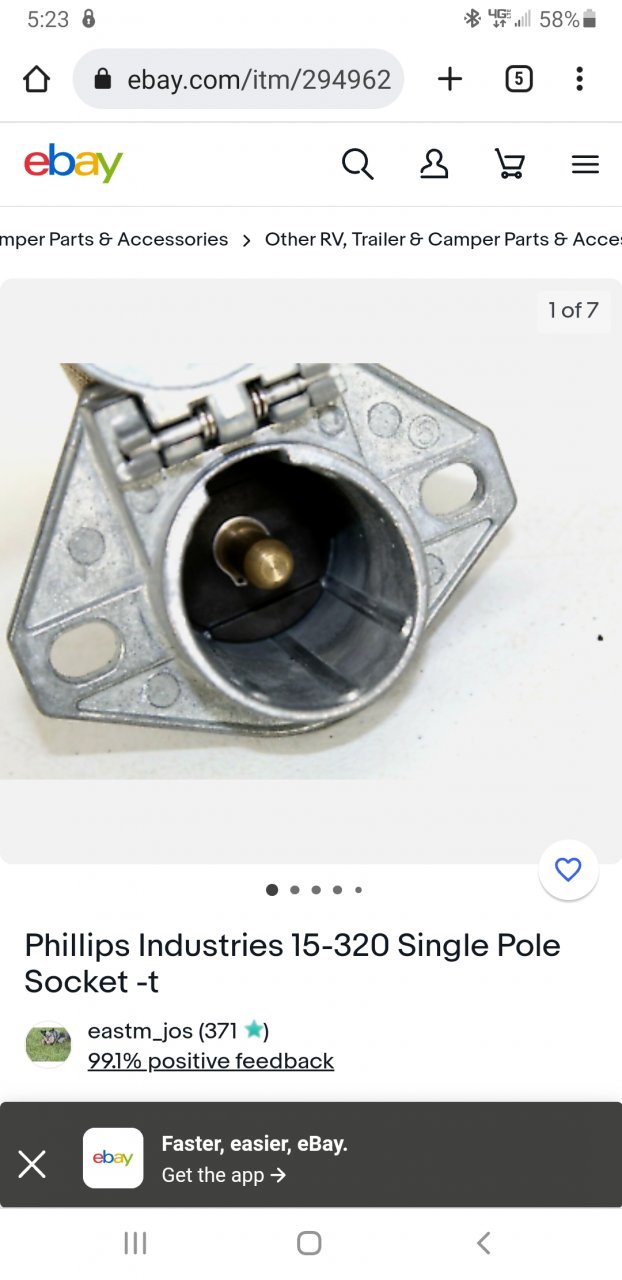

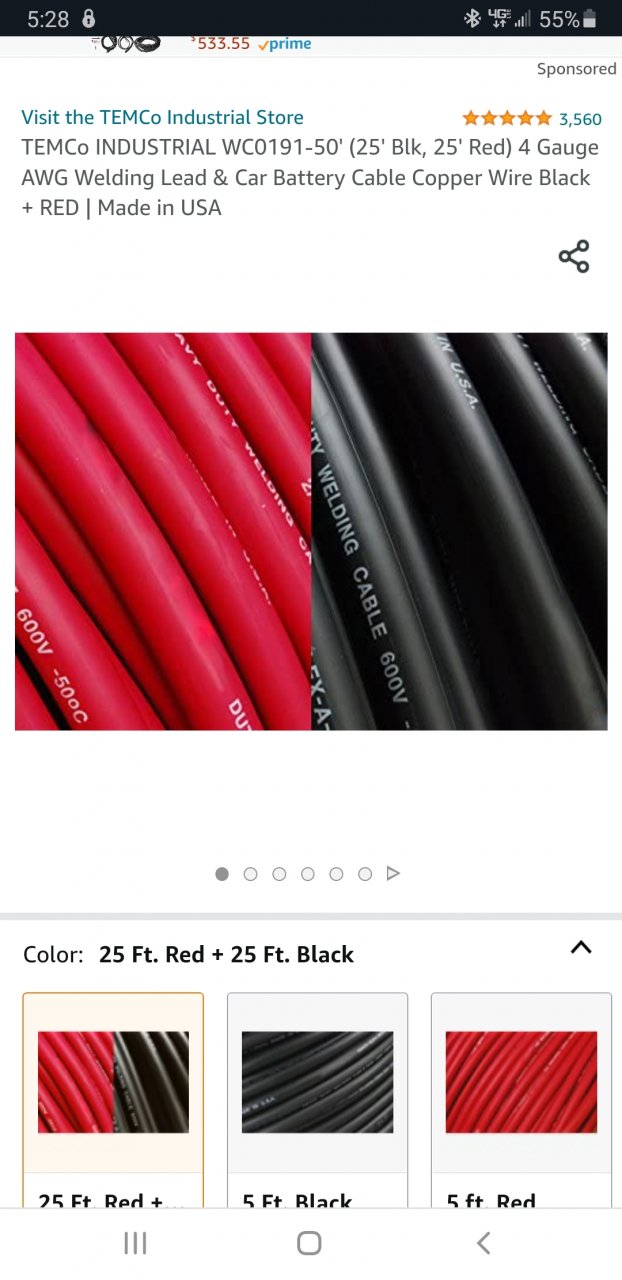

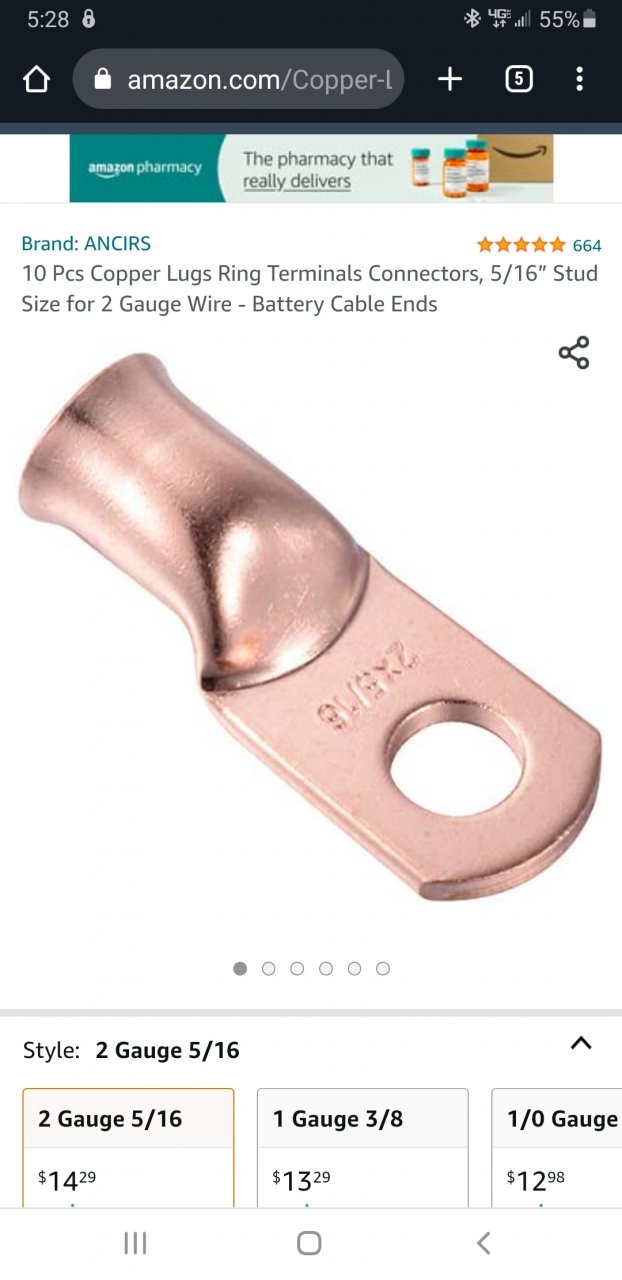

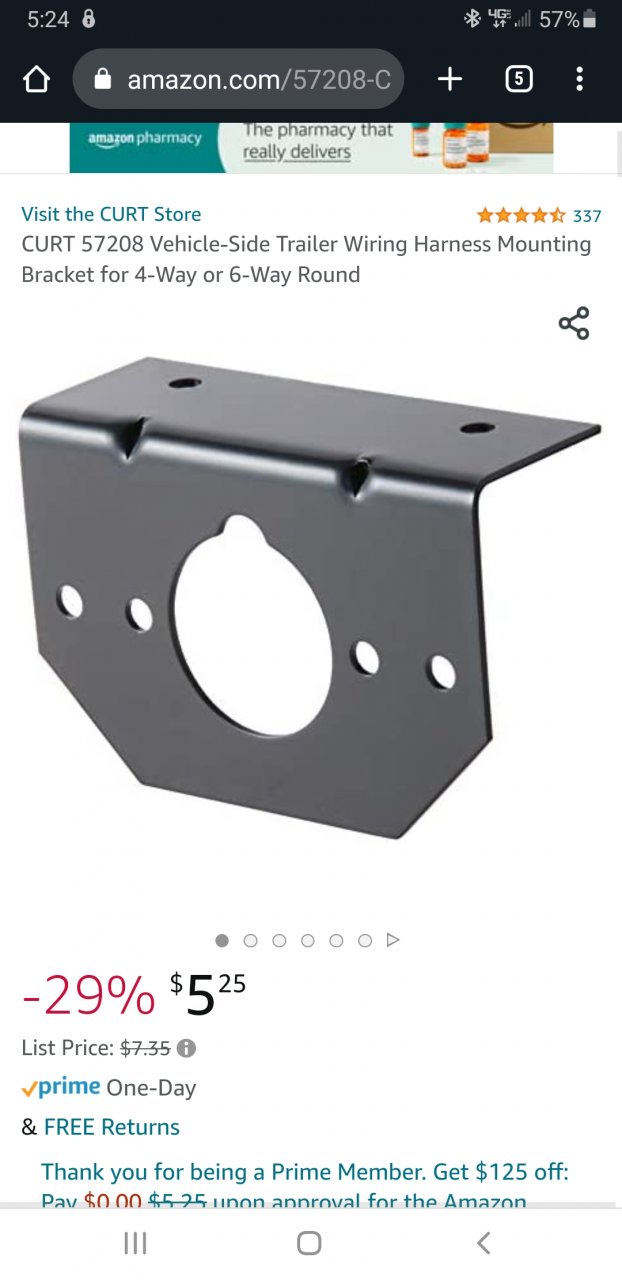

    It's really easy. I have attached everything you need with the exception of solder, and a torch. You run the cable directly from the battery to the socket. Measure the approximate length from the battery to where you are going to mount it. Then order a foot or two extra. Screenshot_20220616-172808_Chrome.jpg Screenshot_20220616-172410_Chrome.jpg Screenshot_20220616-172808_Chrome.jpg Screenshot_20220616-172348_Chrome.jpg Screenshot_20220616-172410_Chrome.jpg


    Attached Files:

  6. lester

    lester Midwest's #1 Feed Hauler

    Joined:
    Jan 2, 2012
    Messages:
    2,918
    Thanks Received:
    7,872
    Location:
    NW, Iowa
    0
  7. lilillill

    lilillill Sarcasm... it's not just for breakfast

    Joined:
    Nov 7, 2007
    Messages:
    5,642
    Thanks Received:
    13,470
    Location:
    Possum Booger, Alabama
    0
    An Anderson connector is probably what you want.

    https://www.amazon.com/Anderson-SB1...rds=anderson+connectors&qid=1655420181&sr=8-8

  8. Hulld

    Hulld Road Train Member

    Joined:
    Oct 19, 2015
    Messages:
    2,882
    Thanks Received:
    6,565
    Location:
    Upstate NY
    0
    As what @bad-luck says.
    It’s exactly what and the way I run my hydraulic pump for the lift decks on my car trailer.

  9. prostartom

    prostartom Light Load Member

    Joined:
    Jun 20, 2014
    Messages:
    216
    Thanks Received:
    465
    0

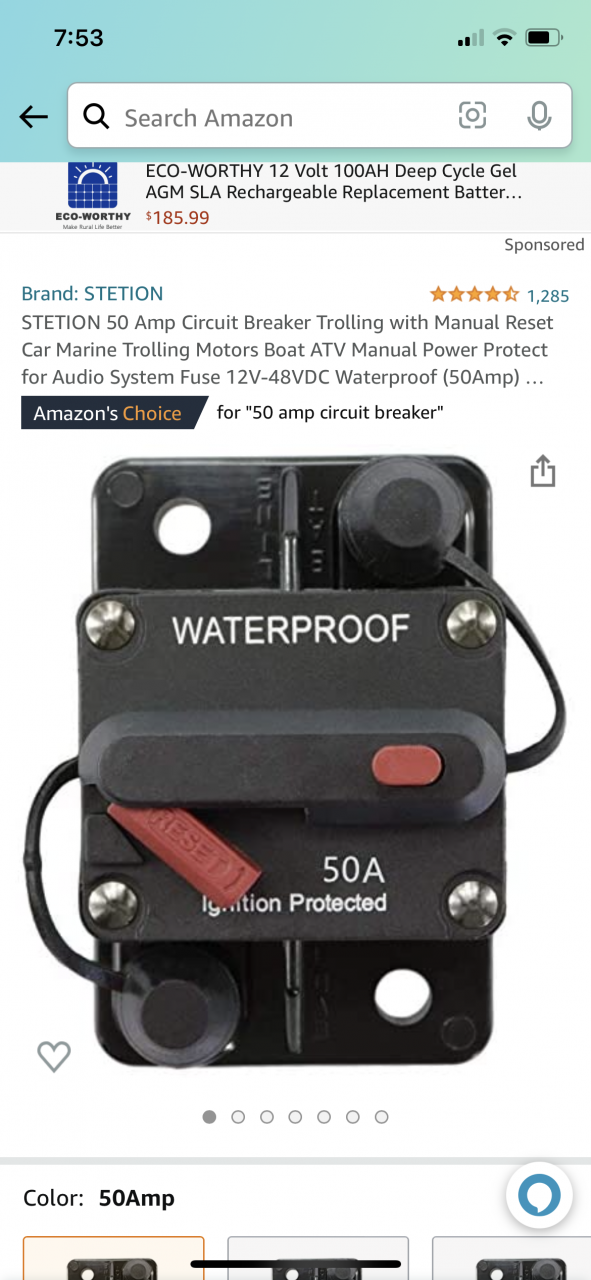

    We install a circuit breaker like this in case you get a short. AC8C1D92-DCA2-40D8-BFE1-55DDD10B21EE.png

    We just use the single pin sockets and cords.

    Hulld Thanks this.
  10. bad-luck

    bad-luck Road Train Member

    Joined:
    Nov 16, 2013
    Messages:
    3,264
    Thanks Received:
    5,983
    Location:
    Baltimore, Maryland
    0
    All the lift gates that I have ever seen have a single prong. The electric cord for this set up is referred to a stinger cord.
