Bad EGR Cooler… mix with oil or smoke out of the stack ?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Brandon0928, Dec 3, 2022.

  1. Brandon0928

    Brandon0928 Light Load Member

    176
    98
    May 14, 2022
    0
    Would a bad EGR Cooler mix coolant or would it burn It? Would it be black or white smoke ?

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Goodysnap

    Goodysnap Road Train Member

    3,091
    7,235
    Jul 12, 2017
    0
    Leaking EGR cooler would leak coolant into the combustion chamber and out the exhaust. It would likely produce a steam or white smoke. Most of the smoke would be blocked or caught by the DPF and not so much noticeable out the stack. Upon removal the DPF will have a light pink color to the filter. Coolant may be found in oil sample but oil will not appear to be overfull or milky in appearance. Maybe more than normal moisture or condensation around the dipstick, oil fill or blow bye tube/ ccv filter.

    Severe cases may cause hydrolocking or binding while cranking from coolant in the cylinders while setting.

    Last edited: Dec 3, 2022
  4. Brandon0928

    Brandon0928 Light Load Member

    176
    98
    May 14, 2022
    0
    2 weeks ago I went and checked the oil. 12 miles on oil change and dipstick and oil fill had oil/water mix . Sent oil sample in and showed no traces of water or coolant . When I picked up the truck from oil change coolant was below minimum line and no leak on the ground . Half quart to full quart missing in 900 miles. Stacks all white. Could see It blowing clouds this morning. Water/Oil in full tube with condensation . Yesterday driving heard a pop like a tire blew and happen 10 minutes later and now have a knock at high rpm’s but only while driving. Heard the pop 2 times this morning . Not sure what’s happening , someone mentioned a cam. Maybe look into that

  5. ducnut

    ducnut Heavy Load Member

    869
    2,281
    Dec 31, 2010
    Paradise
    0
    EGR cooler won’t always show itself. My Volvo D13 had no symptoms. However, I was having DPF issues. When they split the can, the filter looked like a chunk of concrete. That sent them straight to removing the EGR cooler inspection plate where the found a coolant leak that caused the DPF to be like it was.

    BoxCarKidd Thanks this.
  6. Brandon0928

    Brandon0928 Light Load Member

    176
    98
    May 14, 2022
    0

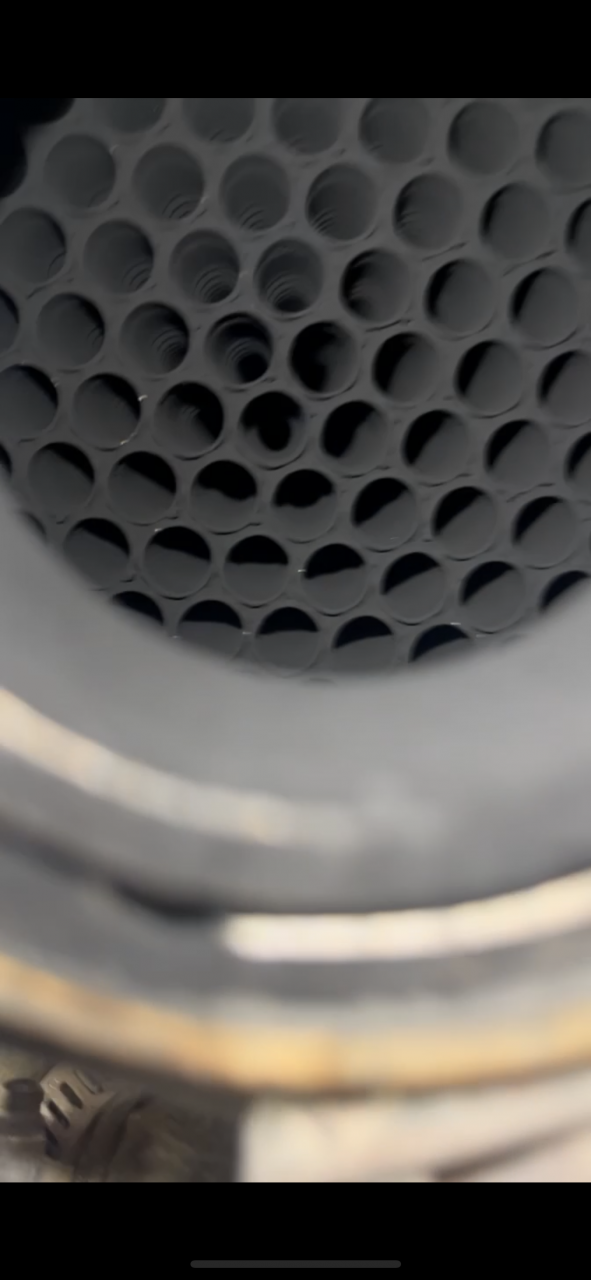

    I actually had the pipes apart to clean them. Didn’t remove the cooler but did get a look at it


    Attached Files:

  7. Brandon0928

    Brandon0928 Light Load Member

    176
    98
    May 14, 2022
    0
    What it looked like today


    Attached Files:

  8. ducnut

    ducnut Heavy Load Member

    869
    2,281
    Dec 31, 2010
    Paradise
    0
    What’s in your oil fill cap is normal.

  9. Brandon0928

    Brandon0928 Light Load Member

    176
    98
    May 14, 2022
    0
    Been driving 9 years. Owned a isx years ago and never saw that. Never saw It on This truck till week ago. Never saw it on any other trucks I’ve had with cats

  10. ducnut

    ducnut Heavy Load Member

    869
    2,281
    Dec 31, 2010
    Paradise
    0
    I’ve seen it on a variety of vehicles, of all kinds. Moisture is a natural part of the combustion process. It evaporates off, eventually. Ever see steam coming out the crankcase vent on an older truck? That’s what your seeing here, except it’s still inside the crankcase. The crankcase hasn’t heated up enough and evaporated off yet.

  11. Brandon0928

    Brandon0928 Light Load Member

    176
    98
    May 14, 2022
    0
    It looks like that even right after 300 miles. Also before the truck starts for the day . I did have to take the crankcase off the truck and clean it with its lines as The breather had a bunch of oil on it. I wonder if that crankcase is bad ? It’s the non serviceable case
