Binding heavy loads to chain spools

Discussion in 'Flatbed Trucking Forum' started by Bdog, Nov 24, 2015.

  1. Nov 24, 2015 #1
    Bdog

    Bdog Road Train Member

    1,057
    877
    Nov 6, 2014
    0
    If you are chaining down something heavy like a 20k backhoe or other machinery do the chains need to go to a d ring or are the spools located every couple of feet in the rub rail adequate? My trailer has six factory installed heavy duty d rings but they are not always in the ideal spot for the equipment I haul.

    Bdog, Nov 24, 2015
    Bdog, Nov 24, 2015
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Nov 24, 2015 #2
    cnsper

    cnsper Road Train Member

    5,869
    27,421
    Feb 28, 2014
    0
    You can secure to anything that has a WLL rating. That being said, you may have to add more chains if not going to the d-rings.

    cnsper, Nov 24, 2015
    cnsper, Nov 24, 2015
    #2
    tsavory and MrEd Thank this.
  4. Nov 26, 2015 #3
    Macneil

    Macneil Heavy Load Member

    711
    426
    Dec 15, 2010
    Sudbury, ON., Canada
    0
    What are these spools that you speak of? The square tubing in between the rub rail and deck(chain pocket)?

    Macneil, Nov 26, 2015
    Macneil, Nov 26, 2015
    #3
  5. Nov 26, 2015 #4
    haulhand

    haulhand Road Train Member

    2,091
    3,232
    Feb 6, 2008
    Rock Springs, Wyoming/Dickinson, ND
    0

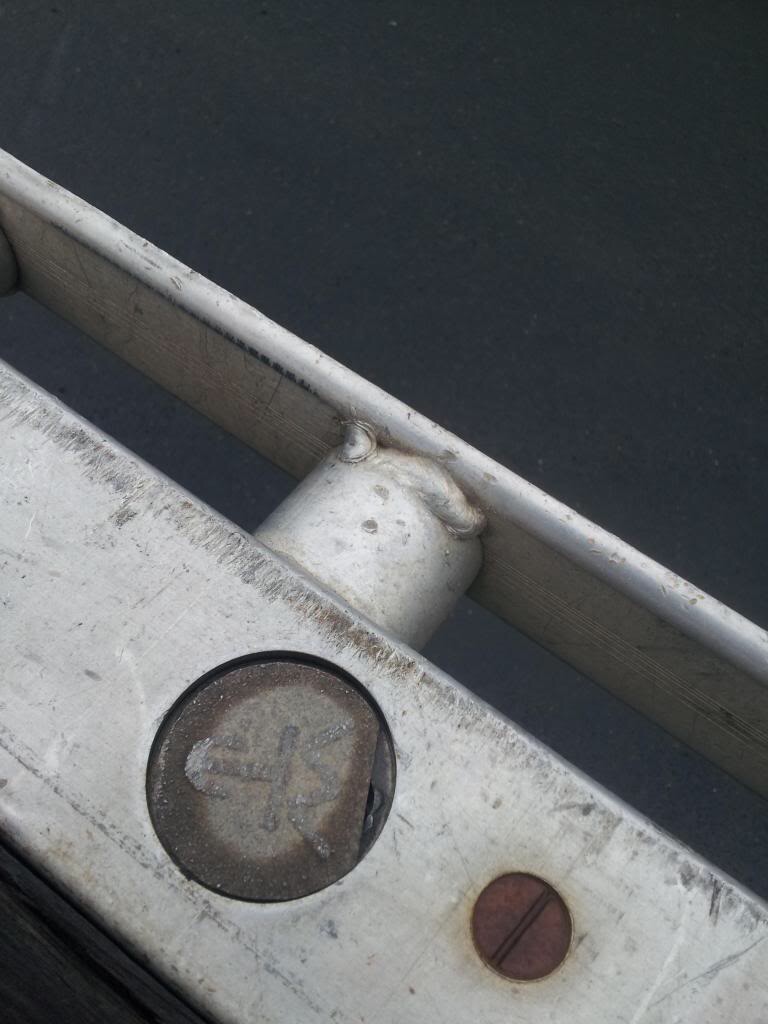

    In between the chain pockets between the rub rail and deck there should be round pieces. Those round pieces are spools.


    Attached Files:

    haulhand, Nov 26, 2015
    haulhand, Nov 26, 2015
    #4
  7. Nov 27, 2015 #5
    xsetra

    xsetra Road Train Member

    5,101
    6,956
    Aug 21, 2011
    0
    Yes you can chain to the stake pockets, spools, even the rub rail if it has a WLL rating. The ratings of your trailer should be on a tag somewhere on the frame.
    I usually hook my chains in the stake pockets. They just look like they can take more weight.

    xsetra, Nov 27, 2015
    xsetra, Nov 27, 2015
    #5
  8. Nov 27, 2015 #6
    johndeere4020

    johndeere4020 Road Train Member

    8,522
    119,291
    Jan 1, 2010
    Ohio
    0
    They're not "required" to have a rating but it makes me feel better.

    johndeere4020, Nov 27, 2015
    johndeere4020, Nov 27, 2015
    #6
    kylefitzy Thanks this.
  9. Nov 29, 2015 #7
    Macneil

    Macneil Heavy Load Member

    711
    426
    Dec 15, 2010
    Sudbury, ON., Canada
    0
    Ok yes, sorry! I never knew what they were called, thanks!

    Macneil, Nov 29, 2015
    Macneil, Nov 29, 2015
    #7
