Black fuel filter(pics included)

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by nikmirbre, Aug 9, 2021.

  1. bad-luck

    bad-luck Road Train Member

    2,058
    3,154
    Nov 16, 2013
    Baltimore, Maryland
    0
    The top of ring on the injector stops the oil from draining down from the head. If the o ring fails thats how oil gets in to the fuel. This can happen with any diesel engine. If your tanks is clean than sounds like your fuel lines are coming apart.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. nikmirbre

    nikmirbre Road Train Member

    4,161
    6,192
    Jul 27, 2011
    Concord,NC
    0

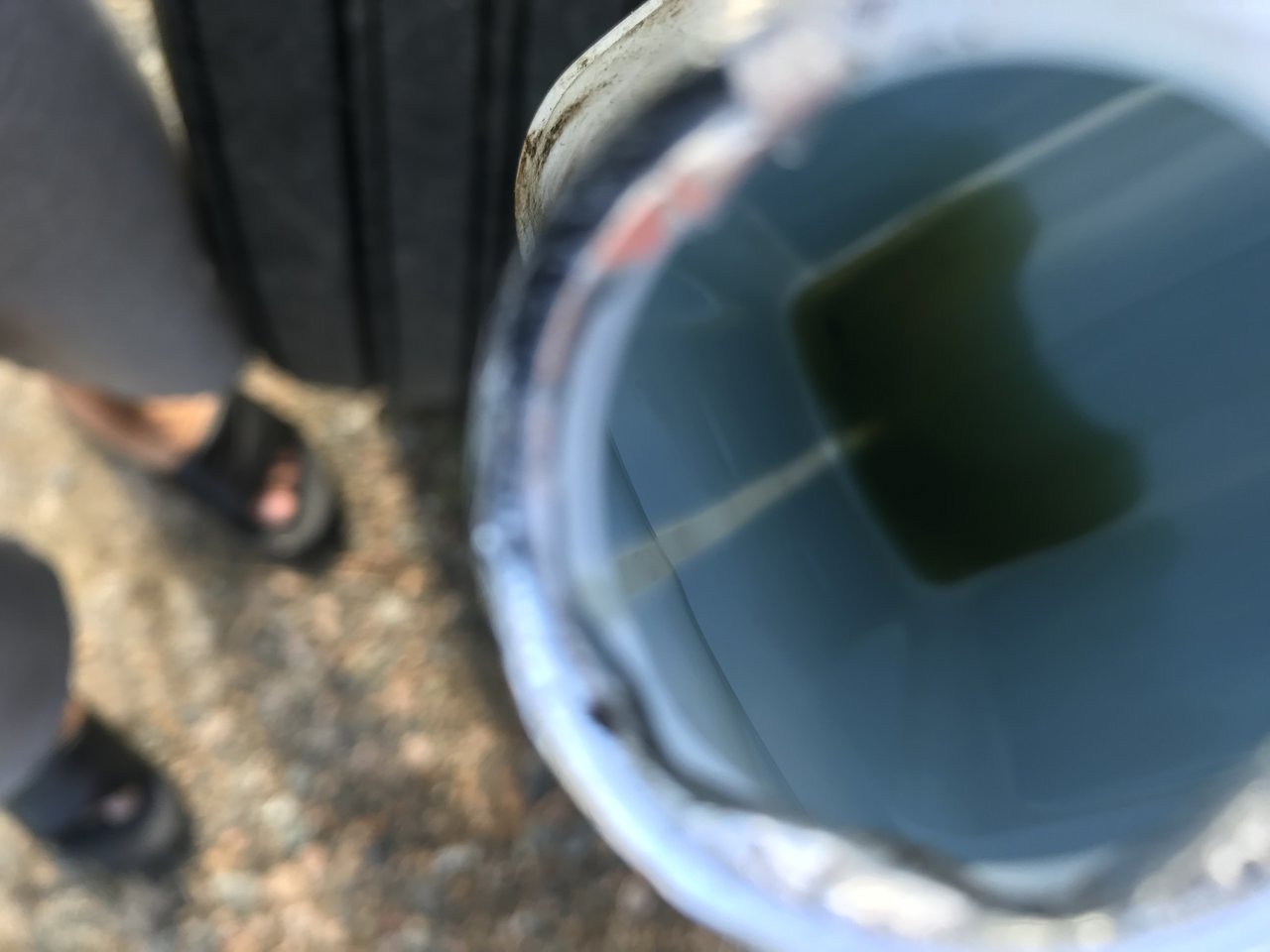

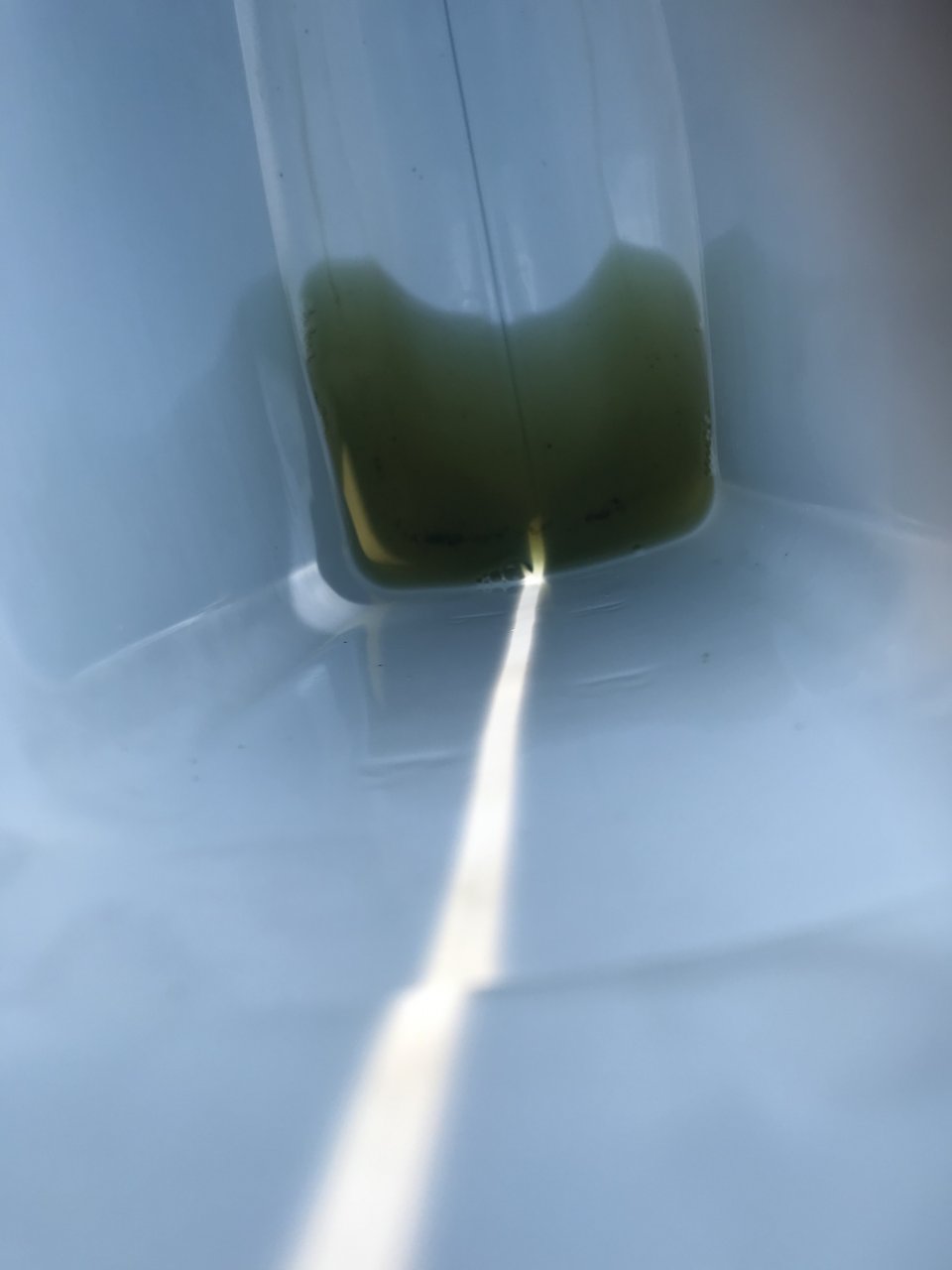

    ACFAFB9C-D230-43DB-9C96-8FF89D934168.jpeg F8A0FA06-19D7-4CEF-BD44-15A034157708.jpeg This is a bit of fuel from the davco fuel filter. My fuel in my tank looks nothing like this. Tank is clean from what I can see.

    Rideandrepair Thanks this.
  4. nikmirbre

    nikmirbre Road Train Member

    4,161
    6,192
    Jul 27, 2011
    Concord,NC
    0
    Tomorrow is the day I’m gonna check fuel lines and get back under the truck. I’ve been trying to get ahold of the state to try to set up my IFTA account….

  5. jamespmack

    jamespmack Road Train Member

    16,149
    181,555
    Mar 25, 2014
    OH
    0

    I've seen this numerous times. Also a leaky injector over night dripping down on piston and past rings. But that normally comes with a hard start condition.

    bad-luck Thanks this.
  6. jamespmack

    jamespmack Road Train Member

    16,149
    181,555
    Mar 25, 2014
    OH
    0

    Can be from the chemical properties of fuel, and from over heating diesel to.

    Rideandrepair Thanks this.
  7. Rideandrepair

    Rideandrepair Road Train Member

    12,878
    40,838
    Aug 8, 2015
    0
    The pics looks like there’s some trash in the bottom. Could be lines coming apart. I’m surprised though, Trucks not that old. I’ve had mine look terrible. Black, algae. Even had them filled with Rusty looking water, when changed. Bad fuel? Sabotage? I don’t know. I did replace braided tank lines going to gt splitter valve, soon afterwards, with super duper expensive heavy duty lines. Also replaced the other braided lines. Can’t remember when though. Hate to see you throw parts at it. But maybe just replacing the line from splitter valve on top of tank to the filter, to eliminate it, wouldn’t hurt. I had an o ring fail, only about 7 yrs old. Changed injector, still don’t know if the injector itself was bad. A leaky injector cup, would make the fuel in tanks black also. If it’s clean, must be coming from the lines falling apart. The ones from tanks to splitter valve, if changed, need to be kept the same length and routed the same way, avoiding any high loops, that cause a lost siphon. They need to be the same lengths, from each tank, and ran on a constant rise from tanks to valve. Supply line to filter needs to be higher than the others from tanks. It’s a job changing them all. I suspect the supply line from valve to filter, because it’s probably subject to heat.

    nikmirbre, bad-luck and jason6541 Thank this.
  8. Rideandrepair

    Rideandrepair Road Train Member

    12,878
    40,838
    Aug 8, 2015
    0
    I just realized, what you’re seeing is the filtered fuel. Might not be noticeable in tank, but once it’s filtered the trash shows up.

    nikmirbre Thanks this.
  9. jason6541

    jason6541 Road Train Member

    2,159
    4,301
    Mar 5, 2012
    Omaha, NE
    0
    Hopefully you can send a sample soon to lab and get a definitive answer from analysis

    Rideandrepair Thanks this.
  10. nikmirbre

    nikmirbre Road Train Member

    4,161
    6,192
    Jul 27, 2011
    Concord,NC
    0
    still hadn't driven it yet. NC IFTA is soooooooo slow.......

    Rideandrepair Thanks this.
  11. nikmirbre

    nikmirbre Road Train Member

    4,161
    6,192
    Jul 27, 2011
    Concord,NC
    0
    I drove about 1000 miles last week. I had changed the fuel filter while waiting on my IFTA. Still getting black fuel in the filter...and still don't see any in the tank at all. I did change oil and that lead to less black smoke.... I do have the fuel sample ready to send off but, my mechanic around the corner is gonna get me in sooner than I thought. Im dropping truck off tomorrow. Im at the very least gonna change the fuel lines.
