Boost Pressure Code? Any ideas

Discussion in 'Trucks [ Eighteen Wheelers ]' started by SouthwestVeas, Dec 10, 2015.

  1. Dec 10, 2015 #1
    SouthwestVeas

    SouthwestVeas Bobtail Member

    20
    11
    Jan 14, 2015
    Las Vegas
    0

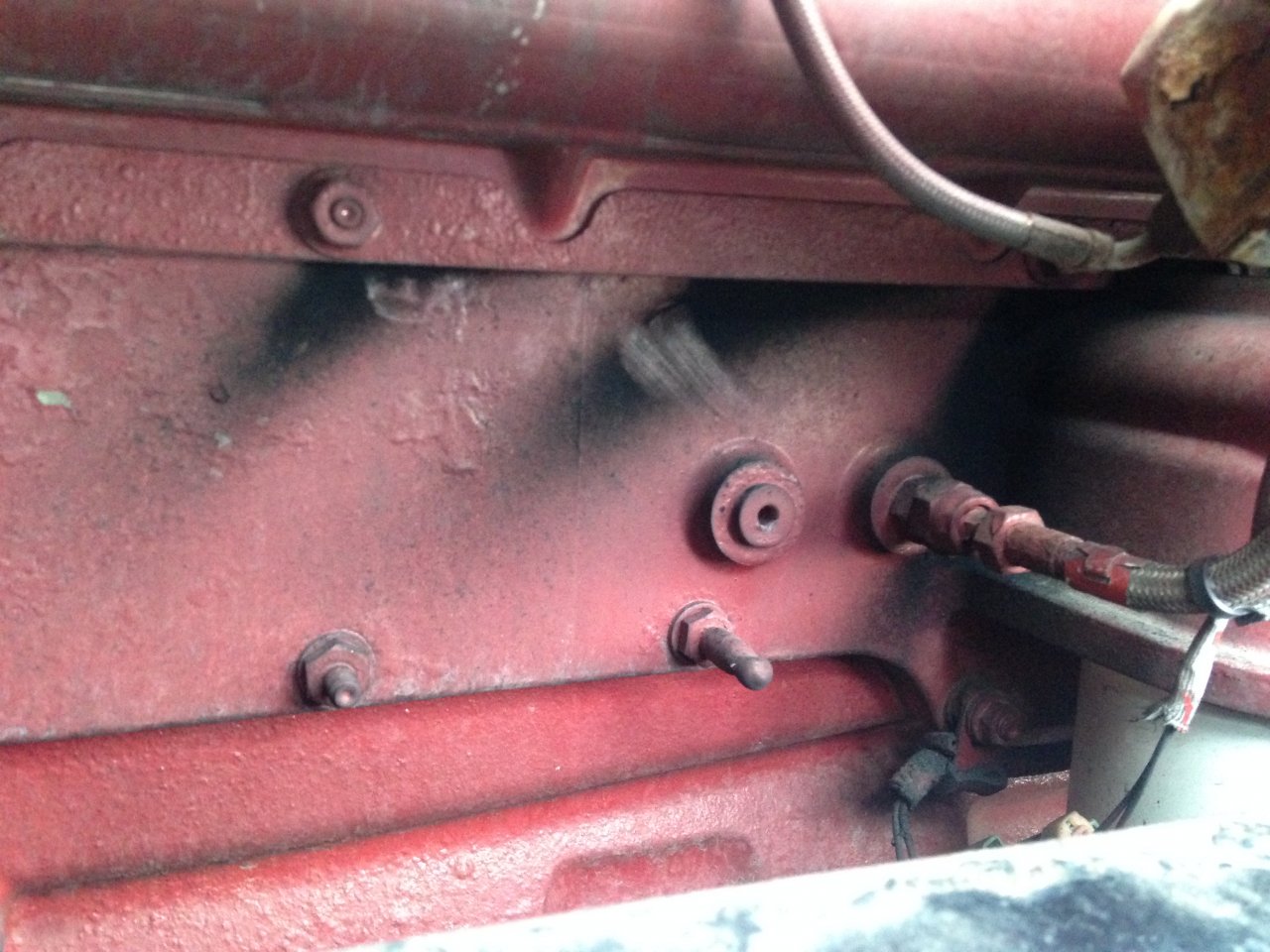

    hey does anyone have any idea where this soot/ carbon could be coming from exactly?

    Truck was running fine, I shut it off and went to sleep. woke up and started the truck, check engine light came on & then the stop/shut off engine light came on.. I then retrieved the code and it said Boost Pressure..

    I attached the pic to see if anyone else had any related issues or any ideas...

    Also, I had EGR valves and Doser Valves replaced in this truck 3 weeks ago.. The engine is a 2008

    Thanks for any help


    Attached Files:

    SouthwestVeas, Dec 10, 2015
    SouthwestVeas, Dec 10, 2015
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Dec 10, 2015 #2
    062

    062 Road Train Member

    6,213
    33,458
    Oct 20, 2013
    0
    Is that the oil cooler?

    062, Dec 10, 2015
    062, Dec 10, 2015
    #2
  4. Dec 10, 2015 #3
    nasriza

    nasriza Road Train Member

    2,397
    2,070
    Feb 1, 2013
    Chicago, IL
    0
    that looks like you have exhaust leaks not boost leaks might be the turbo bolts are loose of a bad exhaust manifold gasket maybe

    nasriza, Dec 10, 2015
    nasriza, Dec 10, 2015
    #3
    RustyBolt and mountaingote Thank this.
  5. Dec 10, 2015 #4
    RustyBolt

    RustyBolt Road Train Member

    2,073
    3,333
    Feb 21, 2015
    Bement, IL
    0
    I had my exhaust manifold replaced due to it cracking. Later I had a coolant leak that I went looking for. I took off everything on the right side of my cat and found a total of 7 bolts (2 in the exhaust manifold) that were only hand tight.

    RustyBolt, Dec 10, 2015
    RustyBolt, Dec 10, 2015
    #4
  7. Dec 10, 2015 #5
    nasriza

    nasriza Road Train Member

    2,397
    2,070
    Feb 1, 2013
    Chicago, IL
    0
    A lot of people make the mistake of not replacing exhaust bolts when they do turbos or manifold or even loctiing them i always do both cuz ive had a few bad experiences with people trying to be cheap and it turned into extra labor for me so now no more options

    nasriza, Dec 10, 2015
    nasriza, Dec 10, 2015
    #5
    SouthwestVeas Thanks this.
  8. Jan 12, 2016 #6
    SouthwestVeas

    SouthwestVeas Bobtail Member

    20
    11
    Jan 14, 2015
    Las Vegas
    0

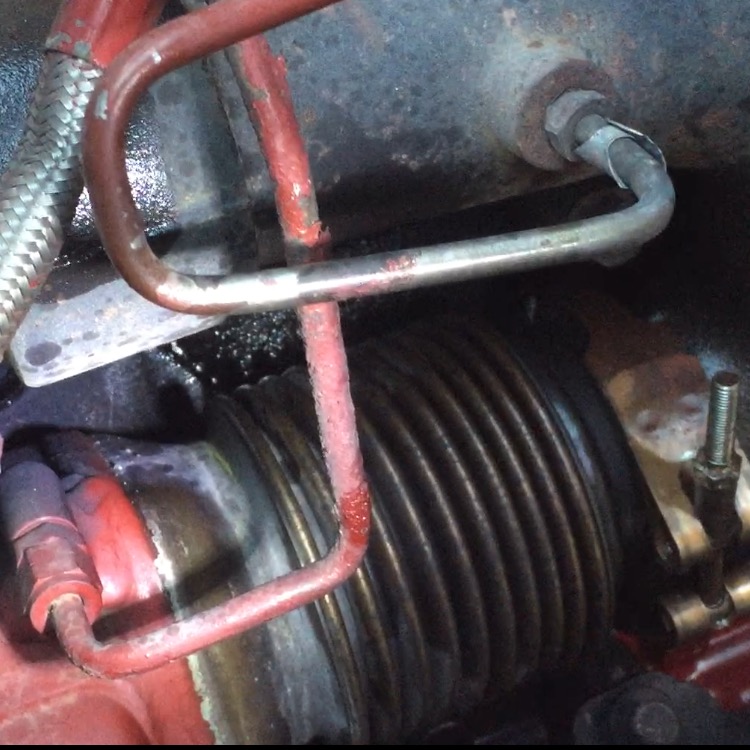

    image.jpeg sorry for the late reply everyone.. it ended up being a hole in the flex pipe of the egr cooler.. So the entire egr cooler had to be replaced.. The flex pipe part is not sold separately.. I tried some temporary fixes but nothing seemed to work so I just ended up replacing the cooler.. You'd think they would've made the flex pipe piece removable.. (Wishful thinking) lol

    In the pic, I sprayed some WD 40 against the wall behind the flex pipe to locate the leak after hearing an air leak which is what is shown in the pic..


    Attached Files:

    Last edited: Jan 12, 2016
    SouthwestVeas, Jan 12, 2016
    SouthwestVeas, Jan 12, 2016
    #6
  9. Jan 12, 2016 #7
    RustyBolt

    RustyBolt Road Train Member

    2,073
    3,333
    Feb 21, 2015
    Bement, IL
    0
    I keep a spray bottle with soapy water in it for that (and finding air leaks). Works great. Just start the engine and begin spraying. If you have leaks, there WILL be bubbles. I check my system about once a month or so.

    RustyBolt, Jan 12, 2016
    RustyBolt, Jan 12, 2016
    #7
    SouthwestVeas Thanks this.
