Broken dunnage hauling coils?

Discussion in 'Flatbed Trucking Forum' started by RedRover, Nov 9, 2023.

  1. RedRover

    RedRover Road Train Member

    1,791
    2,609
    Sep 10, 2016
    Corsicana, TX
    0
    Picked up some aluminum coils in Texarkana. Short trip to Memphis delivering in the morning. Stopped and did a load check, cranked down a bit more and carried on down the road. About 20 minutes later I heard a loud snap, sounded like a broken bone. Pulled my ### over to check on the load and the dunnage on a 12k coil in the back of a set of 3 coils snapped right in half. Chains held it, though the back chain was extremely loose. Coil is currently sitting on the deck.

    so a few questions…

    1. The load is tarped. Crank that down and play stupid when I get to the customer in the morning?

    2. Did I just buy 12,000 lb of aluminum?

    3. has anyone ever had good oak 4x4 snap in half under so little stress?

    4. Do I need to call a crane to lift that crap up and fix it or should I just revert to 1?

    singlescrewshaker Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. singlescrewshaker

    singlescrewshaker Road Train Member

    4,508
    38,419
    Dec 31, 2017
    Little Havana, FL
    0
    Coil racks too far apart??

  4. Iamoverit

    Iamoverit Heavy Load Member

    895
    2,097
    Oct 31, 2023
    0
    Usually even the slightest dent on an aluminum coil turns into a damage claim.

    RedRover Thanks this.
  5. RedRover

    RedRover Road Train Member

    1,791
    2,609
    Sep 10, 2016
    Corsicana, TX
    0
    probably so. That or just a knot in the dunnage. Was literally brand new oak 4x4x8.

    mostly just concerned about the cost of the coil and/or a crane in a rain storm in Arkansas now.

    cke and singlescrewshaker Thank this.
  6. Diesel Dave

    Diesel Dave Last Few of the OUTLAWS

    8,040
    19,197
    Jan 20, 2010
    Hesperia, Ca.
    0
  7. RedRover

    RedRover Road Train Member

    1,791
    2,609
    Sep 10, 2016
    Corsicana, TX
    0
    Yea I will get out there and take some in the morning when it’s not raining. Or when I’m pulling a tarp off of it for a crane to lift it and fix the dunnage situation.

    disappointing I know. Lol

    cke, singlescrewshaker and Diesel Dave Thank this.
  8. skallagrime

    skallagrime Road Train Member

    3,779
    9,682
    Apr 10, 2012
    Indiana
    0
    Brand new just means you havent found its weak bits :p

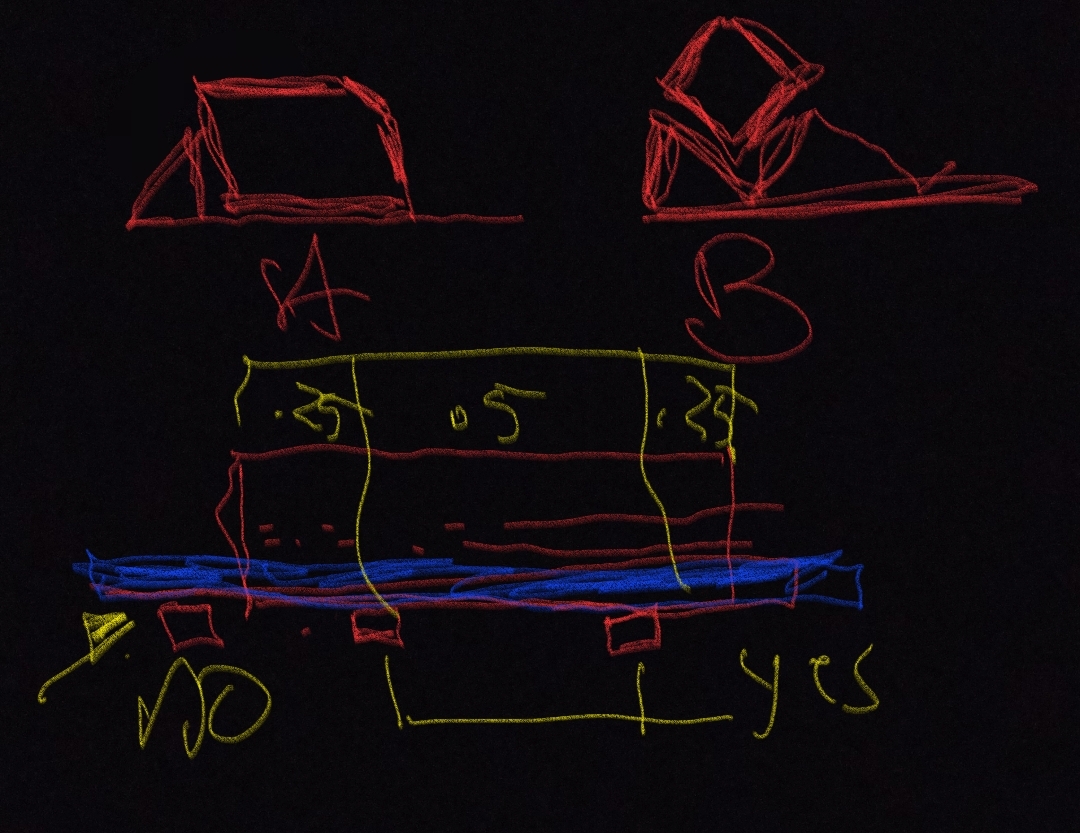

    Which rack style do you have? (See pic)

    Also, for the racks, any rack placed on the outside of the coils edge is doing more damage than good.

    For a 2 rack setup , always distribute them as close as possible 1/4 of the coils width in from their edges, this gives the most even weight distribition and even if your dunnage breaks, theres no way for the coil to fall down to the deck (see lower part of drawing)


    Screenshot_20231109-213204_One UI Home.jpg

    cke, kylefitzy, Stringb8n and 2 others Thank this.
  9. RedRover

    RedRover Road Train Member

    1,791
    2,609
    Sep 10, 2016
    Corsicana, TX
    0
    A. And closer to no than yes. Interesting and I’m guessing probably expensive lesson. A lesson to be dealt with tomorrow, but a lesson none the less. Still planning on playing stupid at the receiver though. “Oh no how did that happen…” or just not say anything at all…

    could get lucky. I once hauled some eye to the sky coils on skids to California and the fork driver put a fork through the side of one of the coils and immediately signed the paperwork and said I won’t say anything if you won’t. Not my coils buddy set them on fire for all I care.

  10. Iamoverit

    Iamoverit Heavy Load Member

    895
    2,097
    Oct 31, 2023
    0
    Sometimes you get lucky and sometimes places actively look for damge so they can profit from it. They get reimbursed for the damged coil then turn around and sell it off as scrap or unroll it until the damge is no longer seen then used what's left.

    Feedman, cke, roshea and 1 other person Thank this.
  11. Kyle G.

    Kyle G. Road Train Member

    3,541
    18,100
    Jan 23, 2016
    Eastern Iowa
    0
    I’ve never dealt with coils, but I can tell you that where I work, the guys will unload $80,000 transformers all day long and not check a single one for damage or even verify they are the right item before signing for them. If that makes you feel any better.

    Nostalgic, Feedman, cke and 6 others Thank this.
