Brown Substance on Flywheel Cover?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by PE_T, Jun 5, 2020.

  1. PE_T

    PE_T Road Train Member

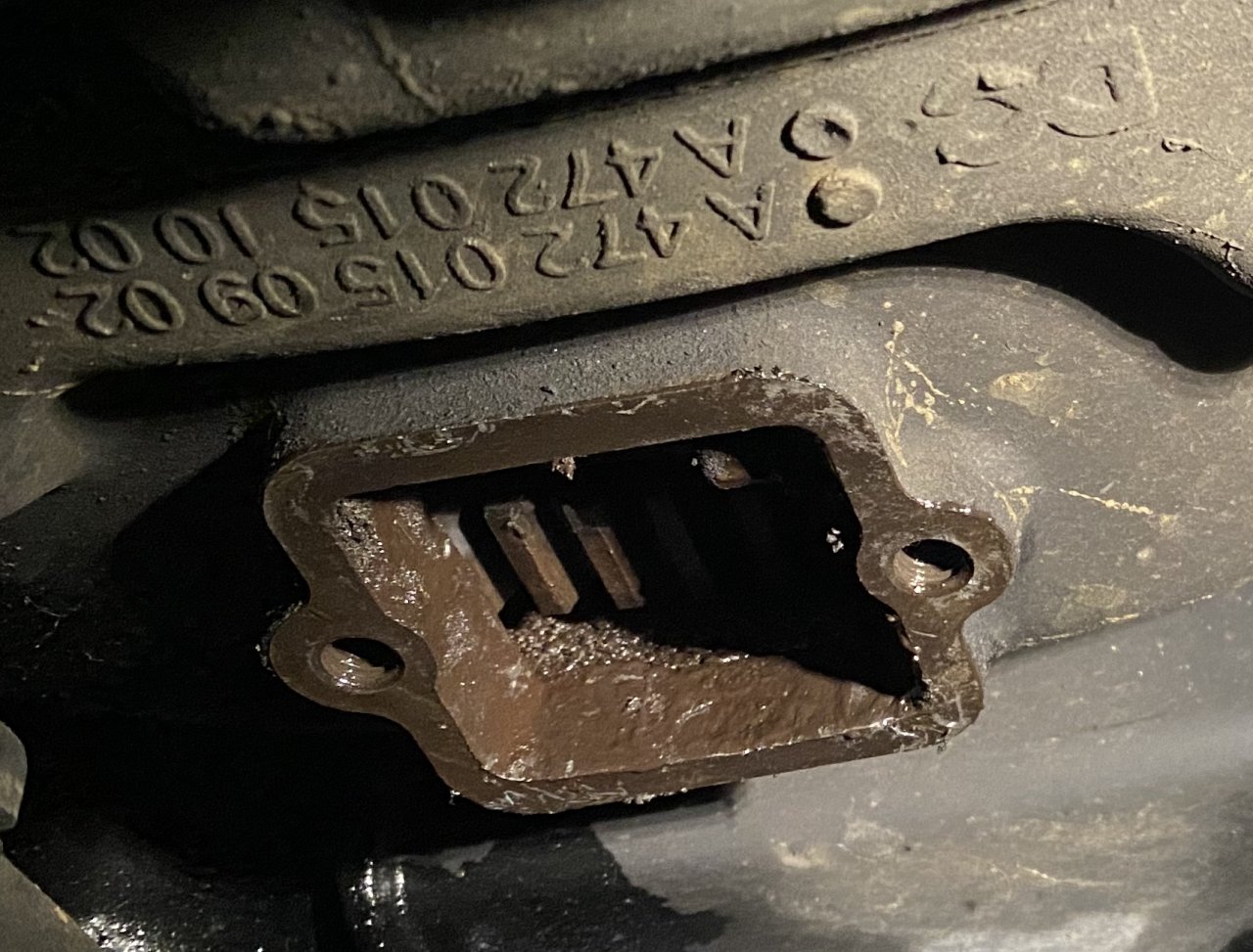

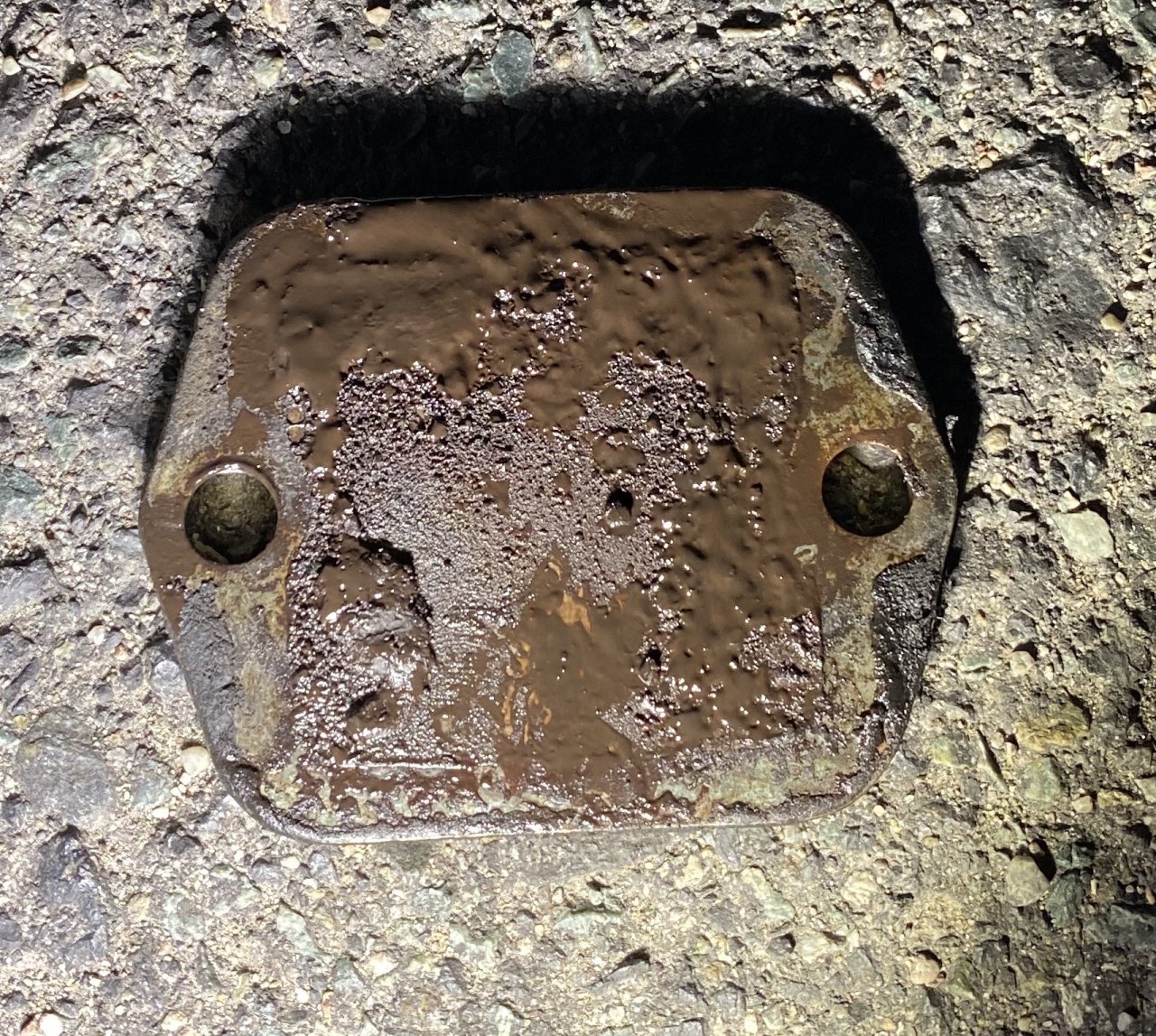

    This is the small cover directly under the flywheel housing on a DD15 engine. Is this brown substance normal, or could something be leaking?


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. little cat 500

    little cat 500 Road Train Member

    1,950
    1,004
    Jan 17, 2010
    Abbottstown PA
    0
    clutch dust and muddy water maybe

    Bean Jr. and PE_T Thank this.
  4. AModelCat

    AModelCat Road Train Member

    27,739
    145,364
    Jul 7, 2015
    Canuckistan
    0
    Does it smell like oil? Feel oily?

    PE_T Thanks this.
  5. Goodysnap

    Goodysnap Road Train Member

    3,502
    8,384
    Jul 12, 2017
    0
    I would agree with clutch dust. The big question is, what is it wet with?

    Coolant? Diesel oil is ussually darker or toward black so it doesnt look to be engine oil. Water is a possibility but the combination of engine, trans and clutch heat should keep everyting dry for a truck under normal on hwy use.

    The other possiblity is trans oil?

    Hydraulic clutch? Brake fluid?

  6. PE_T

    PE_T Road Train Member

    I don’t think it’s engine oil and I don’t remember it smelling like oil, but perhaps it’s some other kind of oil. There is no leak, though. This is like some sort of paste, maybe grease.

  7. ZVar

    ZVar Road Train Member

    10,911
    23,805
    Sep 10, 2010
    Flint, MI
    0
    Was the truck owned by a Chicago outfit before you bought it. One with a trap door under the driver seat? :)

  8. PE_T

    PE_T Road Train Member

    I’ll have to check again to know how it smells.

  9. AModelCat

    AModelCat Road Train Member

    27,739
    145,364
    Jul 7, 2015
    Canuckistan
    0
    I was thinking more along the lines of a weep from the input shaft. Looks a little too juicy to be seperating grease from overgreasing the release bearing.

  10. Motto

    Motto Light Load Member

    102
    125
    Apr 10, 2020
    0
    clutch dust plus grease from bearing...

    D.Tibbitt and PE_T Thank this.
  11. baha

    baha Road Train Member

    4,137
    2,834
    Jul 25, 2013
    ga
    0
    It just looks like it has/not been cleaned for a long time and grease from throw out bearing over a long of not pressure washed under truck, trucks with side panels make it hard to clean under trans. take a bent screw driver and scrap out what you can get out of bottom of bell/housing, don't shoot cleaner on pressure plate that can get in springs and make plates slip?

    PE_T Thanks this.
