Budd/ hub pilot mixup

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by W923, Aug 3, 2022.

  1. spsauerland

    spsauerland Road Train Member

    4,282
    10,805
    May 31, 2010
    West Harrison, In
    0
    With prices of 22.5 x 8.25 wheels agreed, but with 24.5's it was cost effective. This conversion was on a center unload tank so height was critical.

    jamespmack Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. jamespmack

    jamespmack Road Train Member

    17,459
    193,571
    Mar 25, 2014
    OH
    0

    I guess. I could get you a pickup load by the end of the day of used wheels.

    spsauerland Thanks this.
  4. SmallPackage

    SmallPackage Road Train Member

    3,533
    10,465
    Dec 20, 2019
    Marion Texas
    0
    Since the center bore and bolt circle are the same. The stud holes on the pilot wheels can have the tapered seats cut in them to work with the old pilot “Budd” system. Folks are doing it all the time to put new aluminum wheels on old trucks that did not have them originally.

    spsauerland Thanks this.
  5. Gambino1994

    Gambino1994 Light Load Member

    177
    86
    Jan 22, 2009
    causing a situation
    0
    I was going to add to that info because my 1995 is set up this way, would I be able to change out the studs to hub pilot studs to run hub pilot wheels and keep the current hub and brake drum?

  6. spsauerland

    spsauerland Road Train Member

    4,282
    10,805
    May 31, 2010
    West Harrison, In
    0
    No, need to change hubs and drums.

    Gambino1994 Thanks this.
  7. W923

    W923 Medium Load Member

    390
    1,403
    Feb 28, 2022
    0
    If your wanting to change a 95 it’s pretty likely you can change the studs and nuts and keep the rest. If your hubs have the centering bosses on the hubs that will catch the pilot hole in the rim there are probably m22 studs out there that will fit

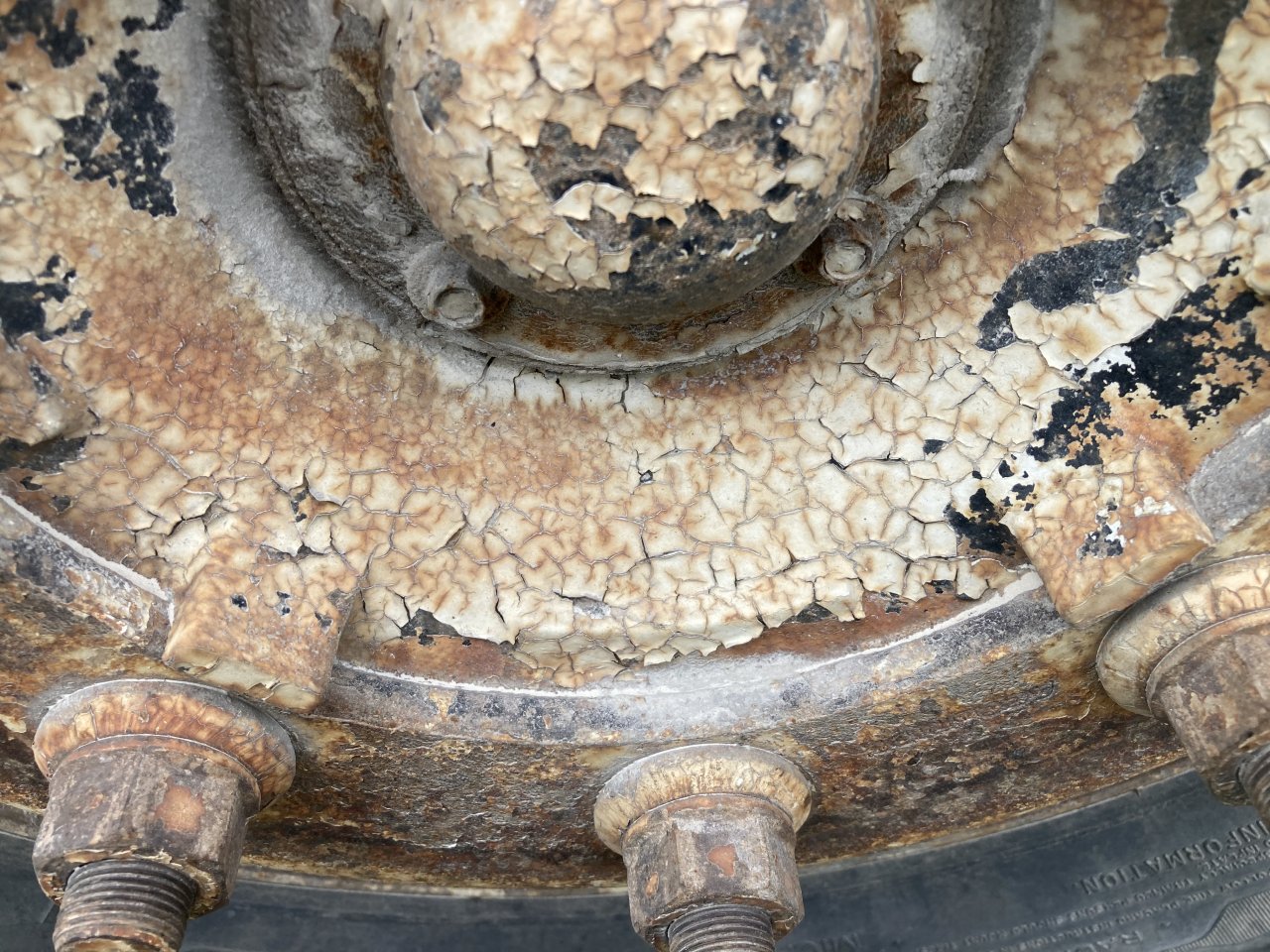

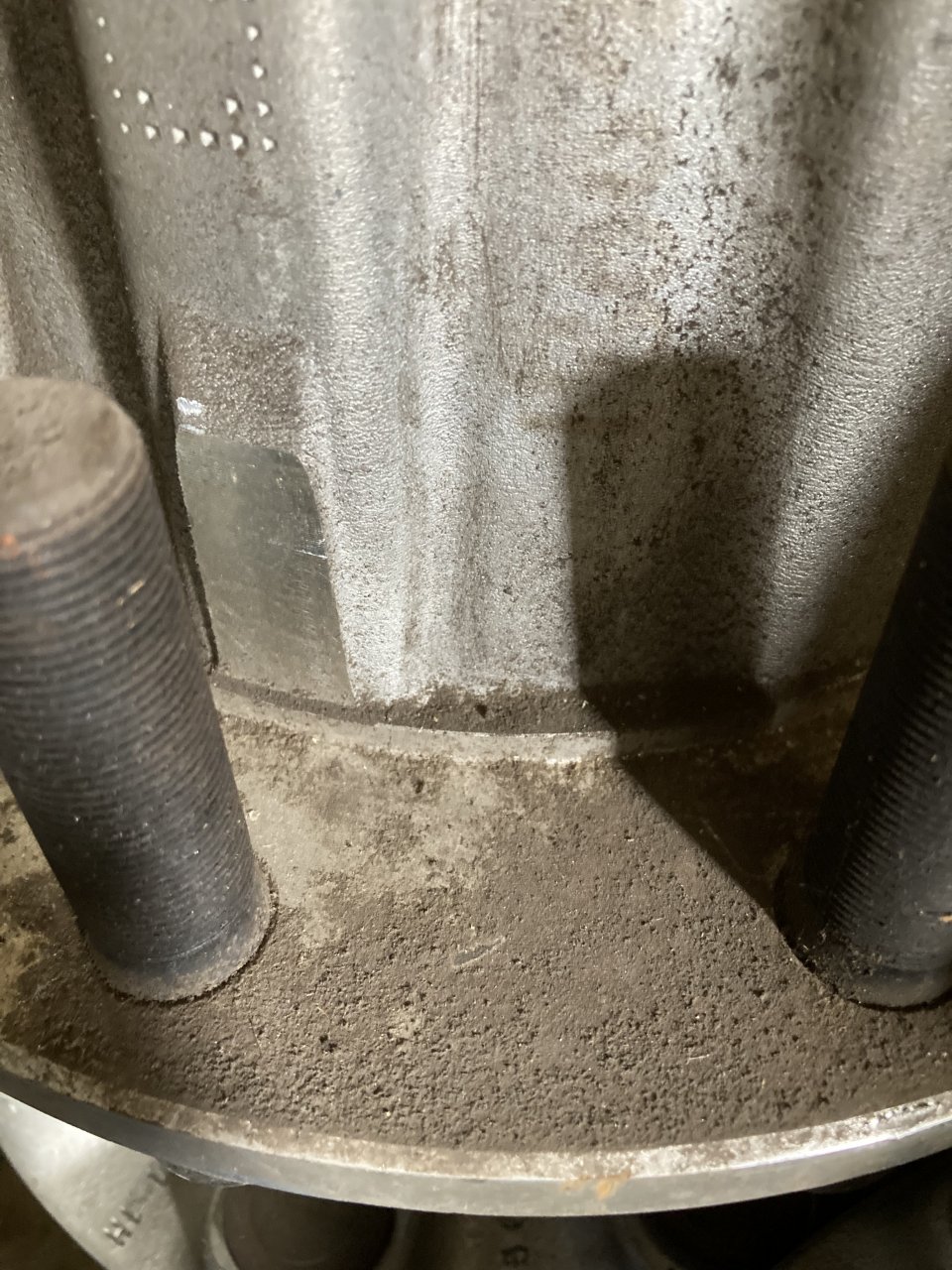

    EE6A32E4-502A-4CC2-89B4-B323991BD490.jpeg 1A1CE824-8C40-4BC1-A69E-C6B51CB48385.jpeg
    I have changed several truck tractors from the 90s with standard parts. But they must have supports like in the pictures or it won’t work

    Gambino1994 and spsauerland Thank this.
  8. spsauerland

    spsauerland Road Train Member

    4,282
    10,805
    May 31, 2010
    West Harrison, In
    0
    Trouble is around here that they are usually corroded away at centering pads. Loaded con-met hubs are actually not bad price wise.

    jamespmack and W923 Thank this.
  9. Gambino1994

    Gambino1994 Light Load Member

    177
    86
    Jan 22, 2009
    causing a situation
    0
    Yup my hubs have them smooth centering bosses on them. I only ask because a parts guy was unsure of my setup when I bought new drums, an old parts guy said my brake drum might work on either style wheel. I know the stud holes in my drums are quite a bit bigger than the budd studs in the hubs which makes me unsure about the drums being correct. Never had a problem in six years tho, but nobody touches my wheels/tires/brakes except me

    W923 Thanks this.
  10. W923

    W923 Medium Load Member

    390
    1,403
    Feb 28, 2022
    0
    That sounds about right.
    The holes in the drums are typically pretty oversized even for hp studs. Some apear to possibly only be cast or punched and not drilled/machined. Anything goes with the chicoms.
    If you have the support bosses I would probably see how they fit a hp rim and if good knock out one stud to measure where it goes in the hub
