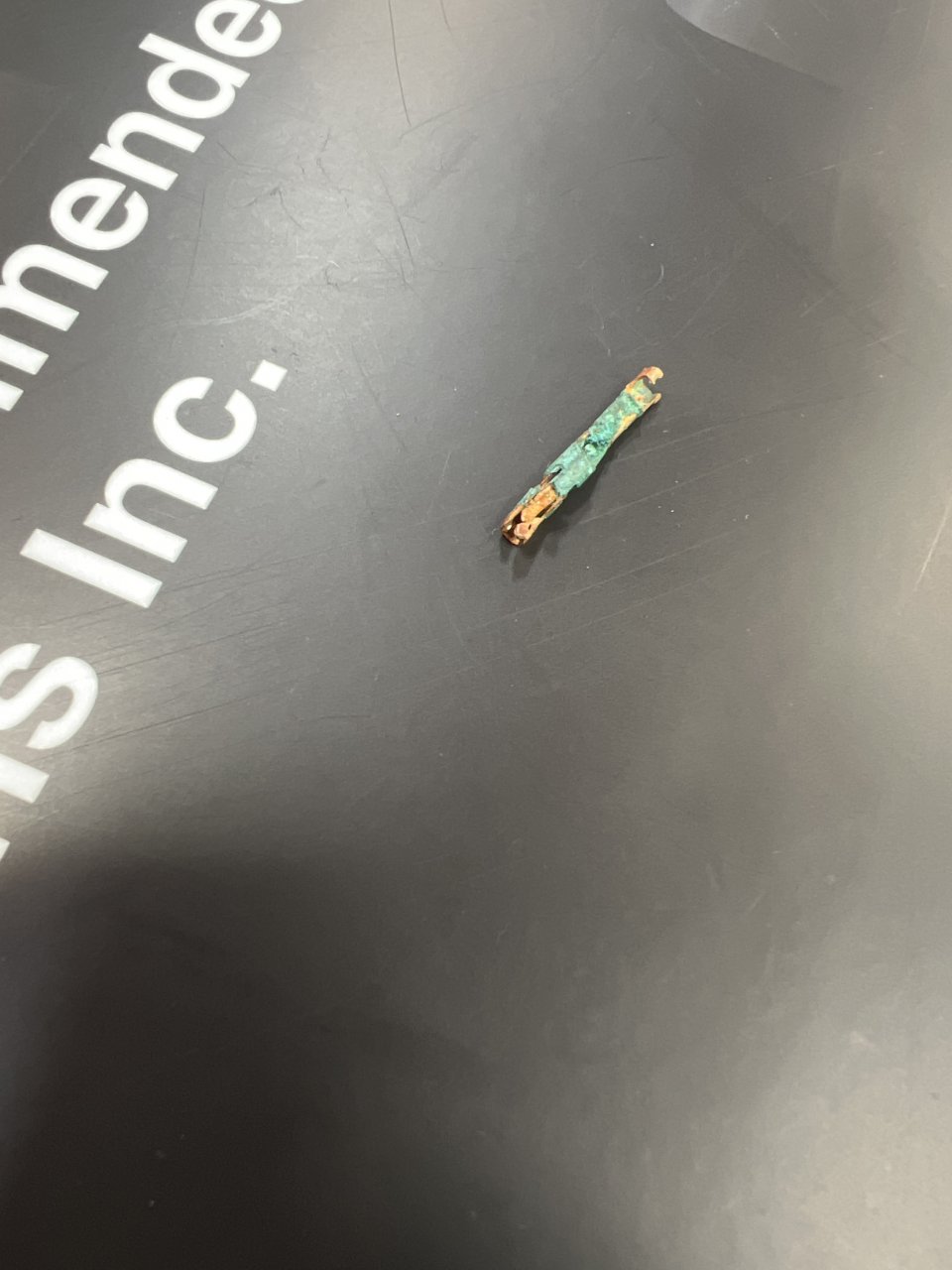

I would put money on the ground wire is corroded from the water intrusion.
Using the metal dash frame as a ground attach the test light to metal frame and touch ground wire up next the cab lights.
should come on
Cab clearance light issue
Discussion in 'Peterbilt Forum' started by Dallison, Jan 3, 2023.
Page 4 of 4
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
-
Oxbow Thanks this.
-
Edit to add: There was still a film of dielectric grease on the bullet connectors, we just wiped the excess off. Dielectric grease is not conductive, but it sure works well to combat corrosion.Last Call Thanks this. -

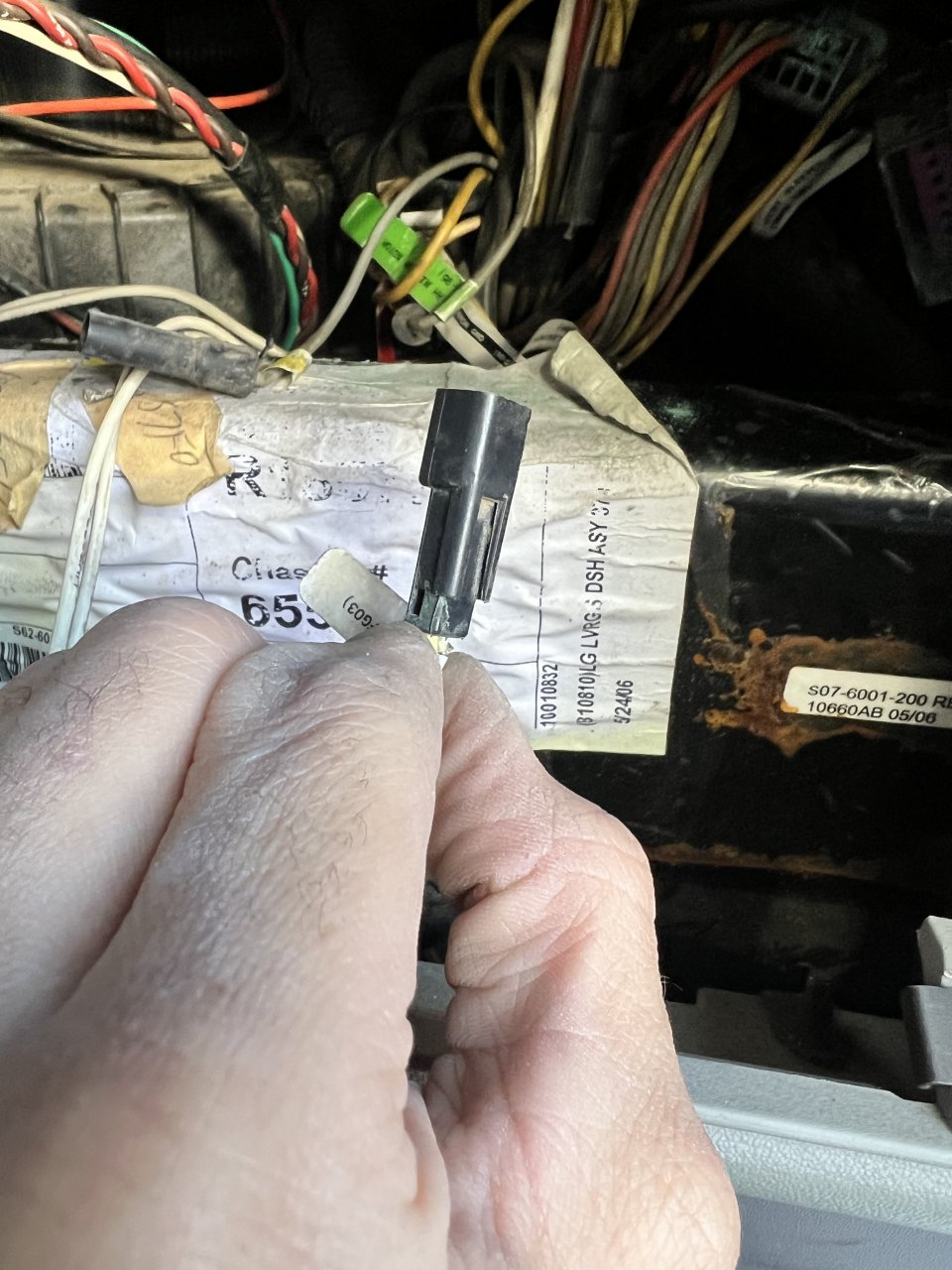

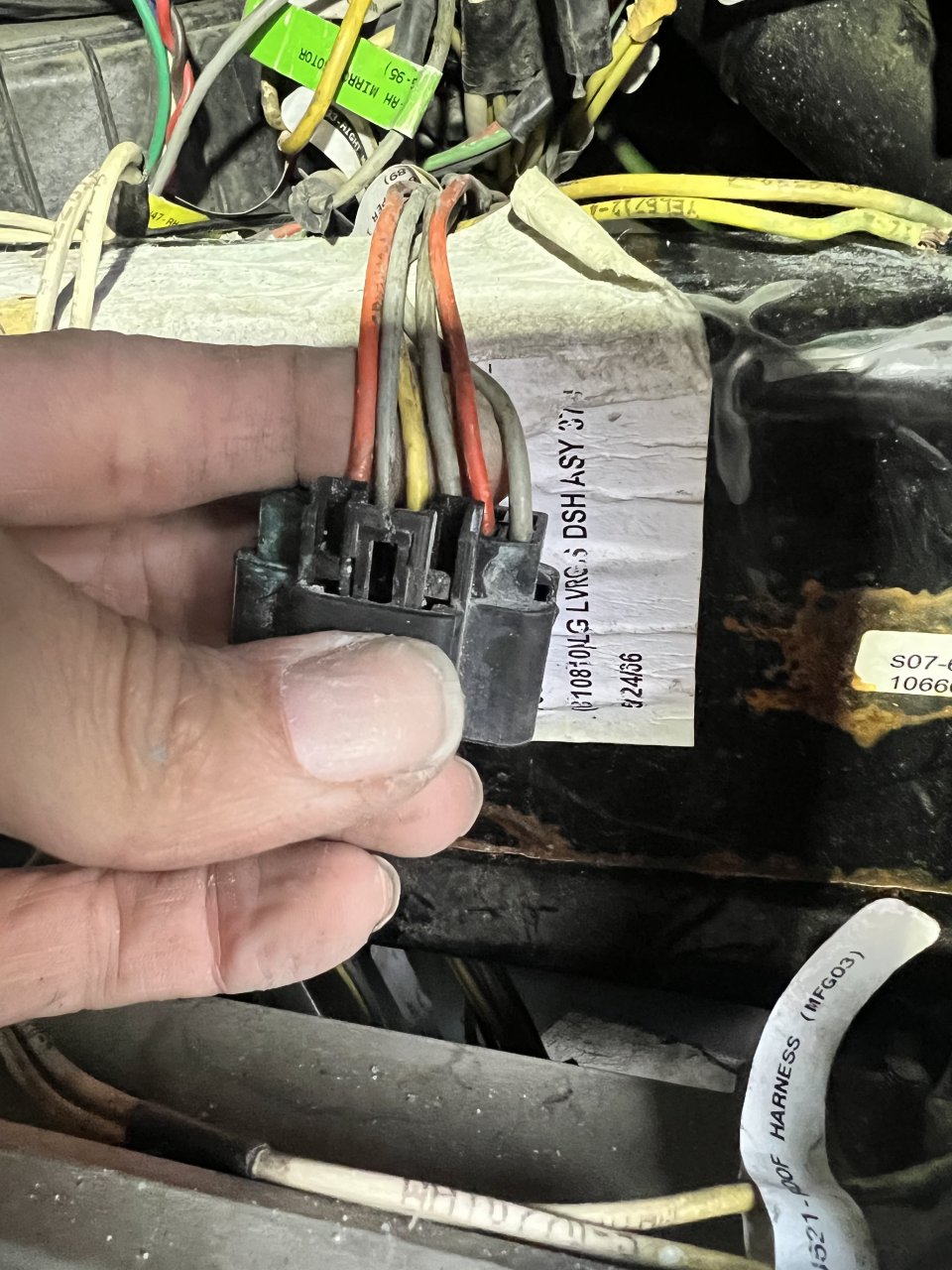

Attached Files:
-
-

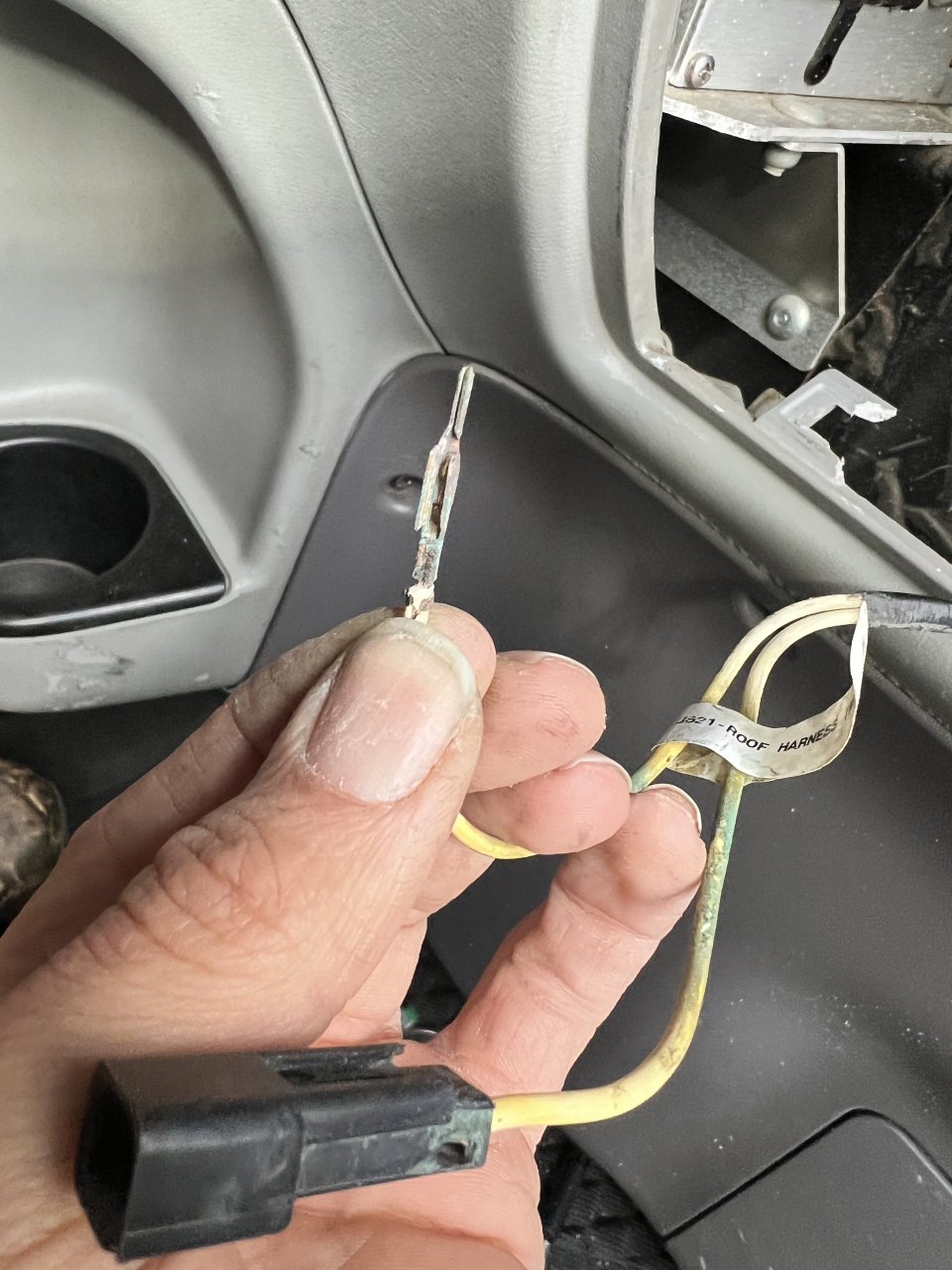

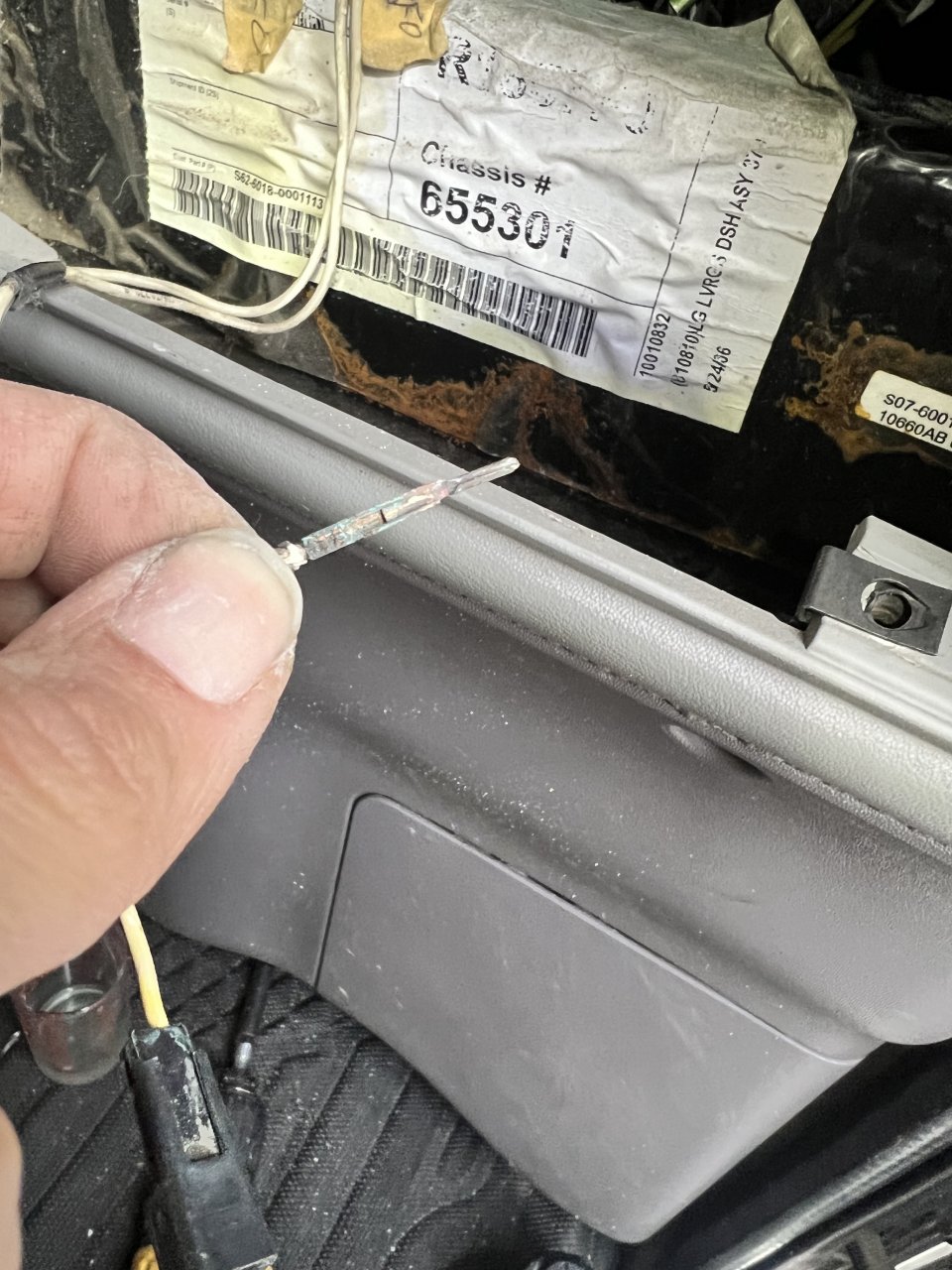

It's a little hard to tell the size based on pictures. The width of the pin correlates to the connector size: 1.5mm = 150, 2.8mm = 280, etc

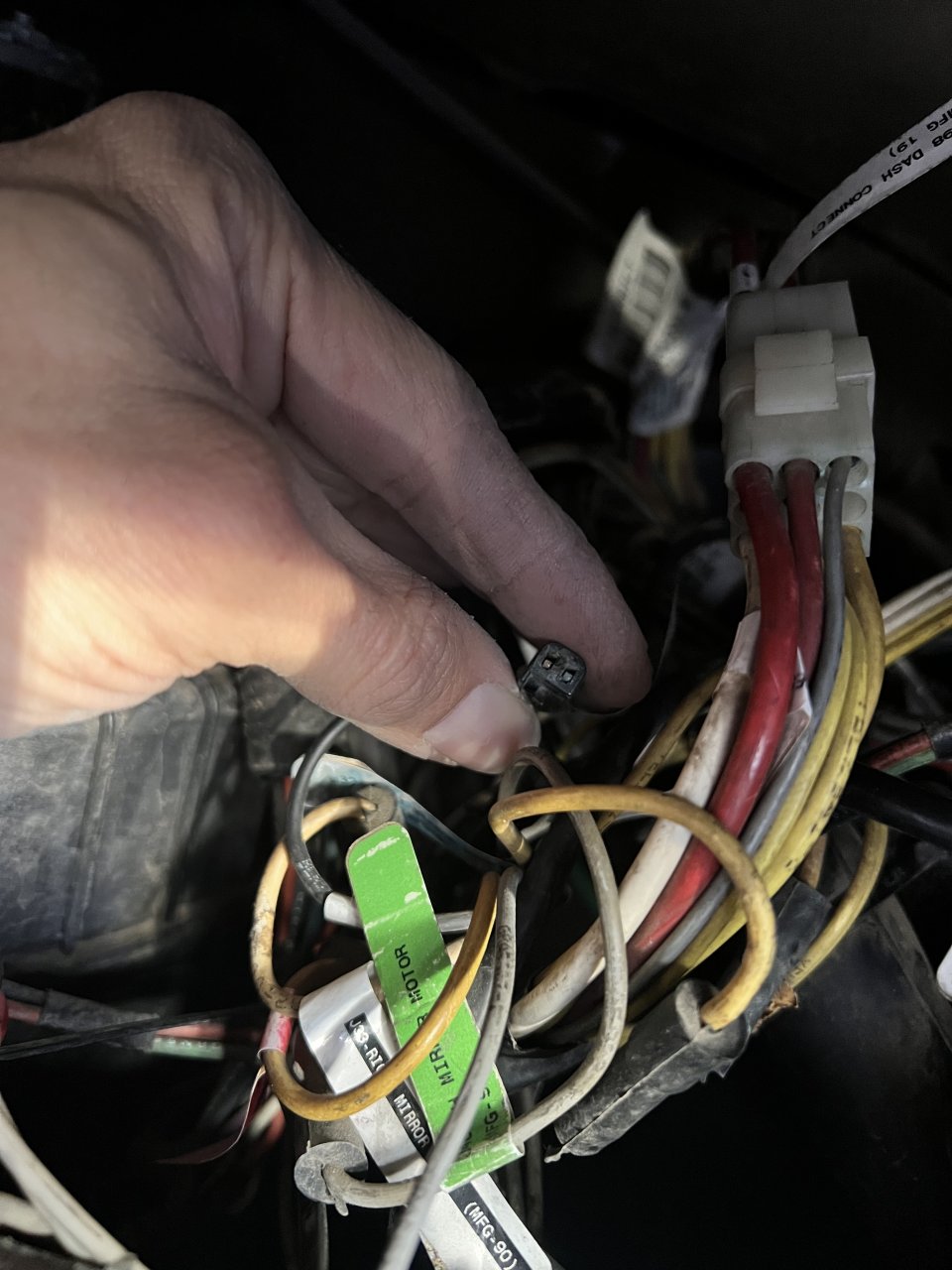

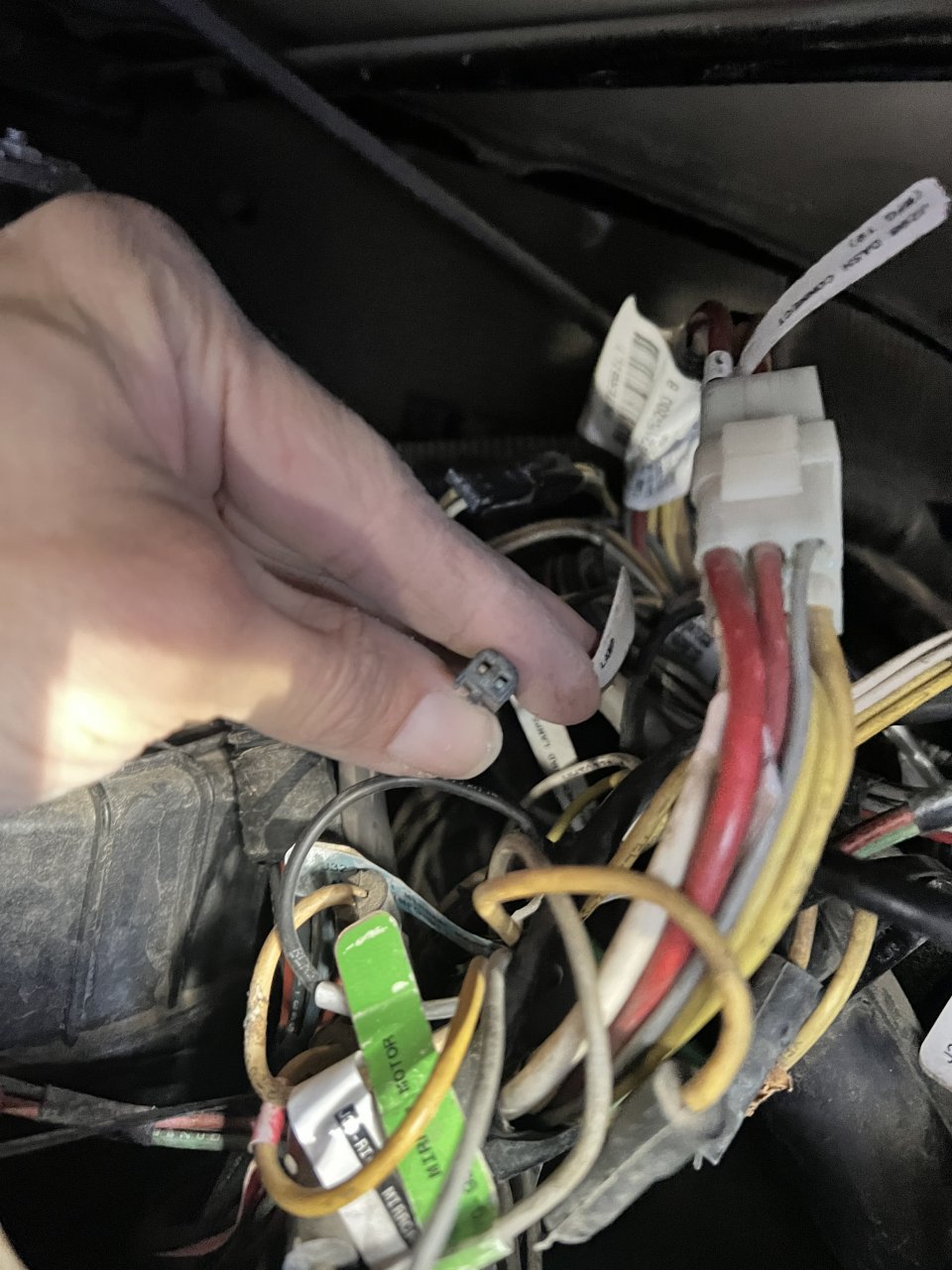

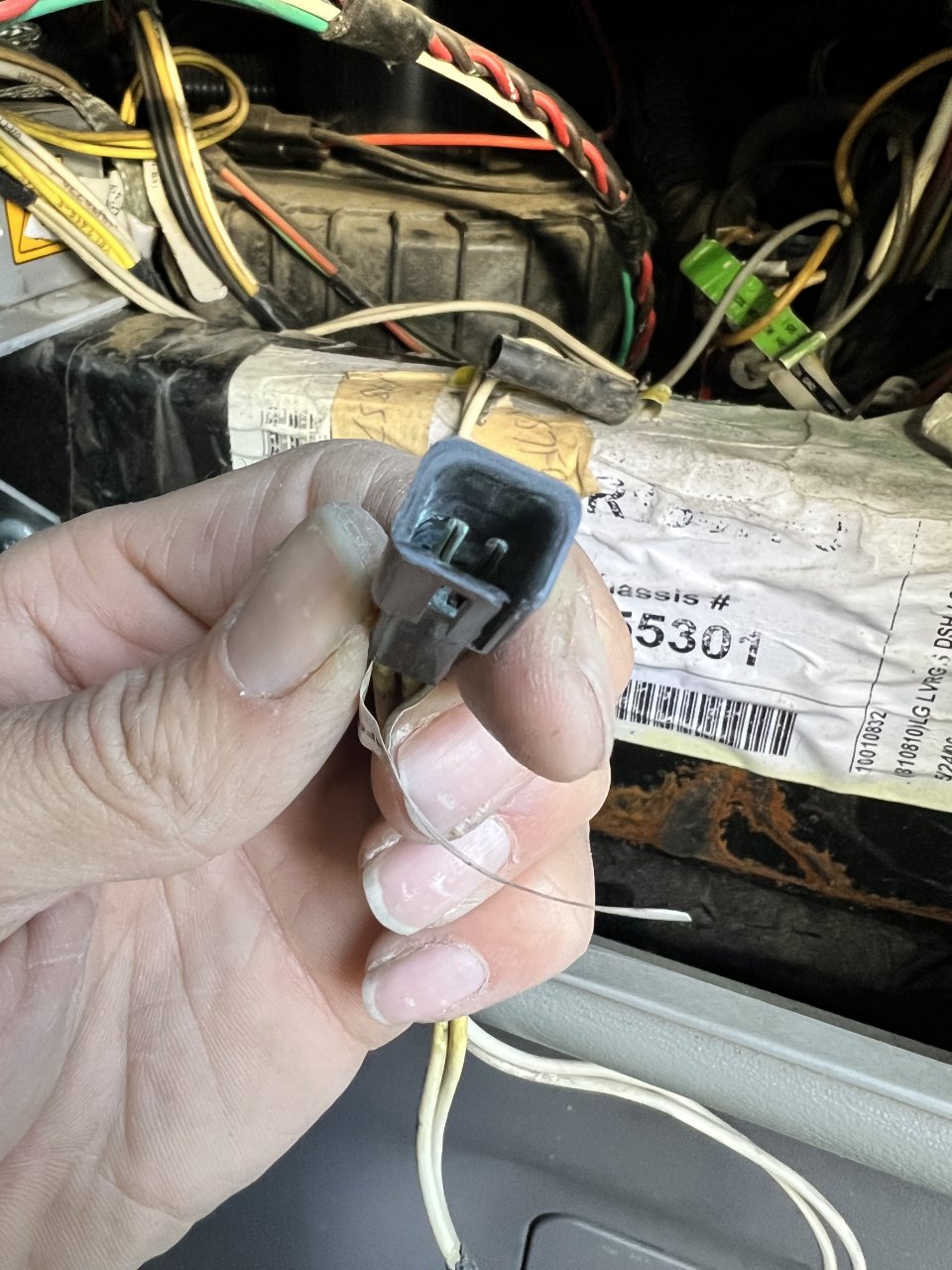

The small 2 pin connector looks like a metripack 150
Page 58 (page 4 pf the PDF):
https://docs.rs-online.com/f13f/0900766b814c67ea.pdf

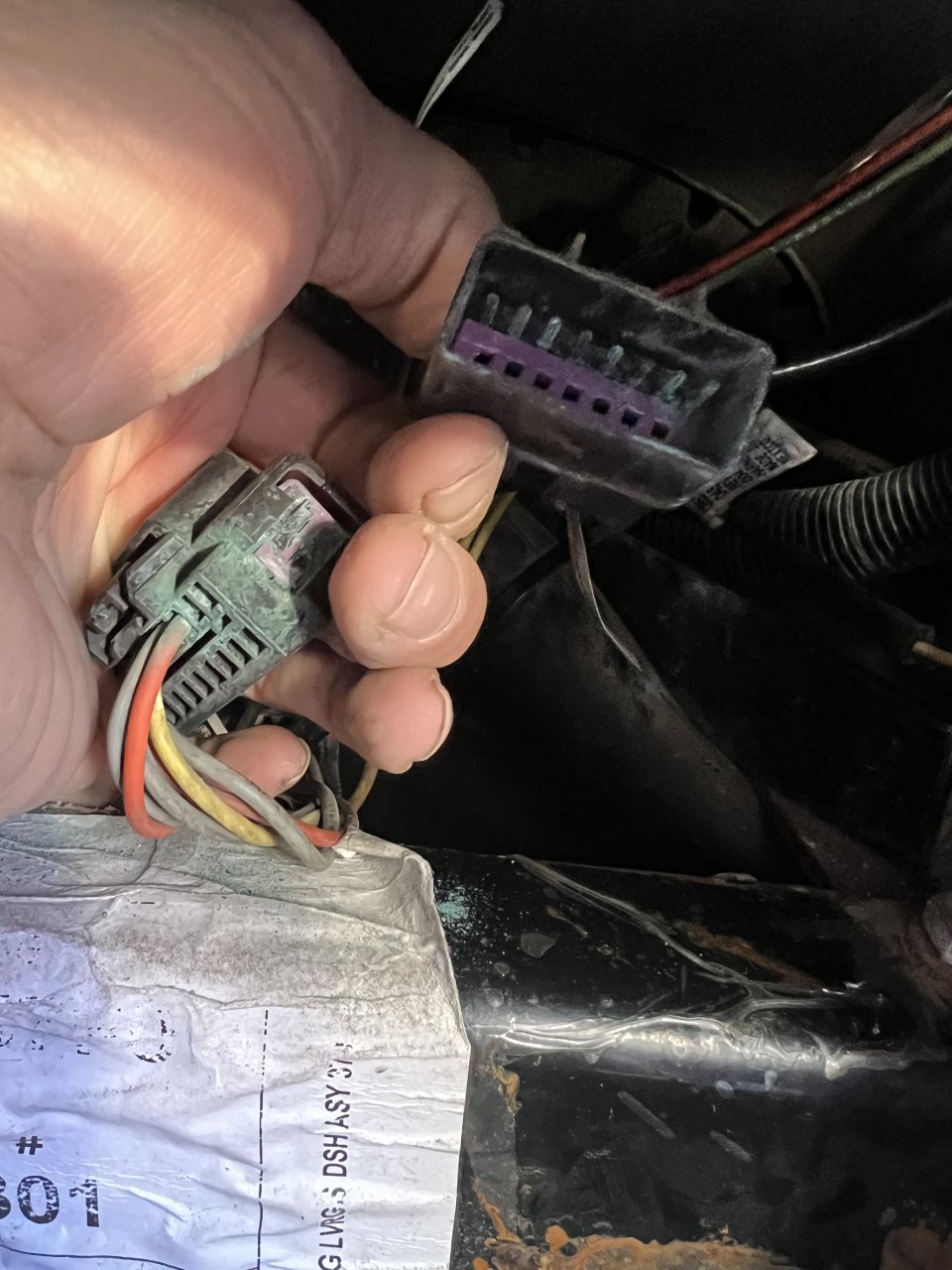

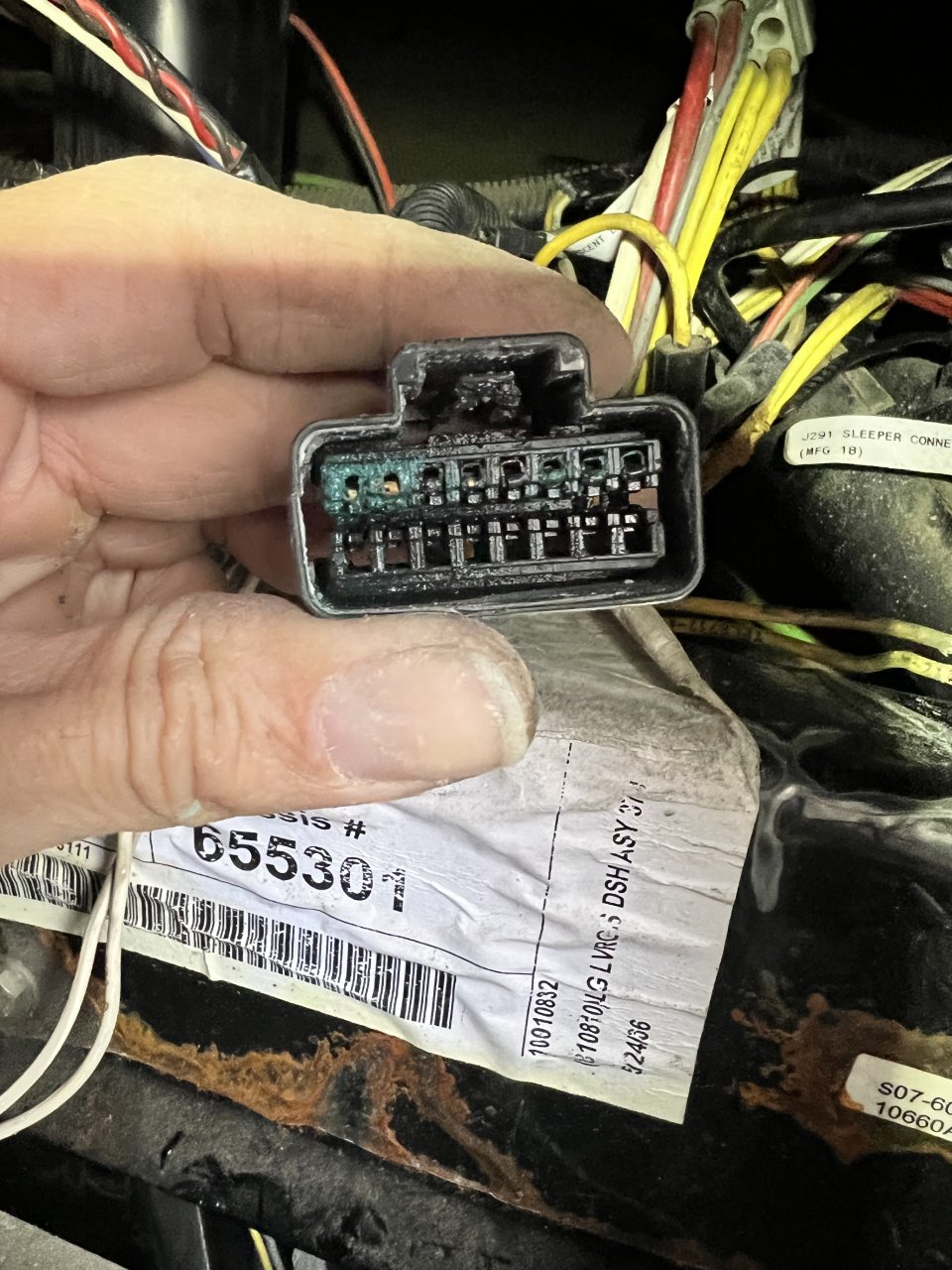

The larger 16 pin connector looks like metripack GT series, also 150
Page 13 (page 4 of the PDF):
https://www.powerandsignal.com/docs/catalog/gt150.pdf
Measure the width of the pin to make sure. Terminals come in a couple sizes to accomodate various wire sizes, usually the larger size is what you need. Mouser, digikey, or other places have them, just search for the terminal part number. I don't have any of the GT series terminals and only a few of the regular metripacks otherwise I'd send you some
Might as well order some of each, male and female, they'll be handy to have for the next time this happens. Also get a crimper that will make a proper crimp. All the connector companies sell a specific crimper for their terminals for $$$, but one of these will work fine with a little practice:
HT-11 General Purpose W Crimp Tool 1 Each [HT-11] - $43.66 : TheElectricalDepot.com!, Electrical Connectors and Much More!IH Truck Guy and Oxbow Thank this.
