Cat c15 oil leak from behind fan mount?????

Discussion in 'Trucks [ Eighteen Wheelers ]' started by AlexCarHauler, Aug 4, 2014.

  1. Bush chook

    Bush chook Light Load Member

    144
    43
    Apr 27, 2009
    Geelong
    0
    as superhauler and grape ape says

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. AlexCarHauler

    AlexCarHauler Light Load Member

    175
    44
    Apr 8, 2013
    Brooklyn NY
    0
    Permatex black sealant adhesive, very sticky, will see if work next week

  4. joey8686

    joey8686 Light Load Member

    131
    154
    Jul 1, 2014
    0
    So you guys are saying it’s leaking from the studs that hold the fan onto the front of the motor ? Mine has oil coming from up there after I washed it I can see it’s running from up there not the front main seal like I thought

  5. DieselTech_Aus

    DieselTech_Aus Light Load Member

    274
    309
    Dec 20, 2017
    WA
    0
    they're also prone to cracking just above where those 2 studs are.

  6. DieselTech_Aus

    DieselTech_Aus Light Load Member

    274
    309
    Dec 20, 2017
    WA
    0
    they're also prone to cracking just above where those 2 studs are.

  7. joey8686

    joey8686 Light Load Member

    131
    154
    Jul 1, 2014
    0
    Put o rings on mine now 0 oil leaks haha n I thought had to do front main

  8. A Gater

    A Gater Bobtail Member

    2
    0
    Feb 21, 2023
    0
    Take the stud out and bevel the edge of the hole just a little and put a o-ring on it that fits the bevel and put bolt back in. Problem solved

  9. A Gater

    A Gater Bobtail Member

    2
    0
    Feb 21, 2023
    0
    Take the bolt out. Bevel the edge of the hole a little put a o-ring on it and replace the bolt. Problem solved

  10. 1990pete379_3406B

    1990pete379_3406B Bobtail Member

    29
    22
    Feb 3, 2022
    0
    Hi guys
    I have an oil leak and I was thinking it was the front crank seal, maybe this is my issue too, can anyone send a pic of the studs that you guys talk about?

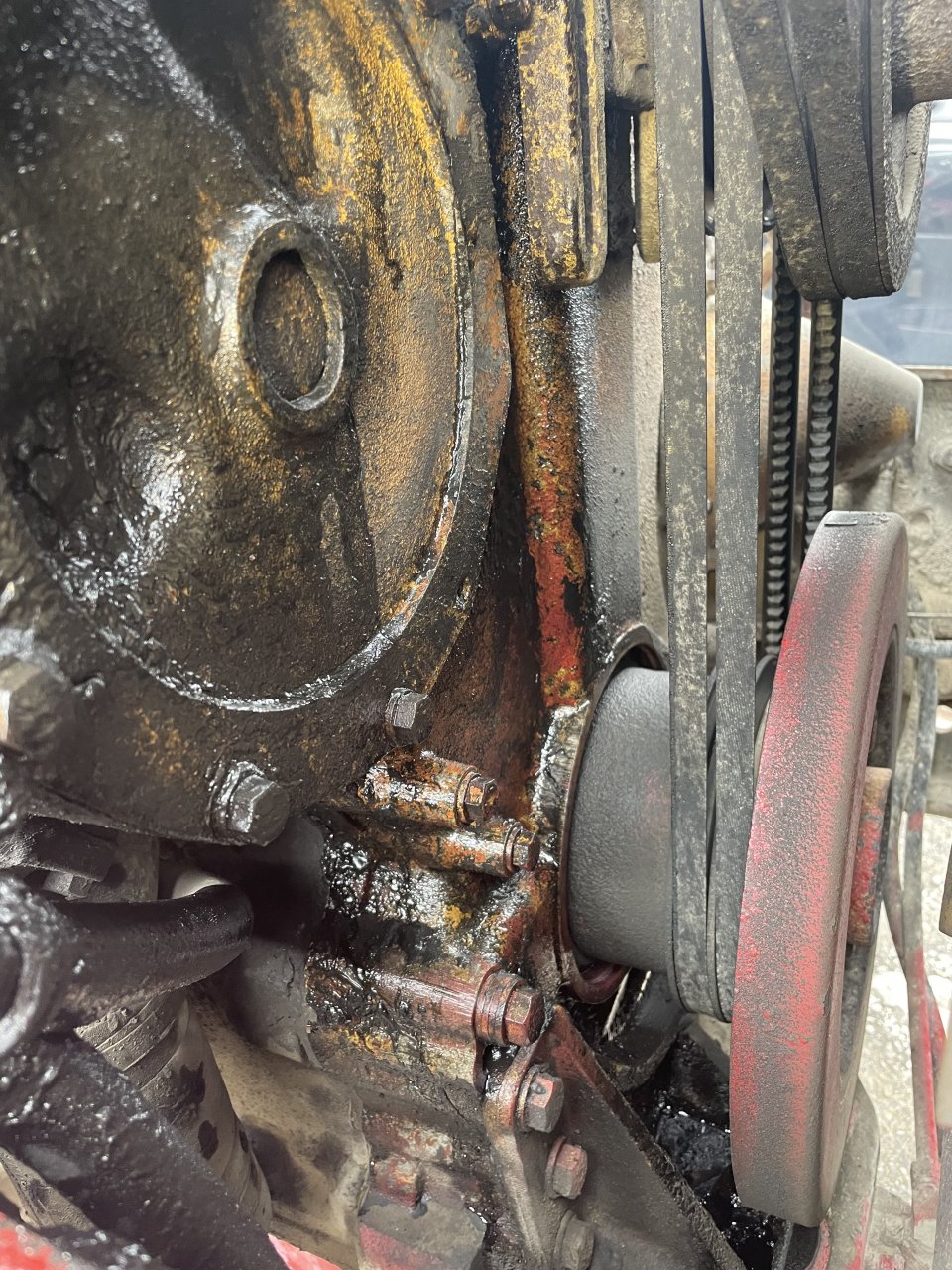

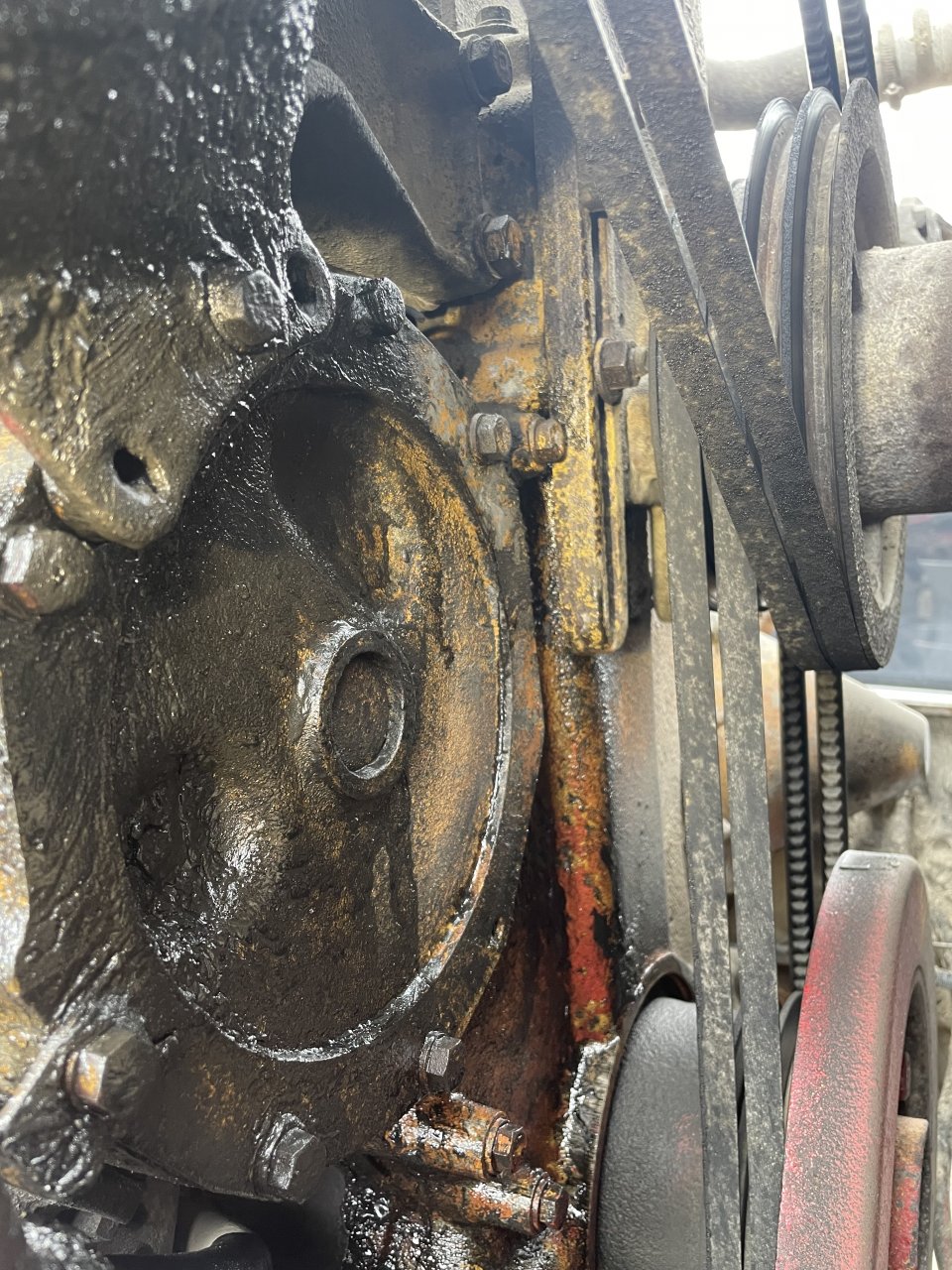

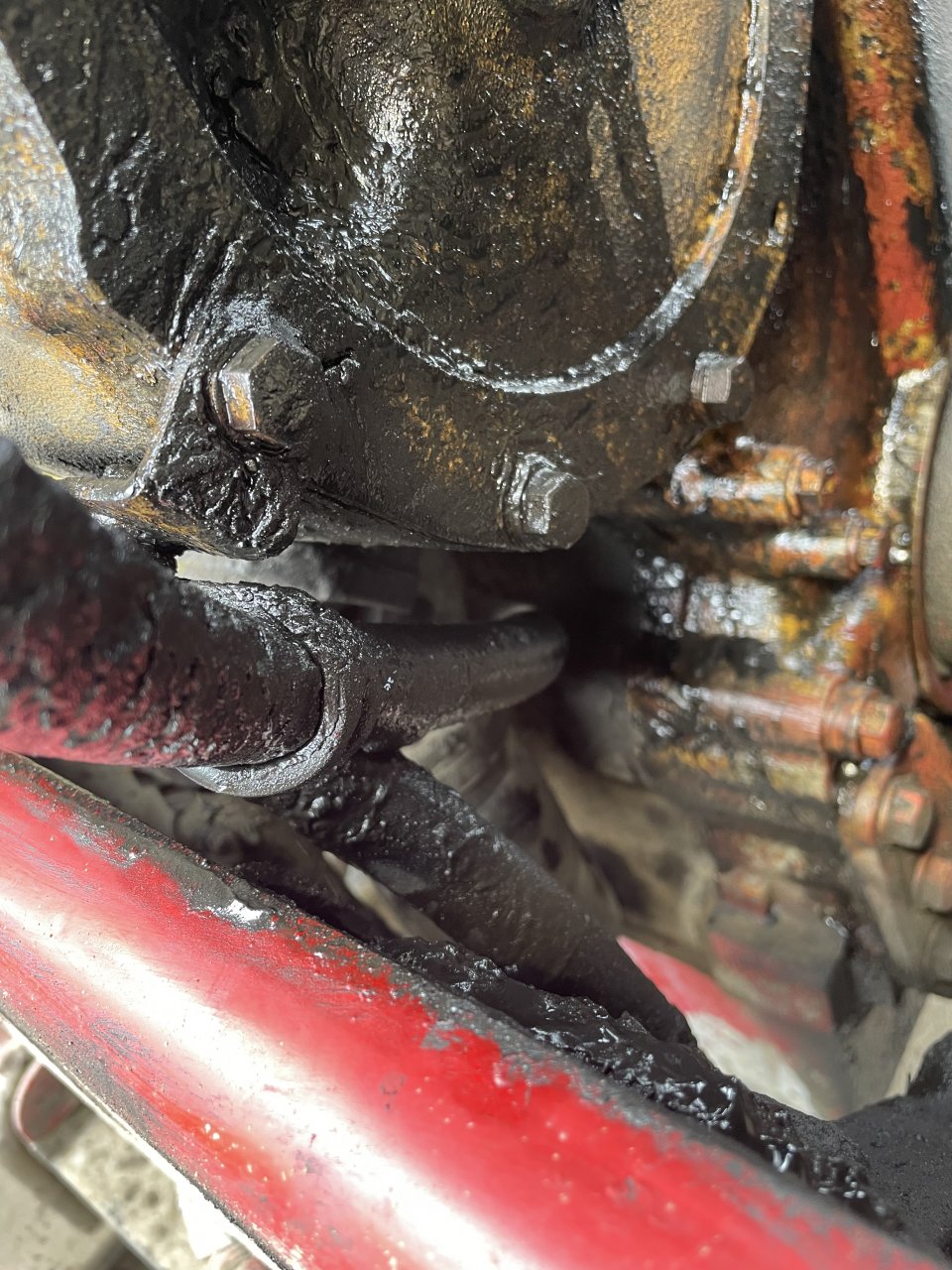

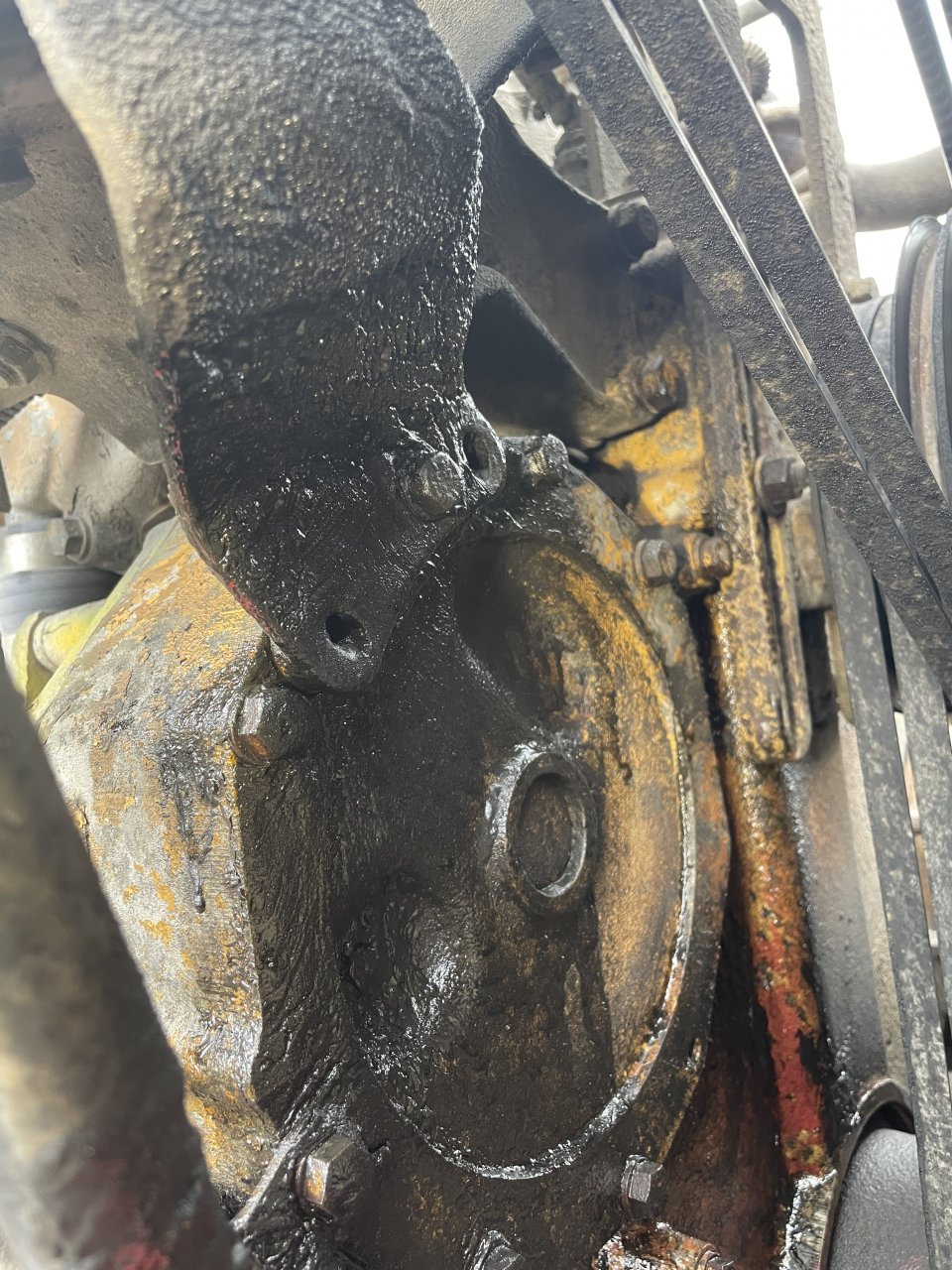

    I took these pics a couple of days ago how bad mine looks like but when I check my oil level still on the max, I just changed it last weekend.
    Thank you for the help guys and sorry to high jack this thread.


    Attached Files:

  11. 1990pete379_3406B

    1990pete379_3406B Bobtail Member

    29
    22
    Feb 3, 2022
    0
    guys
    Can anyone tell me where I can find the studs that holds the hub? I Went to dealer but because truck is too old they can not even find the pic on the system. Please help
