CAT C15 Problem Need Help ASAP

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Adamali21, Apr 20, 2022.

  1. 062

    062 Road Train Member

    5,343
    15,634
    Oct 20, 2013
    0
    Any other drivers besides you?

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Adamali21

    Adamali21 Light Load Member

    238
    159
    Jul 24, 2018
    0
    Just me and I take pride

  4. Adamali21

    Adamali21 Light Load Member

    238
    159
    Jul 24, 2018
    0
    So today I found out that my engine is a MBN, but the ecm serial number is a 2WS. It was rebuilt by kenworth in 2018 platinum rebuilt
    with new ecm. Because I have original overhaul paperwork so I called to get previous details. Ain’t it weird that maybe the previous owner flashed the ecm without changing any components. I ordered the overhaul kit. But confused if I should change the ecm to original or should I just keep the ecm the way it is

  5. Adamali21

    Adamali21 Light Load Member

    238
    159
    Jul 24, 2018
    0

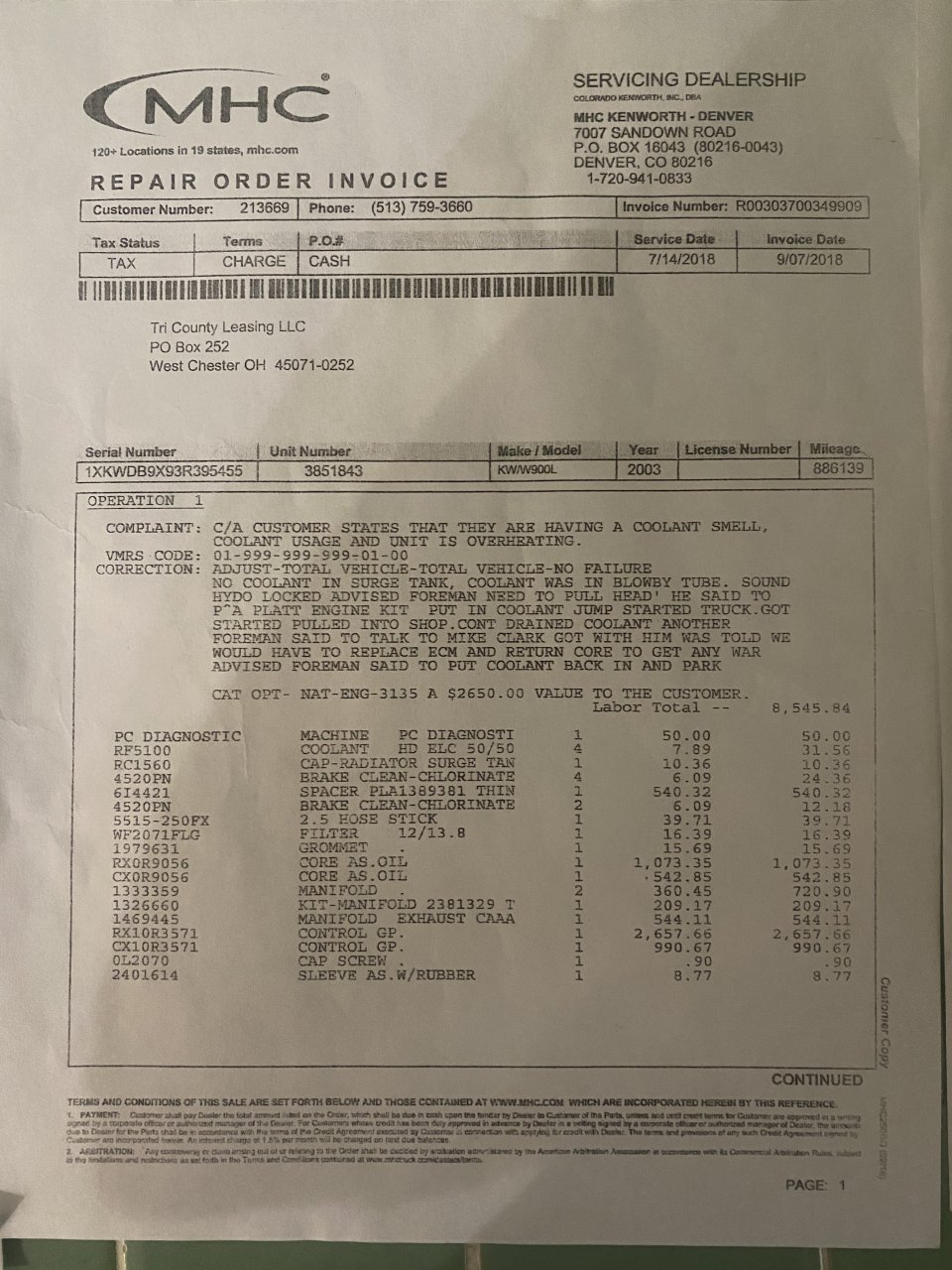

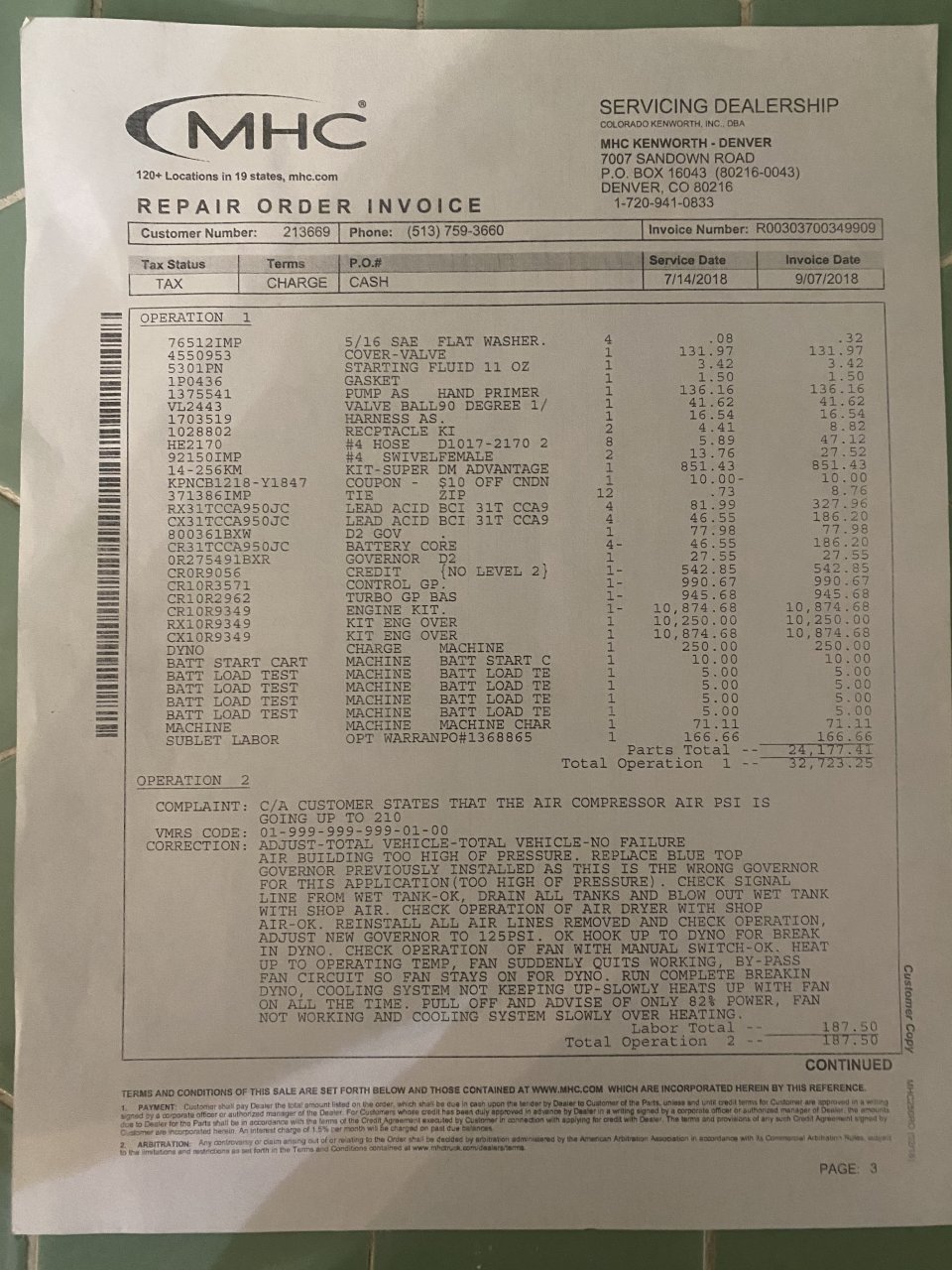

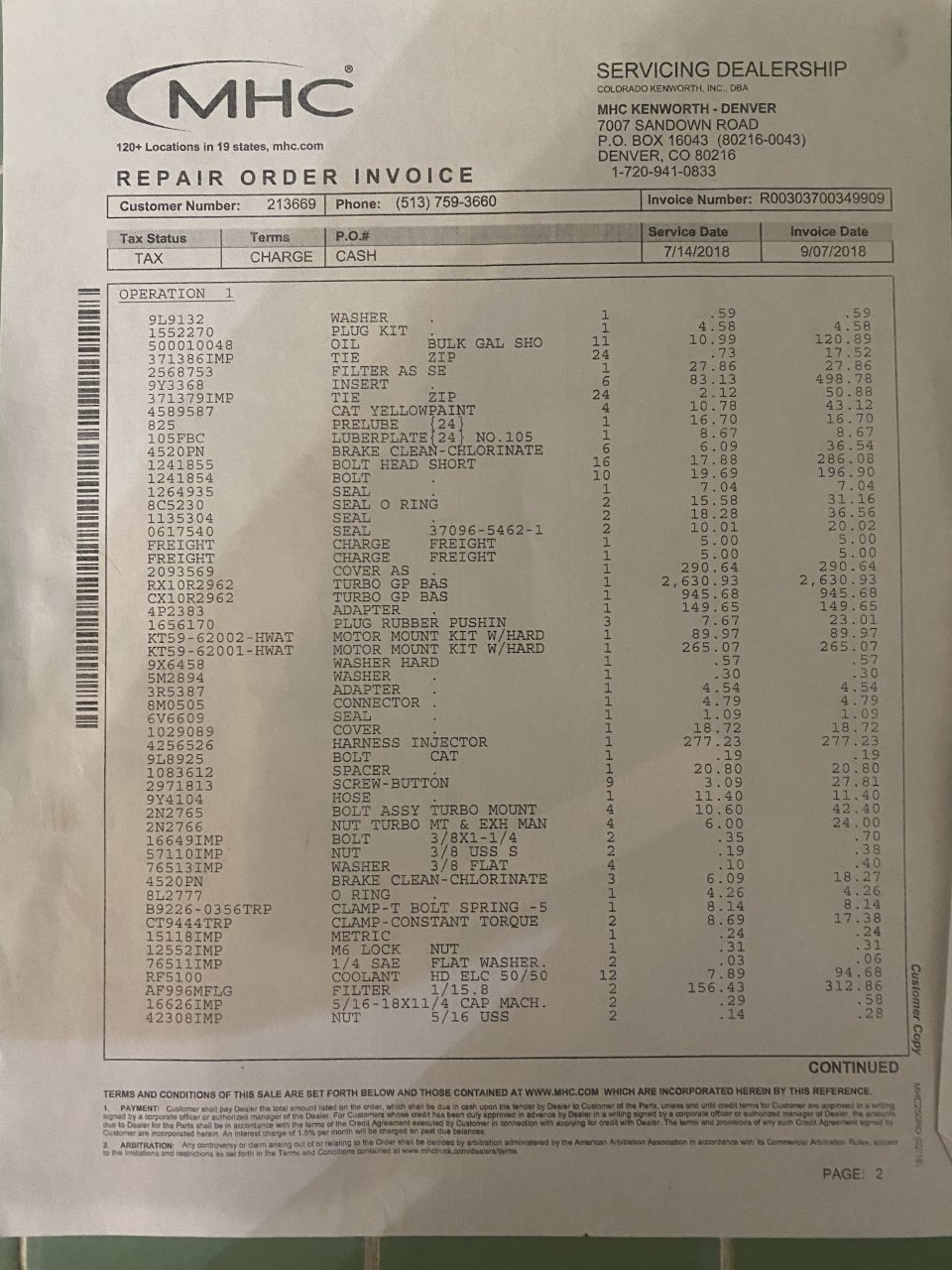

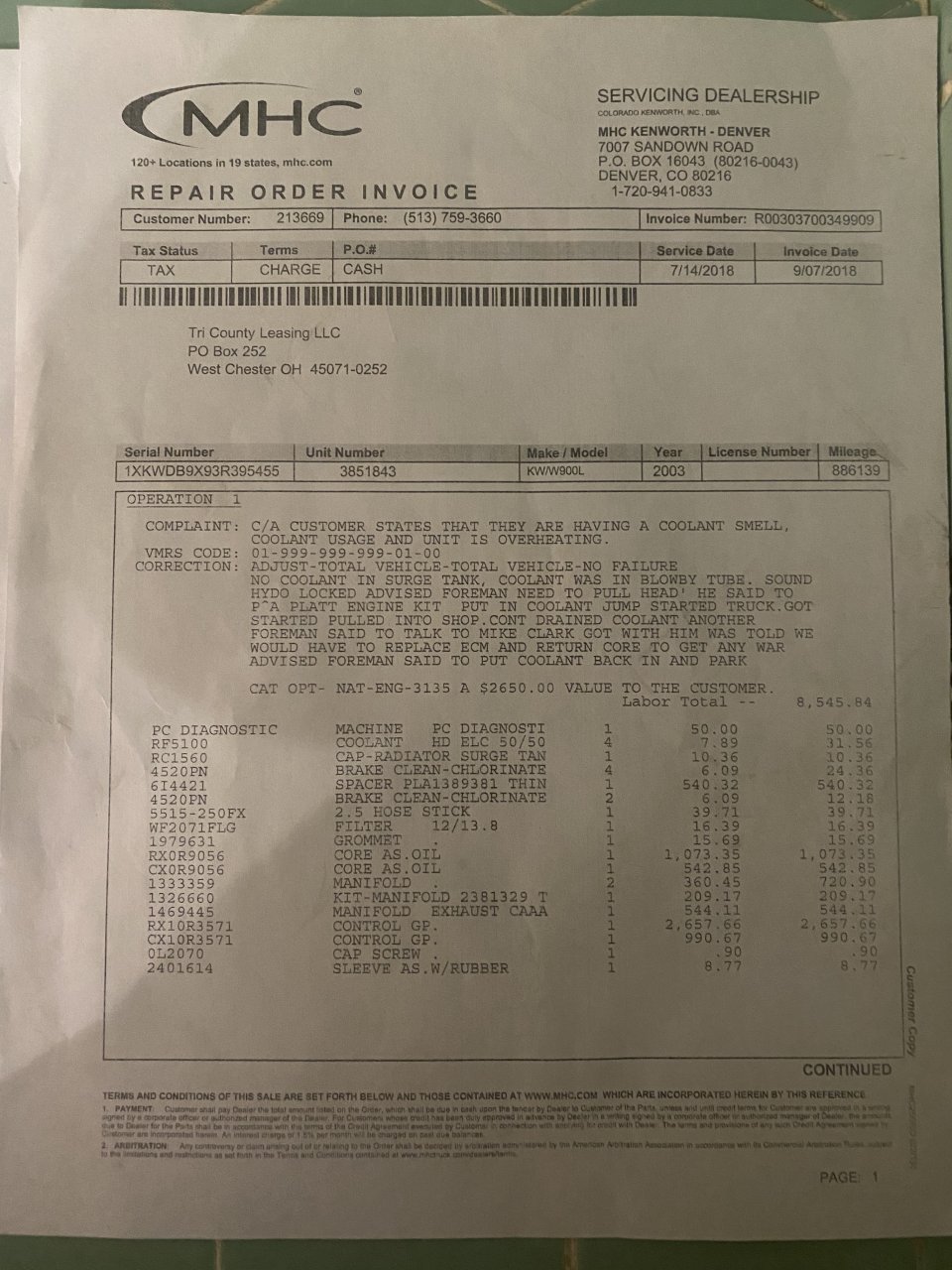

    These are the overhauled paperwork

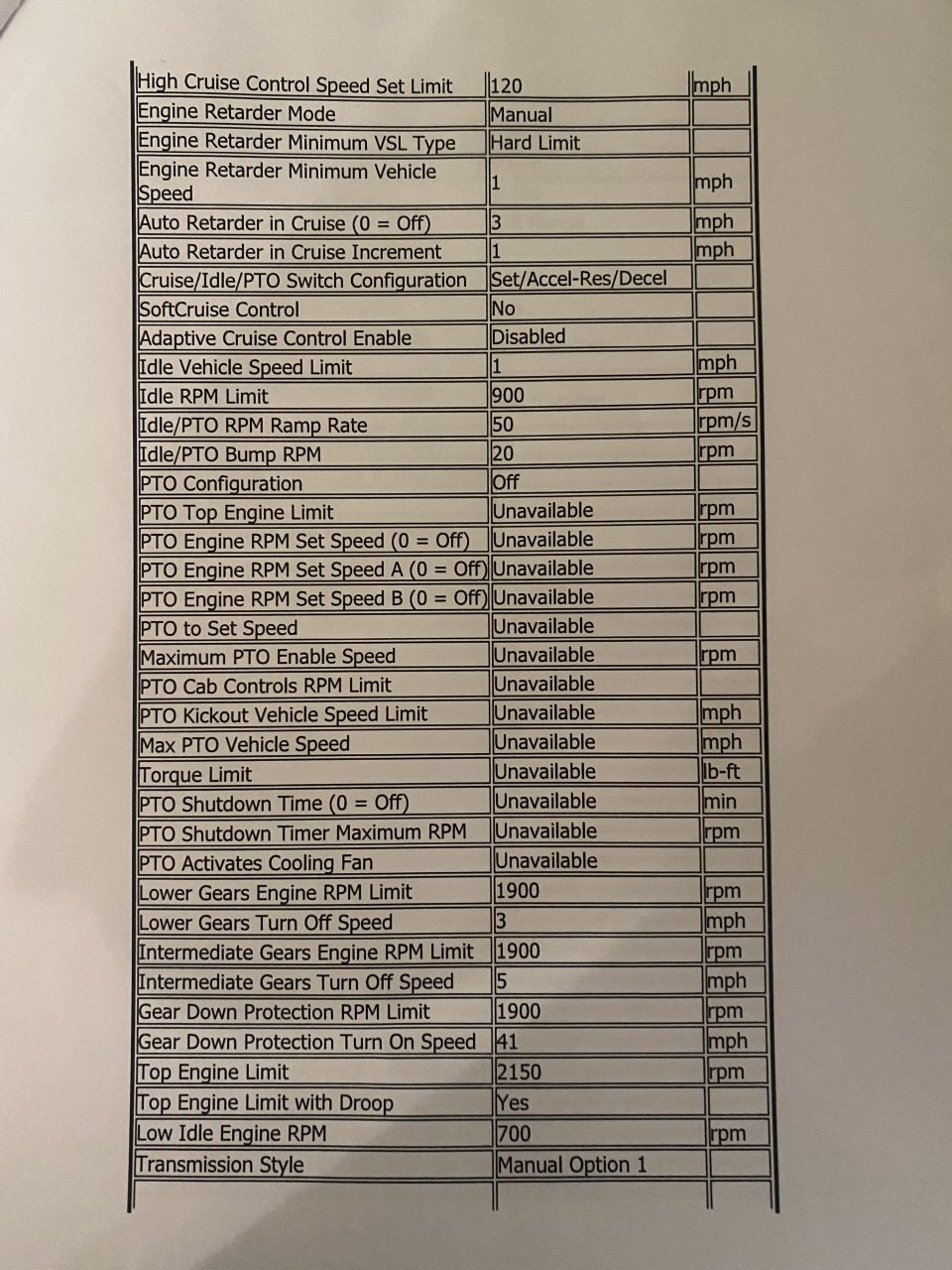

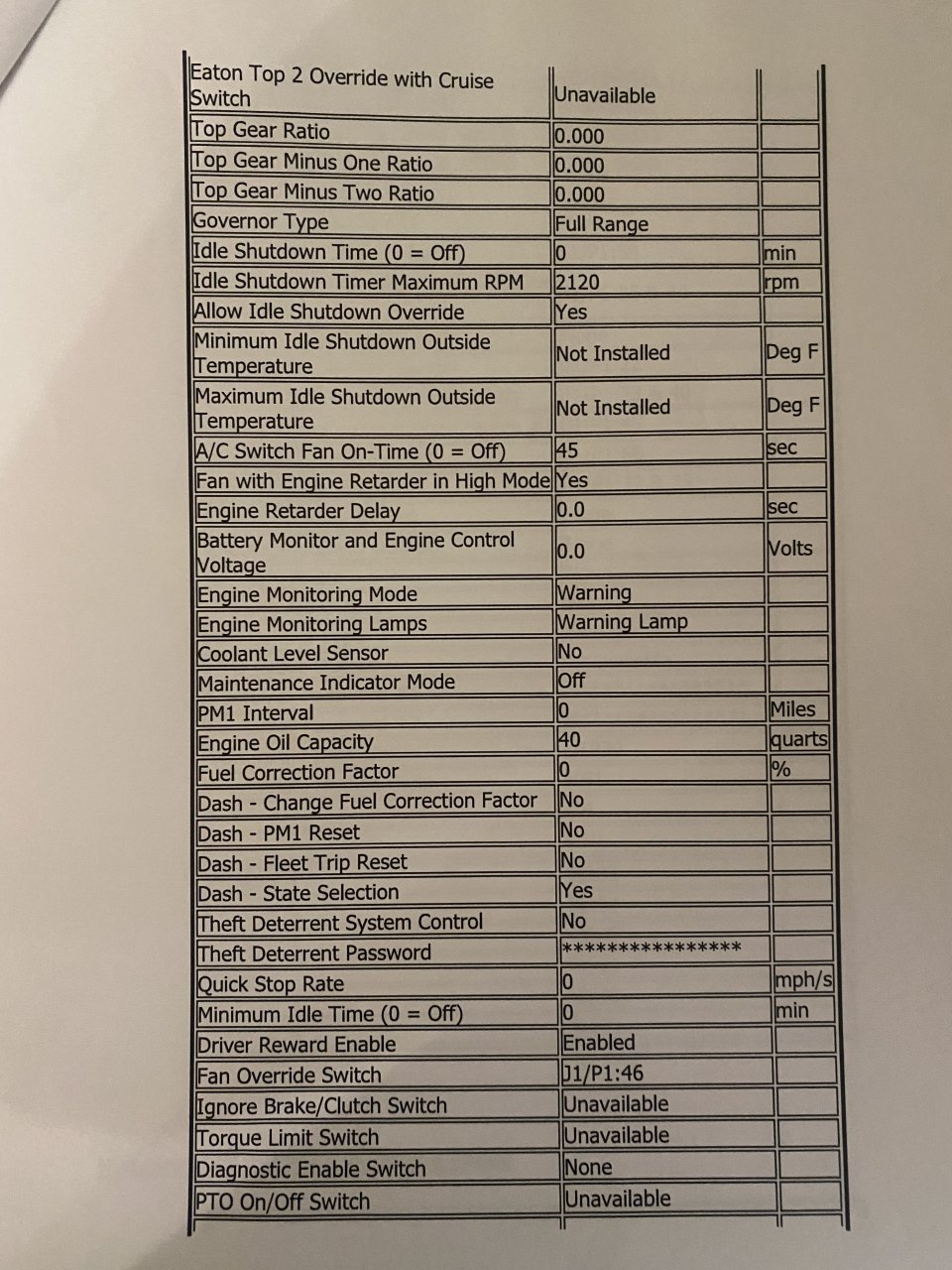

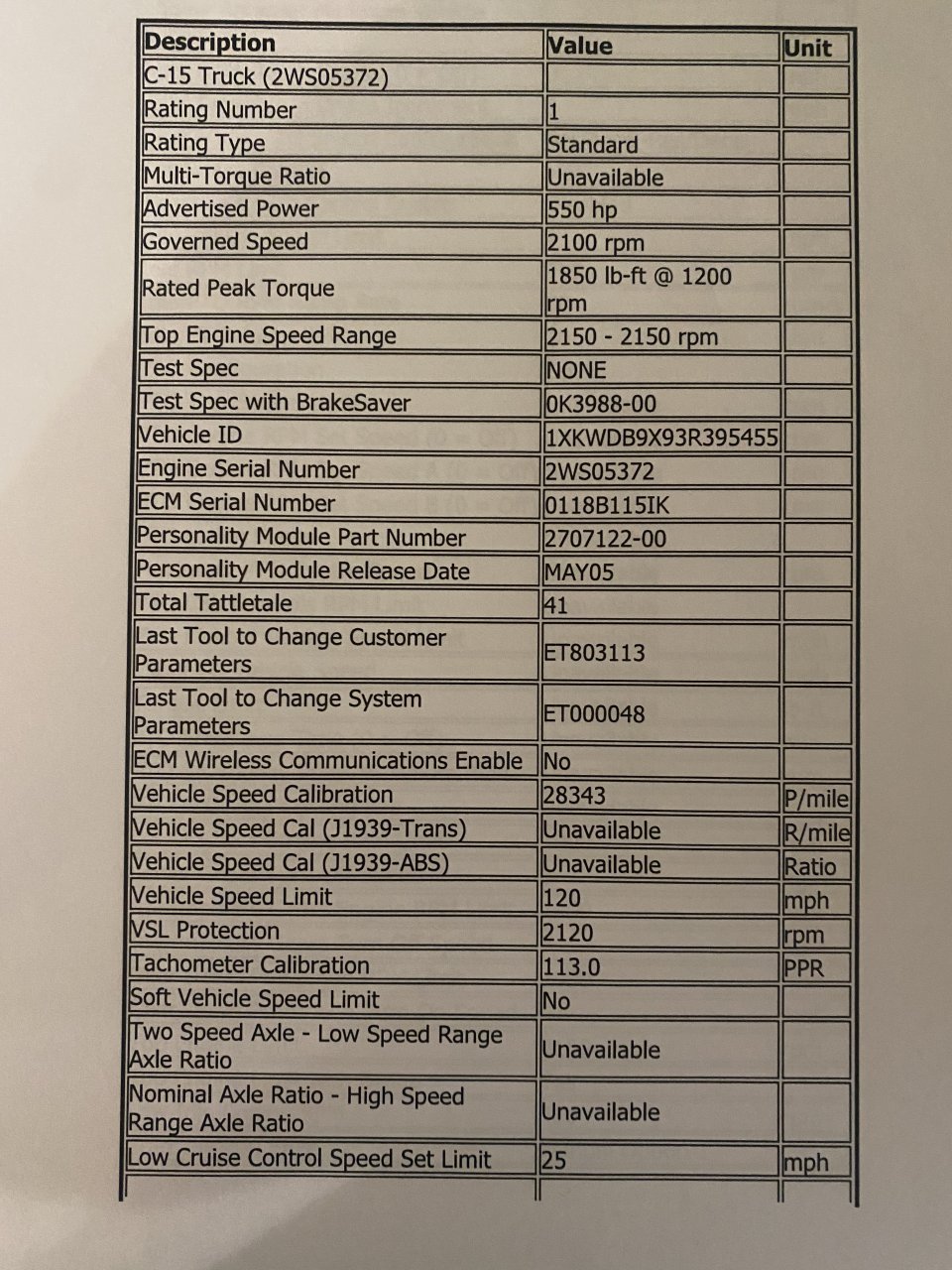

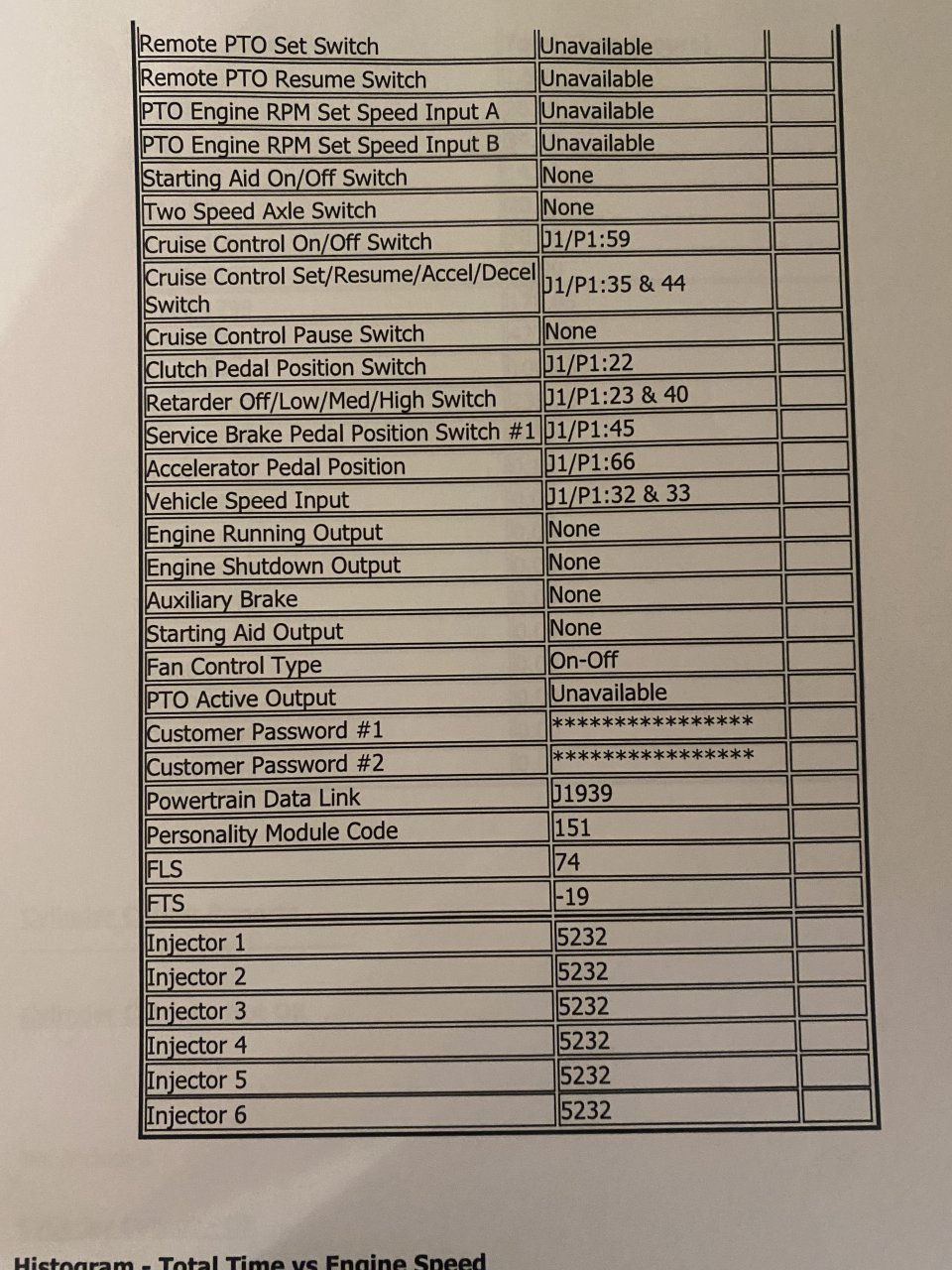

    And the ecm information from cat


    Attached Files:

  6. Diesel Dave

    Diesel Dave Last Few of the OUTLAWS

    5,834
    8,139
    Jan 20, 2010
    Hesperia, Ca.
    0
    On my former Cat was/is an original 5EK series, with 1LW brakesaver file, and the ECM when hooked up to the Cat ET read 2WS series. The reason for the 2WS reading was only to prolong the state of Commiefornia with my DPF to 2020. I do remember I had to replace and injector at one time, so I called Peterbilt with the VIN number, picked up the injector without having it remove from the engine, so to my surprise, during the rebuilt before I owned it, they had swapped for bigger injectors, had to go back to Peterbilt to get the same injector that came out.

    spsauerland and Adamali21 Thank this.
  7. bjytech

    bjytech Light Load Member

    139
    92
    Nov 9, 2013
    Ohio
    0
    I won't go to deep on this topic but If the ECM is reading a 2WS serial (possibly someone attempting to skirt e-log rules, though in vain.) it is hard to say exactly what motor configuration is in your truck without looking at it, but most likely being a MBN originally it is running a tune for a 6NZ which will run way better and get better fuel mileage than any of the actual MBN tunes will do.

    I see it shows to have flash file 2707122 in it which would be a 6NZ file as I suspected, I would keep what you have for the ECM.

    spsauerland, Diesel Dave and Adamali21 Thank this.
  8. Adamali21

    Adamali21 Light Load Member

    238
    159
    Jul 24, 2018
    0
    I am about to rebuild the motor so I am just trying to make sure.

  9. Adamali21

    Adamali21 Light Load Member

    238
    159
    Jul 24, 2018
    0
    thank you so much
    I am just in shock that I have rebuild the engine so soon. I guess #### happens

  10. Diesel Dave

    Diesel Dave Last Few of the OUTLAWS

    5,834
    8,139
    Jan 20, 2010
    Hesperia, Ca.
    0
    Wouldn’t that be odd that he says it had a dealer rebuild and they didn’t catch the difference in the ECM ?

  11. Adamali21

    Adamali21 Light Load Member

    238
    159
    Jul 24, 2018
    0
    Dealer put in a new ecm but probably previous after the warranty the previous owner flashed it

    Diesel Dave and bjytech Thank this.
