Click Click Boom!!!!!

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Goodysnap, May 14, 2020.

  1. SmallPackage

    SmallPackage Road Train Member

    Joined:
    Dec 20, 2019
    Messages:
    5,474
    Thanks Received:
    17,414
    Location:
    Marion Texas
    0

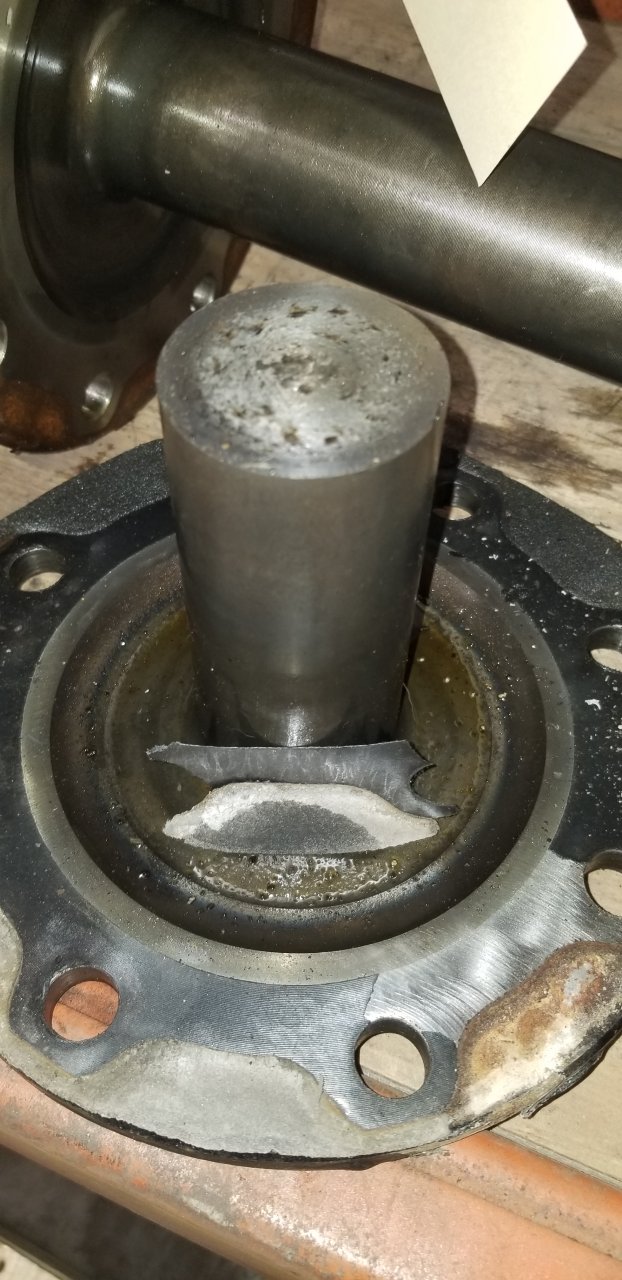

    25 years ago I broke 2 smooth and clean like that in the 8.2 10 bolt BOP rear in my ‘65 GTO. Both were oe original axles and both on rightside. The second one was a left axle from another rear that I put in the right side to replace the first broke one. It actually twisted at the splines but snapped about 2 inches away from splines. 4 speed stick, slicks, and a sticky dragstrip had a lot to do with it tho! Lol!

    I have never personally seen a big truck axle break like that. Overheat and Grind down at the bearings or twist a little yes but snap in half. No.

    Shawn2130 and Goodysnap Thank this.
  2. Caterpillar Cowboy

    Caterpillar Cowboy Heavy Load Member

    Joined:
    Nov 11, 2010
    Messages:
    837
    Thanks Received:
    607
    Location:
    Wyoming
    0
    In the words of Ron Burgandy,

    I'm not even mad, I'm impressed!

    baha and Shawn2130 Thank this.
  3. Shawn2130

    Shawn2130 Heavy Load Member

    Joined:
    Sep 20, 2015
    Messages:
    894
    Thanks Received:
    1,892
    Location:
    Ontario
    0
    While floating a excavator the truck drove nice on the way to the job site 45 mins away.

    On the way back to the company, the truck was powerless while empty.

    I open the hood to see what was wrong.

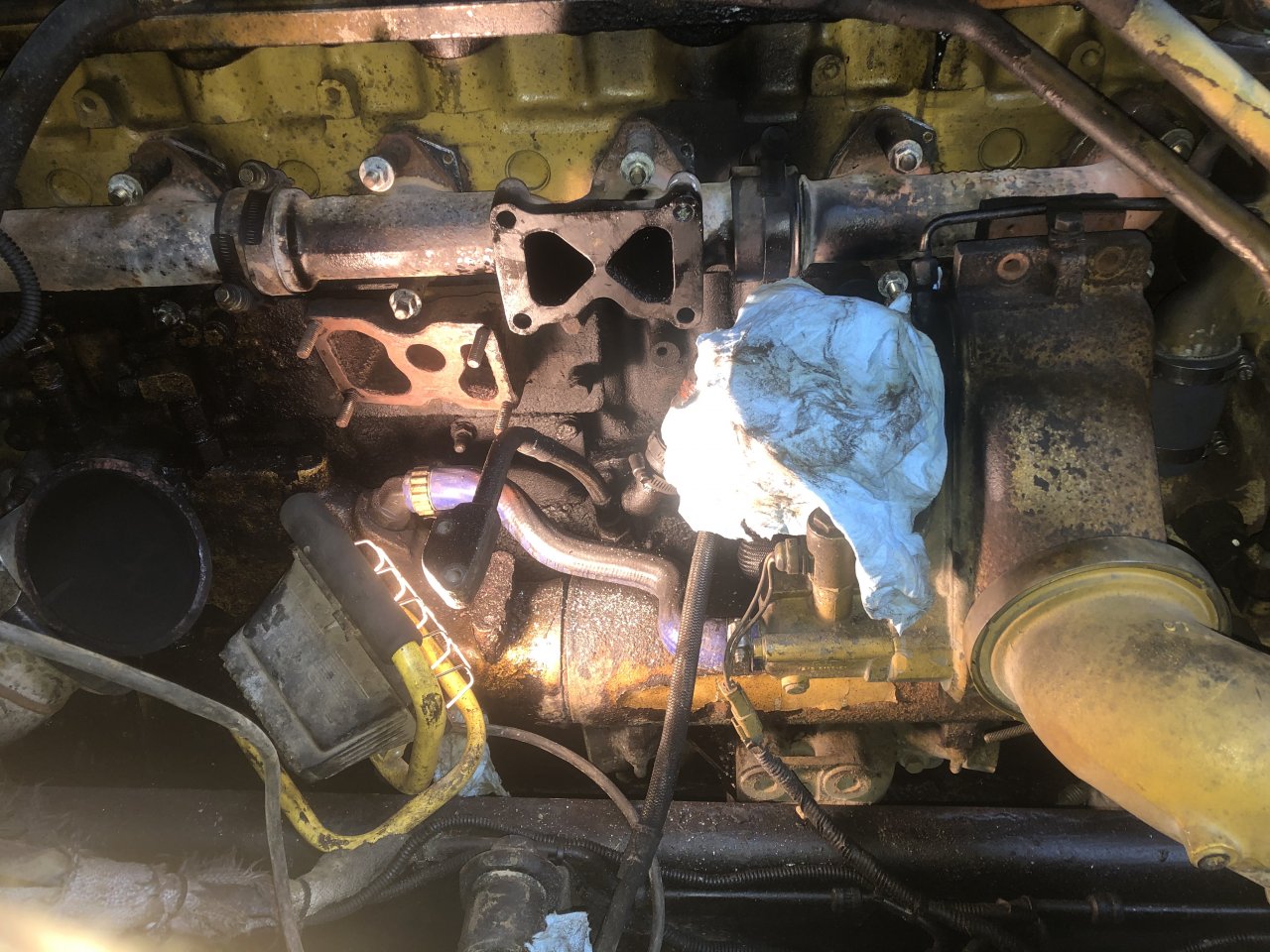

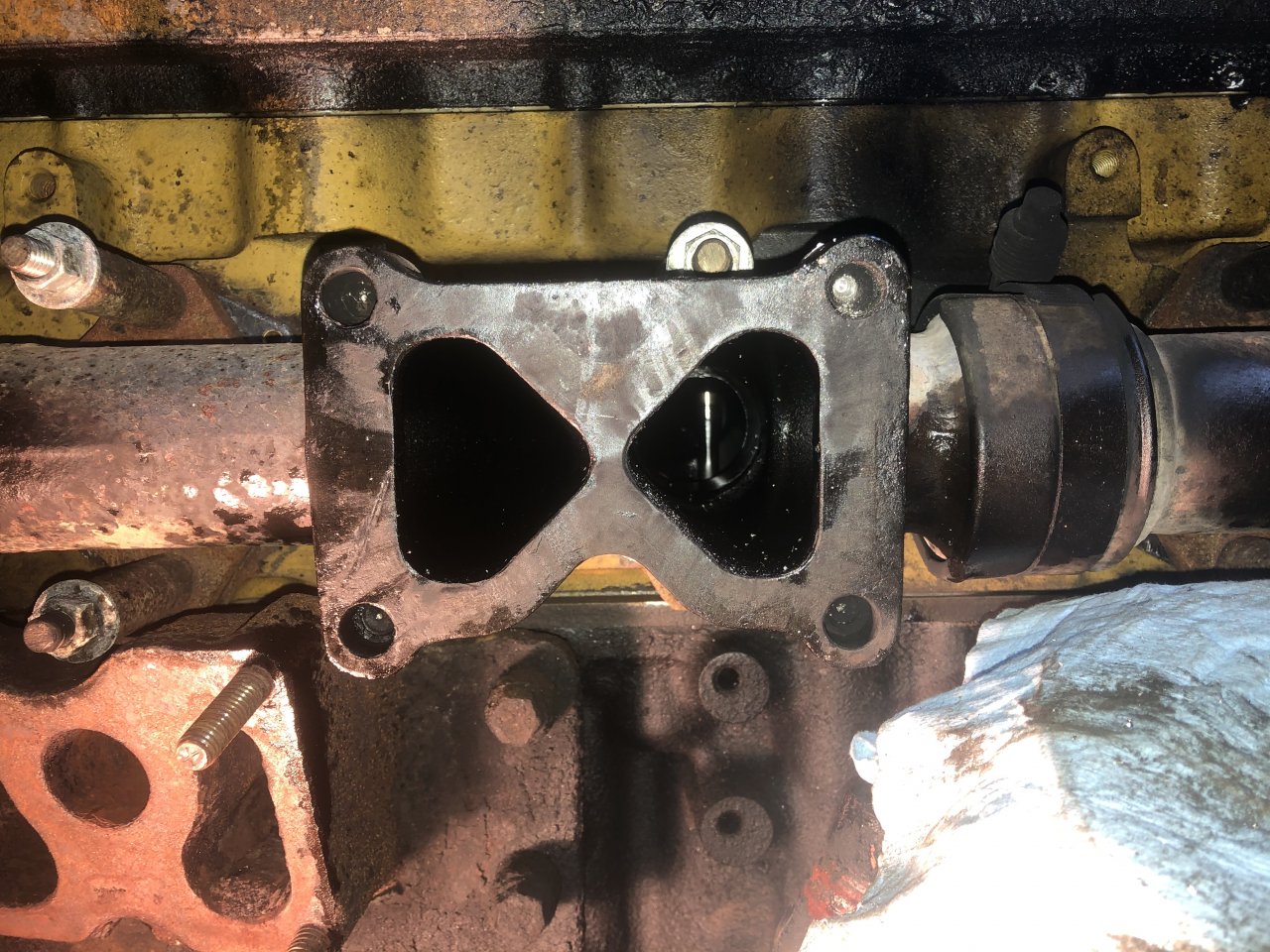

    All four studs holding the small turbo to the manifold snapped off.

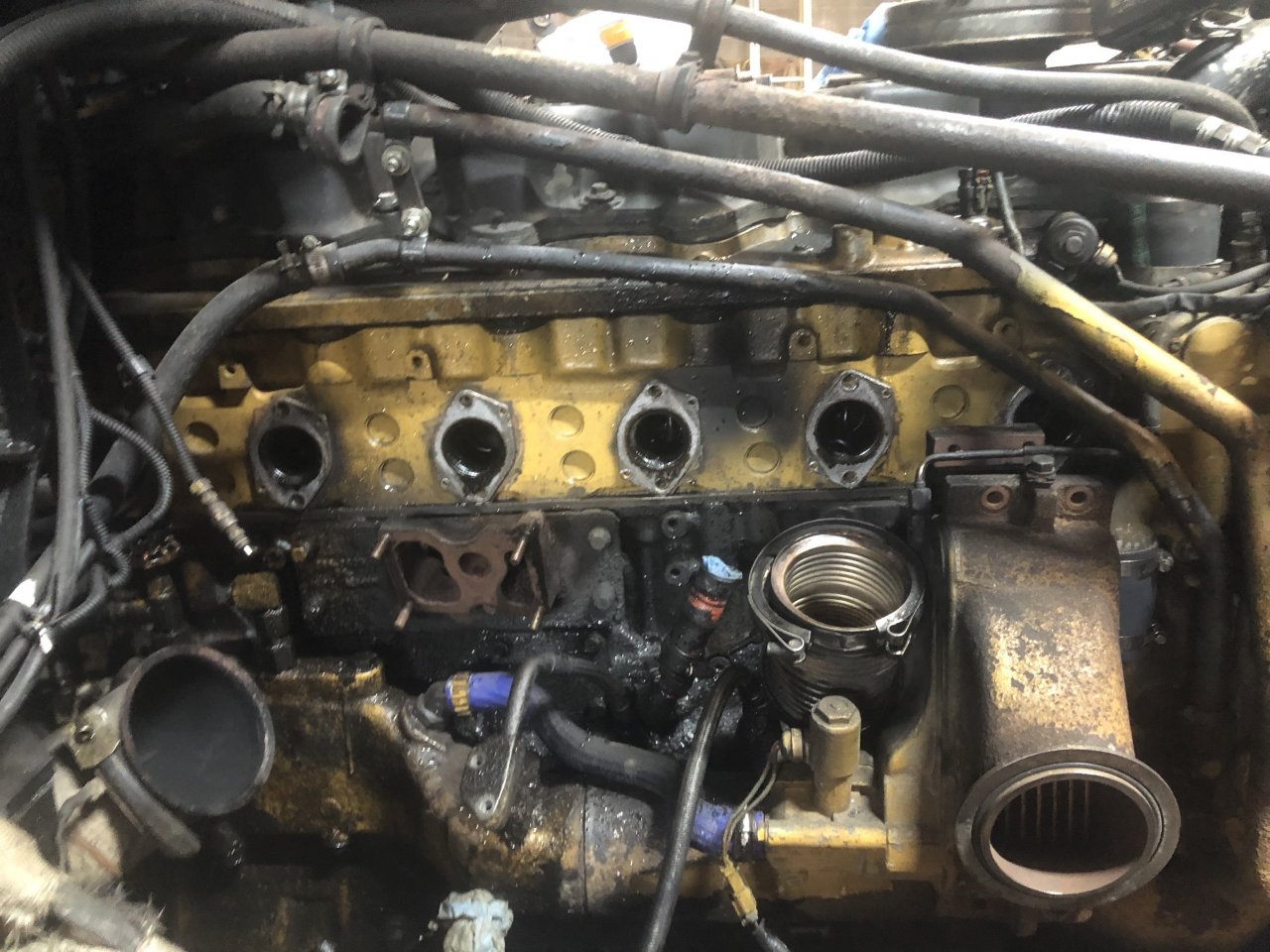

    I removed both turbos.

    Tried and failed to remove the broken stainless studs. Kept getting dull drill bits.

    8F42F57D-F49F-4083-9B98-D31C93DF2875.jpeg 6C1F21C0-58E8-47F9-BAE4-1CC07C986A76.jpeg

    Took the manifold off

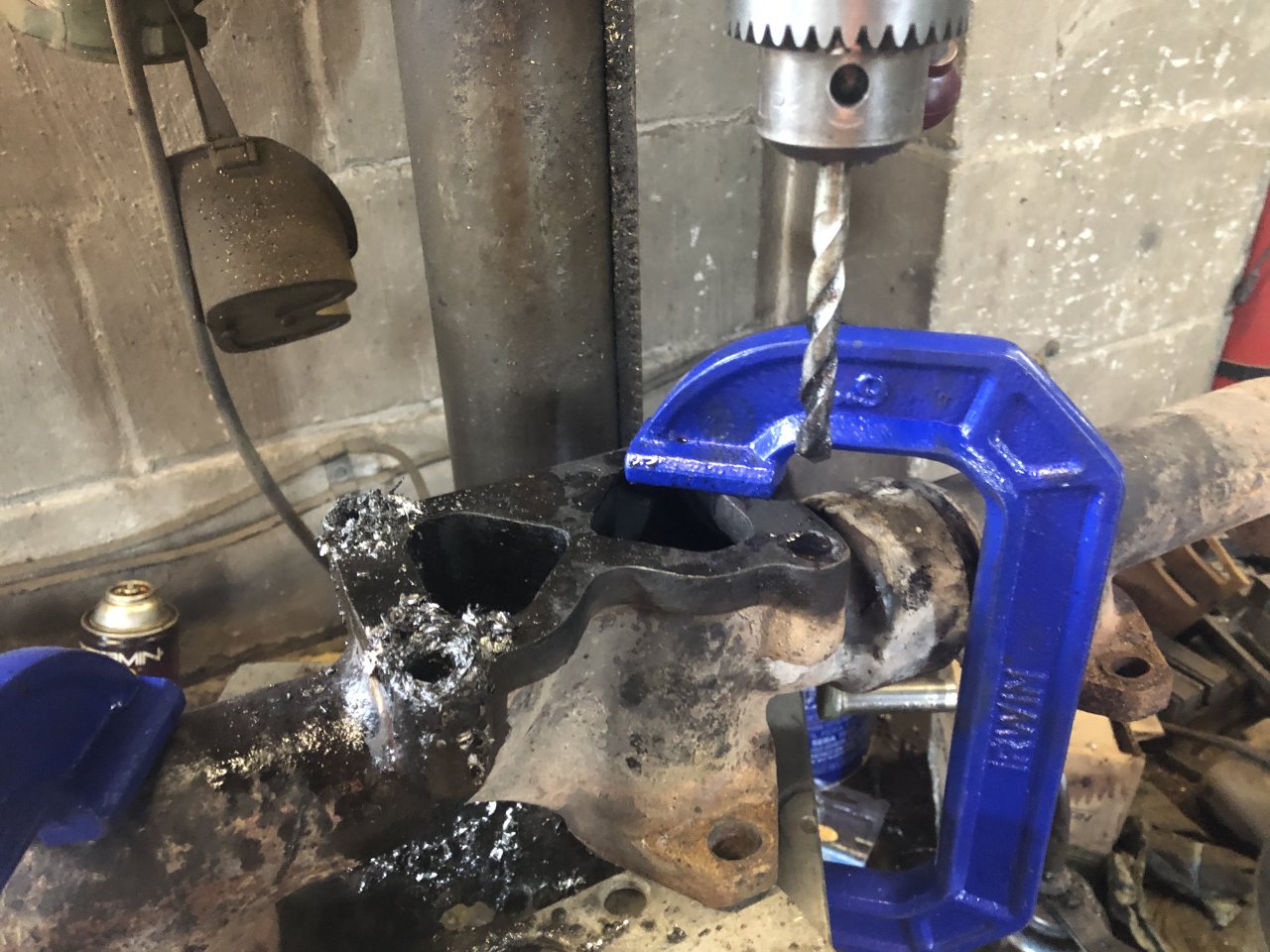

    Drilled all four stainless studs out in the drill press.


  4. jamespmack

    jamespmack Road Train Member

    Joined:
    Mar 25, 2014
    Messages:
    19,991
    Thanks Received:
    215,832
    Location:
    OH
    0
    Well it works and good job. I would have welded a nut to them first before removing. Works well in cast.

    Shawn2130 Thanks this.
  5. AModelCat

    AModelCat Road Train Member

    Joined:
    Jul 7, 2015
    Messages:
    29,222
    Thanks Received:
    159,375
    Location:
    Canuckistan
    0
    A little heavy on the throttle there b'y!

    Shawn2130 Thanks this.
  6. Shawn2130

    Shawn2130 Heavy Load Member

    Joined:
    Sep 20, 2015
    Messages:
    894
    Thanks Received:
    1,892
    Location:
    Ontario
    0
    The four studs were 1/4 inch below flush.

    The one stud I managed to drill far enough after several drill bits, I tried using easy out, torch, and water. They won’t budge.

    So the manifold came off and into the drill press where I used a concrete drill bit.

    Dale thompson and jamespmack Thank this.
  7. Shawn2130

    Shawn2130 Heavy Load Member

    Joined:
    Sep 20, 2015
    Messages:
    894
    Thanks Received:
    1,892
    Location:
    Ontario
    0
    :eek::eek::D Me? Lead foot? Ummmm.....

  8. p608

    p608 Road Train Member

    Joined:
    Nov 10, 2016
    Messages:
    2,181
    Thanks Received:
    2,992
    0
    Try using an end mill, it leaves a nice flat surface to work with.

    Shawn2130 Thanks this.
  9. jamespmack

    jamespmack Road Train Member

    Joined:
    Mar 25, 2014
    Messages:
    19,991
    Thanks Received:
    215,832
    Location:
    OH
    0

    Use a washer first. Build the weld up to washer. Then weld nut to washer. Backs right out.

    Shawn2130 and Dale thompson Thank this.
  10. Shawn2130

    Shawn2130 Heavy Load Member

    Joined:
    Sep 20, 2015
    Messages:
    894
    Thanks Received:
    1,892
    Location:
    Ontario
    0
    I do have end mill experience. We don’t have those bits here.

    I decided to drill through and use stainless bolts from this point on, just like a lot of other trucks use.

    Then if that snaps, just install a new one instead of removing turbos and buying more gaskets and fighting with broken studs. :cool:

    p608 Thanks this.
