Convert air kingpin release valve to hand pull

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Keepontrucking2016, Mar 9, 2019.

  1. Keepontrucking2016

    Keepontrucking2016 Light Load Member

    170
    40
    Apr 7, 2016
    0

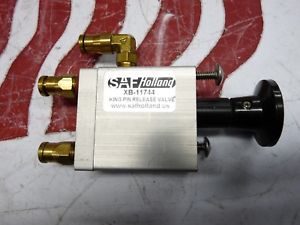

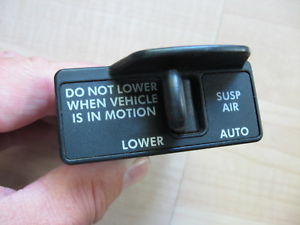

    I have exacted my research I can't seem to find the answer I'm looking to convert my fifth wheel air kingpin release valve in cab to hand pull and use existing pluming to get air bags dump I understand I need level valve with dump and a switch in the truck but as far as fifth wheel do I need to remove air cilinder or leave everything as is and just use the air line connect it to dump and install switch in cab the picture is the one I have installed right now the other pic are the things I need is there anything else I need


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. BoxCarKidd

    BoxCarKidd Road Train Member

    4,467
    6,504
    Aug 26, 2014
    0
    I thank you have to buy a different plate. Call a Holland dealer with the numbers off your plate. Ask them to call you back as it could take awhile.

  4. PE_T

    PE_T Road Train Member

    Interesting. I didn’t know that technology existed. All the trucks I have used had a pull handle on the 5th wheel to release the kingpin. Maybe I’m not understanding.

  5. Keepontrucking2016

    Keepontrucking2016 Light Load Member

    170
    40
    Apr 7, 2016
    0
    The truck has one but I can't pull it cuz it's locked with air cylinder I have to drain the air or pull valve in cab when parking brake is set

  6. PE_T

    PE_T Road Train Member

    What is the reason you want to make this change? Is it because you are constantly having trouble making the 5th wheel pull handle work? Every so often, my handle doesn’t want to pull. It’s as if it were stuck. What I do is drive forward and reverse a few times. This always works. Sometimes it takes me a couple minutes to get it to work.

  7. BoxCarKidd

    BoxCarKidd Road Train Member

    4,467
    6,504
    Aug 26, 2014
    0
    I only saw them on yard dogs. Step out the back door and unhook the red glad hand. Lower the hydraulic 5th wheel. Push the air release 5th wheel latch knob and go catch the next one.
    Sounds like he has something different.

    PE_T Thanks this.
  8. Keepontrucking2016

    Keepontrucking2016 Light Load Member

    170
    40
    Apr 7, 2016
    0

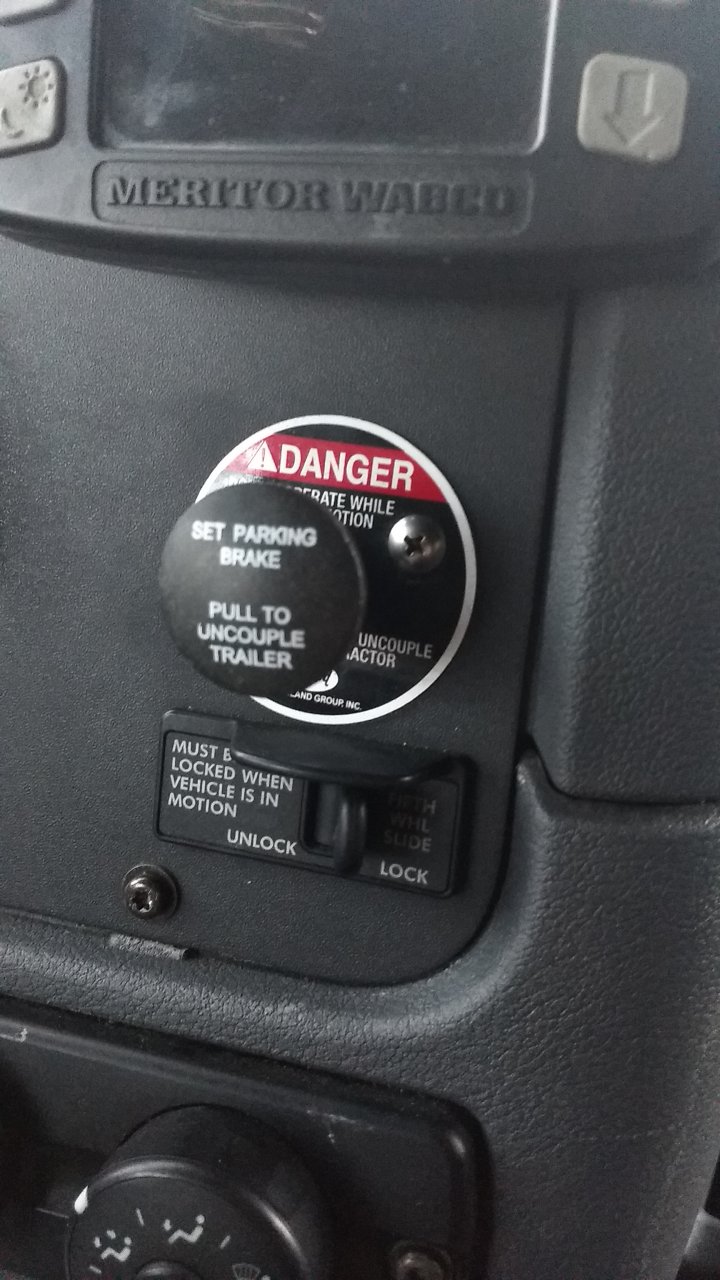

    Personally it's a stupid set up I think it's for lazy driver no offense but I rather have hand pull with no air cylinder and airbags dump then this thing the reason why I want it hand pull manually and have airbag dump is few times I had trouble dropping the trailer what I mean kingpin was unlocked but I could drop trailer it seemed like the top plate welded to bottom trailer I would have that problem if I just simply push the button air bags deflate and drop the trailer


    Attached Files:

  9. Rideandrepair

    Rideandrepair Road Train Member

    17,322
    56,198
    Aug 8, 2015
    0
    Same with my last trailer. It had air release sliding pins. I thought it was great at first. But over time it caused more headache than convenience.

    Keepontrucking2016 Thanks this.
  10. BoxCarKidd

    BoxCarKidd Road Train Member

    4,467
    6,504
    Aug 26, 2014
    0
    I set the trailer park brake and ease the truck back to take out the slack. Then pull the tractor park valve. That relieves any pressure so the handle can be pulled.

    spsauerland and PE_T Thank this.
  11. Keepontrucking2016

    Keepontrucking2016 Light Load Member

    170
    40
    Apr 7, 2016
    0
    The air release is not the problem it releases the handle fine the problem is sometimes I can unhook the trailer it seemed like the plate and trailer bottom are welded together no matter what I do drive back or forward nothing happens
