coolant thingy making a mess

Discussion in 'Freightliner Forum' started by shatteredsquare, Nov 2, 2020.

  1. shatteredsquare

    shatteredsquare Heavy Load Member

    863
    1,021
    May 23, 2014
    middle dirt
    0

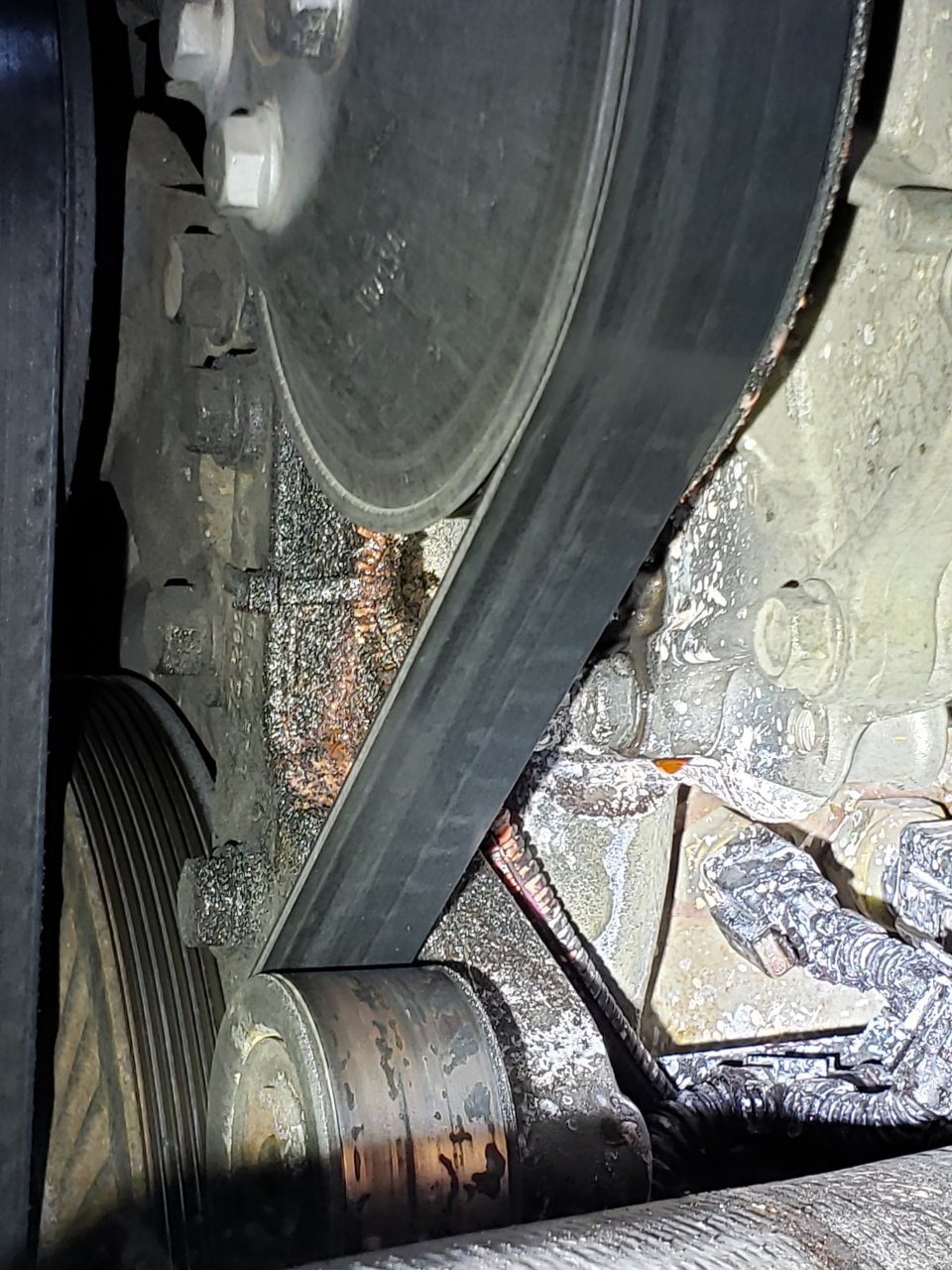

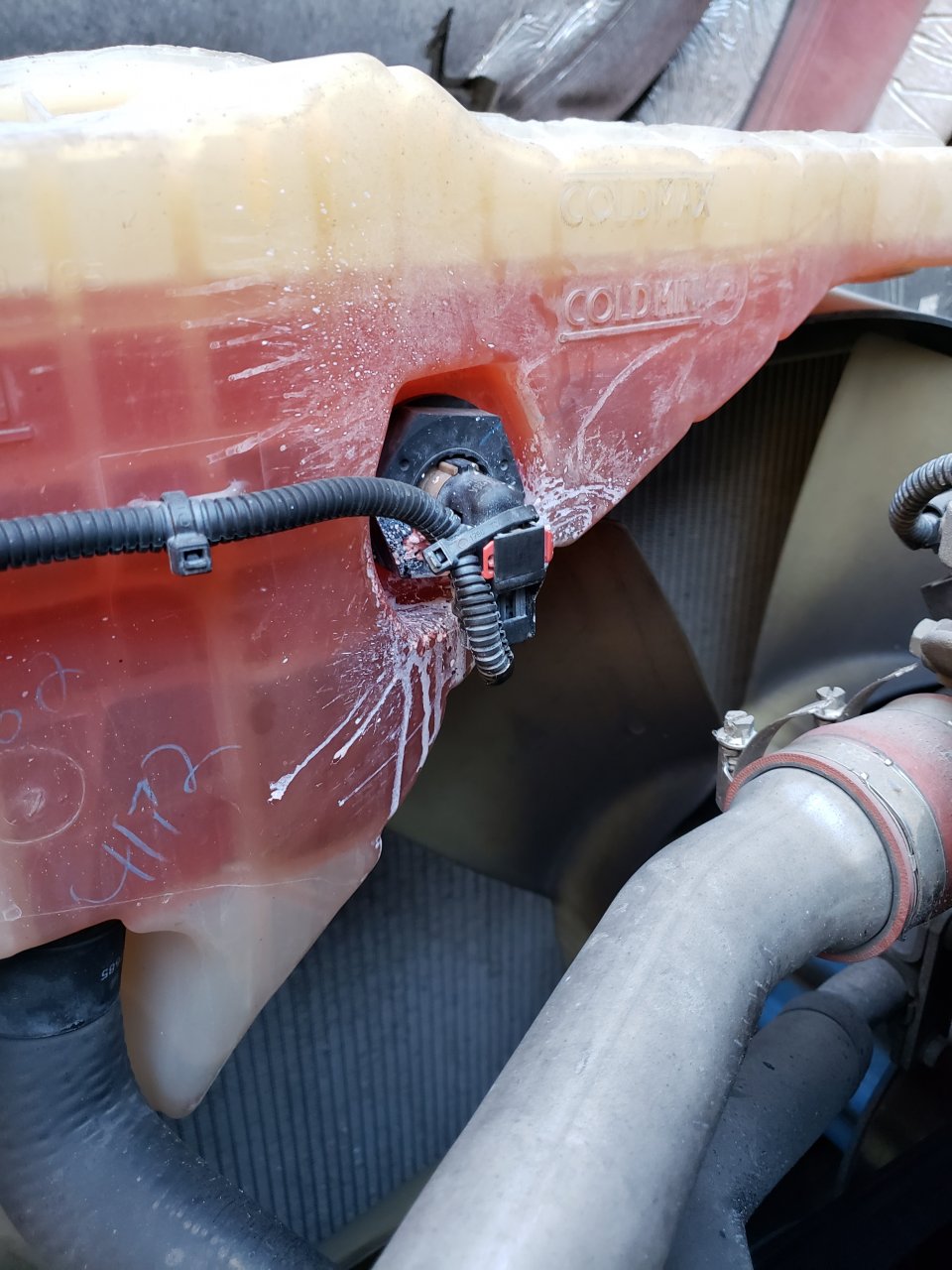

    why is the coolant pump leaking from behind the pulley? That's the clutch right? also why is it leaking from the temp sensor? there's pink icing everywhere, I found the drip coming from behind the big round thingy

    20201102_164351.jpg 20201102_164252.jpg

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. '88K100

    '88K100 Medium Load Member

    338
    598
    Aug 23, 2020
    0
    Gasket leaking? Im not familiar but on my Freightliner a I finally located a constant coolant leak being a hairline crack on top of overflow tank.

    Rideandrepair Thanks this.
  4. AModelCat

    AModelCat Road Train Member

    19,408
    86,010
    Jul 7, 2015
    Canuckistan
    0
    No clutch on a water pump. If its leaking out the weep hole your pump is worn out.

  5. cjb logistics

    cjb logistics Heavy Load Member

    766
    636
    Aug 13, 2016
    Liberal Ks
    0
    I say water pump also, coolant reservoir not leaking enough to make those spots behind pulley and belt.

    Rideandrepair Thanks this.
  6. ibcalm19

    ibcalm19 Medium Load Member

    694
    836
    Nov 30, 2015
    Pennsylvania
    0
    Check for hoses above it more than likely is running down from somewhere. Tighten up clamps

    Rideandrepair Thanks this.
  7. Dave_in_AZ

    Dave_in_AZ Road Train Member

    26,651
    99,057
    May 4, 2015
    0
    Get Blue Beacon to wash it off.

    Then watch to see where it comes back from.

    The surge tank typically doesn't leak there. Possible though. That would be an o ring right there.

    When they go, they crack.

    Rideandrepair and InTooDeep Thank this.
  8. Trucking in Tennessee

    Trucking in Tennessee Road Train Member

    3,596
    5,351
    Mar 19, 2018
    Nashville
    0
    Thingy? Must be a female. That would be a pulley.

    Rideandrepair and InTooDeep Thank this.
  9. "semi" retired

    "semi" retired Road Train Member

    8,252
    15,676
    Apr 16, 2014
    high plains colorado
    0
    Ah, to be a service tech today, "coolant thingy"? Ever wonder why they call it the "weep hole"? :crybaby:

    Rideandrepair and QUALITYTRUCK Thank this.
  10. uncleal13

    uncleal13 Road Train Member

    3,182
    4,649
    Apr 9, 2009
    Humboldt, Sk
    0
    First picture is most likely water pump failure. Look up under there, you’ll see a weep hole, if it’s coming out of that hole then the pump is failing.
    Second picture, just try tightening the plastic nut.

    Rideandrepair Thanks this.
  11. shatteredsquare

    shatteredsquare Heavy Load Member

    863
    1,021
    May 23, 2014
    middle dirt
    0
    weep hole it is, kind of it to give you warning ahead of time. 368k and it's only needed a starter, I ignored that warning for 6 months until I needed a tow. Everything is a wear item to eventually be replaced. driver included. what goes next after the water pump. I baby the gaskets by not moving it at all until oil temp is at least 150 F then gently up to 200 F, I keep the injectors clean with routine floggings and keep the cylinders clean with 24/7 engine brake. blackstone says it's the cleanest burning DD13 they've ever seen.

    Rideandrepair Thanks this.
