Cummins isx 15 coolant loss no external leak

Discussion in 'Volvo Forum' started by RoadRanger^^, Jul 12, 2025.

  1. D.Tibbitt

    D.Tibbitt Road Train Member

    23,025
    159,467
    Apr 26, 2013
    Gettin' down westbound
    0
    Take the clamp off the back side of the cooler, where the airflow exits to the egr valve.. you should be able to see some coolant that way but if its demandated and has no air flow then maybe not...

    Most likely it is head or head gasket .. its a cummins thats what they do, im dealing with the same problem

    QUALITYTRUCK Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. D.Tibbitt

    D.Tibbitt Road Train Member

    23,025
    159,467
    Apr 26, 2013
    Gettin' down westbound
    0
    you only need to pop a clamp off to see if its has coolant leaking.. but if you are going to take the whole thing off then everything in front of it needs to come off... If you are good with wrenches you can get down to it in about an hour or so, as long as no bolts snap off

    QUALITYTRUCK Thanks this.
  4. QUALITYTRUCK

    QUALITYTRUCK Road Train Member

    1,820
    1,787
    Jun 14, 2009
    romulus,mi
    0
  5. RoadRanger^^

    RoadRanger^^ Medium Load Member

    321
    121
    Apr 17, 2018
    Columbus, OH
    0
    How long have you ran your truck with coolant consumption ? I really don’t want to spend 10k on this truck pulling the head off and who knows what else will have to changed. Most likely will run it like this till dues truck is 2011…

  6. D.Tibbitt

    D.Tibbitt Road Train Member

    23,025
    159,467
    Apr 26, 2013
    Gettin' down westbound
    0
    I ran it to get it home and parked it.. itbis your truck u can do as u wish. I woukd not run it if its burning coolant... One thing you can do is pressurize the coolant system, drain the oil and drop the pan, then lay underneath the engine and watch for coolant dripping.. if you see any then you know the engine needs to come apart

    RoadRanger^^ Thanks this.
  7. RoadRanger^^

    RoadRanger^^ Medium Load Member

    321
    121
    Apr 17, 2018
    Columbus, OH
    0
    Update:

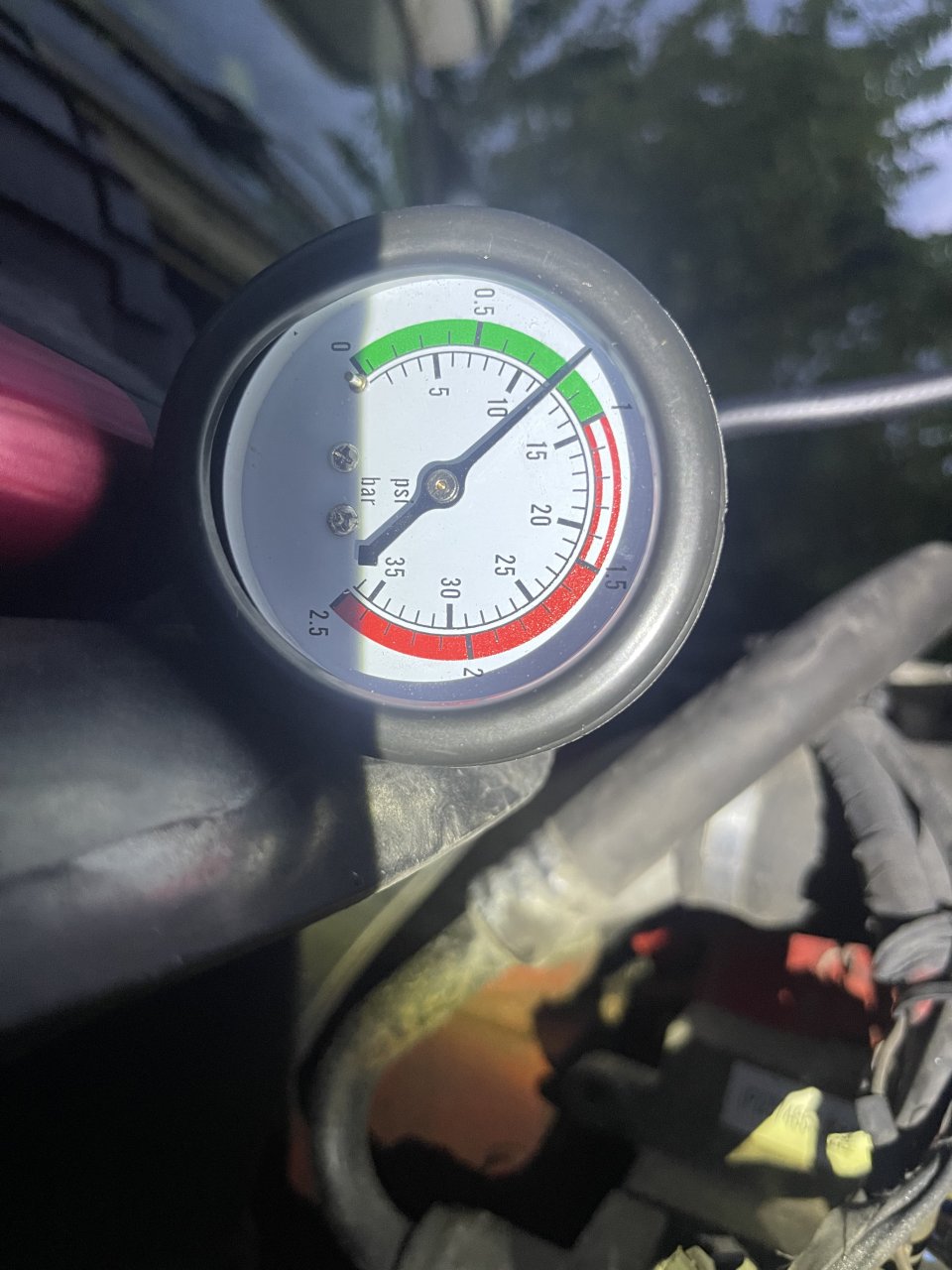

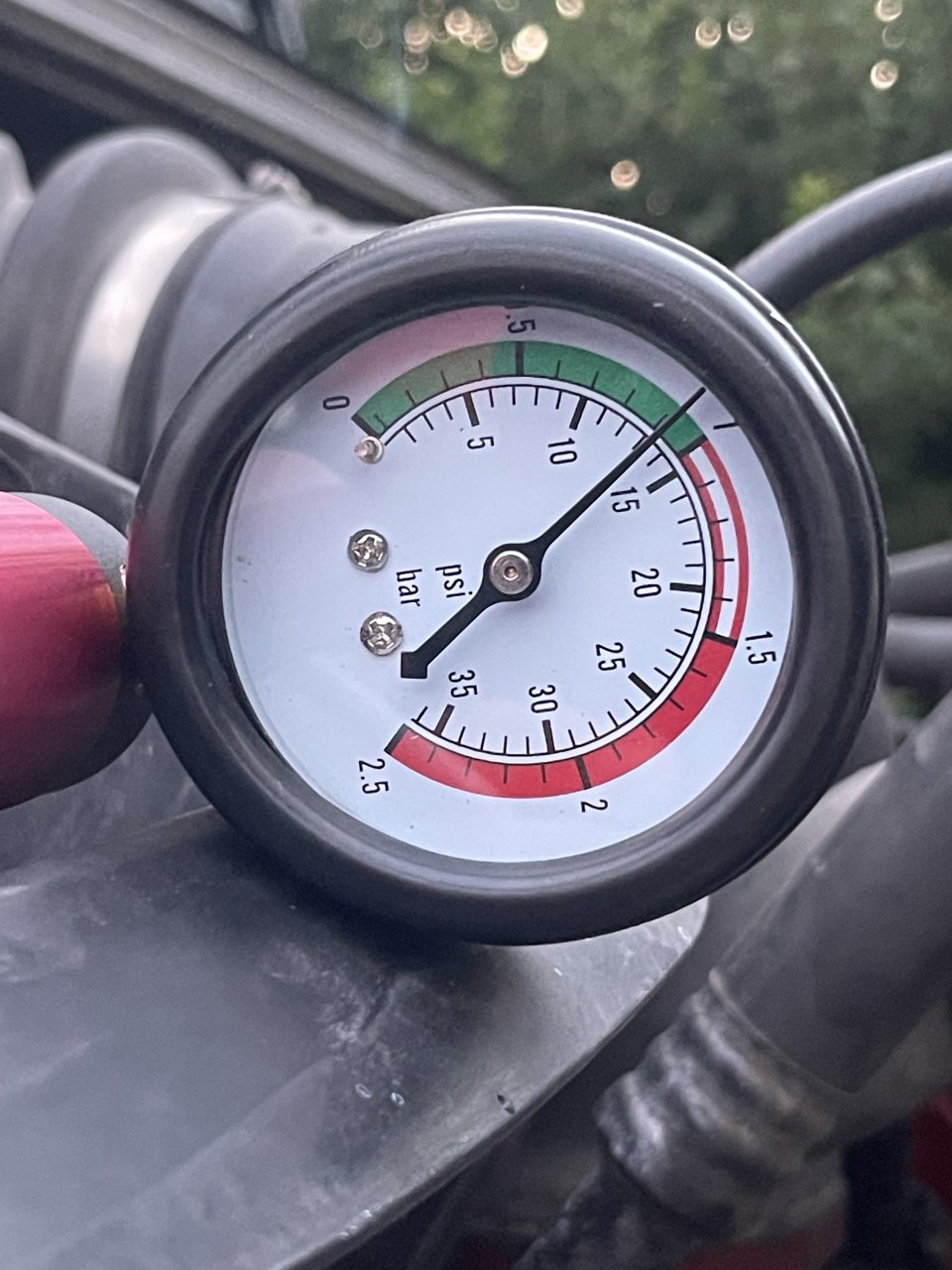

    First i have to thank to everyone for trying to help and solve this issue. Today i did the pressure test on the coolant, i did 14 psi not sure if that was enough but i think it did the job because i finally found the mysterious leak.

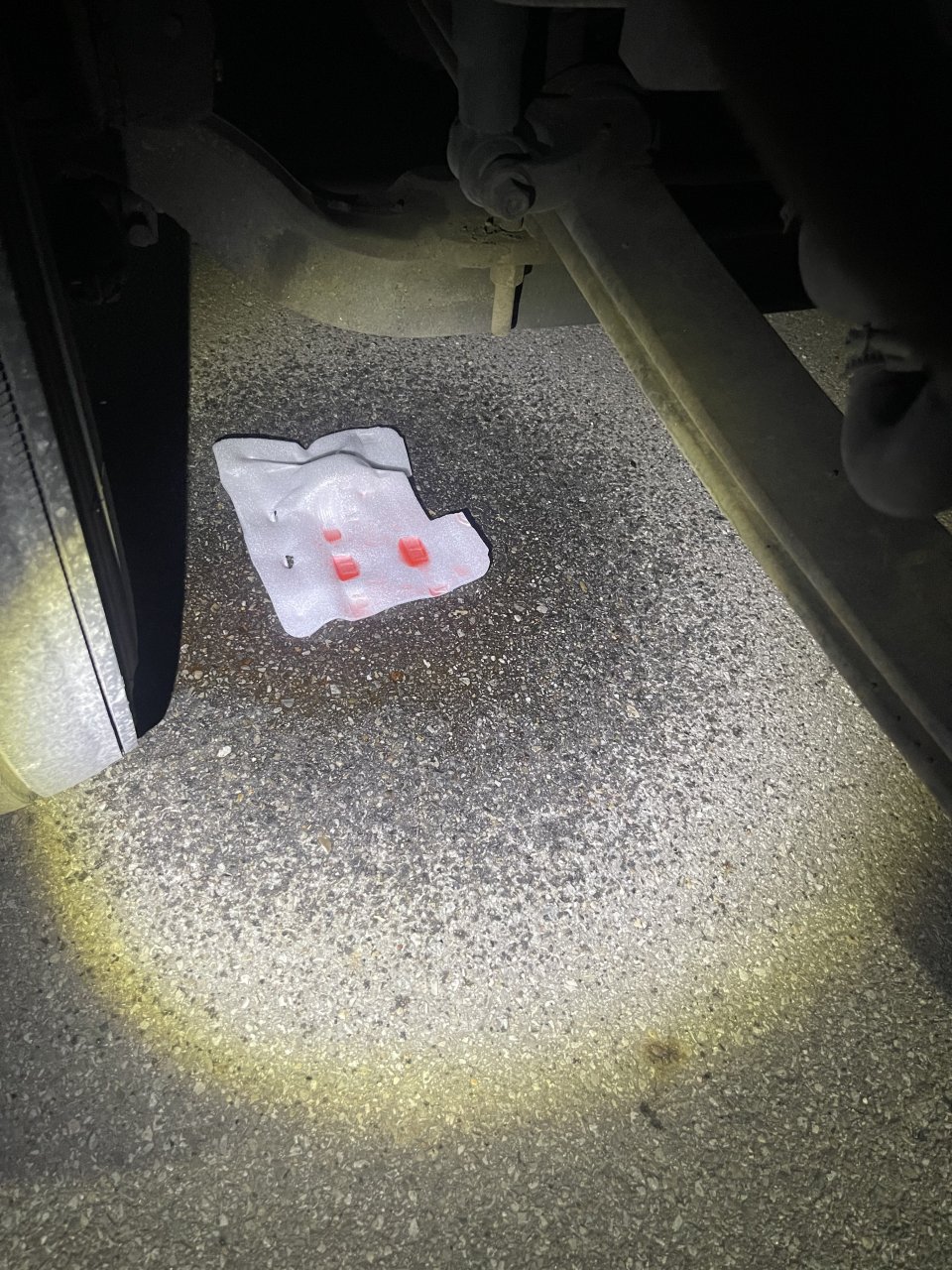

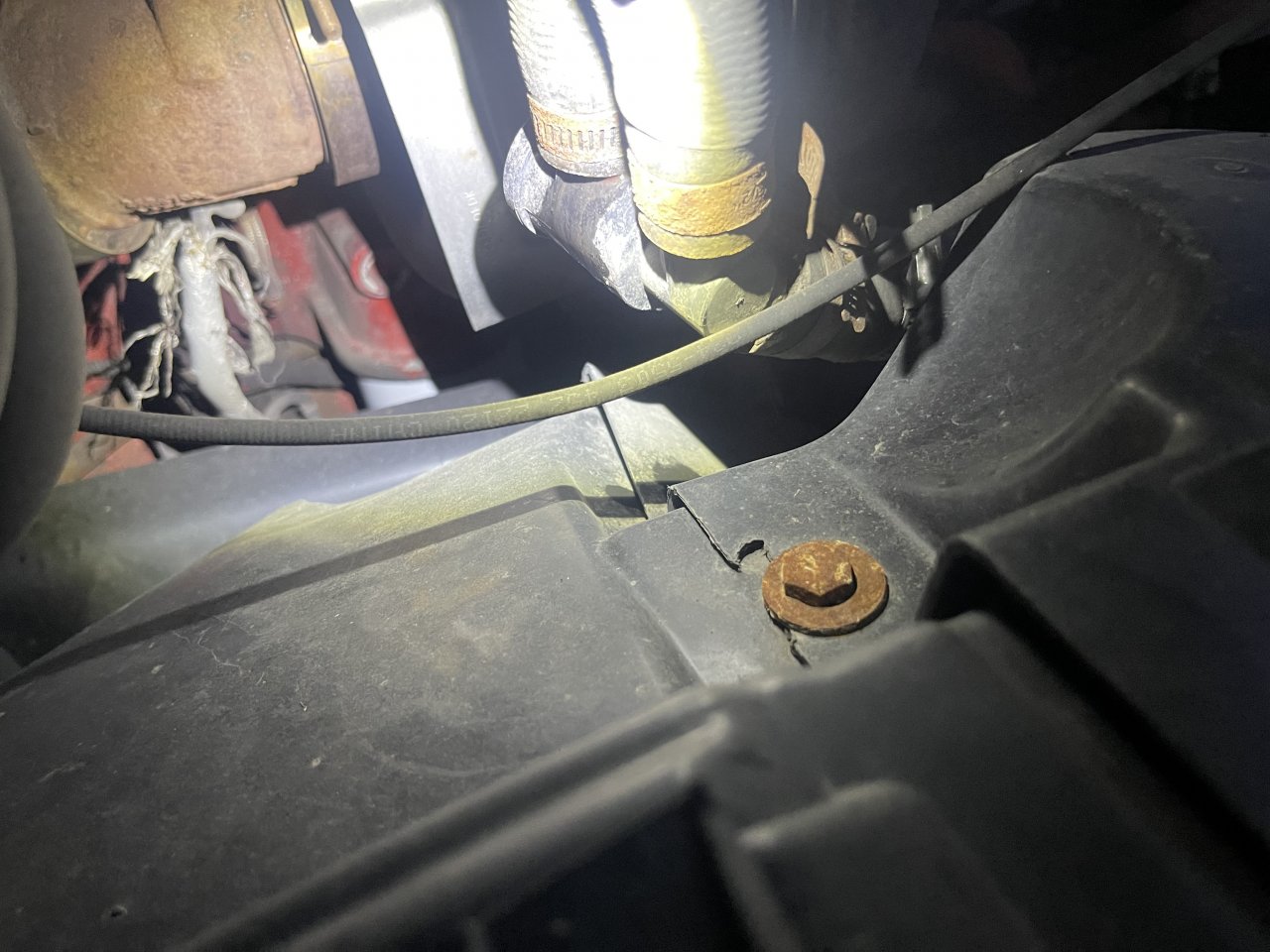

    Main leak was coming from the small plastic splitter that goes into the heater core. In 45 min i lost 2 psi from 14 to 12.


    Attached Files:

    QUALITYTRUCK, dosgatos and D.Tibbitt Thank this.
  8. D.Tibbitt

    D.Tibbitt Road Train Member

    23,025
    159,467
    Apr 26, 2013
    Gettin' down westbound
    0
    Nice.. i was going to recommend putting pressure on there to see if any external leaks but forgot to reply. Glad it was something easy and dont cost u to much money

    RoadRanger^^ Thanks this.
  9. Burdisco

    Burdisco Light Load Member

    121
    53
    Apr 25, 2015
    0
    Check your Air Compressor. If it is going bad it will suck in the coolant, one sign is the coolant tank will fill up but it becomes pressurized.

  10. RoadRanger^^

    RoadRanger^^ Medium Load Member

    321
    121
    Apr 17, 2018
    Columbus, OH
    0
    I know it has been a while but finally i found the solution for this issue. In the sleeper heater core one of the o rings failed not sure which one, there are 2 lines. I just wanted to be sure that the heater core is not the issue as well and i replaced the heater core while i was there and new o rings. This was replaced couple of months ago and i have not added any coolant ever since. If somebody have this is issue and your heater core is actually bad and need replacement, on volvo it is PITA to replace because you have to pull out the whole unit, I found a way to cut the little trim on top of the radiator i guess it is part of the bed just so you can slide the heater core. Hope this is helpful to somebody out there

    dosgatos, D.Tibbitt and Diesel Dave Thank this.
