Cummins ISX CM871 Engine Sensors Location Charts

Good evening Heavyd!!
do you have it for CM 870?



I need one too for CM870 (pre DPF)



thanks boss....Ill check now those link!



Here's the link for the 870 if you can't find it;
http://www.thetruckersreport.com/tr...ummins-isx-cm870-engine-component-charts.html



there's nothing there.... sad day



Yep, looks like my uploads were wiped when the site did their update. I'll have to redo it.

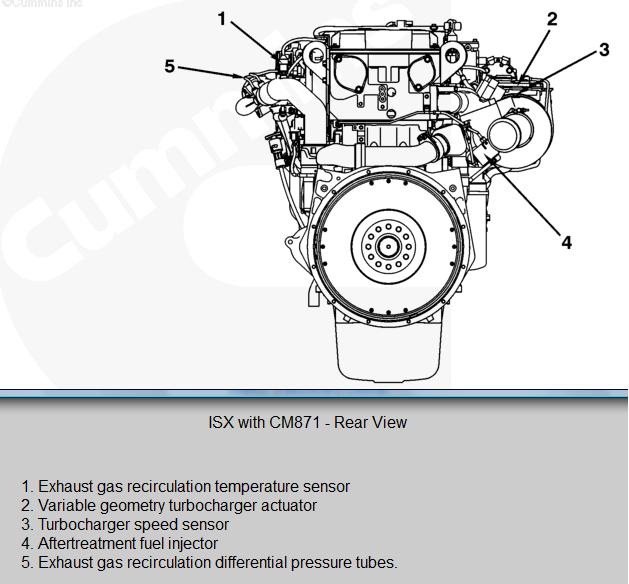

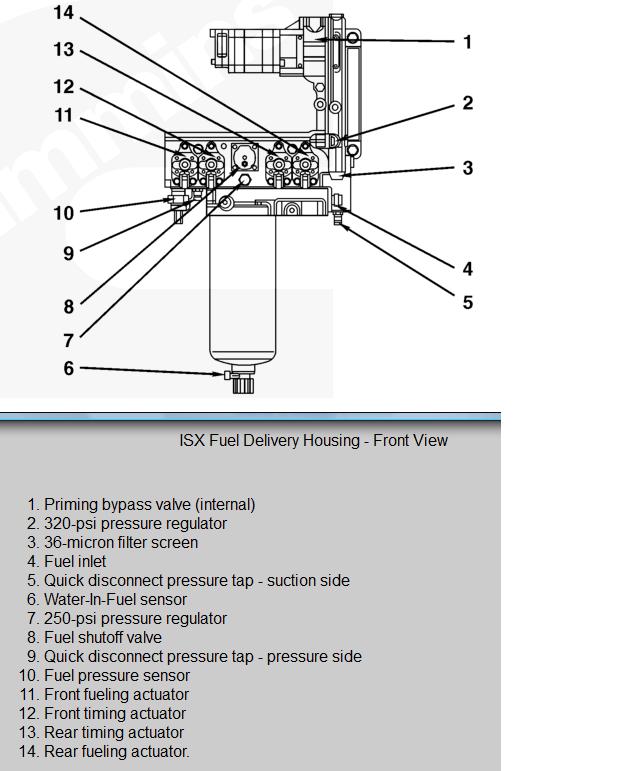

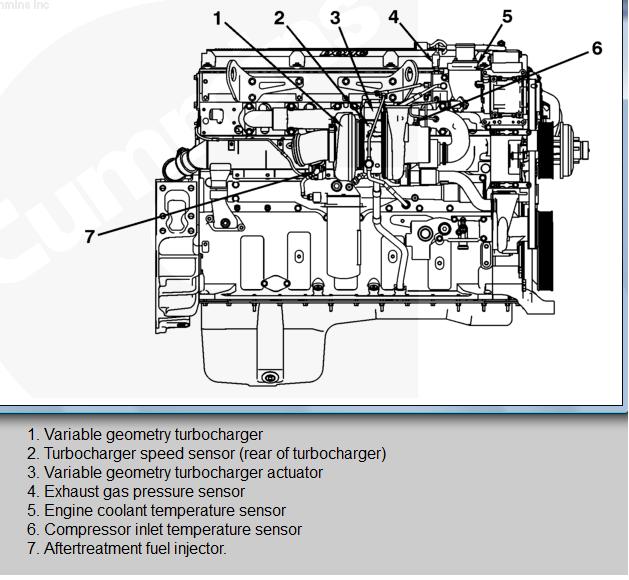

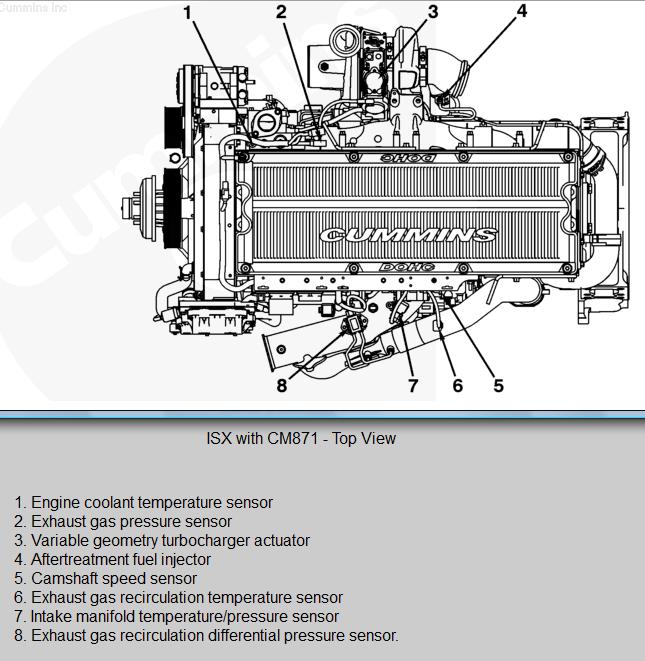

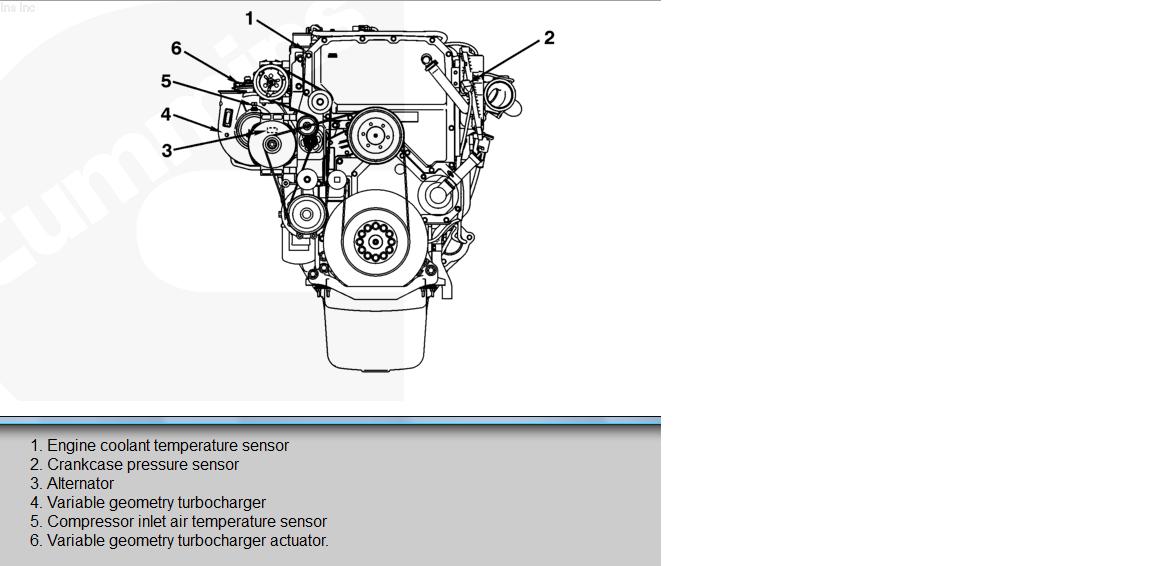

Here are those diagrams again.



Hello HEAVYD can you tell me what the sensor is behind the ECM CM871 there is no mention of that sensor anywhere going into block .It also has 3 wire harness on top then the sensor just below it thx in advance.

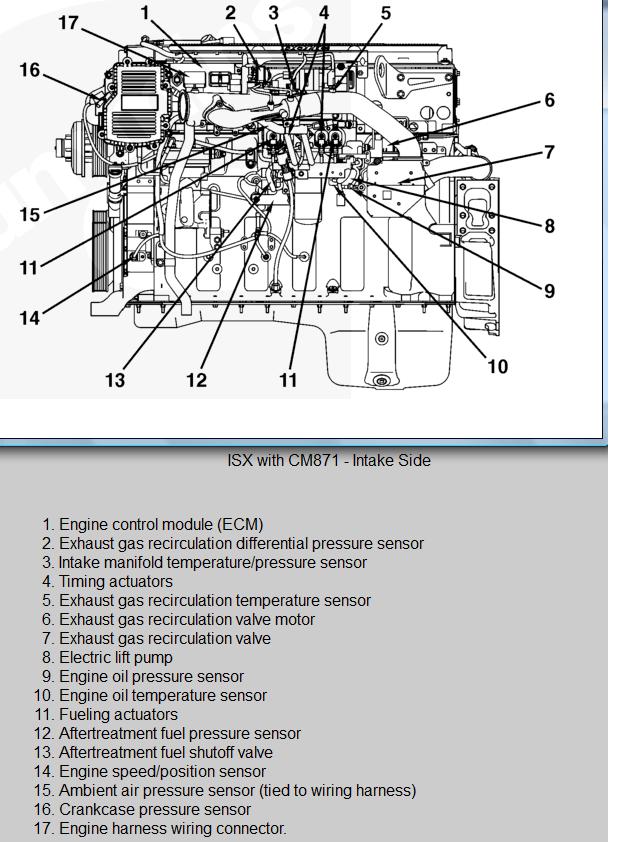

The only sensor that is near the ECM is the ambient air pressure sensor. This will have three wires and it is just zip tied to the harness, not screwed into the block.
