Cummins n14 camshaft replacement

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Kenllah, Nov 22, 2020.

  1. Kenllah

    Kenllah Light Load Member

    226
    113
    Nov 17, 2017
    0
    Yes sir. No offset. Straight key

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Kenllah

    Kenllah Light Load Member

    226
    113
    Nov 17, 2017
    0
    Checked run out at 0.010 which is under the 0.020 max

  4. pup

    pup Light Load Member

    252
    256
    Dec 3, 2011
    n.h.
    0
    Are you replacing the rollers & pins or replacing the cam follower assemblies with recon?

  5. Kenllah

    Kenllah Light Load Member

    226
    113
    Nov 17, 2017
    0
    All Rollers and pins in progress. Just picked up an arbor press to get the new ones in. Hopefully easy

  6. pup

    pup Light Load Member

    252
    256
    Dec 3, 2011
    n.h.
    0
    Are you familiar with the timing process or will you measure & replace the gaskets?

  7. Kenllah

    Kenllah Light Load Member

    226
    113
    Nov 17, 2017
    0
    Already measured. .032 all gaskets. It was printed on them but I still checked wit a micrometer

  8. RoadtoEmmaus

    RoadtoEmmaus Light Load Member

    100
    43
    Apr 20, 2014
    0

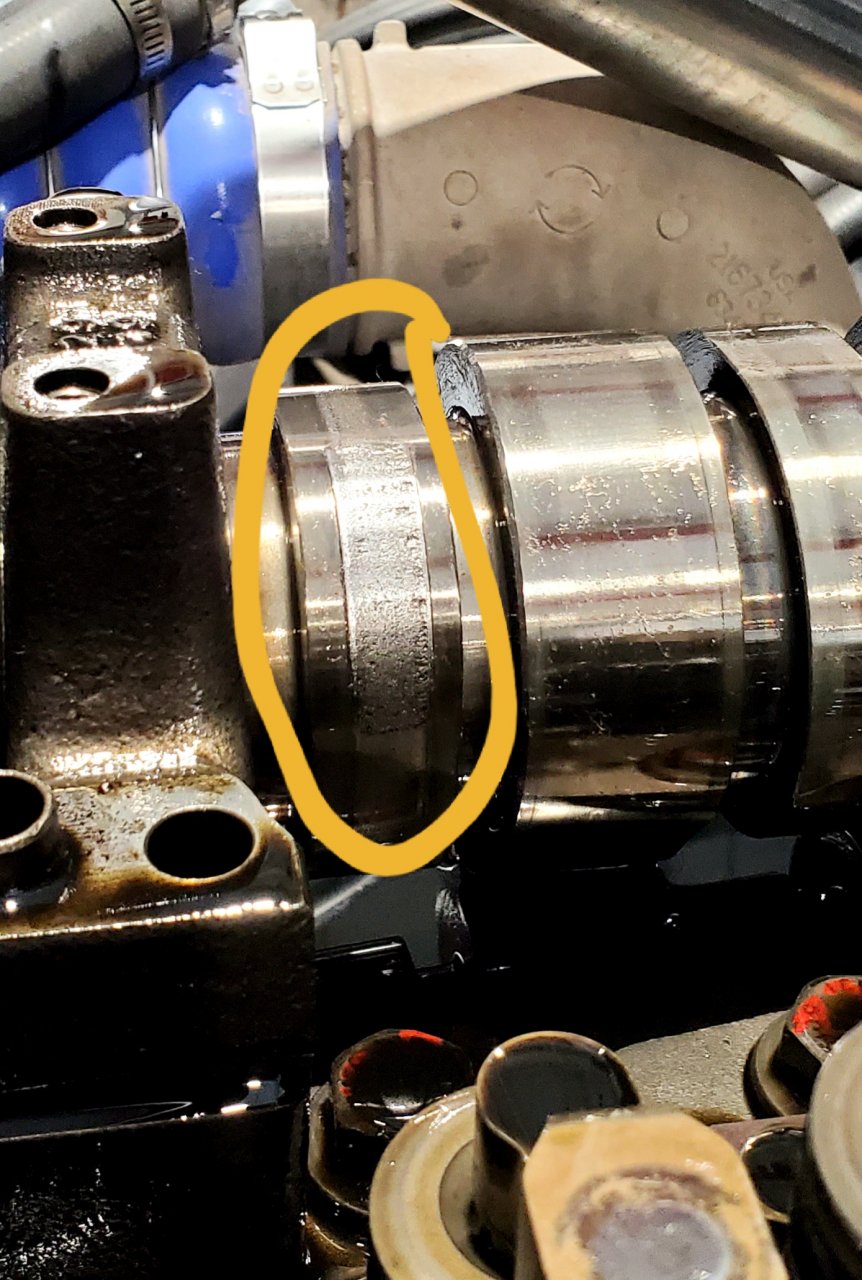

    Just found this on my 2014 D13 935k mikes..what would happen if I just closed it up amd ran with it like this?

  9. lester

    lester Midwest's #1 Feed Hauler

    2,819
    7,479
    Jan 2, 2012
    NW, Iowa
    0
    Nothing good I would say. It's going to keep wearing as well as the roller. Metal in your oil.

  10. Kenllah

    Kenllah Light Load Member

    226
    113
    Nov 17, 2017
    0
    It will run until it won't. No one can really say how long it will go honestly. you will probably start to notice some performance issues. If you are gonna run it I would keep up with the oil filters and keep an eye on it. There will be metal coming off of it and it has to go somewhere. It will start to wear away at your cam follower as well if it hasn't already.

    If it was mine, I would probably change it asap. Who knows how long mine looked like that before I found it due to an unrelated oil leak.

    I understand that not everyone is in the same place financially but it isn't going to get any cheaper to fix it as time goes on.

    tommymonza and John E. Thank this.
