d13 oil leak from back side of the engine

Discussion in 'Volvo Forum' started by SWTRANSPORTATION, Nov 19, 2018.

  1. SWTRANSPORTATION

    SWTRANSPORTATION Bobtail Member

    12
    2
    Nov 19, 2018
    0

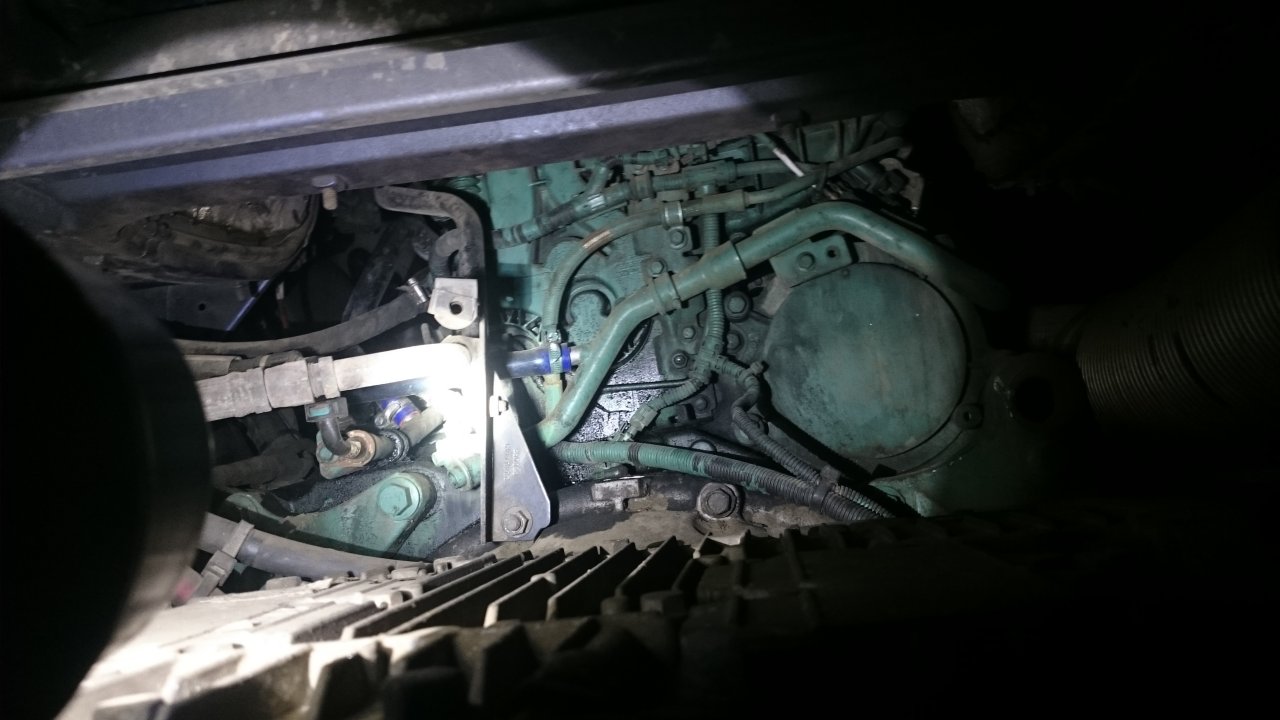

    guys , I have oil leakage from back side , 2015 volvo 670, d13 . 585k , any idea can help


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. stillwurkin

    stillwurkin Road Train Member

    1,654
    2,637
    Dec 2, 2017
    0
    Looked at a lot of leaks. That isn't running down and dripping on the ground? Appears to be small, seeping leak. If so i wouldn't worry about it. Just check on it pretty much daily. You also could (if you take the trk home) spray some engine cleaner on it, let it soak a bit, and spray it off, with even a garden hose. Then see how fast it seeps . If you go to a truck wash, don't let them high pressure your engine. Thats asking for trouble, around electrical components. Of course if it dripping head to a knowledgeable shop. Years back some engines dripped quite a bit. We used to call it "sign its name" on the ground where you parked. Oil consumption get worse lately?

    SWTRANSPORTATION Thanks this.
  4. northface36

    northface36 Bobtail Member

    18
    1
    Mar 19, 2018
    0
    Up

    Last edited: Nov 20, 2018
  5. SWTRANSPORTATION

    SWTRANSPORTATION Bobtail Member

    12
    2
    Nov 19, 2018
    0
    Hello and thanks for your help , it's very small leak Only smoke comes from this area when I do regen, but there is no dripping on the ground, also I check the oil level every day and not loosing any oil, I used 15w40 Mobil every 15k ,

    stillwurkin Thanks this.
  6. QUALITYTRUCK

    QUALITYTRUCK Road Train Member

    1,451
    1,236
    Jun 14, 2009
    romulus,mi
    0
    I would clean it as much as possible and put some dye in the oil, then check again with a uv light to be sure.

    SWTRANSPORTATION Thanks this.
  7. nasriza

    nasriza Road Train Member

    2,032
    1,608
    Feb 1, 2013
    Chicago, IL
    0
    this is a very simpe leak, not that simple to fix but fixable. the top timing cover on the new engines now they are made out of POS plastic and what happens is the gaskets go out and they start pission oil. to fix it you need to remove dog house a few hoses and some wiring inthe back remove the valve cover remove the top timing cover and replace with new one around $200 parts at volvo problem is to install it you need special tools to push the cover down so it seals. more labor than anything but still shouldn't be more than 500-600. top gear cover is what you need or top timing gear cover. for some reason 15 are the years they first started with this and they always leak 16 not so bad and on but 15 horrible for this leak.

  8. BUMBACLADWAR

    BUMBACLADWAR Road Train Member

    1,809
    1,738
    Dec 5, 2013
    0
    Interesting...I would "venture to say" that the plastic cover and iron heat up and cool down at different intervals/temperature thus blowing out the gasket.

  9. nasriza

    nasriza Road Train Member

    2,032
    1,608
    Feb 1, 2013
    Chicago, IL
    0
    This is part of it but those seals are so small that over time heating up and cooling down they become rock hard and do not seal anything anymore but it is cost effective so of course that’s what they put on

    BUMBACLADWAR Thanks this.
  10. volvousser87

    volvousser87 Bobtail Member

    5
    0
    Sep 7, 2016
    0
    I have the same oil leak with my truck, also 2015 d13 603k miles. Change the o-ring on the flywheel housing (top right side)
    volvo replaced the top cover gaskets last week, and still oil leak..
    please help!
    thnaks

  11. emilko

    emilko Bobtail Member

    23
    7
    Feb 4, 2018
    0
    2 gallons of the oil loose in/ for 120 miles. My Volvo's D13 engine, year 2013, 500hp loosing the oil with no visible leaks. No dripping on the ground and no visible leaks on the engine. I couldn't see any oil in a coolant or in a fuel. Was 4 times in/at 4 different truck repair shops. First repair shop was in Slat Lake City [UT], second was in Idaho Falls [ID], than it was in Boulder [MT], then after in Great Falls {MT}. Money vise : $2,200, $600, $200, and last one $4,400. Total cost $7,400. Still have the same problem. I just came back home from my last trip 788 milles. I was happy I finally made it back safely to my home, and I didn't burn the engine. Butt I had to use 15 gallons of expensive Full synthetic oil Shell RotelaT6, 5w40. (So no money to take home). I am using that kind of the oil ever since I changed factory oil for the first time. I am the first owner of this truck. The fact is : The engine has almost one million miles on it, No visible leaks on the engine, No dripping oil on the ground, No oil in coolant, No oil in fuel. but 2 gallons of the oil disappears in 120 miles. Please...anyone help mi. Do I need a new engine for my truck, or do I need to take my engine to Sweden for repair? LoL...Because , 4 Truck Repair Shops in N. America couldn't troubleshoot and solve the issue on my engine. Thank You

    KB3MMX Thanks this.
