DD15 Oil Pump and Orings. What happens when you believe paperwork.

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by LoneRanger, Jan 17, 2022.

  1. LoneRanger

    LoneRanger Road Train Member

    2,705
    6,529
    Jun 3, 2018
    0
    This is exactly why I don’t trust people and mechanics.

    supposedly these orings and pump as well as the manifold had been changed at 487k miles on the truck. It’s now sitting at 597k miles and the dates on the parts read 2012.

    Verify it’s changed and see for yourself before they put the parts on.

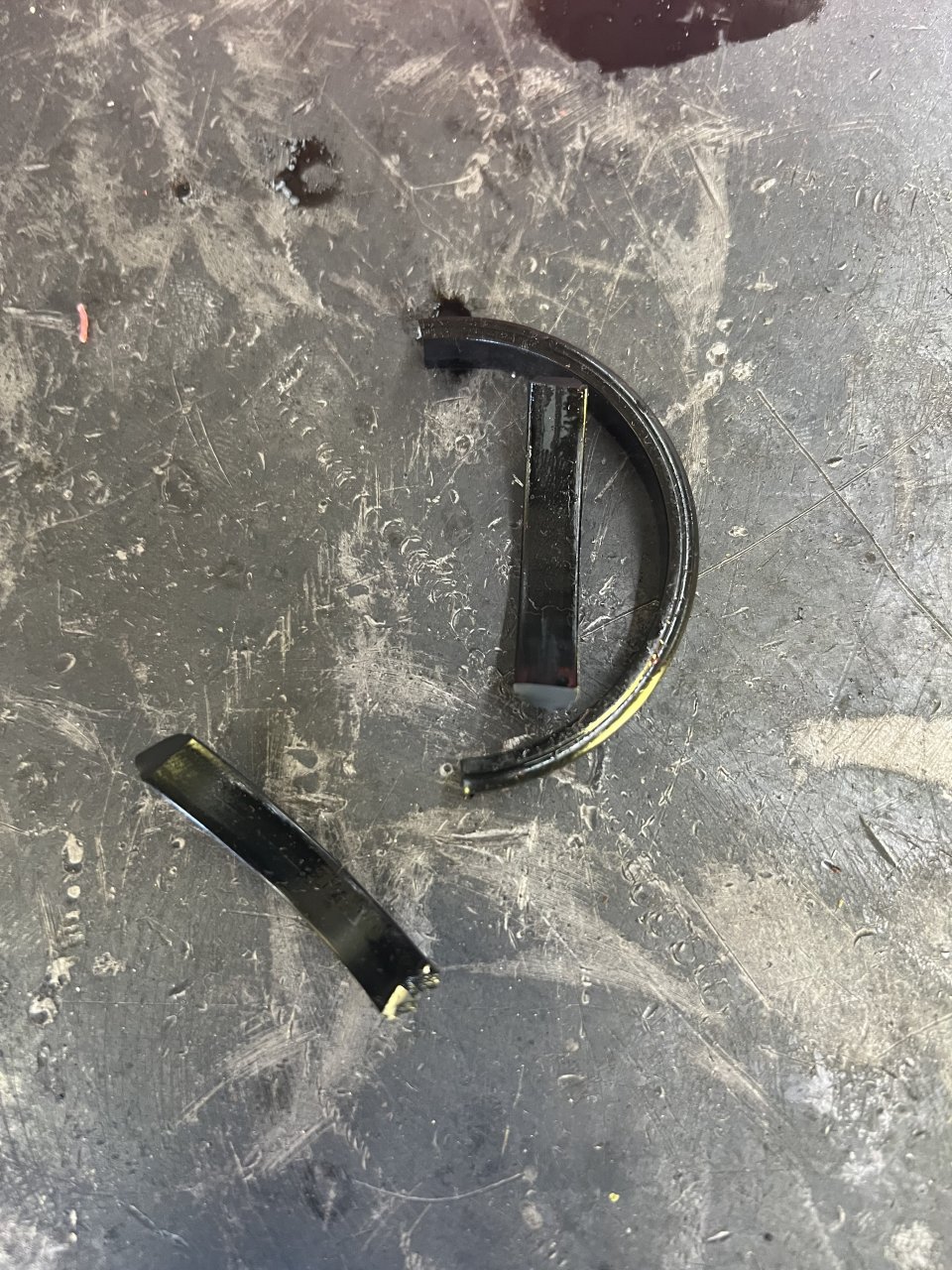

    orings shouldn’t break like plastic pieces. If the chip on the pump gear was there but the dates said 2018 I would have been ok and said pump failed. But no.

    Good thing I was able to get home to get it done after a 5 second low oil pressure warning. In Kentucky.

    B1655E31-C555-4022-B7A7-B6381BA12FE4.jpeg 68D782DD-D772-4960-85CD-0E841F2D734D.jpeg

    msh, Rideandrepair, Magoo1968 and 4 others Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Keepforgettingmypassword

    Keepforgettingmypassword Light Load Member

    203
    300
    Jan 11, 2022
    0
    Wow. How did you know where to look, how long of a job is it?

    Rideandrepair, JoeyJunk and D.Tibbitt Thank this.
  4. LoneRanger

    LoneRanger Road Train Member

    2,705
    6,529
    Jun 3, 2018
    0
    5-7 hours, if done right and it’s the pickup tubes on the pump. This has to be done at 500k maximum. I would at 250k after seeing this. That o-ring exploded in my hands. It’s hard as a rock.

  5. Keepforgettingmypassword

    Keepforgettingmypassword Light Load Member

    203
    300
    Jan 11, 2022
    0
    I'm glad you caught it. I'll get to mine in the spring. Frost bite last week took a couple days to get over.
    Thanks.

  6. LoneRanger

    LoneRanger Road Train Member

    2,705
    6,529
    Jun 3, 2018
    0

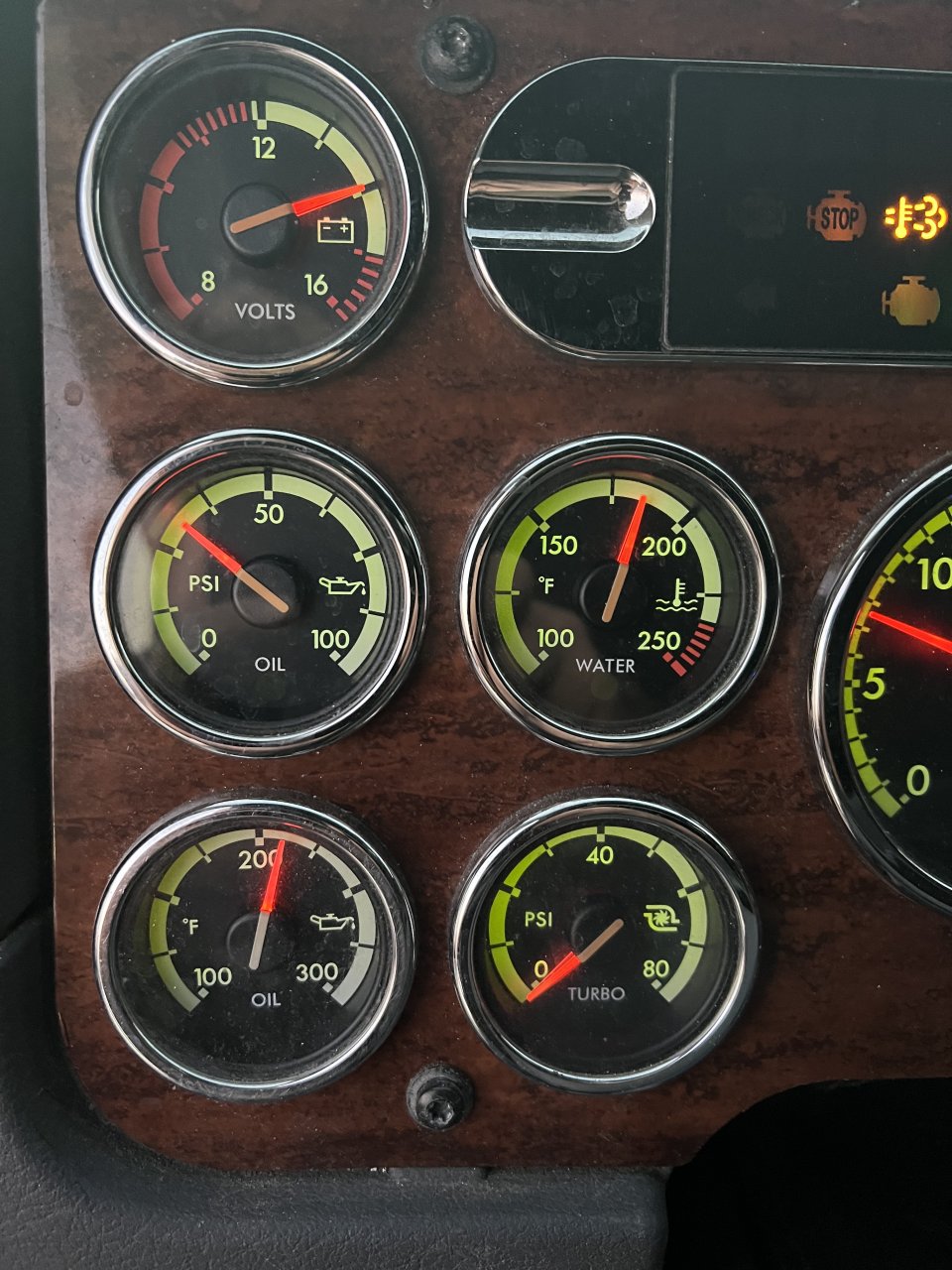

    What a difference in oil pressures.


    Fully warmed up idle pressure is at 25 Before was at 16

    high idle I’m at 33 previous at 23.

    7C31D3F6-F829-428C-82FC-B41DD4816C10.jpeg 41F291DC-3D43-4CEB-BE6C-0F7BD163DD96.jpeg

  7. Keepforgettingmypassword

    Keepforgettingmypassword Light Load Member

    203
    300
    Jan 11, 2022
    0
    I'm amazed at how fast you got it done. Impressive. Clean looking dash too. Mine not so much

  8. Smellfunny

    Smellfunny Road Train Member

    1,176
    649
    Jan 28, 2012
    South Carolina
    0
    I replace the pickup tube assembly when doing this job as well. I have seen those fail also. The Suction Manifold. They changed it because there were issues with it.

    Last edited: Jan 20, 2022
  9. Keepforgettingmypassword

    Keepforgettingmypassword Light Load Member

    203
    300
    Jan 11, 2022
    0
    Was that chip cause by the breaking of a o ring?
    I'm still slightly confused on how you new where to look?
    Was it the steady low pressure, or unable To build pressure?
    Was it the oil pump you had to remove, and then just did the tubes while you where there?
    I know it's a lot of questions. If you want to let it die I understand. I just love learning this stuff.
    I am aware why you started this post and it sux you where lied to. I just don't know what to say about that, I haven't been thru it yet. Most of my b.s. is me getting in my own way.

  10. Smellfunny

    Smellfunny Road Train Member

    1,176
    649
    Jan 28, 2012
    South Carolina
    0
    Here is a great video showing replacement.

  11. Oscar the KW

    Oscar the KW Going Tarpless

    12,245
    28,077
    May 19, 2011
    0
    It’s a known issue on the DD motors, I’m not sure what year they supposedly fixed this but my 2018 has 42x,xxx miles and still has the same oil pressure it did when new.
