Detroit s60 14l coolant overflow

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Roadking96, Mar 4, 2021.

  1. Roadking96

    Roadking96 Light Load Member

    109
    41
    Jan 7, 2016
    0

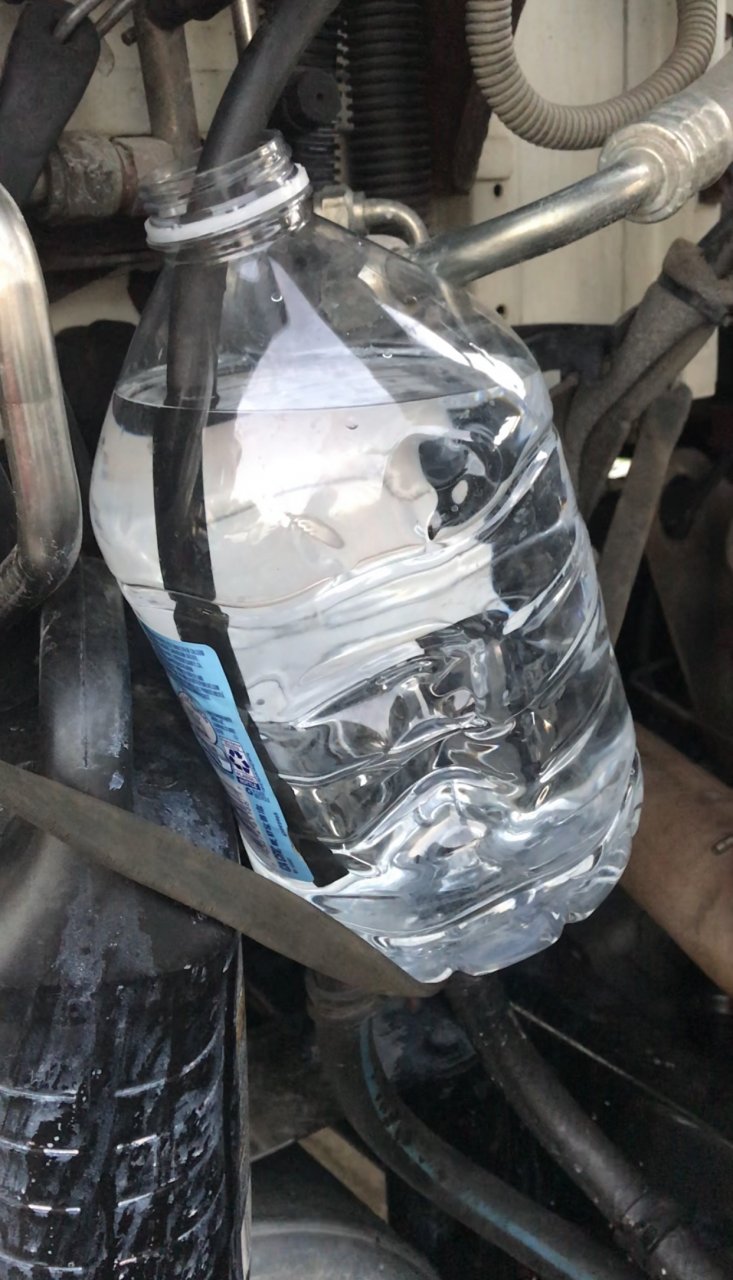

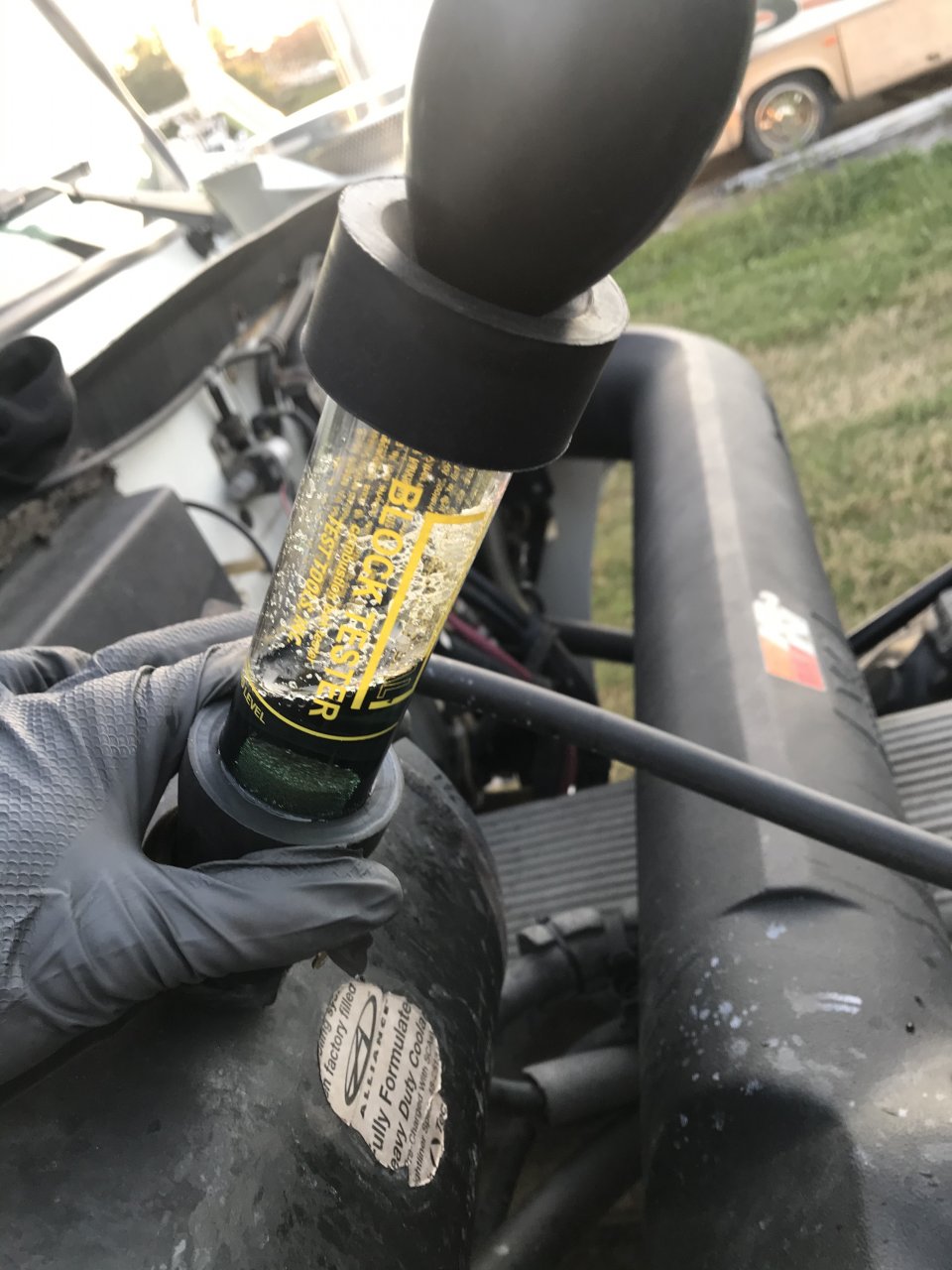

    01A565FC-1374-4FB8-A52A-E831CDD2AC95.jpeg FA596985-C3BA-4A71-8708-AA2D5CD0BE21.jpeg I got 09 westernstar with ddec vi Detroit s60 14l.lately it started pushing coolant out of the reservoir.loosing about gallon a day.so far no coolant in oil.no visible leaks.EGR cooler is welded up so no white smoke.truck is not overheating and runs fine.so far i did the combustion leak test with leak tester kit.the fluid turned green which indicates there’s exhaust gases in an engine’s cooling system.but i also did the bubble test but found no bubbles at all.i know the EGR cooler is cracked internally that’s why i welded up before.now even the EGR being non functional can the exhaust still leak into EGR cooler and cause pressure build up in the cooling system??i want to rule out the EGR cooler before i tear down the engine for possibly bad head gasket.any suggestions or other tests i can do to rule out that its not head gasket??

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. MRMTRANS

    MRMTRANS Light Load Member

    77
    88
    Apr 28, 2015
    0
    I would think if coolant leaks from the EGR cooler into the exhaust going back into the engine cylinders, it would still be isolated from the cooling system, So any coolant lost there wouldn't go back into the overflow reservoir. Compression can push coolant back from a leaky head gasket and thru a injector cup seal, I think. It might be that it only happens when compression increases as the engine is put under load,

    Roadking96 Thanks this.
  4. Don379

    Don379 Medium Load Member

    324
    513
    Jan 7, 2021
    0
    Unless something changed wit these new emissions junk engines, i dont see how a headgasket could fail. IT would have to be a cracked head or a warped head imo.

    Roadking96 Thanks this.
  5. MRMTRANS

    MRMTRANS Light Load Member

    77
    88
    Apr 28, 2015
    0
    Yes, I forgot to mention a cracked head. Too low of liner protrusion can eventually lead to leaks at the head gasket.

    Roadking96 and Don379 Thank this.
  6. Don379

    Don379 Medium Load Member

    324
    513
    Jan 7, 2021
    0
    that something for sure with low liner protusion. Sorry

    Roadking96 Thanks this.
  7. Roadking96

    Roadking96 Light Load Member

    109
    41
    Jan 7, 2016
    0
    It seems to do it more while under load.my last run was out to west coast and it would throw low coolant light while pulling hills.i guess it time to tare it down and see what we got going on
