Dt466 ipr valve or icp sensor

Discussion in 'International Forum' started by B77, Jun 30, 2020.

  1. B77

    B77 Light Load Member

    189
    89
    Dec 16, 2010
    0
    Do you have any idea, how I can have lost both fuel and oil pressure overnight. All I did was clearing the codes on the dashboard in the morning. Day before truck was running perfect for 80 km

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. B77

    B77 Light Load Member

    189
    89
    Dec 16, 2010
    0
    Fuel pressure is back. Only oil pressure is still at zero. Last time the dealer mechanic played with some wiring and the power feed fuse. Can it be something else

  4. Heavyd

    Heavyd Road Train Member

    7,764
    6,203
    Feb 4, 2009
    0
    Oil pressure sensor is below the high pressure pump in the block. Maybe there is loose connection.

    jamespmack and B77 Thank this.
  5. Inderjit

    Inderjit Heavy Load Member

    722
    708
    Sep 17, 2017
    0
    The instrument panel gets all the engine data through the j1939 data link. Does the tachometer and the engine temp gauge work?

  6. B77

    B77 Light Load Member

    189
    89
    Dec 16, 2010
    0
  7. Inderjit

    Inderjit Heavy Load Member

    722
    708
    Sep 17, 2017
    0
    Don't run the engine until you know that there is oil pressure.
    Hook up a gauge to it somewhere to check the pressure.

  8. B77

    B77 Light Load Member

    189
    89
    Dec 16, 2010
    0
    Yes no worries

  9. Heavyd

    Heavyd Road Train Member

    7,764
    6,203
    Feb 4, 2009
    0
    Just so you, if the engine cannot make base oil pressure, the high pressure oil pump won't get oil either and it will never run. One good thing about these. No oil pressure, no start.

    jamespmack Thanks this.
  10. B77

    B77 Light Load Member

    189
    89
    Dec 16, 2010
    0
    So do I have to take the front cover to get to that sensor @Heavyd

  11. B77

    B77 Light Load Member

    189
    89
    Dec 16, 2010
    0

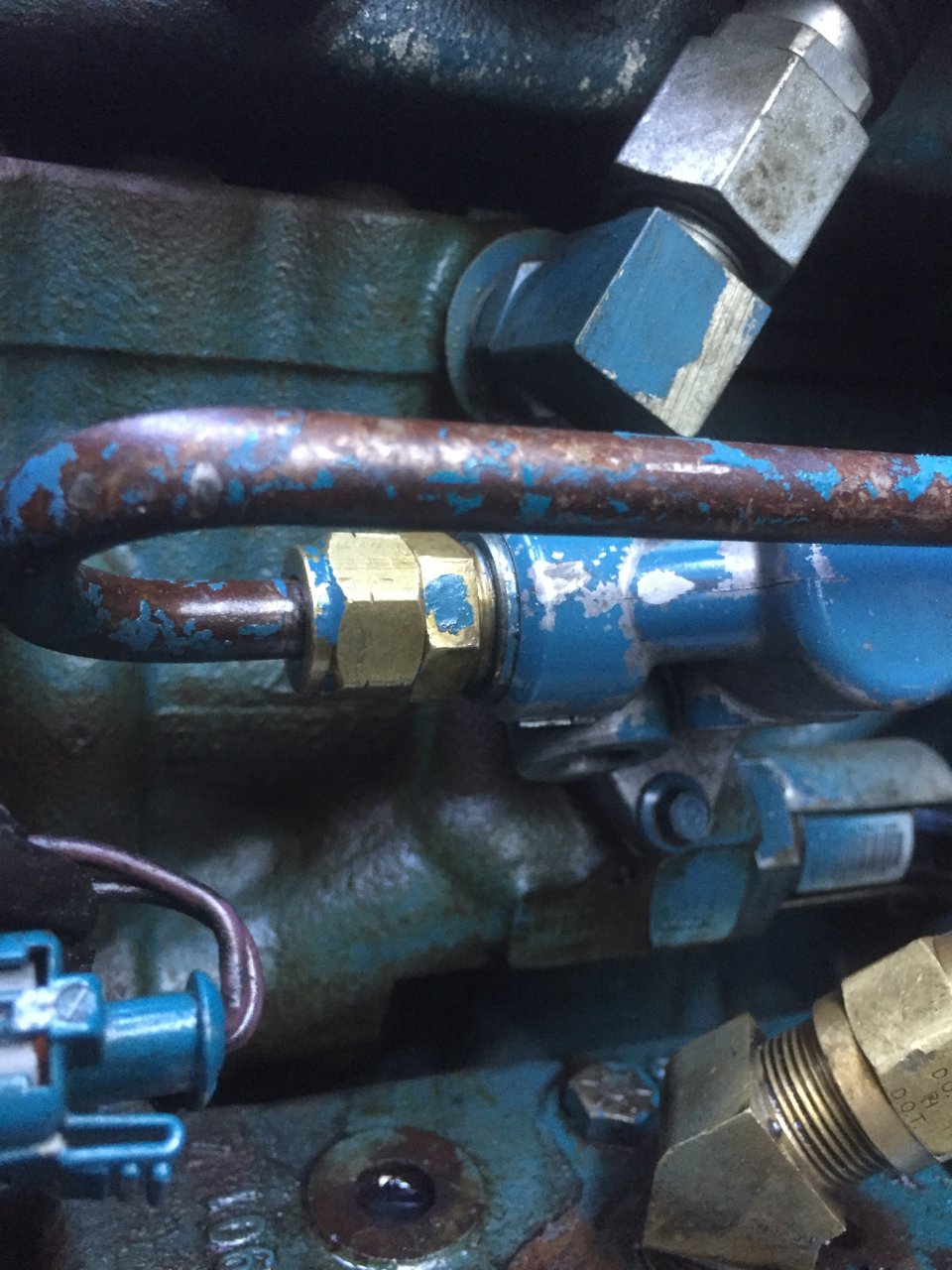

    What’s is the name of see picture Where the lift pump and ipr valve mount on 949FB628-6FF5-4576-8B61-54A309C5FBC4.jpeg
