Eaton 10 speed no lo range leaking air when switch is flipped

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Dorego401, Dec 1, 2021.

  1. Dorego401

    Dorego401 Bobtail Member

    27
    5
    Oct 11, 2020
    0
    Eaton 10 speed leaking air out of solenoid when in lo range . Does not shift . When in high range 6-10 gears work. L shaped solenoid is getting air to but hi/lo ports . What’s next to try ? Pull off top plate ?Any suggestions? TIA

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. bjrc

    bjrc Light Load Member

    74
    83
    Sep 14, 2018
    0
    On an eaton 10 speed you have an air pressure regulator and a slave valve, never heard of a solenoid. I would start with finding and repairing the air leak and go from there, no need to disassemble the transmission yet.

  4. AModelCat

    AModelCat Road Train Member

    23,280
    112,384
    Jul 7, 2015
    Canuckistan
    0
    Wonder if the range piston is leaking internally? Backfeeding air back to the valve in the shift knob? 10 speed is rare around here so not much experience with them

  5. BoxCarKidd

    BoxCarKidd Road Train Member

    3,605
    5,020
    Aug 26, 2014
    0
    Different 10 speeds. Can you shoot a picture of this solenoid leaking air?

  6. Dorego401

    Dorego401 Bobtail Member

    27
    5
    Oct 11, 2020
    0


    Attached Files:

    BoxCarKidd Thanks this.
  7. Dorego401

    Dorego401 Bobtail Member

    27
    5
    Oct 11, 2020
    0

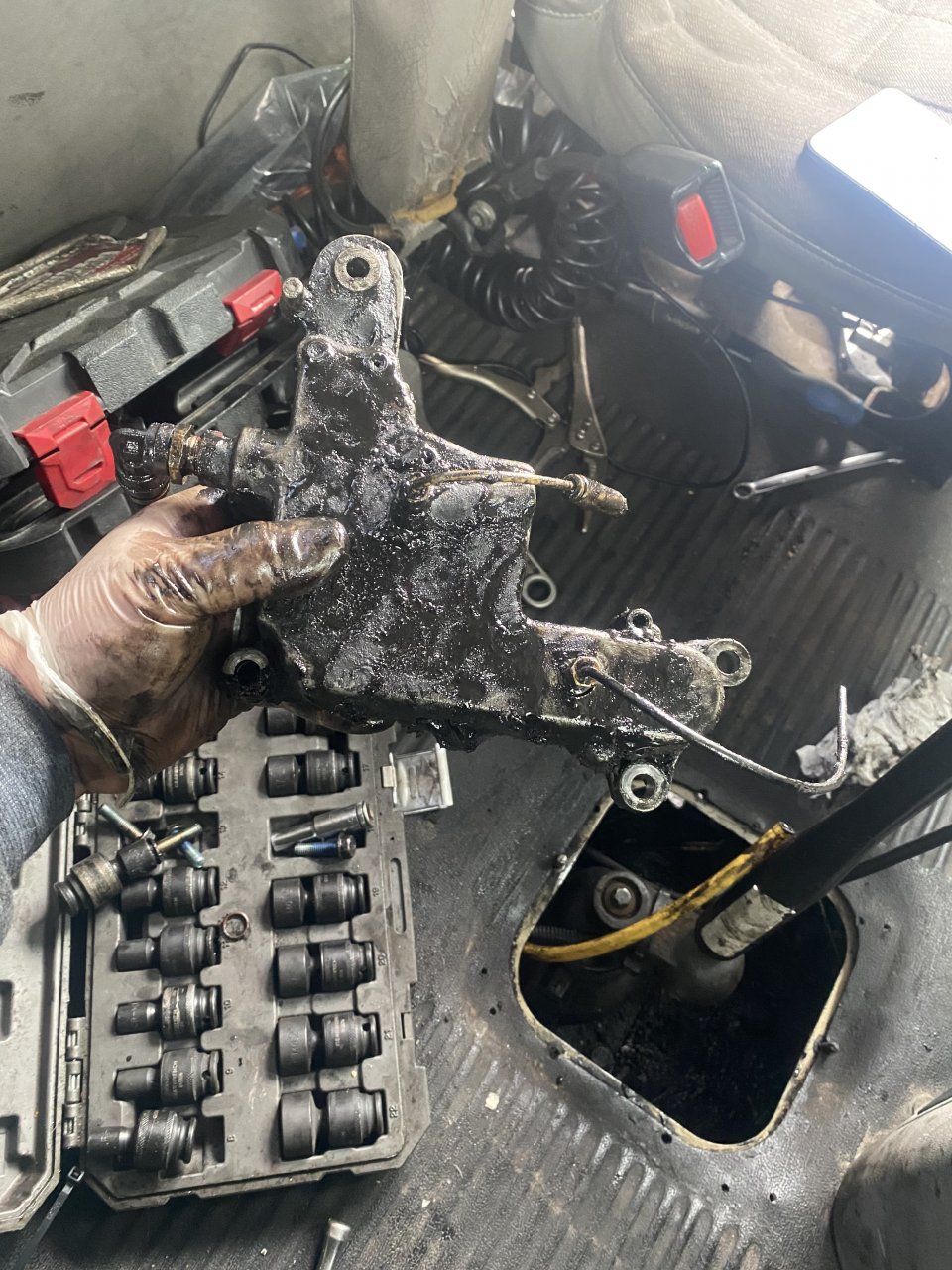

    it’s leaking in lo out of the bottom of the l shaped solenoid . Almost like back pressure .I’m assuming that there is dirt/rust built up around the piston. Wonder if I can spray something in the 2 small holes that go down to the piston

  8. BoxCarKidd

    BoxCarKidd Road Train Member

    3,605
    5,020
    Aug 26, 2014
    0
    Thanks: Now we all know what you are taking about. Some others can probably help more than me as I am a bit out of touch with those lately.
    That is a valve. It has a lever out the bottom of it into the transmission. Its job is to not allow the range valve to shift unless the transmission is in neutral.
    The range valve is on the top right rear of the transmission. I am thanking there is a shuttle valve on it and only one small line goes from this valve to the to the range valve. I would need another picture to possibly answer.
    I am thanking the valve in your hand is bad. Hopefully someone else will chime in with a way to test that instead of swapping parts.

  9. Dorego401

    Dorego401 Bobtail Member

    27
    5
    Oct 11, 2020
    0

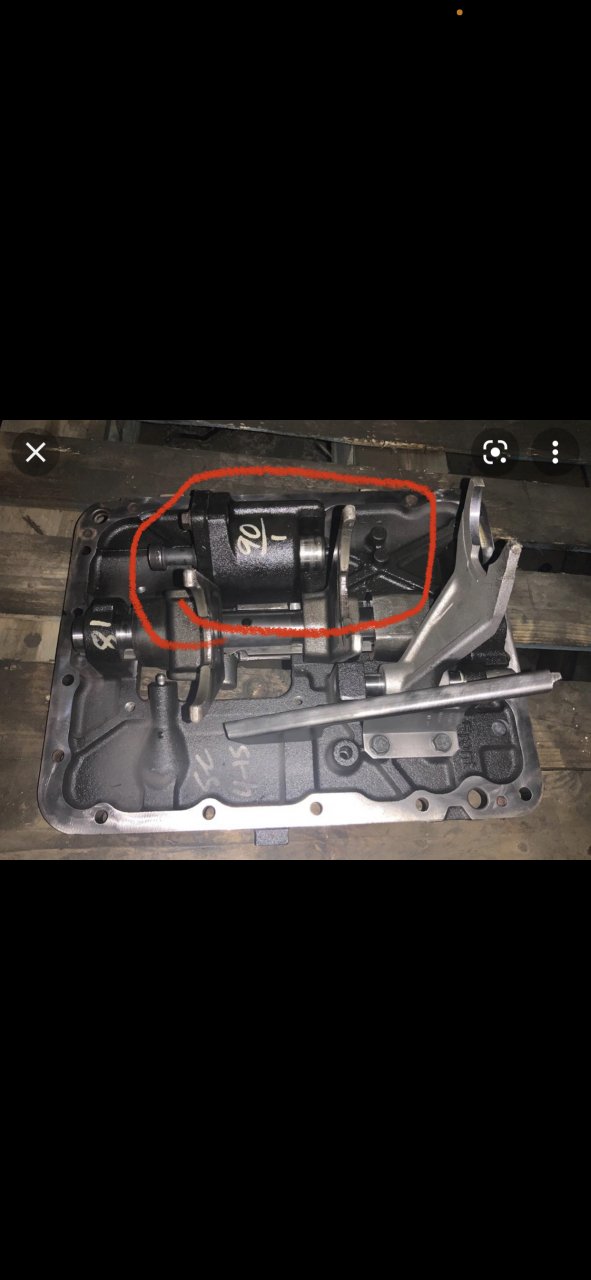

    7A8D32BE-0659-4507-A6A0-BA603DF878EB.jpeg View attachment 391891 I was told by mechanic that piston in transmission is bad (circled see picture). I just bought a new valve but the one in my hand seems to be working fine . I’m starting to think I might have to rip out top plate of transmission

    BoxCarKidd Thanks this.
  10. bjrc

    bjrc Light Load Member

    74
    83
    Sep 14, 2018
    0
    Eaton website has info on a lot of there stuff for free. Put in the trans model number and should have an air troubleshooting tree for your transmission. If that piston is leaking probably just an o ring bad.

    BoxCarKidd Thanks this.
  11. God prefers Diesels

    God prefers Diesels Road Train Member

    2,730
    12,510
    Jun 26, 2020
    South Texas
    0
    When you get it fixed, will you please come back here and update?

    BoxCarKidd Thanks this.
