Eaton fuller won’t go into reverse gear after broken reverse light switch

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Dorego401, Feb 28, 2021.

  1. Dorego401

    Dorego401 Bobtail Member

    20
    2
    Oct 11, 2020
    0
    FAF85787-6F9B-499E-AC56-D0D40C8C5A93.jpeg 97AF7C57-394B-44E1-A31B-8BDAFAD86BA2.jpeg 42DD858D-1C7F-43CA-B9BE-3E8C4862C318.jpeg

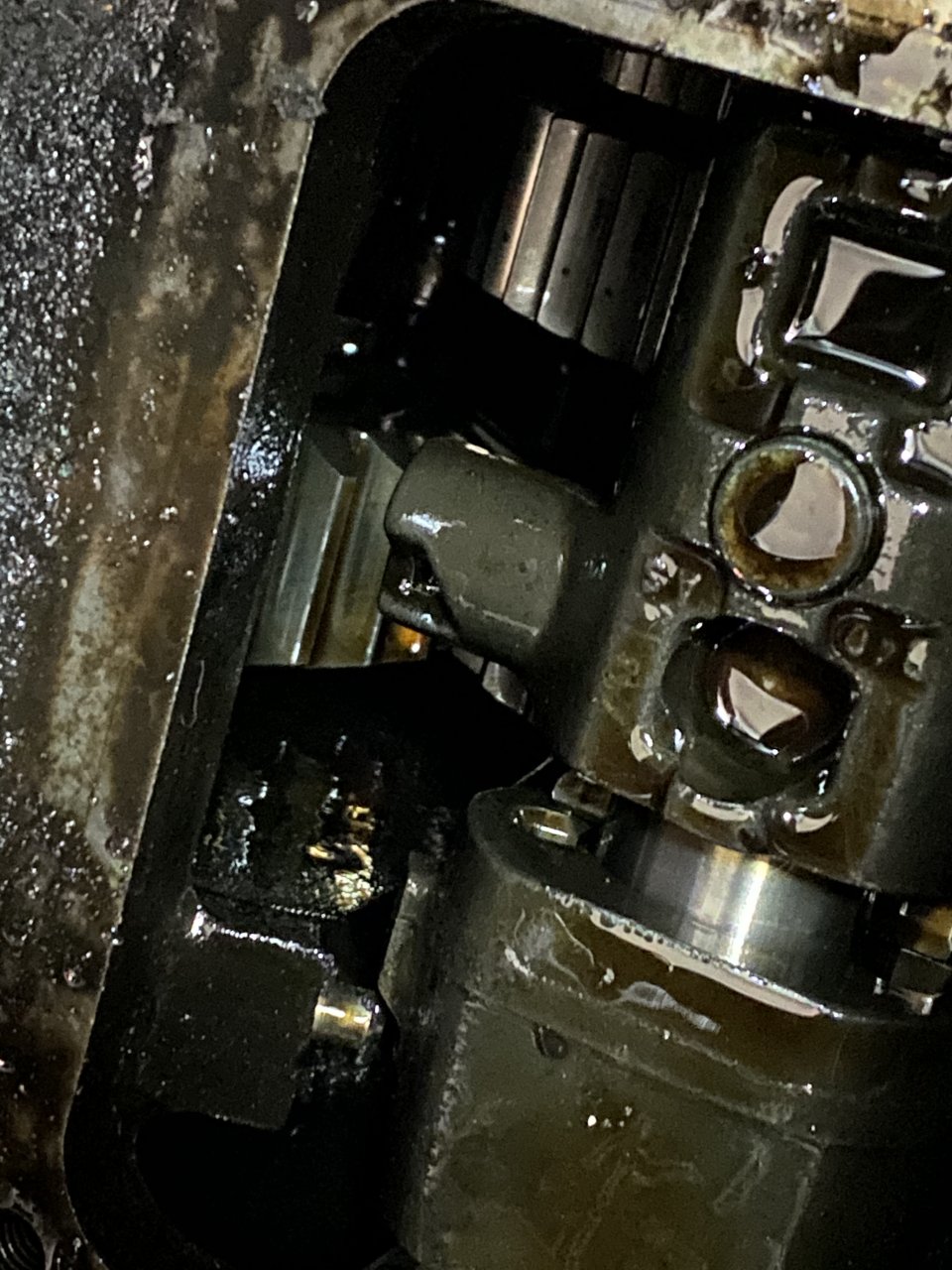

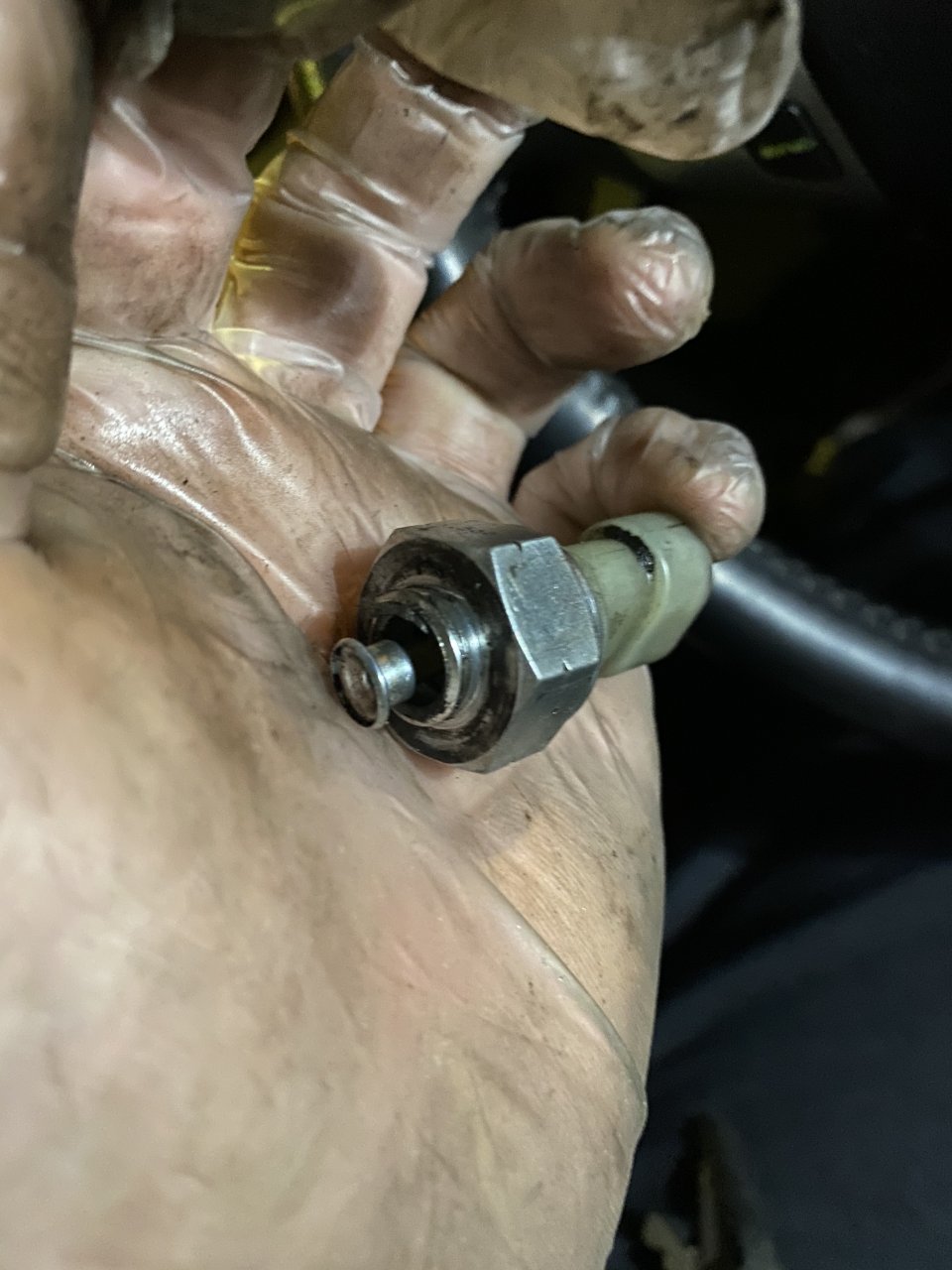

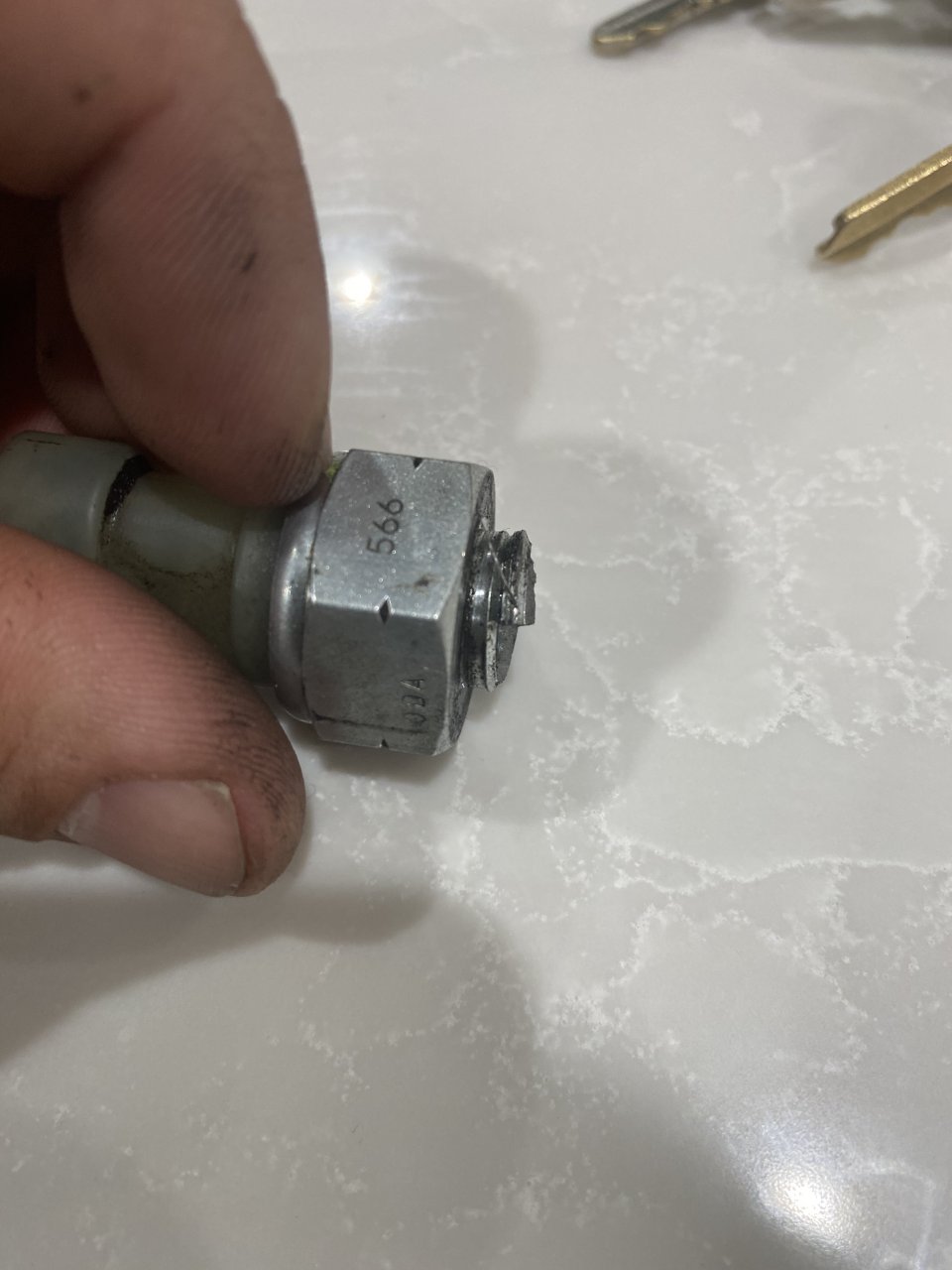

    Long story short - reverse light switch broke inside Eaton 10 speed , went the ez-out route . Now the shift won’t go into reverse gear . I had the easy out on a drill but was not able to remove rest of switch . But inside I think i jammed something . Any suggestions? Thanks In advance

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. baha

    baha Road Train Member

    3,644
    2,196
    Jul 25, 2013
    ga
    0
    Have you got the new switch so you can cy how deep its safe to drill then buy a easy\/out then use a wrench on it to get a good bite with it and it should come out.

  4. Dorego401

    Dorego401 Bobtail Member

    20
    2
    Oct 11, 2020
    0
    That’s what I did but it made matters worse . Now I can’t get it into gear

  5. BoxCarKidd

    BoxCarKidd Road Train Member

    3,269
    4,485
    Aug 26, 2014
    0
    I would have to thank that if people were just driving the truck and not working it something internal would have to have happened in order to break the switch. Possibly the shift fork is bent. That could allow the shift fork shaft to travel further than it should. The reverse switch could cause it to bind because because it exceeds it travel limit in the detent shot.
    Use a bar to shift it with the tower off and the switch out. Does the work?

    black_dog106 Thanks this.
  6. Inderjit

    Inderjit Light Load Member

    202
    236
    Sep 17, 2017
    0
    Did you get the ball out of the old switch out of the hole the backup light threads into?

    BoxCarKidd Thanks this.
  7. Dorego401

    Dorego401 Bobtail Member

    20
    2
    Oct 11, 2020
    0
    If your talking about the ball at the end of the the switch. No I haven’t . I don’t know if that’s what’s sticking out or it’s still in there

  8. Inderjit

    Inderjit Light Load Member

    202
    236
    Sep 17, 2017
    0
    I suspect that is your issue. Take the new switch out and see if it will come out with a magnet.

    little cat 500 and BoxCarKidd Thank this.
