Eaton won’t go into reverse after breaking reverse light switch

Discussion in 'Freightliner Forum' started by Dorego401, Feb 28, 2021.

  1. Dorego401

    Dorego401 Bobtail Member

    20
    2
    Oct 11, 2020
    0
    Eaton fuller won’t go into reverse . Long story short , reverse switch broke . Went to try pulling broken switch out with ez-out, now shifter is getting stuck/blocked from going into reverse . Any suggestions

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Dorego401

    Dorego401 Bobtail Member

    20
    2
    Oct 11, 2020
    0
  4. rolls canardly

    rolls canardly Road Train Member

    1,303
    2,248
    Feb 7, 2009
    mt. pocono. pa.
    0
    Some switches have a spring and a ball bearing swaged into the end.
    Look at piece that you pulled out w/easy out.
    Is there anything in it?
    Sure hope you didn't loose a small spring and a ball bearing in trans.
    Do you have the new replacement part?
    Look on the end and see if there is a ball that would press in and activate the electrical switch.
    You may have to get a strong magnet and go fishing it the oil.
    Go in between where trans would move - to go into reverse.
    Jiggle the slider to free up anything stuck, with magnet close by.

    Hammer166, Deere hunter and AModelCat Thank this.
  5. SmallPackage

    SmallPackage Road Train Member

    2,470
    6,782
    Dec 20, 2019
    Marion Texas
    0
    Like @rolls canardly said. Sounds like the ball and spring popped lose and lodged somewhere on the rail in there.

    I like the paper clip and coins that fell through the shifter boot slowly being fossilized in the oil. Lol!

  6. AModelCat

    AModelCat Road Train Member

    21,927
    101,242
    Jul 7, 2015
    Canuckistan
    0
    Unfortunately it sounds like the detent/spring from the switch is jammed up in the rail. If you can't get them out somehow (magnet, pick etc) you'll have to pull the shift bar assembly.

    To make matters worse, the transmission might actually have to be dropped as there might not be enough room to get the cover out.

    Deere hunter Thanks this.
  7. rolls canardly

    rolls canardly Road Train Member

    1,303
    2,248
    Feb 7, 2009
    mt. pocono. pa.
    0
    That was the obvious answer, but not the only/or correct answer.

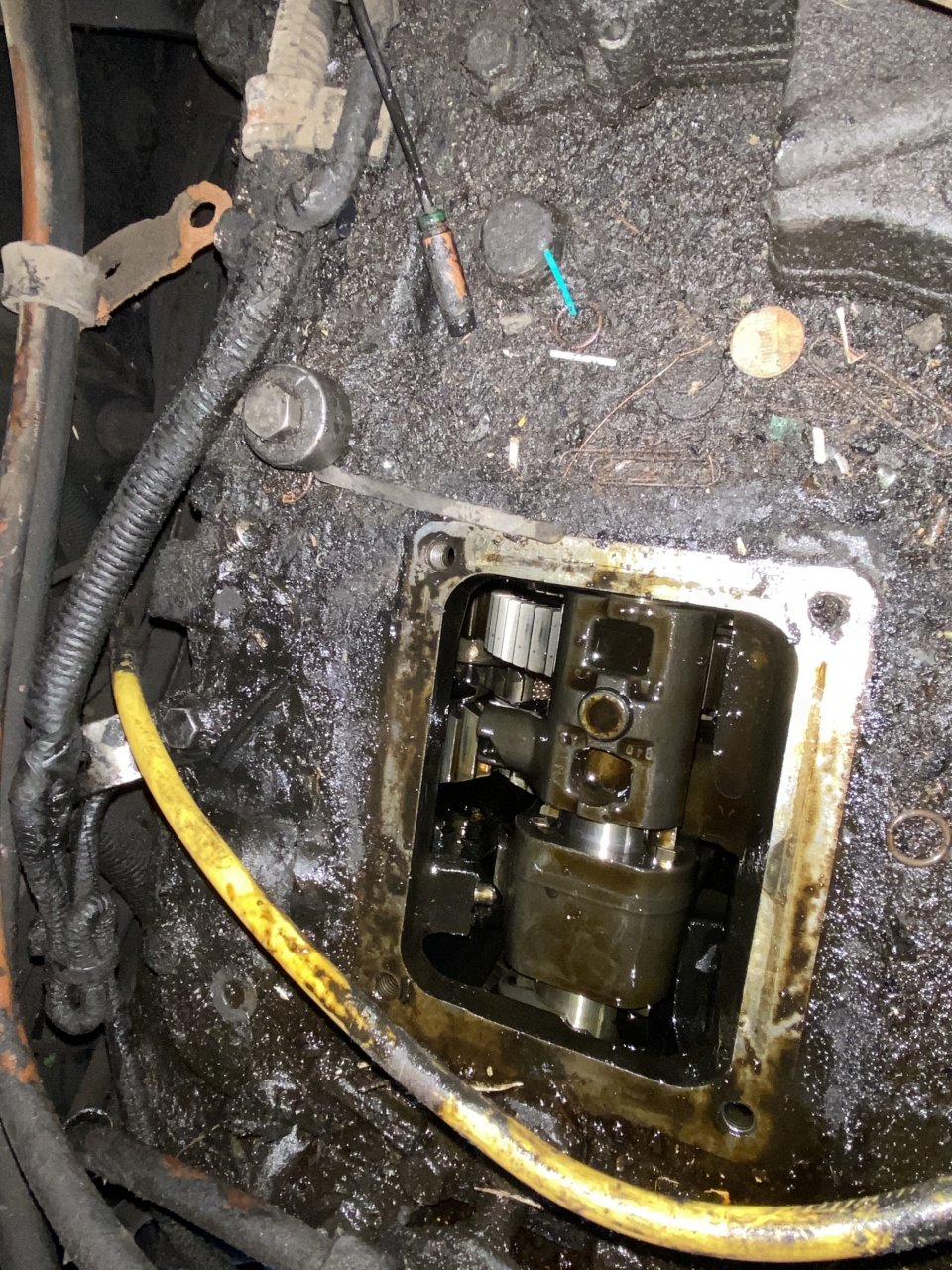

    You took good pix; looks like U took top cover off.
    Drain the oil w/plug on bottom.
    Get a can or 2 of brake kleen, and wash down all the slime,
    put the 6" straw snozzler on can, and pay particular attention to areas
    where gear contacts gear. move assy. with a big screwdriver to see
    areas you cannot see. Don't spray the oil off any visible bearings.
    Refer to your "before" pix, to get everything back in position,
    and jiggle everything around, to get the lid back on it. Don't force it.
    After you find your issue, fill with fresh oil.
    Spray sealant on gasket before U drop top back on.

    HoneyBadger67 Thanks this.
  8. Dorego401

    Dorego401 Bobtail Member

    20
    2
    Oct 11, 2020
    0
    109F81B7-906E-4F06-B055-28D67D532091.jpeg D57E6C53-D473-47BC-AD82-E4E290060A90.jpeg

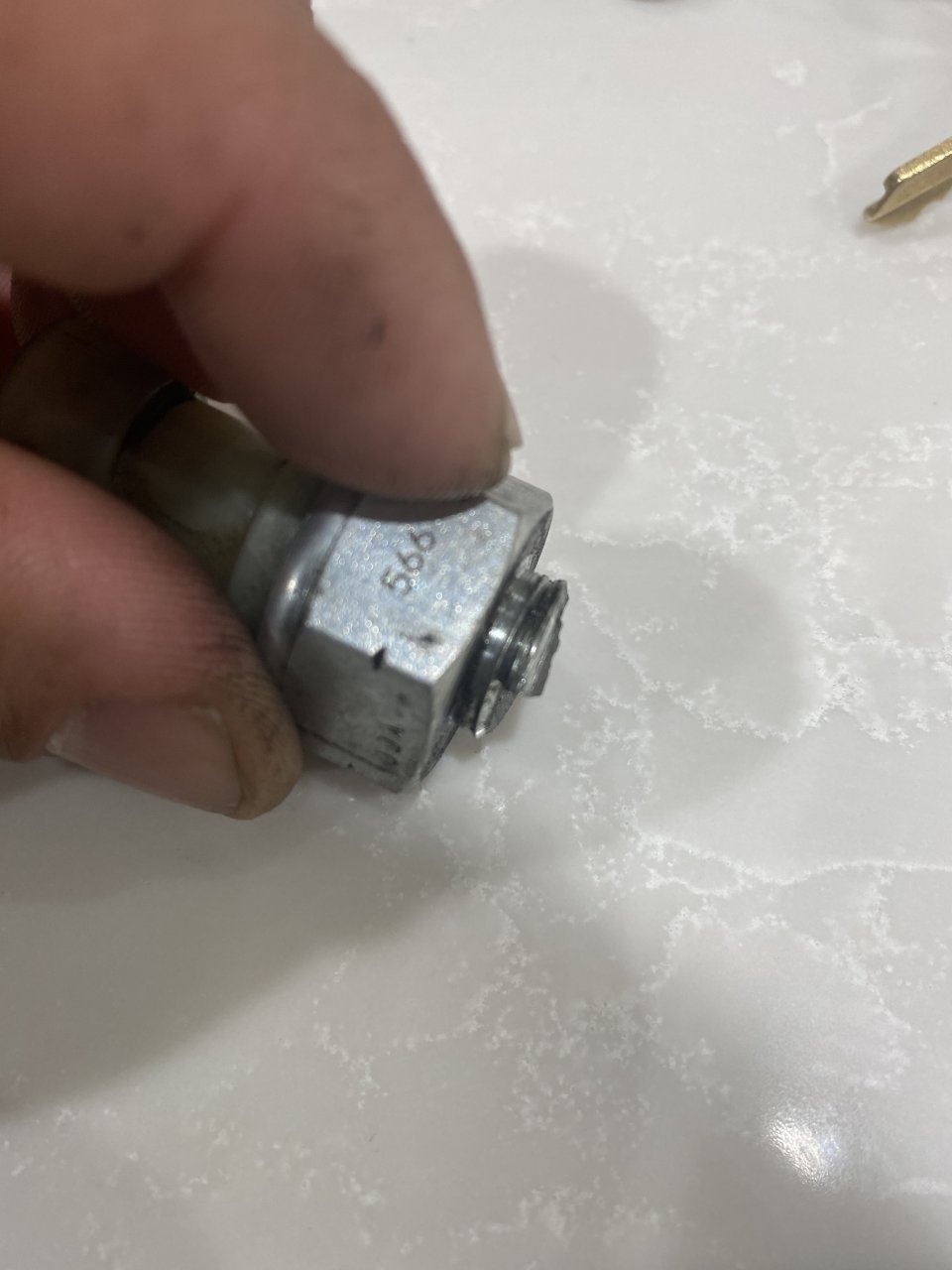

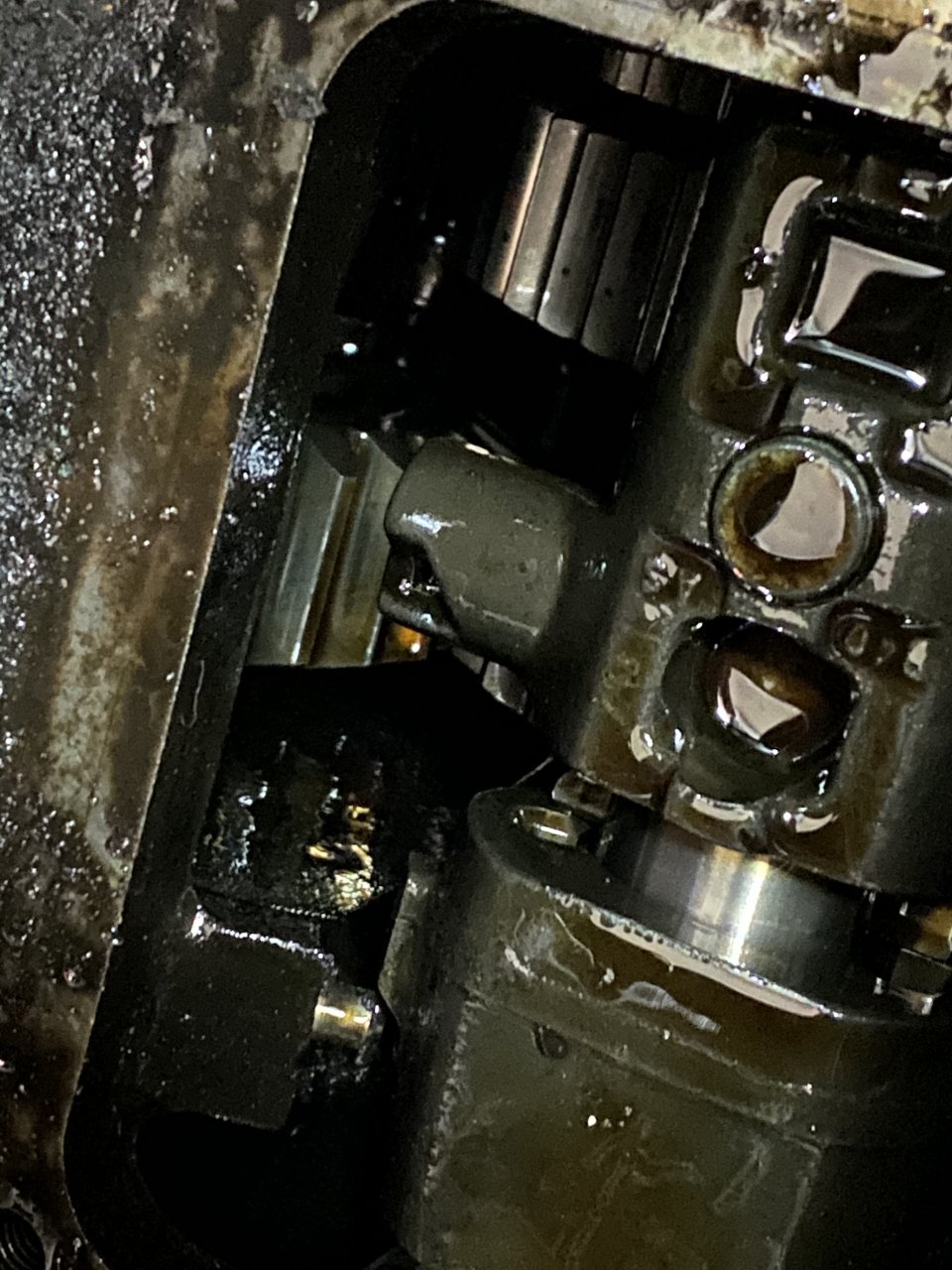

    Guys so I posted the pictures on the 2nd post . The interior parts of the switch (spring and stem) (see pic below) I got out. I believe nothing has fallen in the transmission! I was not able to get the rest of the thread of the switch out so it’s still in place ! I’m assuming when I put it in reverse it’s getting blocked by this (see pic below) should I just pry this back ? I think it went down because of the easy out

  9. rolls canardly

    rolls canardly Road Train Member

    1,303
    2,248
    Feb 7, 2009
    mt. pocono. pa.
    0
    So.... the threaded portion of the switch is still in the housing?
    And you were able to recover the inside parts? Good.
    Spray it with spray oil so it goes in around the threads.
    Maybe some will go in, but it's probably tapered pipe thread.

    You will need a set of easy outs, so there are a range of diameters.
    When you put your brand new easy out, (that you are going to buy,)
    so it has sharp new cutting edges, insert it into this broken piece
    so that it rests about halfway up the spiral. Don't turn it.
    Take a hammer and drive it into the metal like a nail; that hard.
    If there are obstructions, take a bar, set it on end, as close to centered as you can, and hit the other end of bar.
    Don't get crazy and break it off in there. Firm, not crazy hard hits.
    Get the easy-out seated in the threaded piece.
    Object is to get it in - so it can't turn without removing threaded item.
    Take a large tap handle or 12" adjustable and try to turn it.

  10. rolls canardly

    rolls canardly Road Train Member

    1,303
    2,248
    Feb 7, 2009
    mt. pocono. pa.
    0
    Re- read what you said;
    Yes; try to pry it - to confirm if it is threaded.
    If it is, follow above.

  11. Dorego401

    Dorego401 Bobtail Member

    20
    2
    Oct 11, 2020
    0
    Is the piece I circled part of the switch or the transmission. This is what I’m trying to figure out . Any help would be appreciated
