Extendable Gap on RGN

Discussion in 'Heavy Haul Trucking Forum' started by cgilliland, Dec 9, 2020.

  1. cgilliland

    cgilliland Light Load Member

    179
    378
    Mar 13, 2017
    0
    If you have a drive on load that requires you to extend, how do you bridge the extension gap? i thought of putting part of it up on the rear boggie while i pulled it apart but i don't think that'll work!

    lots of loads seems to me are a little longer than 29


    unrelated question, how do you attach straps on a lowboy? do you use hand winchs and straps with chain ends?

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Biomagnum

    Biomagnum Light Load Member

    67
    134
    Jun 7, 2013
    0
    We had a sliding table to bridge the gap. I have also used ramps.
    Straps with chain ends work, we also had clamp on hand winches.

    cgilliland Thanks this.
  4. TripleSix

    TripleSix God of Roads

    15,196
    104,917
    Apr 10, 2009
    Copied in Hell
    0
    You’re talking about if the wheels would hit where there’s only the beam. So far, the only thing that I have had on that was too big to fit on the inside of a 29 ft well, roll on roll off, was a 4 axle rollback and a road grader. I backed the 4 axle on, and using boards as ramps, drove the rear drive onto the back deck section. A road grader will walk up the back easily. If that were not possible, I would do it like the guys who run a beam trailer. Drop the air out of the suspension, use dunnage under the wheels stacked on the ground, use dunnage under the steer axle on the beam, air up the suspension to remove the wheel dunnage. Secure the load.

    Tug Toy, cke, D.Tibbitt and 3 others Thank this.
  5. cgilliland

    cgilliland Light Load Member

    179
    378
    Mar 13, 2017
    0
  6. Landincoldfire

    Landincoldfire Medium Load Member

    581
    2,060
    Sep 27, 2015
    New Holland, Pa
    0

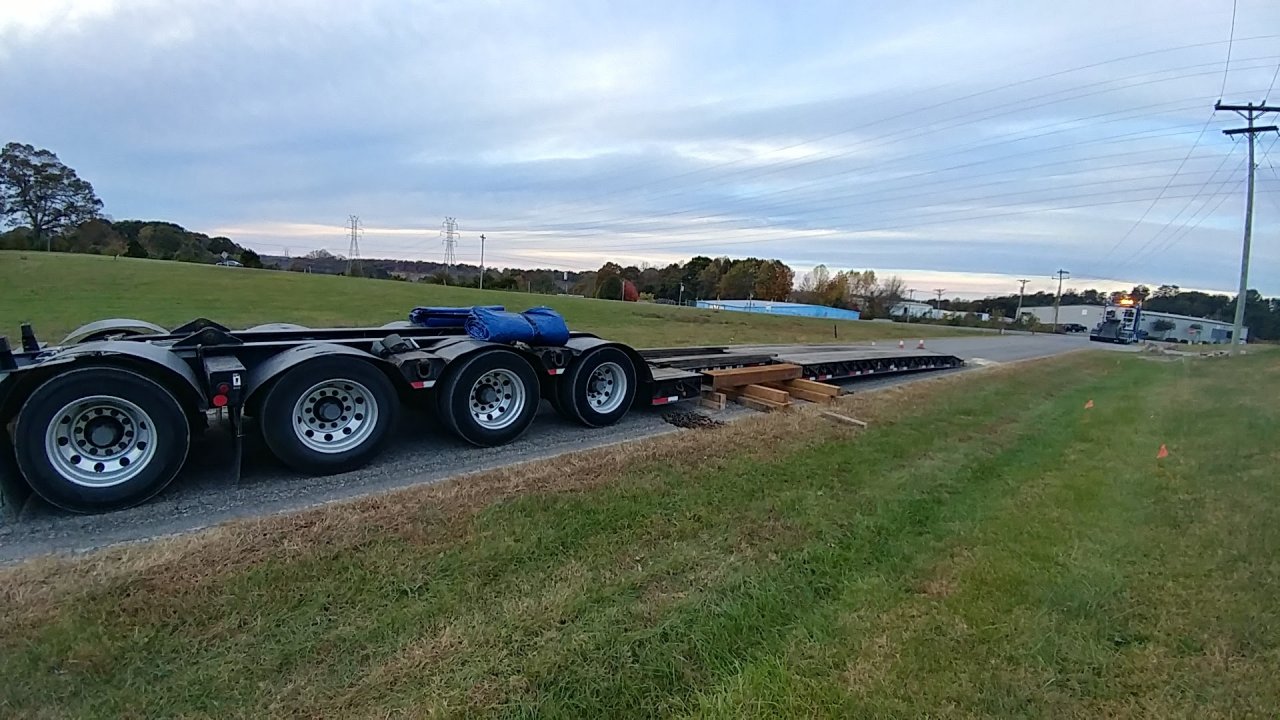

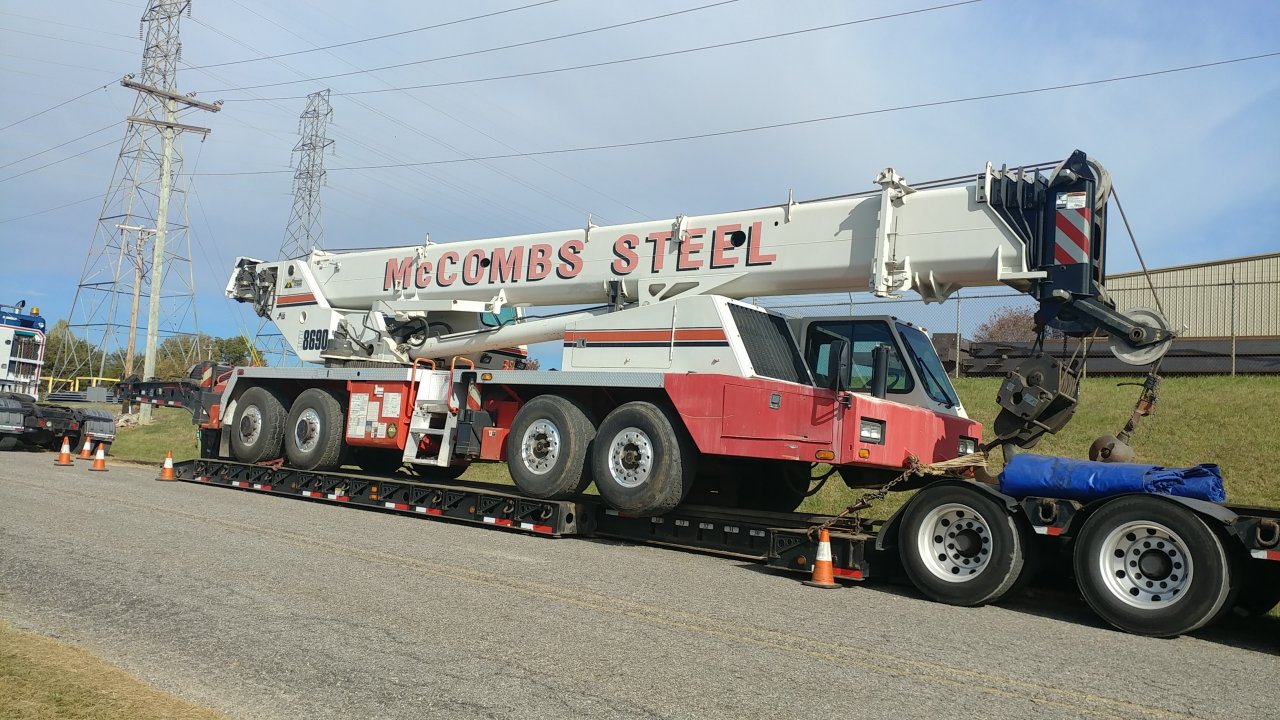

    In the last 4 years I've only had to do it once.

    20161113_132139.jpg 20161111_165711_HDR.jpg

    stwik, kylefitzy, cke and 7 others Thank this.
  7. cgilliland

    cgilliland Light Load Member

    179
    378
    Mar 13, 2017
    0
    Looks good! Thank you! Some serious timbers!

    kylefitzy, Tug Toy, cke and 1 other person Thank this.
  8. Old Man

    Old Man Road Train Member

    4,064
    10,442
    Apr 3, 2009
    Oklahoma City, OK
    0
    Ramps made out of frame rails, or lots of dunnage, or get a rolling bunk, a platform that you put the wheels on and it slides to the back,XL makes one

    cgilliland Thanks this.
  9. cgilliland

    cgilliland Light Load Member

    179
    378
    Mar 13, 2017
    0
  10. cgilliland

    cgilliland Light Load Member

    179
    378
    Mar 13, 2017
    0
    maybe didnt need to on that one huh with that second truck crane steer axle still on the main deck?

  11. Landincoldfire

    Landincoldfire Medium Load Member

    581
    2,060
    Sep 27, 2015
    New Holland, Pa
    0
    Chained the axle up so it wouldn't sag.

    TripleSix, cke and cgilliland Thank this.
