Fan clutch problem

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Adamali21, Sep 19, 2020.

  1. Adamali21

    Adamali21 Light Load Member

    139
    63
    Jul 24, 2018
    0
    So earlier today opened the hood to check that fan clutch issue I was having. So I touched the wires on top for the ac compressor, the fan suddenly turn on and stayed on, turned off the truck hoping it will turn off that didn’t work, turned the key to the on position only noticed on the dash the fan light is on, anyways I just shut my truck off and went to sleep. Once I woke up I turned the truck on at idle the fan will kick on and off, once I started driving the fan stayed on, got to highway speed it started kick on and then kick off for like 5 seconds then kick back on again. Then after 20 miles it kicked off on for like 30 miles but whenever there is a uphill or if I throttle it hard the fan kicks on, so right now the fan is off but whenever a uphill or whenever the truck has to throttle it’s self hard to stay at cruise speed the fan kicks on then turns off after that. Yeah I know kinda confusing and weird. Remember ac is off the whole time, temperature is at 180. Does anyone experienced this before and where should I look

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. xsetra

    xsetra Road Train Member

    3,878
    3,992
    Aug 21, 2011
    0
    Could be the twist from the torque of the motor, moves a wire or connection just enough to cause a short.

    You mentioned,you turned truck off and the fan stayed on? Or the fan light stays on? Check the connections on your manual fan switch. Could be time for a new one.

  4. Adamali21

    Adamali21 Light Load Member

    139
    63
    Jul 24, 2018
    0
    Once I turned the truck off and then I set the key to the power only position I seen that fan clutch light on that happened only once. Now it’s what’s triggering it while driving,

  5. Razorwyr

    Razorwyr Road Train Member

    2,259
    2,736
    Jul 27, 2010
    Meridian, Mississippi
    0
    What kind of truck/engine?

    Rideandrepair Thanks this.
  6. Adamali21

    Adamali21 Light Load Member

    139
    63
    Jul 24, 2018
    0
  7. lwlevens

    lwlevens Medium Load Member

    540
    304
    Feb 9, 2018
    0
  8. Final Drive

    Final Drive Heavy Load Member

    760
    750
    Jan 21, 2015
    0
    See the new tie-strap

    Rideandrepair Thanks this.
  9. Itsbrokeagain

    Itsbrokeagain Light Load Member

    116
    109
    May 31, 2019
    0
  10. Adamali21

    Adamali21 Light Load Member

    139
    63
    Jul 24, 2018
    0
  11. Adamali21

    Adamali21 Light Load Member

    139
    63
    Jul 24, 2018
    0

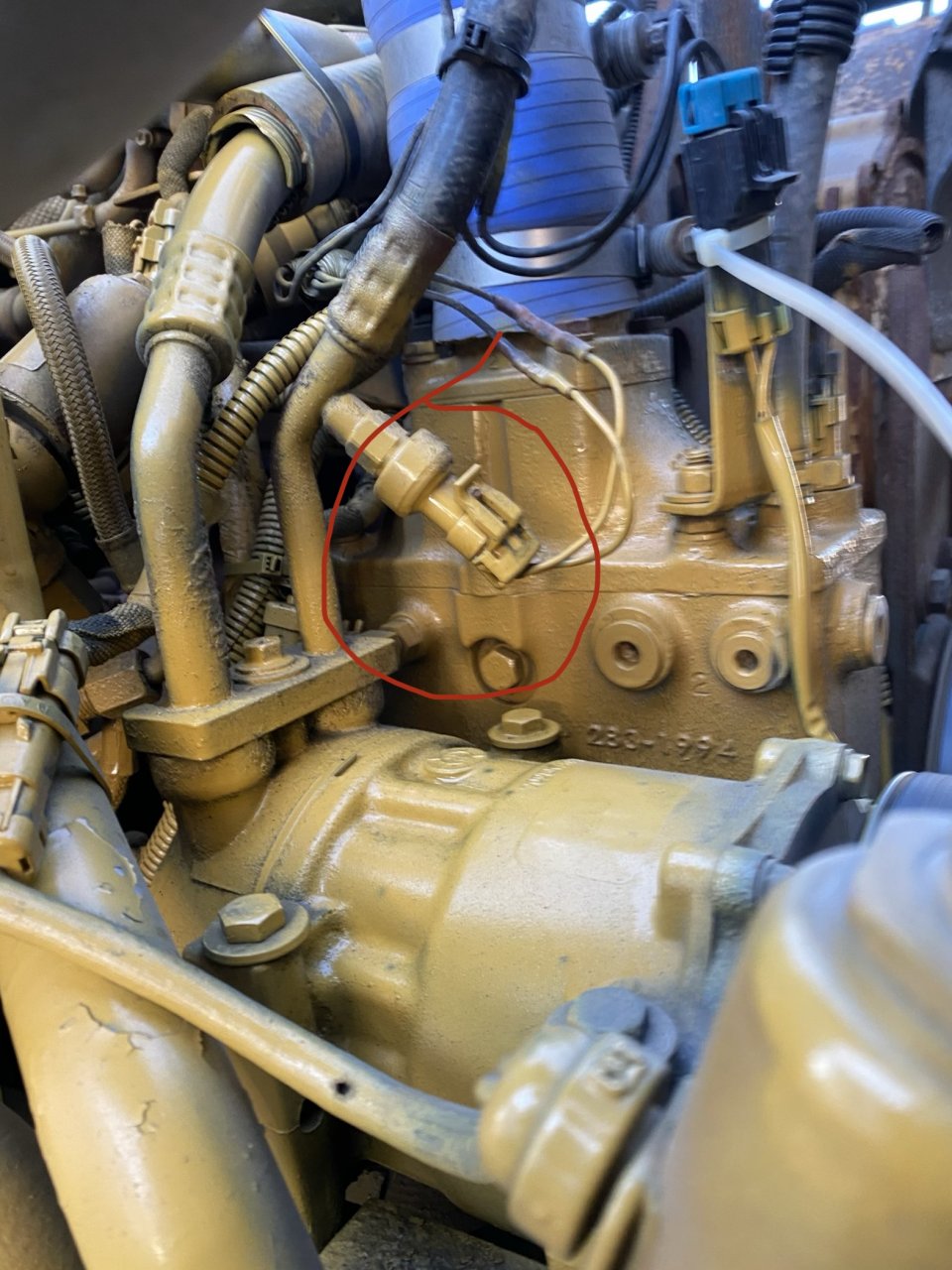

    The new are ties are for the coolant temp but that wasn’t the issue it was, that sensor on the ac compressor hose
