Fault code

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by bthompkins81, Oct 23, 2019.

  1. bthompkins81

    bthompkins81 Bobtail Member

    Joined:
    Oct 23, 2019
    Messages:
    2
    Thanks Received:
    2
    0
    I have a 17 Freightliner Cascadia and just got a fault code spn 3223 fmi 7. Does anyone know what this is?

    bthompkins81, Oct 23, 2019
    #1
  2. Mike250rs

    Mike250rs Heavy Load Member

    Joined:
    Sep 24, 2019
    Messages:
    881
    Thanks Received:
    7,080
    Location:
    Raleigh, NC
    0
    Raw Nox sensor


    Attached Files:

    Mike250rs, Oct 23, 2019
    #2
    MohawkMel and PE_T Thank this.
  3. PE_T

    PE_T Road Train Member

    Joined:
    Jul 12, 2017
    Messages:
    3,412
    Thanks Received:
    3,788
    Location:
    Texas (trucking since 02/2013)
    0

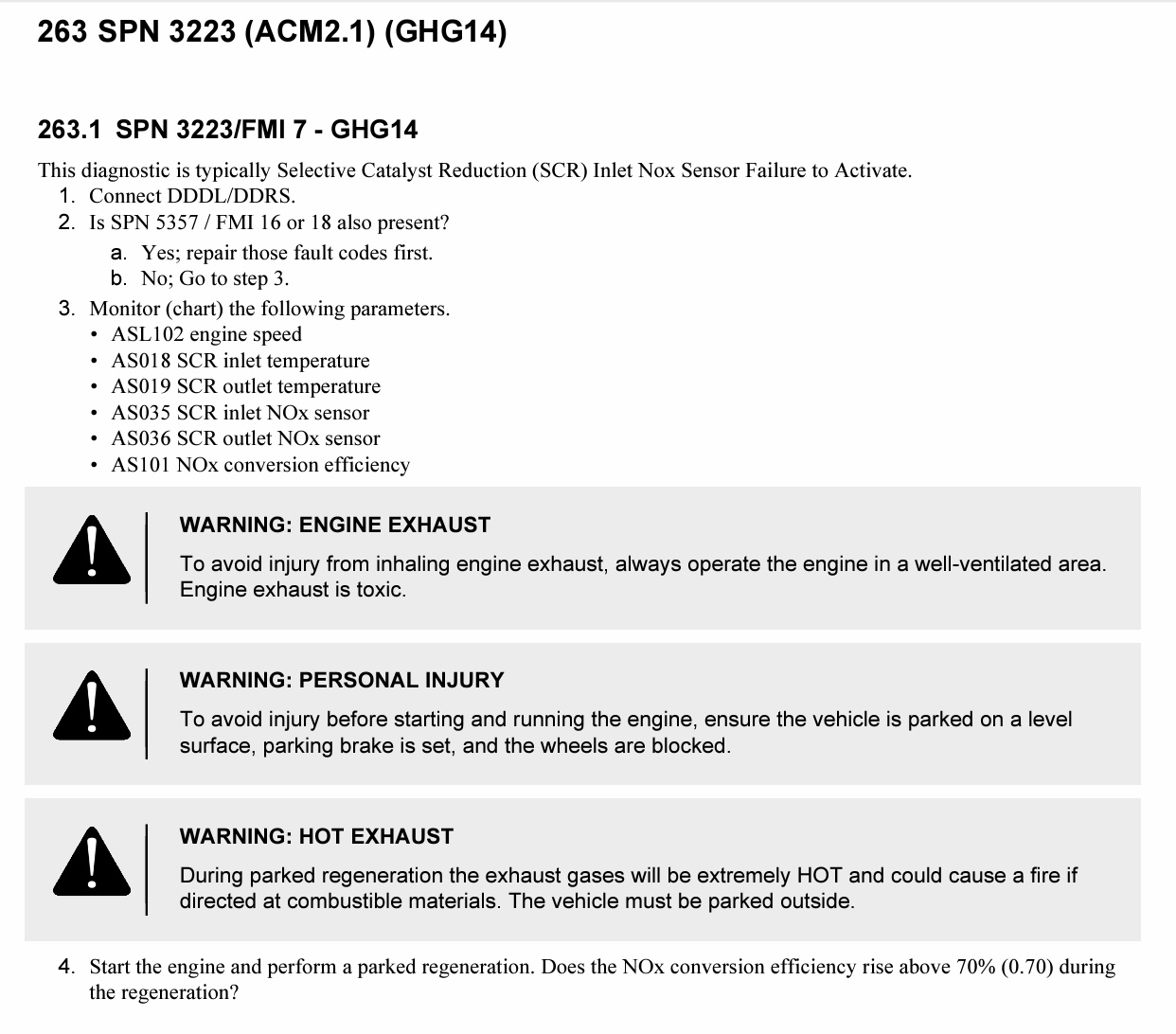

    Images below.


    Attached Files:

    PE_T, Oct 24, 2019
    #3
  4. Detriotpowerdd13

    Detriotpowerdd13 Bobtail Member

    Joined:
    Dec 20, 2019
    Messages:
    1
    Thanks Received:
    1
    0
    Hey having same issue how did you fix it what was it thank you

    Detriotpowerdd13, Dec 20, 2019
    #4
    feldsforever Thanks this.
  5. Biloxicoast2010

    Biloxicoast2010 Bobtail Member

    Joined:
    Apr 12, 2018
    Messages:
    3
    Thanks Received:
    0
    0
    Figure your out?

    Biloxicoast2010, May 4, 2020
    #5
  6. bthompkins81

    bthompkins81 Bobtail Member

    Joined:
    Oct 23, 2019
    Messages:
    2
    Thanks Received:
    2
    0
    Had to replace Inlet Nox sensor and then the outlet Nox sensor a week later

    bthompkins81, May 4, 2020
    #7
    feldsforever and PE_T Thank this.
