I did an oil change on my 14 liter today and when I pulled the filters I decided to check the inserts.
To my surprise I was able to back them out by hand and they were only holding by about two threads.

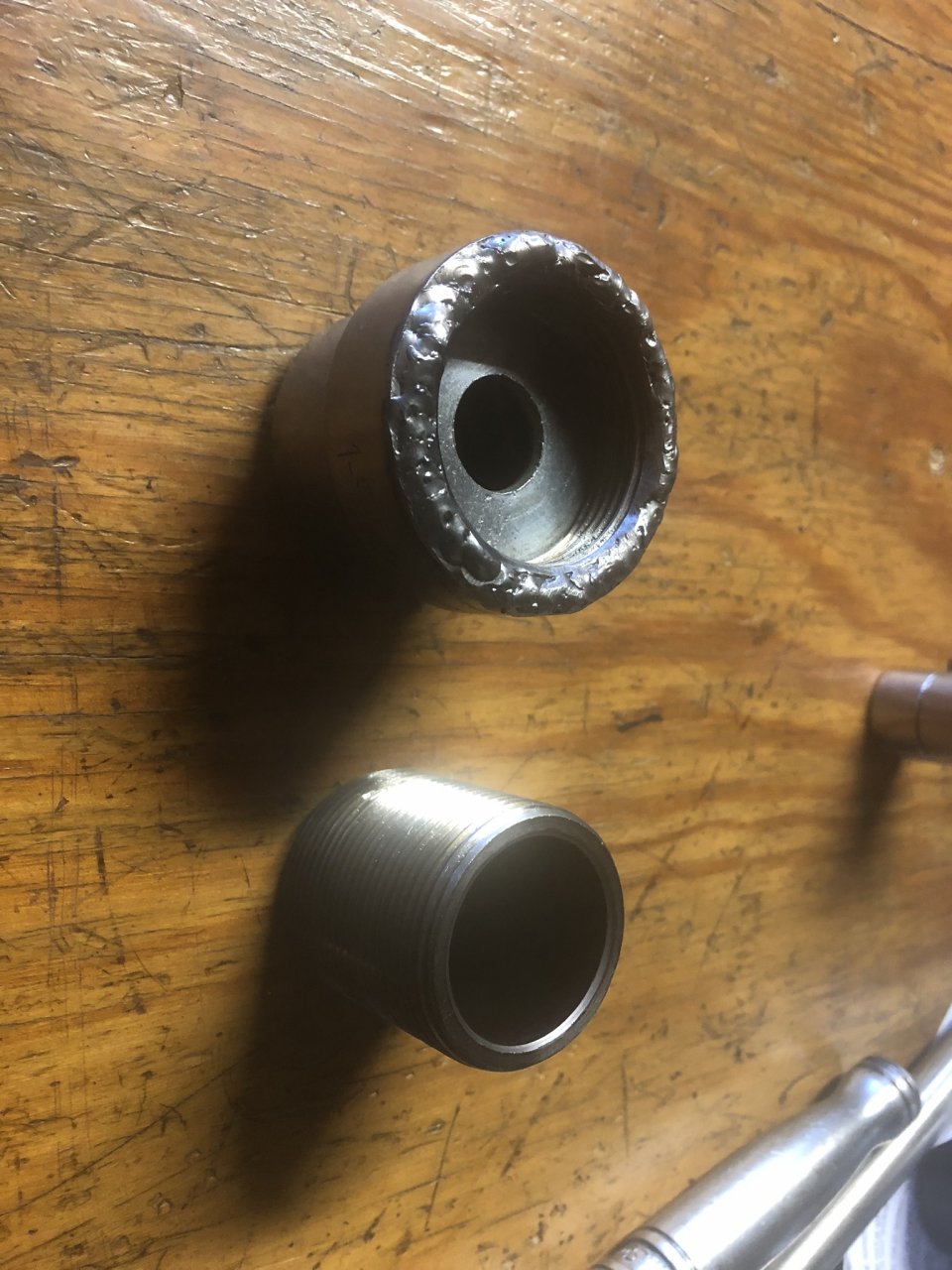

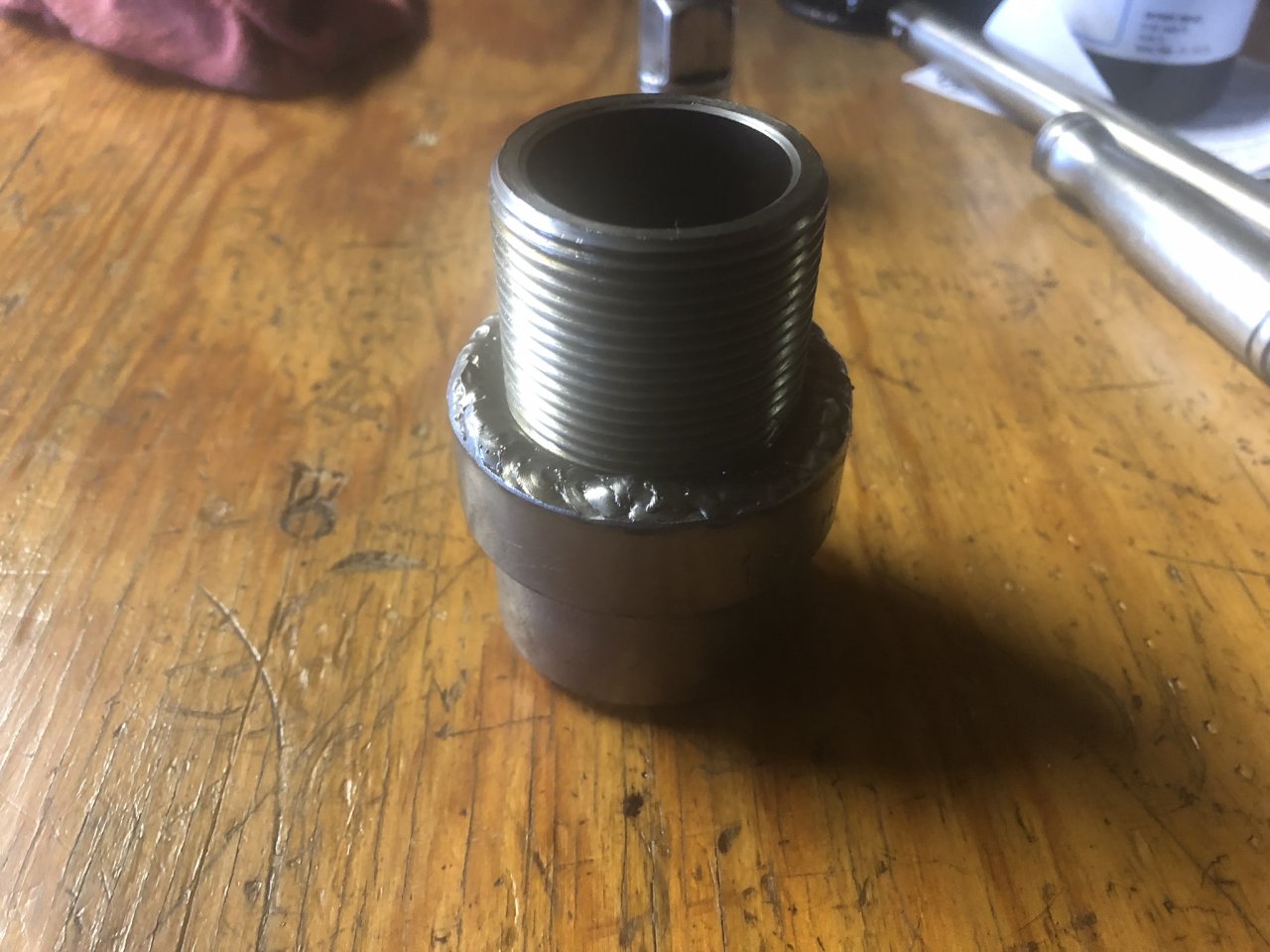

I went to my tool box and grabbed the insert installation tool I made this past February and I’m happy to say it worked perfectly sinking those inserts deep in to the housing and nice and tight.
I’m thankful I looked at them and believe I was headed for certain disaster shortly if I hadn’t taken the time to check them out.
I will now put the tool on them at every oil change as part of my service program and recommend that others do the same when servicing these Detroits to avoid a disaster of an oil filter falling off.
Finally got to try my Detroit oil filter nipple installation tool
Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Hulld, Apr 16, 2019.
Page 1 of 2
-
D.Tibbitt, singlescrewshaker, tucker and 4 others Thank this.
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
Why not put some Loctite on it and forget it?
-
But loctite doesn’t hold up the best in a heat/ oil situation and you actually put a little heat to it if you want to take apart a fastener that it has been used on.
Also I don’t like the thought of a piece of if breaking off and going thru my oiling system.D.Tibbitt and singlescrewshaker Thank this. -
There are some products better than Loctite such as this
https://www.amazon.com/Vibra-TITE-1...ZZAZ3HEZQ6R&psc=1&refRID=FM50Z9NGTZZAZ3HEZQ6R
I have 3 different kinds in my tool box. -
But I’m just not comfortable using it inside an engine oiling system.
Besides if you lock them down with the tool and check them when doing an oil change they will always be tight.
They don’t loosen out of the housing when the oil filter is tight they back out when you remove the oil filter.
If you do four or five oil changes without making sure they are seated that’s when it gets critical. -
detroit had a service bulitin on this!
we used red loctite them and forget it!mhyn Thanks this. -
Which detroits are having this problem? I ran a dd3 and a dd4 a lots of miles, serviced them myself and had them serviced on the road, and never heard of oil filter trouble?
-
It’s not a wide spread problem as far as I can tell.
Just something to be mindful of when doing an oil change. -
We had the problem with the years 06 to 07.
Series 60Hulld Thanks this. -
Nevermind, I believe I found it. Didn't realize the actual name was series 60, oil filter nipple tool. $43.50 or so. Thanks again for sharing..Last edited: Apr 17, 2019
Hulld Thanks this.
