Gear Shifter And Shift Pattern Pictures

Discussion in 'Truckers' Photo Shack | Art Gallery' started by MooneyBravo, Jul 15, 2017.

  1. MooneyBravo

    MooneyBravo Heavy Load Member

    843
    1,195
    Feb 20, 2012
    Vermilion, Oh
    0

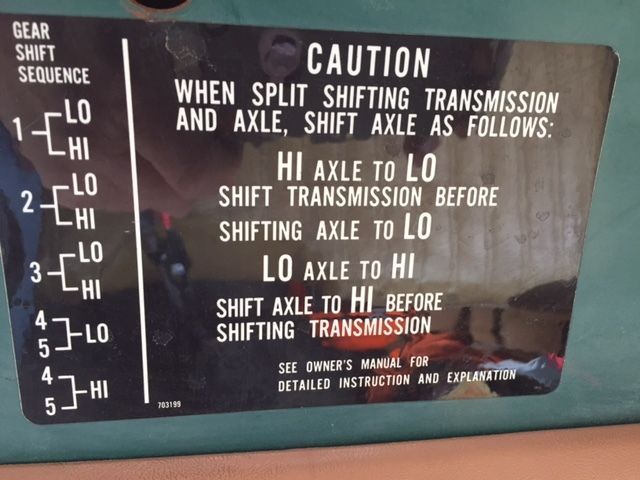

    I drove one of those. I had a lot of trouble with that two-speed axle stuff in the beginning.
    Yeah all two-speed axles had the red button that you pulled up and then pushed back down.
    I don't remember I think the rule of thumb was shift the transmission first and then the axle?
    Was that the rule or was the other way?

    Last edited: Aug 18, 2017
    Tall Mike, dan31186 and G13Tomcat Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. dan31186

    dan31186 Light Load Member

    97
    181
    Jan 30, 2017
    Cincinnati, OH
    0
    Yeah pull the knob from low to high then get off the pedal and it "should" float into high. Then you can pre-select low and it will go into low when you float to the next gear. The truck i was in was a relic and not in very good shape. Sometimes you'd get back on the pedal and the axle would be freewheeling or partially engaged and popping. It happened a lot more after I'd get a bunch of weight off the truck.
    It's funny watching the speedometer jump up and down 15mph when switching between high and low.

    Last edited: Aug 18, 2017
  4. hagarcobra

    hagarcobra Medium Load Member

    334
    747
    May 24, 2013
    0

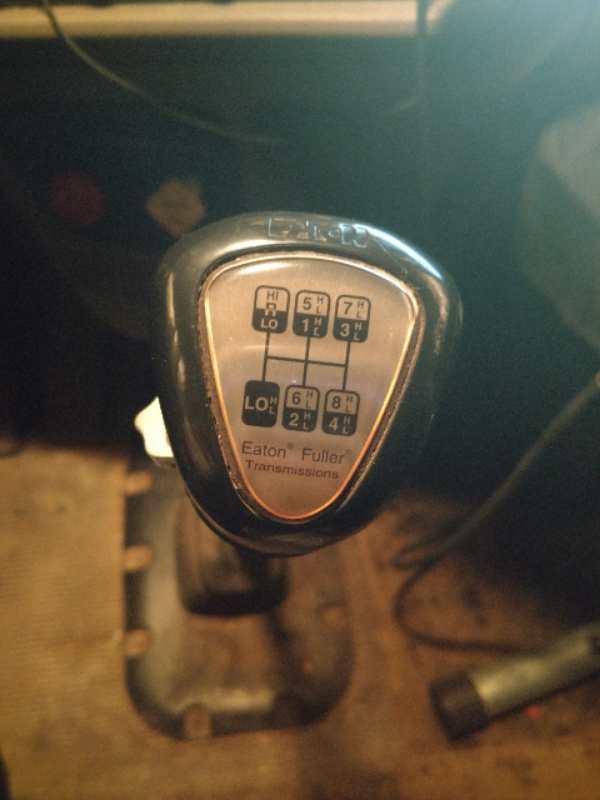

    Here's my IMG_20171017_200242079_480x640_600x800.jpg 18 speed shifter

    Tall Mike, dan31186 and G13Tomcat Thank this.
  5. Tall Mike

    Tall Mike Road Train Member

    7,290
    34,126
    Aug 20, 2014
    New York State
    0
    The new breeders most be looking at this thread and be like WTF ?????? LOL

    I kinda miss reaching thru the steering wheel and shifting twin sticks..
    This guy I drove for had an R model Mack like that.

    MooneyBravo, wore out and LWT104 Thank this.
  6. MACK E-6

    MACK E-6 Moderator Staff Member

    48,293
    221,154
    Sep 19, 2005
    Baltimore, MD
    0
    Never had to reach though the steering wheel to shift one of those.

    I heard talk about it from other guys, and in my usual stubborn bullheadedness I was determined to learn how to handle a 2-stick so as to make that not necessary.

  7. Oldironfan

    Oldironfan Road Train Member

    5,777
    5,541
    May 22, 2017
    0

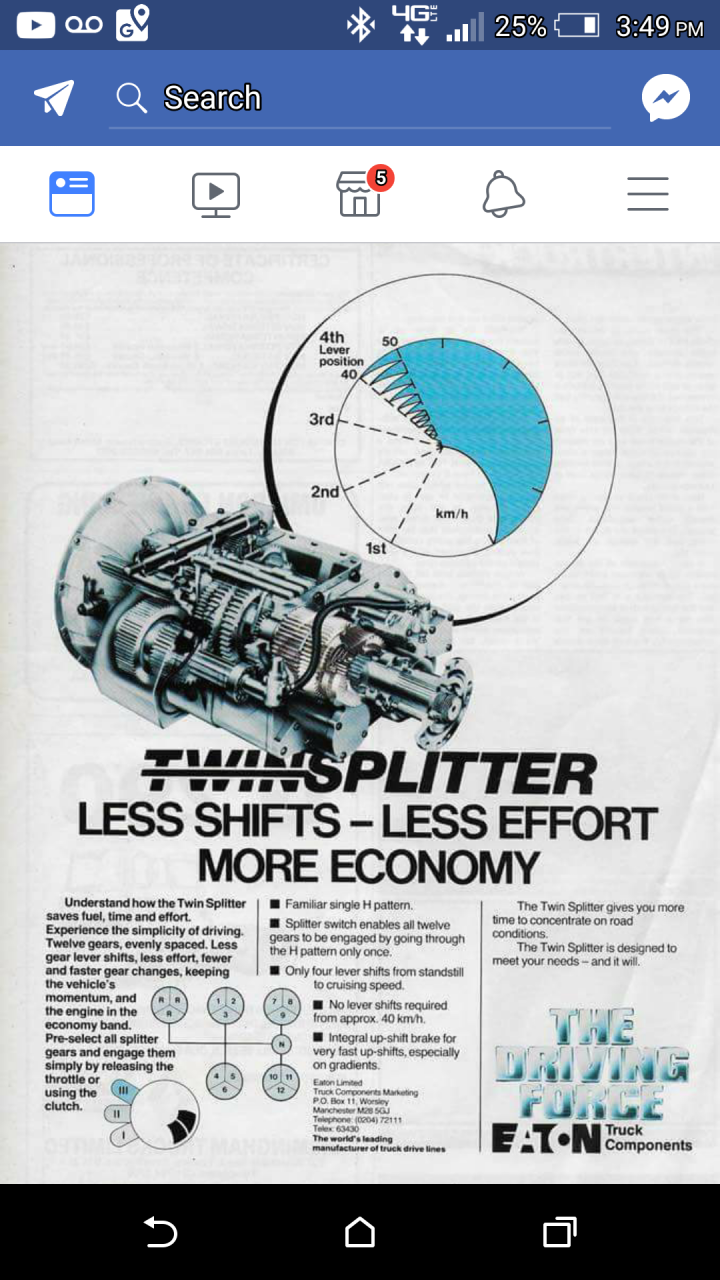

    This looks interesting. From an old thread here. Screenshot_2017-11-19-15-49-00.png

    dan31186 Thanks this.
  8. wore out

    wore out Numbered Classic

    15,574
    188,095
    Jun 5, 2013
    CHASIN THE DEVIL'S HERD
    0
    I have ran old double over 13's with the horseshoe pattern. Currently running a 15 with the horseshoe pattern. Still own a 6x4 Spicer set up. Always start with your left hand.

    Tall Mike Thanks this.
  9. skellr

    skellr Road Train Member

    8,737
    12,184
    Jul 17, 2011
    The Village, Portmeirion
    0
  10. MACK E-6

    MACK E-6 Moderator Staff Member

    48,293
    221,154
    Sep 19, 2005
    Baltimore, MD
    0
  11. Oldironfan

    Oldironfan Road Train Member

    5,777
    5,541
    May 22, 2017
    0
    It's only 6 stick movements for 10 gears.

    skellr Thanks this.
