Getting into heavy / oversized

Discussion in 'Ask An Owner Operator' started by Trucker indiana, May 28, 2020.

  1. Trucker indiana

    Trucker indiana Light Load Member

    62
    39
    Aug 5, 2019
    0
    Hellow everyone,
    I have a small delima I need to sort out. I am looking to spec out a new rig and trailer I'm gonna start with the trailer as I already have a truck that it's paid off. I primarily do Flat bed and I am going to start dabbling in oversized and heavy
    I was thinking a Tri axle step deck would be the best place to start as I can raise one of the axles and basically have a standard step deck.
    I would mainly stick to normal loads but I want the option to do oversized / heavy. Long way around but what trailer is best to be able to do sub 80k loads efficient as possible and have the capability to put 65k on the deck bringing me to about 95(ish)k gross.
    Next question my current truck is 14l Detroit 515hp 1650 torque with direct 10 and 3.55 rear. How heavy can I go on my current rig with out dropping the guts out of it when I try to pull a hill.

    Finally for though how would indulge me. My next rig i would spec to see me pulling more heavy stuff then sub 80k. So what is the key points to keep in mind when specing a truck to do well in normal loads and not die on heavy say sub 100k gross. Not to worried about actually specs on this as its next years problem.

    Finally final, is there a point to sticking sub 100k gross or if I go heave just spec full bore 120k plus just incase a load like that comes around my logic is I will be paying cash this fall for the trailer got about 70k set aside for it. So I do not see a point in specing a truck over what the trailer can haul.
    Long winded I know but thank you all for any advice you can offer.

    singlescrewshaker Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. I glide 47

    I glide 47 Road Train Member

    1,275
    1,267
    Jun 3, 2017
    0
    Are you sure about ten direct and 355. I think it probably a overdrive,!also 1650 little bit low for. Heavy hauling,, best of luck to you in all your adventures keep us posted,

    singlescrewshaker and G13Tomcat Thank this.
  4. Deere hunter

    Deere hunter Heavy Load Member

    978
    2,700
    Aug 5, 2017
    0
    Just my opinion,but I would get triple with dove tail. Better for Oversize Equ such as farm machinery and military.

    singlescrewshaker Thanks this.
  5. Sumtinlidat

    Sumtinlidat Light Load Member

    82
    94
    Dec 17, 2017
    Las Vegas Nevada
    0
    Tri axle Kalyn or tri axle Landoll. I like slide axles for general hauling. Idk where you are and how wide your legal to be. I’m a 10 wide junky myself

  6. singlescrewshaker

    singlescrewshaker Road Train Member

    1,716
    13,031
    Dec 31, 2017
    Palmgetto, FL
    0
    Not saying the triple wouldn't be better, & easier to load. But my spread is good for 90k gross, 80k distributed, 60k in 10'. Not sure on the actual tare weight, but it's about 10,400lbs with 2 60" boxes full of gear, 2 8' drops, & about 500lbs of ramps & stands..

    My old wagon had a dovetail with flip over ramps, & boy did I miss them today. Thought i was going to melt in the Everglades humidity setting up the 6 piece ramp kit for the 2nd time in 3 hours..

    I can load lower ground clearance now with 16' of ramp, vs. about 10' with the dovetail variety. Everything has a tradeoff..


    Deere hunter Thanks this.
  7. ChevyCam

    ChevyCam Light Load Member

    193
    252
    Mar 4, 2018
    0
    Can you share a picture of this setup?

    singlescrewshaker Thanks this.
  8. Deere hunter

    Deere hunter Heavy Load Member

    978
    2,700
    Aug 5, 2017
    0
    The triple will actually save you money on tires when your running on hot pavement and 90k!!

    singlescrewshaker Thanks this.
  9. singlescrewshaker

    singlescrewshaker Road Train Member

    1,716
    13,031
    Dec 31, 2017
    Palmgetto, FL
    0
    I should clarify slightly, LoL. So even know the wagon is good for that weight, I can never get it that heavy running as only a 4 axle rig. :D My tare now is 26,600. I'm thinking same truck as a twin screw would tare about 28klbs, so that would be a great legal payload for a sub 80k lb stepdeck as well.

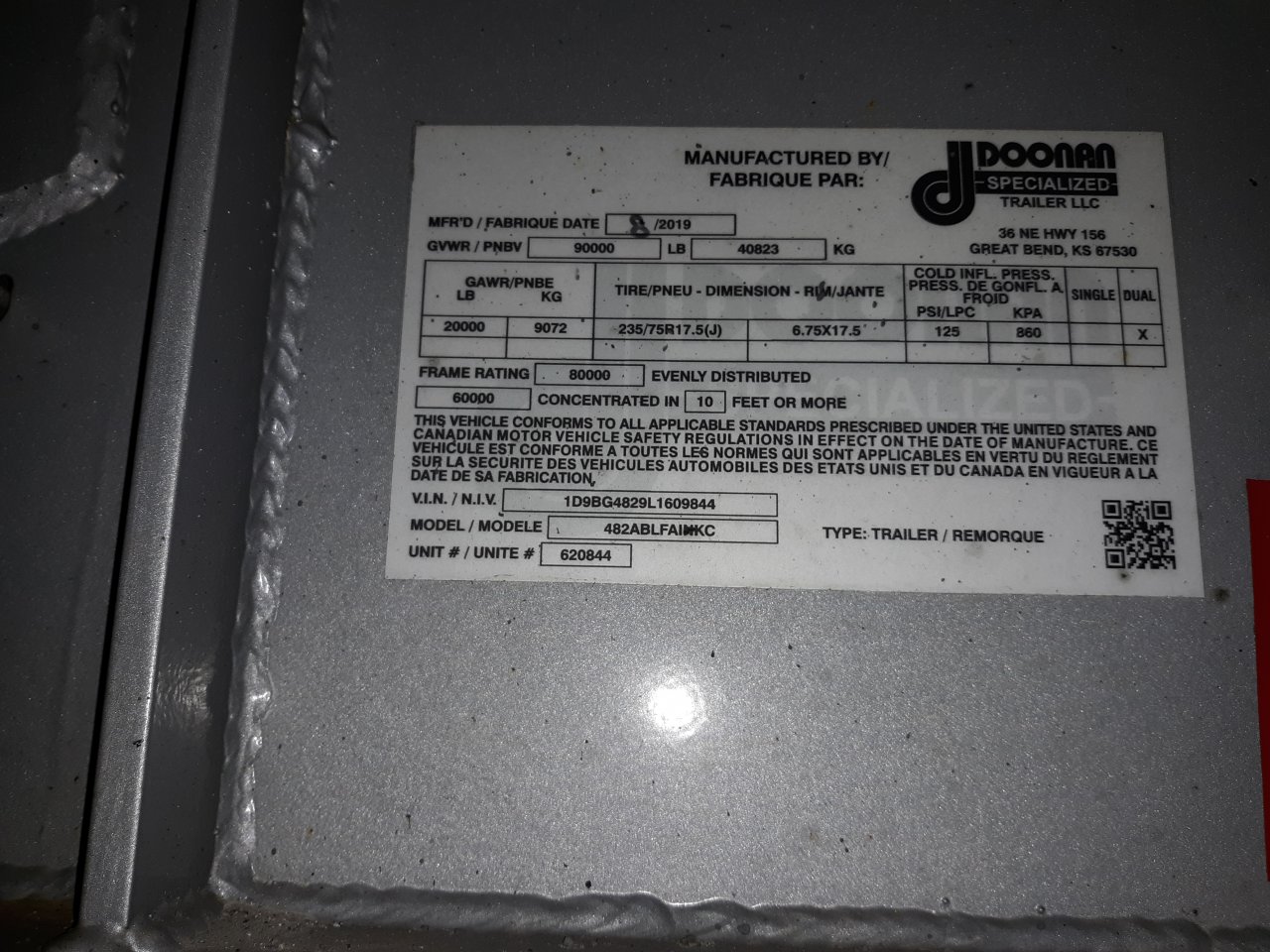

    One thing I don't like is I'm guessing the hendrickson suspension is only rated for 20k per axle.? It has 23k axles, & 22,700lb worth of rubber per axle. Be nice if the axle were stickered for 22,500-22,700lbs as to take advantage of that when hauling over 80k gross. I looked at the tag on an aluminum Doonan Chaparral II triple, similar to mine. I believe it was 110k lb gross, 70k lbs in 10' or more..

    It's an aluminum frame Doonan, short 8' upper, 40'5" lower. The gooseneck transition is steel. 17.5" tires, 36.5" at the arc, bout 34.5" closer to step, or tail. Apitong deck. I would have got chain pulls had I spec'd it, but I bought it off a lot. Has J plates, & can locks for 2 20's, or a 40'..






  10. Trucker indiana

    Trucker indiana Light Load Member

    62
    39
    Aug 5, 2019
    0
    It may be yo be honest. I was talking about 10 speed as not super 10. But yes probably over drive not 1 to 1 since top gear is .74

    singlescrewshaker Thanks this.
  11. Trucker indiana

    Trucker indiana Light Load Member

    62
    39
    Aug 5, 2019
    0
    Ok dove tail is the kind that has ramps?

    singlescrewshaker Thanks this.
