8Axle Stretch step deck can handle this load no problem.

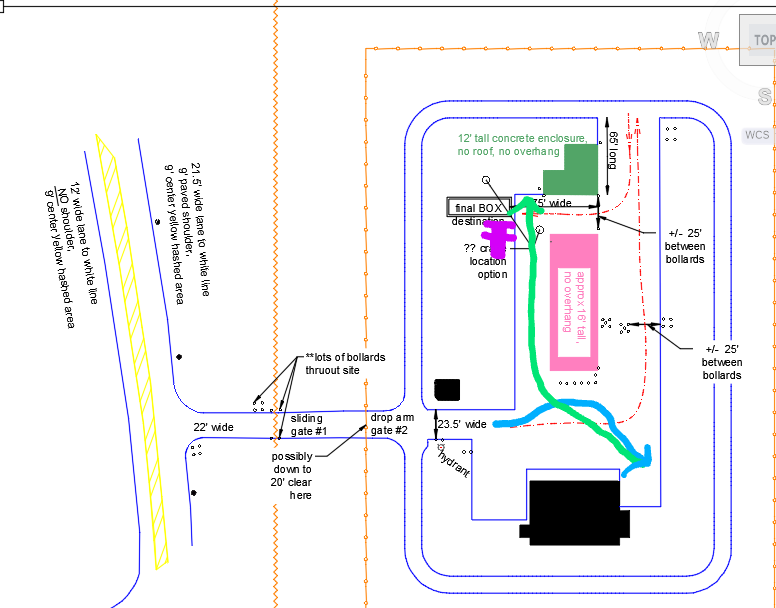

I added what I would do with my setup below. Blue line is coming in off the road. Green line is backing into place to unload. Crane is the purple spot. Pick and swing right there also reduces the lift radius on the crane compared to reaching way out. This option is based on the information you provided.
If you want ro go in the other way you are almost certainly going to need something steerable.
With my stretch step I would be about 90-100Feet long if the entire load has to be supported. Can be a bit shorter if it can overhang at least 5 feet. Overhang would also reduce trailer wheelbase making maneuverability better.
have I got any oversize haulers here???
Discussion in 'Flatbed Trucking Forum' started by Qbf594, Mar 19, 2024.
Page 2 of 2
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
-
-
welp, guess I need to pry more info out of the vendor. this type of equip is all custom so I can't say they've shipped this same configuration before but I'm guessing they have an educated expectation that they can do this- they had a person on site for the site visit. But if I (my company) is putting a $ on it I'd like to have a pretty clear plan in my head, ya know?
AND THAT, my friends, is why you guys are the best
Another Canadian driver and Tug Toy Thank this. -

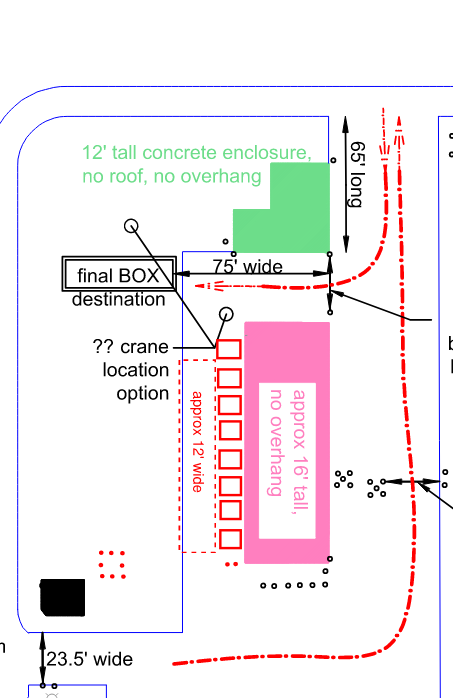

if only I could... I didn't include the whole length of small sheds along that side of the building. There's about 12' clear... we would have to do extensive ground prep in the unpaved area to support if it really that heavy.... plus of course more bollards lol.... about 28' clear between bollards in unpaved area and corner of structure
###### I'm glad I asked- I had NO IDEA how long trailers would get under these conditions.....
Another Canadian driver, Vampire, OLDSKOOLERnWV and 1 other person Thank this. -
You’re going to wear out your steers by driving so squiggly.
-
Another Canadian driver Thanks this.
